07/2002 Editio n Student G uide HS -50 Advanc ed II 7 X-Axis 14 (1) Elastomeric spr ing 25 x 10.5 x 50 (90 Shore A) From ite m numbe r 00301040 -01 (2) X-axis scal e for HS50 From ite m numbe r 00329316 -01 (3) Deflect…
Student Guide HS-50 Advanced II 07/2002 Edition
7 X-Axis
13
3DUWVRYHUYLHZ
(1) Tensioning key (00329478-01) (2) Tensioning key (00329485-01)
(3) X-axis motor unit (00333167-02) (4) Linear motor, primary part (00333148-01)
(5) Toothed belt, Synchroflex 50ATS5/1205, E9/11 (00331076-01)
07/2002 Edition Student Guide HS-50 Advanced II
7 X-Axis
14
(1) Elastomeric spring 25x10.5x50 (90 Shore A) From item number 00301040-01
(2) X-axis scale for HS50 From item number 00329316-01
(3) Deflection unit X From item number 00330938-01
Student Guide HS-50 Advanced II 07/2002 Edition
7 X-Axis
15
6DIHW\SUHSDUDWLRQ
3RLQWVWRQRWHEHIRUHVWDUWLQJVHUYLFLQJZRUN
➠
End all placement operations on the placement system.
➠ Disconnect the component table of the gantry concerned, if necessary.
➠ Switch the placement system off at the main switch.
➠ Wait until the operating system has shut down and the UPS has switched off.
➠ Disconnect the placement system from the power supply.
➠ Disconnect the placement system from the compressed air supply.

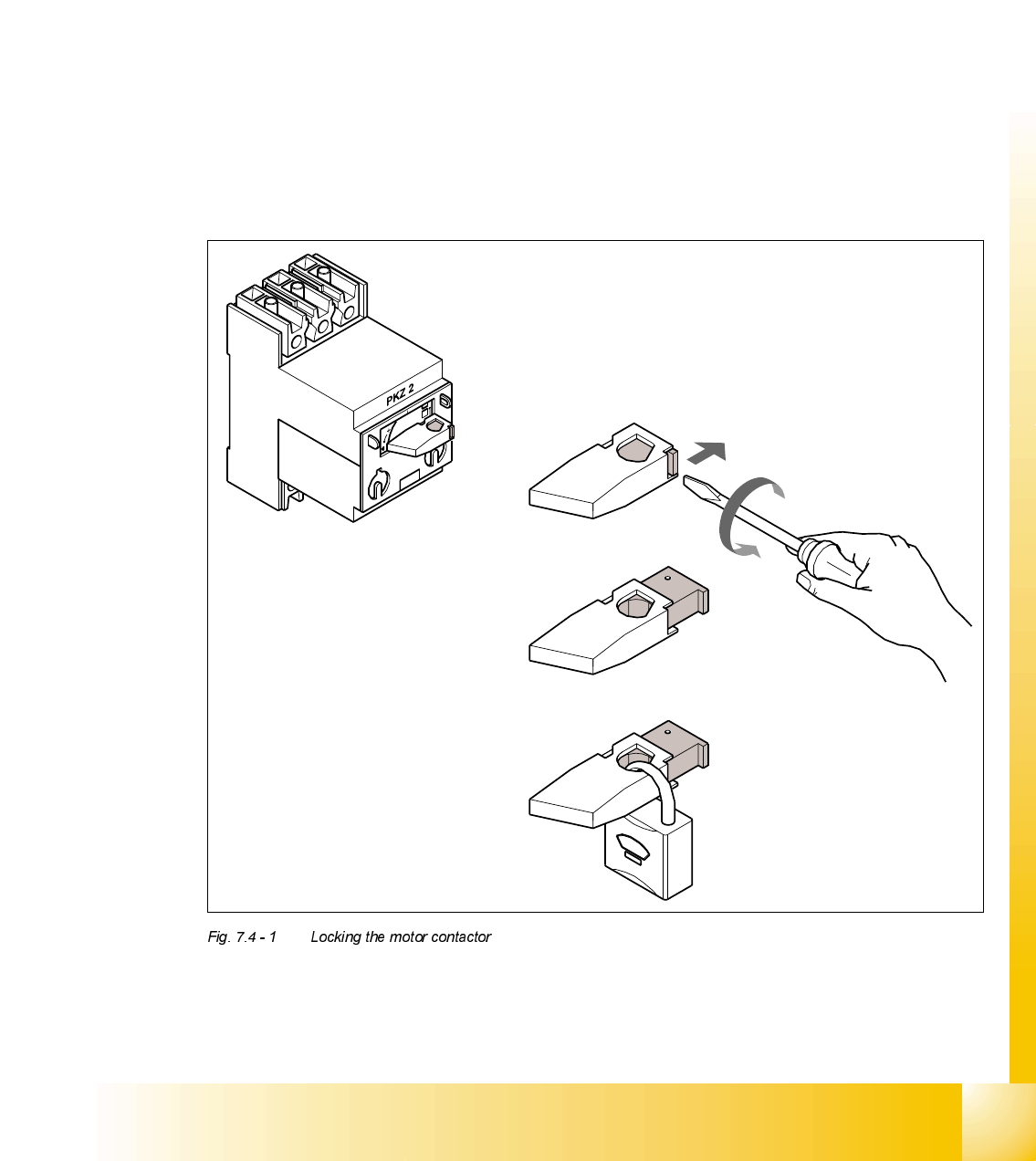

➠ Switch off the motor contactor in the power supply unit and secure the operating lever with a
padlock.
(1) Turn the operating lever (1) counter-clockwise.
(2) Use the screwdriver to push the locking lug (2) out of the operating lever (1).
(3) Secure the operating lever with a padlock (3).
