Student Guide HS-50 Advanced II 07/2002 Edition
14 Conveyor System
13
/D\RXWRI0HFKDQLFDODQG(OHFWULFDO$VVHPEOLHV
07/2002 Edition Student Guide HS-50 Advanced II
14 Conveyor System
14

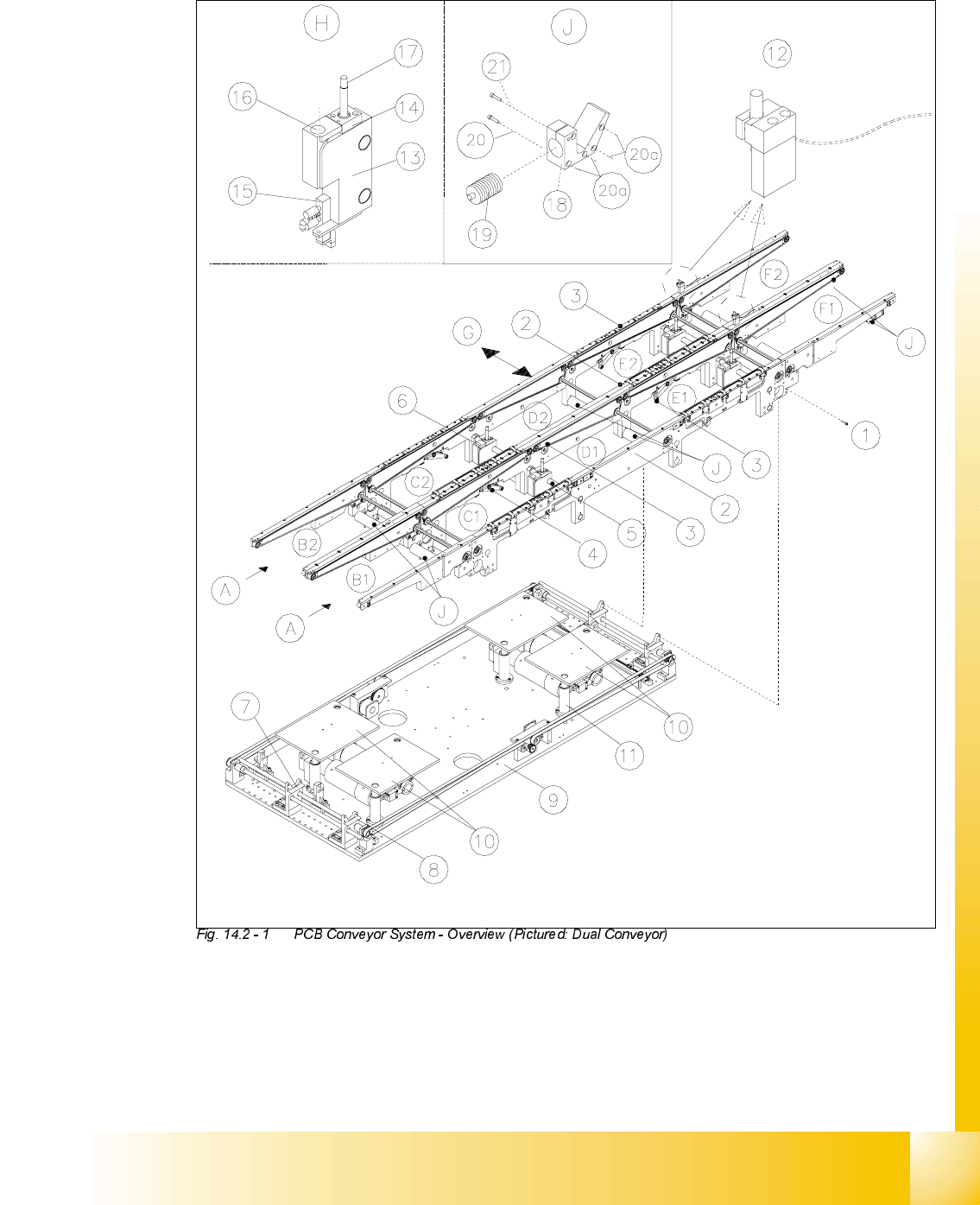

Key to
A) PCB transport direction B) Input (B1 / B2)
C) Placement area 1 or 2 (C1 / E1) D) Intermediate conveyor (D1 / D2)
E) Placement area 3 or 4 (C2 / E2) F) Output belt (F1 / F2)
G) Travelling direction of width adj. system H) Detail: PCB stopper
I) -------------- J) Detail: Sonar proximity switch mount sensing
head of proximity switch
1 Screws to fasten the conveyor assem-
blies to the slide unit of the conveyor
assemblies and the base unit
(two M5 hexagonal socket head cap
screws for each)
2 Fixed conveyor side, right-hand
(conveyor 1 / 2)
3 Movable conveyor side, left-hand (con-
veyor 1 / 2)
4 Rocking lever (2 levers per conveyor 1 / 2)
5 Stopper pin at top and bottom 6 PCB stopper (per placement area)
7 Conveyor mount 1
(2 each per movable side)
8 Conveyor mount 2
(2 for each fixed side)
9 Mounting plate for PCB handling unit 10 Lifting table plate (2 for each conveyor 1/2)
11 Guide pillars for lifting table plate 12 Proximity switch for the wide adjustment sys-
tem (per movable side)
13 PCB stopper, basic module 14 Cover with inductive proximity switch for
stopper position
15 Solenoid valve to move stopper in and
out
16 Sonar proximity switch for check on presence
of PCB
in placement areas 1 to 4
17 Piston rod 18 Mount for sonar proximity switch
19 Sonar proximity switch for check of PCB
present in input, intermediate and
output conveyor
20 Fasteners for sonar proximity switch mount
2 hexagonal socket head cap screws M3 x20,
using holes 20a or 20b, depending of con-
veyor area
21 Clamping unit for sonar proximity
switches (sensing head): 1 hexagonal
socket head cap screw M3 x 16
22 -----------
