7 X-Axis
35
0HFKDQLFDOVHWWLQJV
%HOW7HQVLRQRI;$[LV
0HDVXULQJ'DWDDQG$LGLQJ7RROV
0HDVXULQJ6HTXHQFH
➠ Move the x-slide against the stop on the motor side.
➠ Measure the belt tension on the side of the placement head.

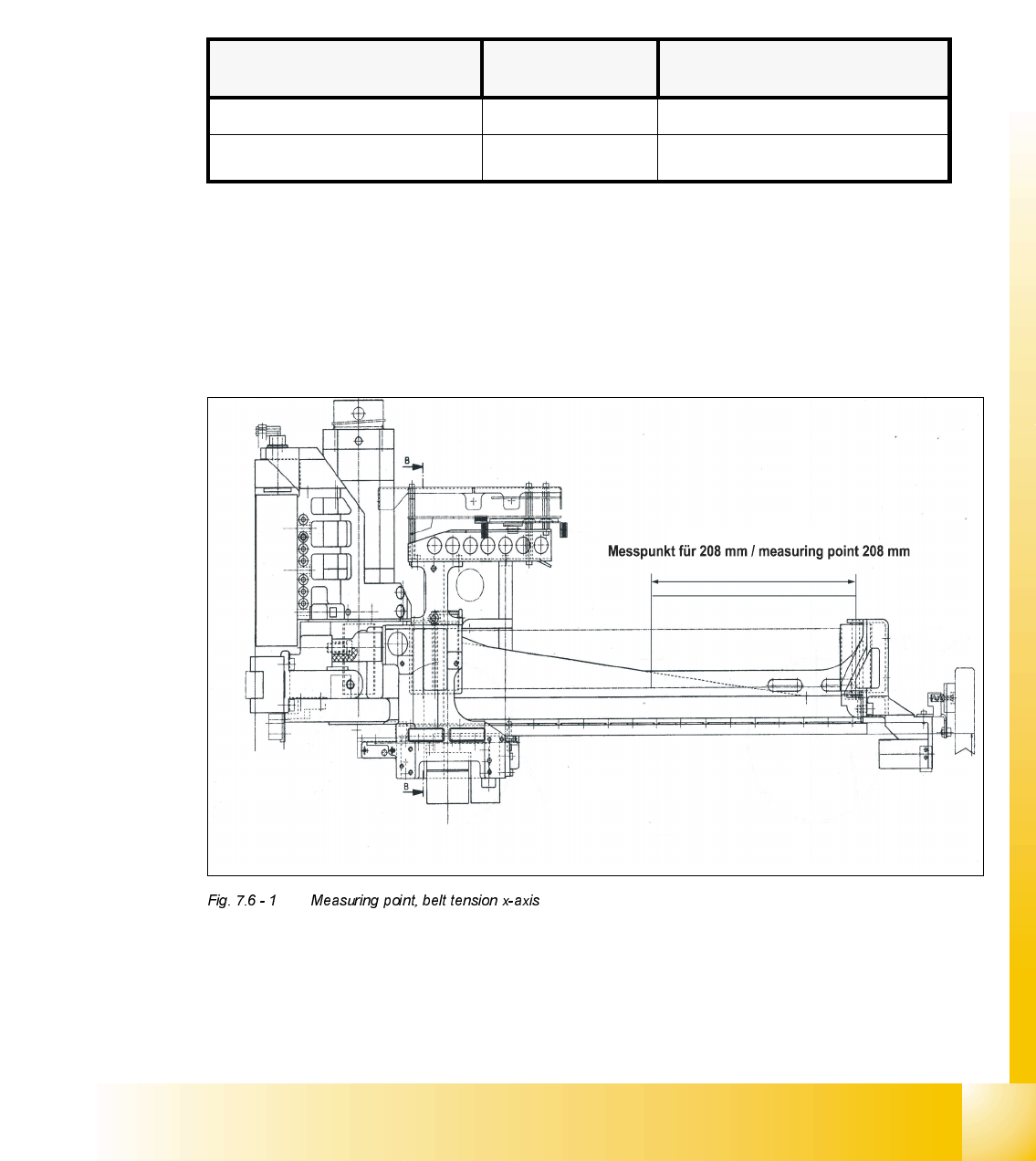

➠ Center the measuring pin of the belt tension measuring device, 208 mm away from the
deflection pulley of the open ended toothed belt, as close as possible to the belt.
%HOW%UDQGQHZ %HOW6KUXQNDIWHUDSSUR[
KRXUVRIRSHUDWLRQ
toothed belt to be measured frequency (Hz) frequency (Hz)
at the x-axis (open ended) 53 Hz +1 / -3 Hz 53 Hz +1 / -3 Hz
07/2002 Edition Student Guide HS-50 Advanced II
7 X-Axis
36
.(<
(A) Detail, zoom
(1) Chuck key
(2) Chuck key
(3) Head screw M4 x 35 to tension the toothed belt
(4) Head mounting
(5) Toothed belt of x-axis
(6) Deflection unit X
(7) Spacer disk with Benzing-U-Clip
(8) Head screw M4 x 5
(9) Synchronizing disk, short
(10) Synchronizing disk, long
A
A
1
8
7
9
10
2
3
1
2
4
5
6
Student Guide HS-50 Advanced II 07/2002 Edition
7 X-Axis
37
➠ Strike the toothed belt, to reach a stimulation of vibration on the open ended toothed belt.
➠ If the frequency of the belt tension does not reach a value of 53 Hz +1 / -3 Hz, you must tension
the belt with the help of the head screw (3) on the belt key of the x-axis.
NOTE
Repeat these instructions, until the belt tension is correct.
3UR[LPLW\6ZLWFK;$[LV
NOTE
The distance between both proximity switches of the x- and y- axis, is set to 0.2 mm.
(Measured from the operational plane).
