07/2002 Edition Student Guide HS-50 Advanced II
3 Power Supply
24
PCC*)
y axis
x axis
star axis
dp axis
z axis
PCB conveyor
PCB clamping
Width adjustment
PCB stopper
Lifting table
Used tape cutter
Active
Yes
Voltage
200V
200V
100V
30V
30V
Active
Yes
Yes
Yes
Yes
Yes
Yes
PCC*)
y axis
x axis
star axis
dp axis
z axis
PCB conveyor
PCB clamping
Width adjustment
PCB stopper
Lifting table
Used tape cutter
Active
No
Voltage
0V
0V
6V
30V
30V
Active
Yes
No
Yes
No
No
No
PCC*)
y axis
x axis
star axis
dp axis
z axis
PCB conveyor
PCB clamping
Width adjustment
PCB stopper
Lifting table
Used tape cutter
Active
No
Voltage
0V
0V
6V
30V
30V
Active
No
No
No
No
No
No
*) PCC Protective contactor combination
Startbutton pressed
Compressed air
min. 5.0 bar?
Emerg.stop button
pressed?
Component table safety
circuit interrupted?
Protective cover open?
Key switch
closed (position “I”)?
Yes No
YesNo
No
Yes
Yes
Yes
No
No
Student Guide HS-50 Advanced II 07/2002 Edition
3 Power Supply
25
+24V
pressur sensor
E-stops
protective covers
component table
component flaps
SZ4
X3 (Input)
X4 (Input)
X7 (Input)
X8 (Input) X16 (Input)
X1 (Input)
X5 (Input)
X9 (Input)
X2 (Output)
+24V
Key
left side
Key
right side
Key
Key
Output
Conveyor
Start
Stop
Start
Stop
Start
Stop
Start
Stop
Key
Key
Intput
Conveyor
Start
Stop
Start
Stop
L+ X1 X3 X5
L- X2 X4 X6
X11 (Input)
+24V
SSK
Ctrl _ON
SZ4SZ3SZ2SZ1SZ23
Ready
GND
SZ23
Contro l_ON
X14
To be able to start the machine the
safety loop must be closed . The safety
loop consists of:
E-Stops
Component flaps
protective covers
component tables
pressure sensor
With the safety loop closed two functions are fullfilled :
Via the SLIO-module 1
and the
CAN-Bus all devices
are recognized and no error message is sent from the
machine controller to the station computer.
24V are also connected to the SSK giving the
permission to activate the machine software .
07/2002 Edition Student Guide HS-50 Advanced II
3 Power Supply
26
 66.DQGVRIWZDUHUHOHDVH
The placement system cannot be used in placement mode until all the supply voltages have been
enabled by the protective circuit. The following conditions must also be fulfilled:
– All four component change-over tables must be docked.
– All covers must be closed.
– Both emergency stop push-buttons must be released.
– All four component flaps over the component tables must be closed.
– The software enable signal must have been sent.
The enable signal is then sent to contactor SZ4 in the power supply unit via port 2 (X2dm) of CAN
input/output module 1 in sector 4 of the distribution board (see block diagram "Distribution board,
sector 4, 00336153-XXXXXXTD3 in the detailed circuit diagrams).

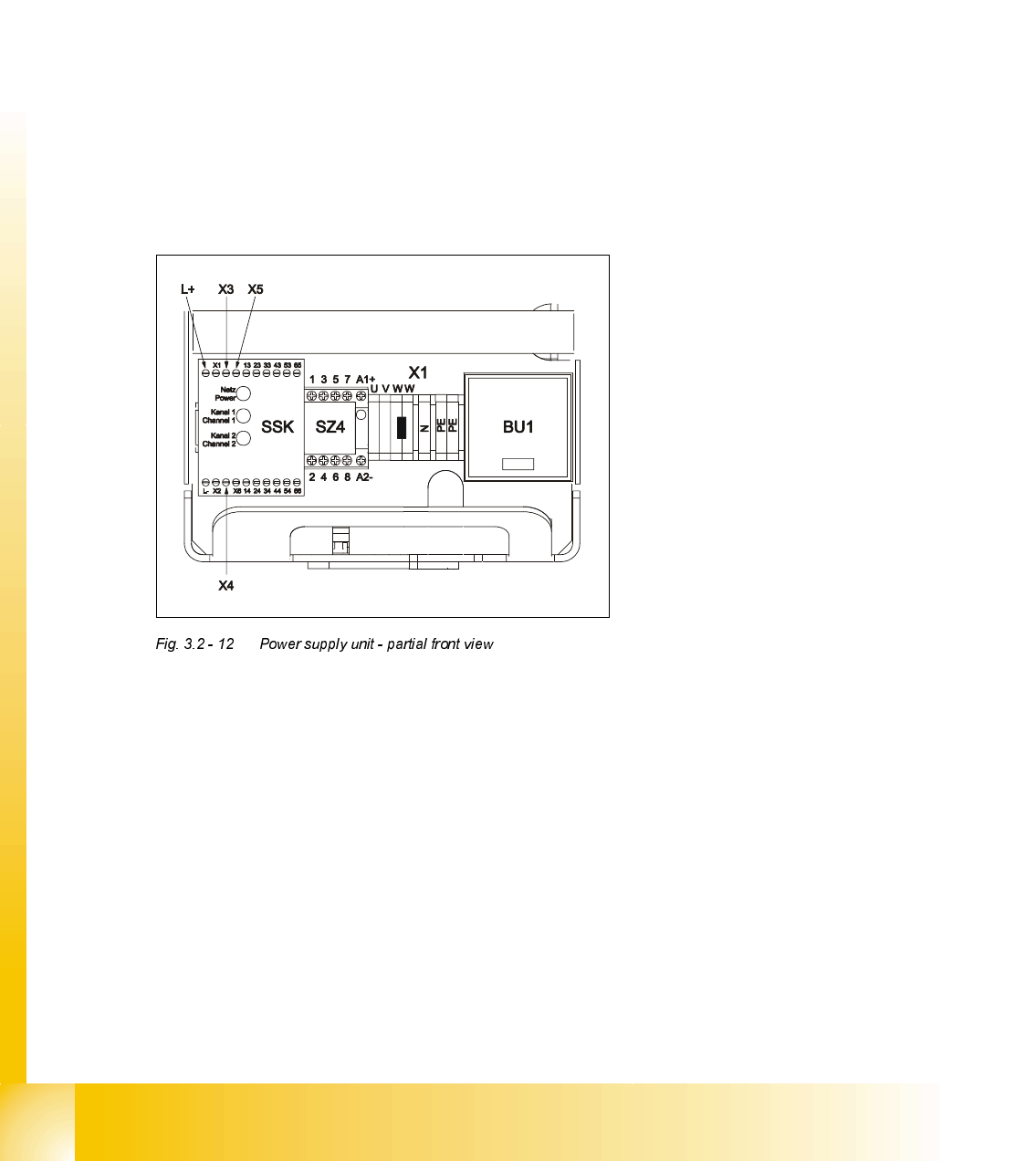

Contactor SZ4 switches 24 VDC to
– L+ on the combined contactor/protective device SSK
– the Start button at X4 of the SSK and
– the emergency stop loop at X3 and X5 on the SSK.
If 24 V is present at L+ on the SSK, the green "Power" LED on the SSK will light up. The message
"M ready" is returned to the computer via port 1 (X1dm) of the CAN input/output module 1 in sector
4 of the distribution board. If the safety loop is closed (covers closed, emergency stop button not
pressed), 24 V is sent to terminals X3 and X5 on the SSK.
If one of the Start buttons is pressed, the SSK switches and the green LEDs for channel 1 and
channel 2 light up. The five normally open contacts on the SSK switch five independent circuits
(see HS-50 power supply, 00336145-010101LD4, in the detailed circuit diagrams):
