Student Guide HS-50 Advanced II 07/2002 Edition
7 X-Axis
37
➠ Strike the toothed belt, to reach a stimulation of vibration on the open ended toothed belt.
➠ If the frequency of the belt tension does not reach a value of 53 Hz +1 / -3 Hz, you must tension
the belt with the help of the head screw (3) on the belt key of the x-axis.
NOTE
Repeat these instructions, until the belt tension is correct.
3UR[LPLW\6ZLWFK;$[LV
NOTE
The distance between both proximity switches of the x- and y- axis, is set to 0.2 mm.
(Measured from the operational plane).
07/2002 Edition Student Guide HS-50 Advanced II
7 X-Axis
38
-XPSHU6HWWLQJVRQWKHVWDQGDUG+HDG%RDUG+6
.(<
(1) Component camera
(2) Video signals PCB camera
(3) Illumination PCB camera
(4) Limit switch x-axis
(5) Limit switch x-axis
(6) Track signals x-axis
Portal 1 / gantry 1
Portal 2 / gantry 2
Portal 3 / gantry 3
Portal 4 / gantry 4
(7) Ejection of valve drive
(8) Placement of valve drive
(9) Motor / tacho dp - station
(10) Swivel - in motor, dp - station
(11) Vacuum test board
(12) Intermediate distributor SP 6 - 12, digital
Student Guide HS-50 Advanced II 07/2002 Edition
7 X-Axis
39

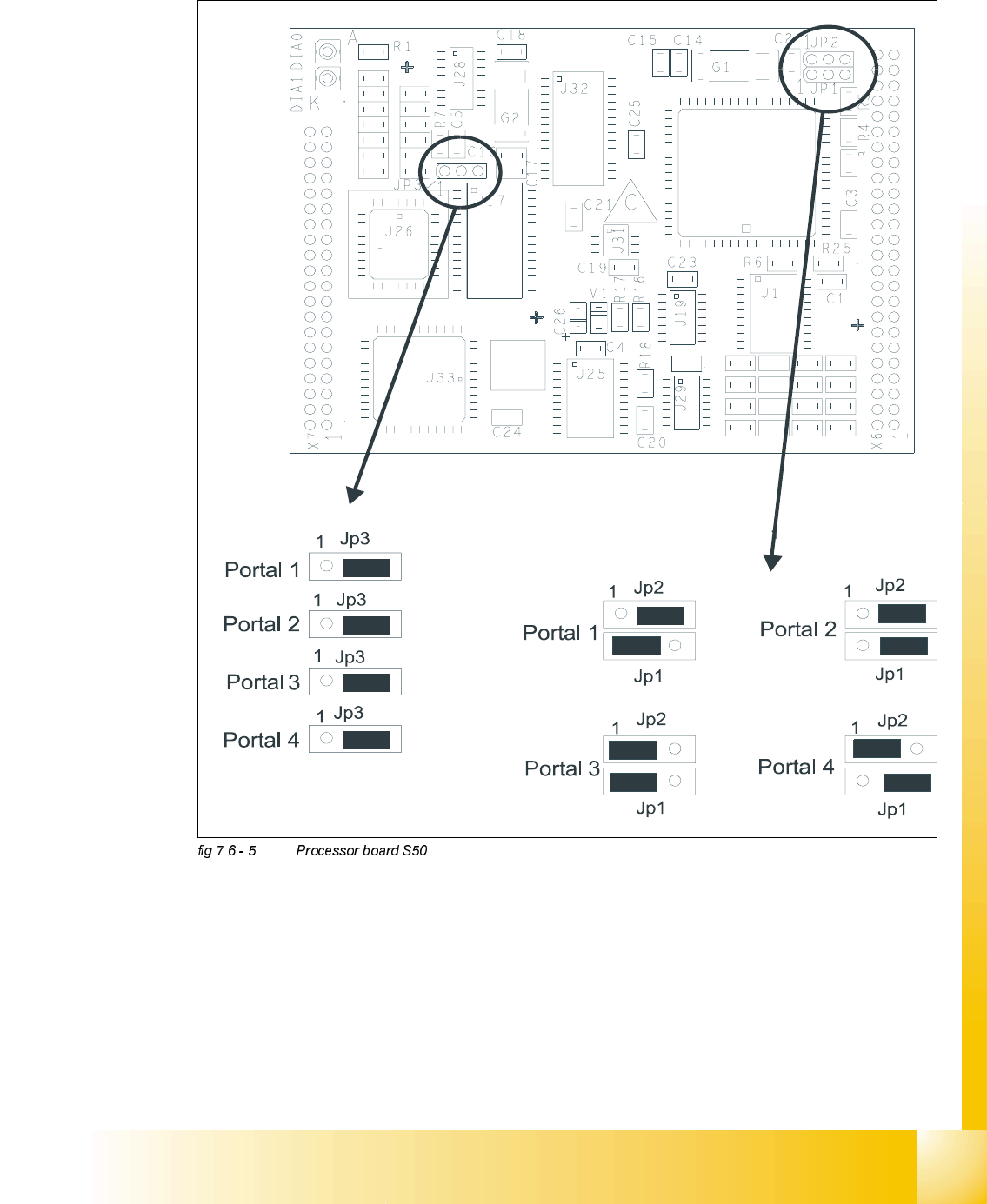

-XPSHU6HWWLQJV3URFHVVRU%RDUG6
R12
R19
R24
R20
R23
R22
R21
R12
C10
C9 R11
R10
R 9
R8
R15
R14
R13
C13
C12
C11
C13
C12
C11
