RL131
MAINTENANCE MANUAL
4.1 Control System Configuration
DA8MEC-14-020-A0
4.1-25
I / O MAP OUTPUT
Board
connector
Address
No.
Name bit
Note
273
Feeder operation 25 0
274
Feeder operation 26 1
275
Feeder operation 27 2
276
Feeder operation 28 3
277
Feeder operation 29 4
278
Feeder operation 30 5
279
Feeder operation 31 6
#14_CN6 03A3
280
Feeder operation 32 7
281
Feeder operation 33 0
282
Feeder operation 34 1
283
Feeder operation 35 2
284
Feeder operation 36 3
285
Feeder operation 37 4
286
Feeder operation 38 5
287
Feeder operation 39 6
#14_CN8 03A4
288
Feeder operation 40 7
289
Feeder operation 41 0
290
Feeder operation 42 1
291
Feeder operation 43 2
292
Feeder operation 44 3
293
Feeder operation 45 4
294
Feeder operation 46 5
295
Feeder operation 47 6
#16_CN5 0420
296
Feeder operation 48 7
297
Feeder operation 49 0
298
Feeder operation 50 1
299
Feeder operation 51 2
300
Feeder operation 52 3
301
Feeder operation 53 4
302
Feeder operation 54 5
303
Feeder operation 55 6
#16_CN7 0421
304
Feeder operation 56 7
305
Feeder operation 57 0
306
Feeder operation 58 1
307
Feeder operation 59 2
308
Feeder operation 60 3
309
Feeder operation 61 4
310
Feeder operation 62 5
311
Feeder operation 63 6
#16_CN9 0422
312
Feeder operation 64 7
313
Feeder operation 65 0
314
Feeder operation 66 1
315
Feeder operation 67 2
316
Feeder operation 68 3
317
Feeder operation 69 4
318
Feeder operation 70 5
319
Feeder operation 71 6
#16_CN6 0423
320
Feeder operation 72 7
RL131
MAINTENANCE MANUAL
4.1 Control System Configuration
DA8MEC-14-020-A0
4.1-26
I / O MAP OUTPUT
Board
connector
Address
No.
Name bit
Note
321
Feeder operation 73 0
322
Feeder operation 74 1
323
Feeder operation 75 2
324
Feeder operation 76 3
325
Feeder operation 77 4
326
Feeder operation 78 5
327
Feeder operation 79 6
#16_CN8 0424
328
Feeder operation 80 7
#22_CNMC3 329
Vacuum pump ON 0
#22_CNMC2 330
1
#22_Inside 331
Main circuit ON 2
#22_CNBK1 332
3
#22_CNBK2 333
4
#22_Inside 334
Safety relay reset 5
#22_Inside 335
Motor 24V power ON 6
#22_Inside
05A0
336
Instantaneous stop detection reset 7
337
PCB supply CYL signal 0
#22_CNXOUT
338
1
339
Under maintenance ON 2
340
Not used 3
341
Not used 4
#22_ −
342
Not used 5
#22_CNMC4 343
Spare output 6
#22_CNMC5
05A2
344
Spare output 7
353
For direct start monitor 0
354
For direct start monitor 1
355
For direct start monitor 2
356
For direct start monitor 3
357
For direct start monitor 4
358
For direct start monitor 5
359
For direct start monitor 6
#23_CN5 05E0
360
For direct start monitor 7
361
For direct start monitor 0
362
For direct start monitor 1
363
For direct start monitor 2
364
For direct start monitor 3
365
For direct start monitor 4
366
For direct start monitor 5
367
For direct start monitor 6
#23_CN7 05E0
368
For direct start monitor 7
RL131
MAINTENANCE MANUAL
4.2 Pneumatic Controls
DA8MEC-14-030-A0
4.2-1
4.2. Pneumatic Controls
DA8MEC-14-030-A0

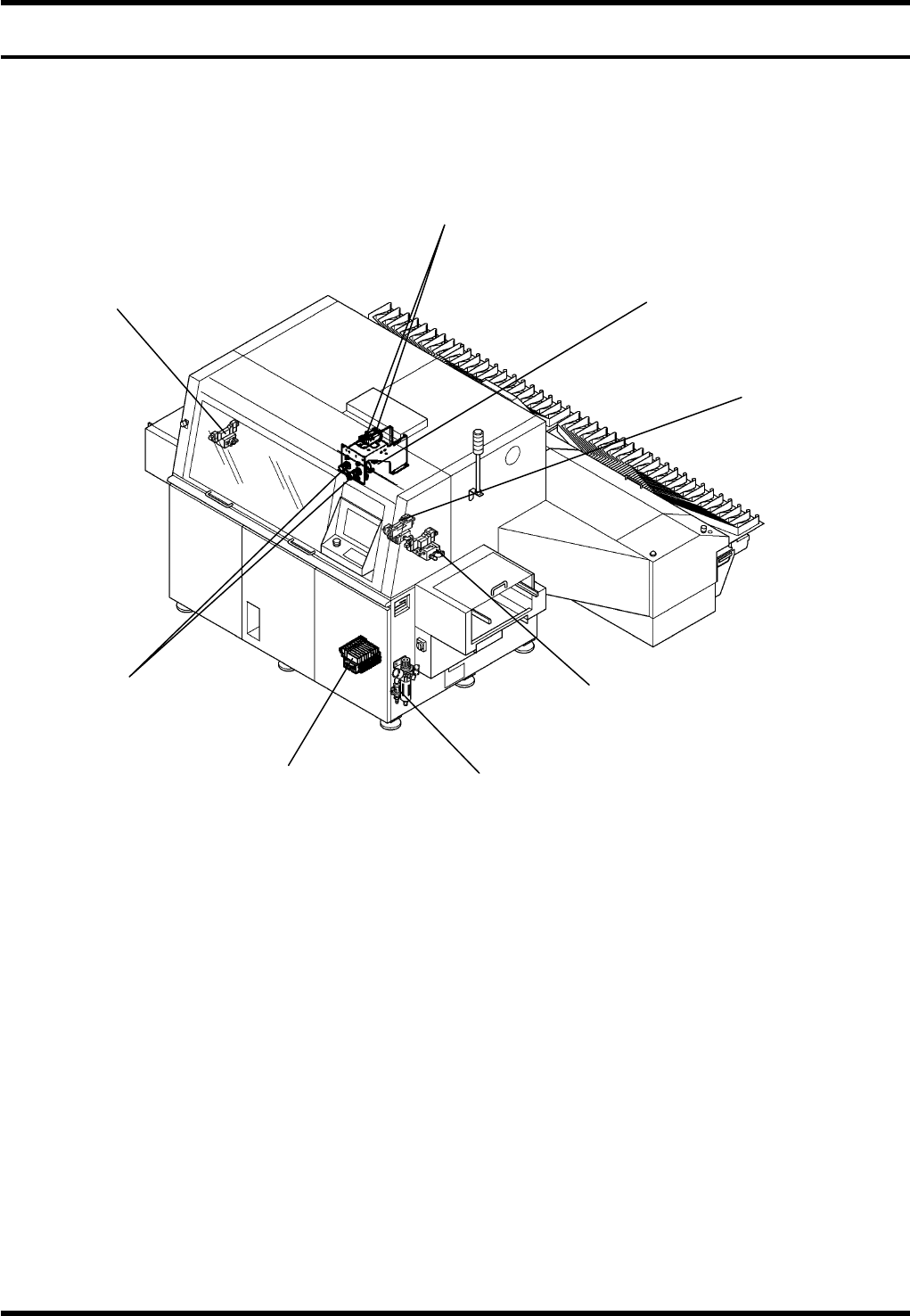

4.2.1 Pneumatic Control Unit Arrangement
1.
1. Manifold: NK-81221
2. Valve: AMC320-03B
3. Exhaust cleaner: AXT752A-8-D
4. Manifold: NK-80590-2
5. Manifold: NK-81220
6. Oil mist separator: NK-81197
7. Solenoid valve: VQZ1151-5L0
8. Regulator: AR2000-02
1.
2.
3.
4.
5.
6.
7.
