Page 2-20 444C-E-MMA02-A02-05 Procedures of Machine Parameter T eaching 28. Close the safety cover . 29. T urn ON the servo switch. 30. Press . • The nozzle will lower . 31. Adjust the head height by pressing UNLOCK + or…
Page 2-19
MACHINE PARAMETER
2
2
2
Procedures of Machine Parameter Teaching

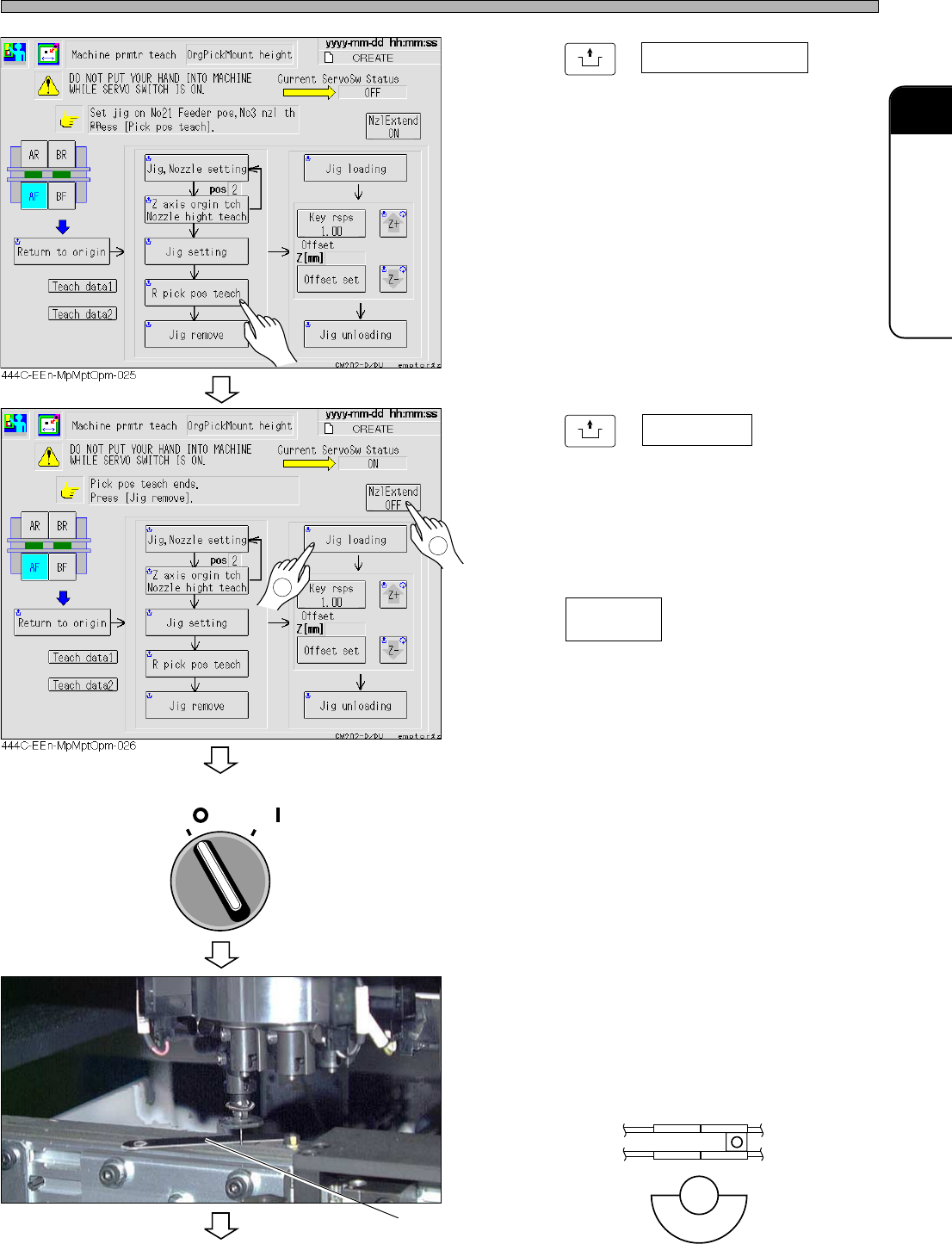

22. Press
UNLOCK
+ R pick pos teach .
• The nozzle at the pos 3 will be measured.
23. Press
UNLOCK
+ Jig loading .
• The jig is transported into the specified stage,
and the transfer head travels to the measuring
place on the jig.
24. Press .
• The nozzle will raise.
25. Turn OFF the servo switch.
26. Open the safety cover.
27. Put the thickness gauge (0.01 mm)
under the nozzle.
To the next page
OFF ( )
ON ( )
SERVO
2
444C-E-MMA02-A02-05
444C-421E
444C-459P
Thickness gauge
Nzl Extend
OFF
1
Page 2-20
444C-E-MMA02-A02-05
Procedures of Machine Parameter Teaching
28. Close the safety cover.
29. Turn ON the servo switch.
30. Press .
• The nozzle will lower.
31. Adjust the head height by pressing
UNLOCK
+ or .
32. Press Offset set .
• The teaching result will be saved by this
operation.
To the next page
NOTICE
After moving the head close to the guide, whenever lowering the head by 0.01
mm, move the thickness gauge back and forth.
Continue it until the head is at the height where the thickness gauge is not pulled
out smoothly.
The teaching result is the height of the head to which 0.01 mm is added upward.
Nzl Extend
ON
OFF ( )
ON ( )
SERVO
2
1
Page 2-21
MACHINE PARAMETER
2
2
2
444C-E-MMA02-A02-04
Procedures of Machine Parameter Teaching
33. Press
UNLOCK
+ Return to origin .
• Each axis will move to its origin position.
34. Turn OFF the servo switch.
35. Open the safety cover.
36. Remove the nozzles and the height
teaching jig.
37. Press .
• The “Machine Prmtr Teach menu” screen is
displayed.
OFF ( )
ON ( )
SERVO
444C-EEn-MpMptOpm-016
