MX-3600 / CXI3600MX / Specification
confidential 10/39 spec_mx3600_sys_10.11.doc
2.2. MX-3600 / X-RAY Imaging Tray
2.2.1. X – RAY Transmission Imaging
The X2 Imaging Tray is based on X-RAY transmission technique therefore
providing a maximum on resolution in conjunction with variable field of view
performance for an optimized application setup.
Fig. 6: X-Ray Transmission Technology
2.2.2. X – Ray tube and control system
The MX-3600 X-Ray source is specifically selected for high performance
transmission mode characteristics under high volume production conditions.
Key parameters are in this respect:
X-Ray Flux and Power
X-Ray Power Stability
High Resolution
Fast Ramp-up
Max. life time.
MX-3600 / CXI3600MX / Specification
confidential 11/39 spec_mx3600_sys_10.11.doc
For the X-Ray tube supply – two alternative closed X-Ray tube types are
proven for the X2 / X- Ray source performance:
(Please note this part definition may change - depends on the up to date X-
Ray tube quality performances)
125kV / Micro-Focus Kevex

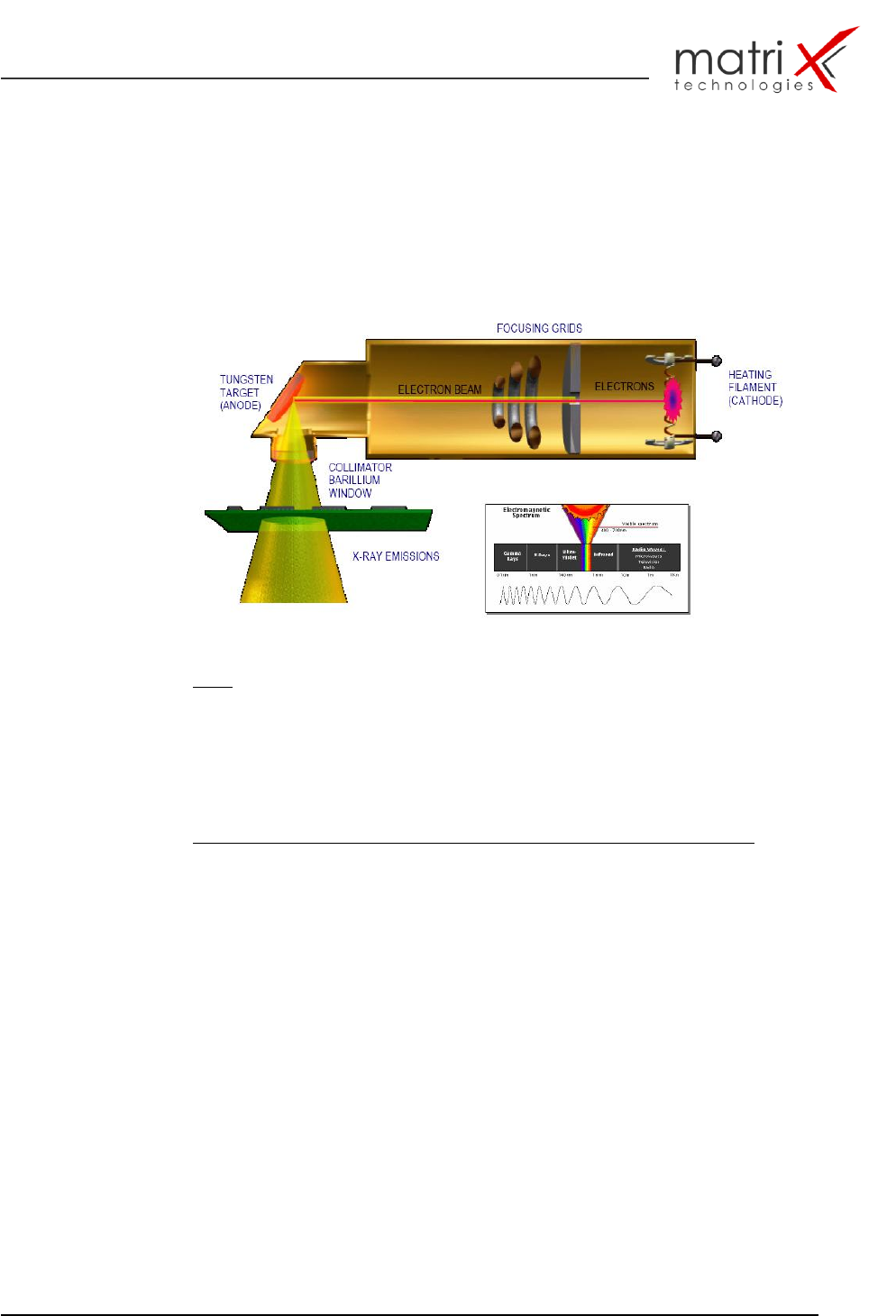

Fig. 7: Closed (Sealed) X-Ray tube principle
2.2.3. X-RAY tube features / Specification Items
Kevex 125kV
Tube Type
closed µfocus
Operating Voltage
40….130 kV
Target Current
up to 356µA
Max. Power
8W
Target Material:
Tungsten
Spot-Sizing:
Min.
Max.
10-15µ @ 4W
20µ @ 8W
Cooling:
Air-Cooling
MX-3600 / CXI3600MX / Specification
confidential 12/39 spec_mx3600_sys_10.11.doc
2.2.4. Detector Setup / MX-3600
The MX-3600 is configured with a high resolution image intensifier and a high
resolution digital camera. This detector setup is fully compatible to the X2
configuration, which provides a maximum on application compatibility
between the X2 and the CXI-MX-3600.
Image Intensifier Specification
The E58xx series from Toshiba is graded up to the new CsI direct deposit
technology in conjunction with current technologies of thick input screen with
a very fine pillar shape structure and a thin output screen on a single thick
glass output window with an anti-reflecting coating.
Image Intensifier Specification MX-IID4/2
Image Intensifier Type Dual 3/2 inch II (J-Advanced Technology)
X-Ray Characteristic Easier penetration of soft X-Rays
Resolution High Resolution Setup/ 77/110 lp/cm
Entrance Field Size N-Mode: 75 +/-5mm (3 inch)
M-Mode: 50 +/- 5mm (2 inch)
Output Diameter 20 +/- 1mm
Digital Camera Specification
Digital monochrome camera link camera with 12 bit greylevels/pixel.
Camera Specification MX-DCL1k
Dig.Camera Spec.
X2-Setup
Output Diameter
20 +/- 1mm
Camera type
HR monochrome camera / high sensitive
2/3 inch progressive scan
Pixel-area
1360 x 1024
active area: 1028 x 1028
Max. framerate
20 fps
> 4 fps
Data Depth
10 bit
10 bit
Interface
Camera link
Camera Link
