1.3. MX-3600 / Inspection Functionalities

1.3.1. Inspection Process Requirements

 Post Reflow – Conveyor In-line Interfacing (SMEMA)

 Lead Free solder inspection capability

 Scan barcode for ser. number and product type

(top and bottom reader capability)

 Select inspection program via barcode or by central line server data

input

 Multi-Panel inspection capability

 Solder Joint and Component Inspection

 Result Data Report (Defect Tag, X-RAY Image, Measurement data by

request

 Sample board parameters:

Thickness: 0,8mm up to 5mm

Material: FR4 or similar

Warpage: <= 1 % of diagonal distance

Board edge 3mm

1.4. MX-3600 / System States

The following states are possible as result of an inspection process:

 Pass

No defects found, or defects left after full inspection run.

 Fail

There are pending defects found by an inspection system..

 Fail Overflow

The inspection system can set this state for a module with to many defects (in

this case are the individual defects not stored!).

 Fiducial-Fail

This state can only be set by an inspection system, if the fiducial test had

been failed. There are no individual defect records and the board does

typically need to be re-inspected until this error does not occur anymore

 Board-Check Fail

A special multi panel case – if a panel board check fails – the inspection will

stop and jump to the next panel and start with inspection process again. If the

last panel fails – the inspection is finished – the board will send out!

MX-3600 / CXI3600MX / Specification

confidential 8/39 spec_mx3600_sys_10.11.doc

2. System Specification / Hardware

2.1. MX-3600 / Basic X-RAY System Cabinet

2.1.1. X – Ray System Cabinet / Overview

The lead shielded cabinet includes a safety lock system, which is

independently controlling all possible opening points of the system. An extra

lead shielded X-Ray box in the top part of the cabinet is housing the x-ray tube

assembly with the z-axis motor drive.

On the transportation level (main) part of the cabinet the x-y table is mounted

with adjusted connection areas left and right for the In – and Output conveyor.

The bottom part of the cabinet is equipped with a fully redesigned and new

rear tray assembly in the back and with the detector assembly and the control-

computer setup in the front section.

The external in and out conveyor assemblies are mounted on the left and right

cabinet wall using a small gap-window (3 inch) on both sides for the sample

load and unload procedures.

As the left and right conveyors have more then 800mm length – no extra x-ray

safety shutter-system is required.

The system is upgraded according the EU-2004 X-RAY safety regulations and

is meeting the the current German an EU standards.

The CXI-MX-3600 system meets also the CDRF US-Standard for X-RAY

equipment.

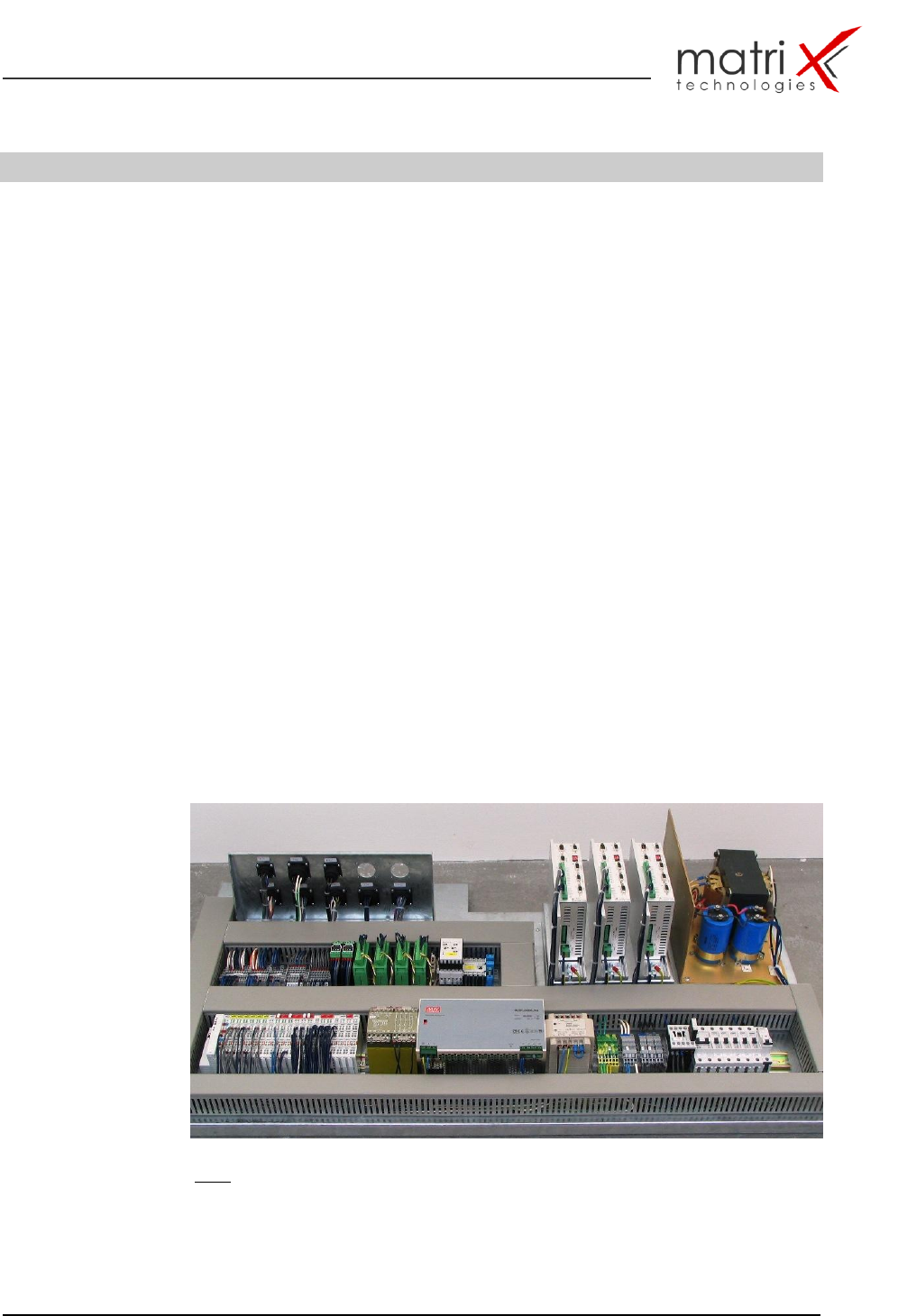

Fig 5: CXI-MX-3600 / new rear tray design

MX-3600 / CXI3600MX / Specification

confidential 9/39 spec_mx3600_sys_10.11.doc

2.1.2. Basic System Features / Specification Items

System Cabinet Conditions:

 MX-3600 System Dimension: w=3.300 x d=1530 mm x h=1.400mm

w=130’’ x d=60’’ x h=55’’

 Ground floor clearance: > 80mm

 Transportation Height SMEMA: 950…1000mm

 Number of feet: 4

 MX-3600 weight: ca. 1.800 kg

 Max. weight/foot-point: < 500kg/point

 Lead shielding thickness: 3-5mm

 Transportation Height SMEMA: 95…100mm

 System Colour white/grey RAL 9002

 Operator & Safety Labelling: English or German

Power, Environment & Interface Conditions:

 Power Connection: 230V(208…240)/25 A (2 phase)

 Max. Power Consumption: 4 kW

 Main Power Switch 1

 External Service Power Point: 4 x 110V

 Air pressure: 6 bar / up to 140l/h max

 Network Connection: 2 internal connection points

(Control PC)

1 external service connection points

 Barcode Connection Point: RS232 Connection point

 SMEMA Interface Standard for In and Out Conveyor

Safety, ESD & Lighting Operations

 Light-Tower 3 lights in 3 colors

Optional: LED Setup Alarm Siren

 Emergency Switches 3 (Input & Output & XRAY control

panel)

 Noise < 68 dB in 1 m distance

 ESD Ground Connection Point: 2 x Front Side
