MX-3600 / CXI3600MX / Specification

confidential 26/39 spec_mx3600_sys_10.11.doc

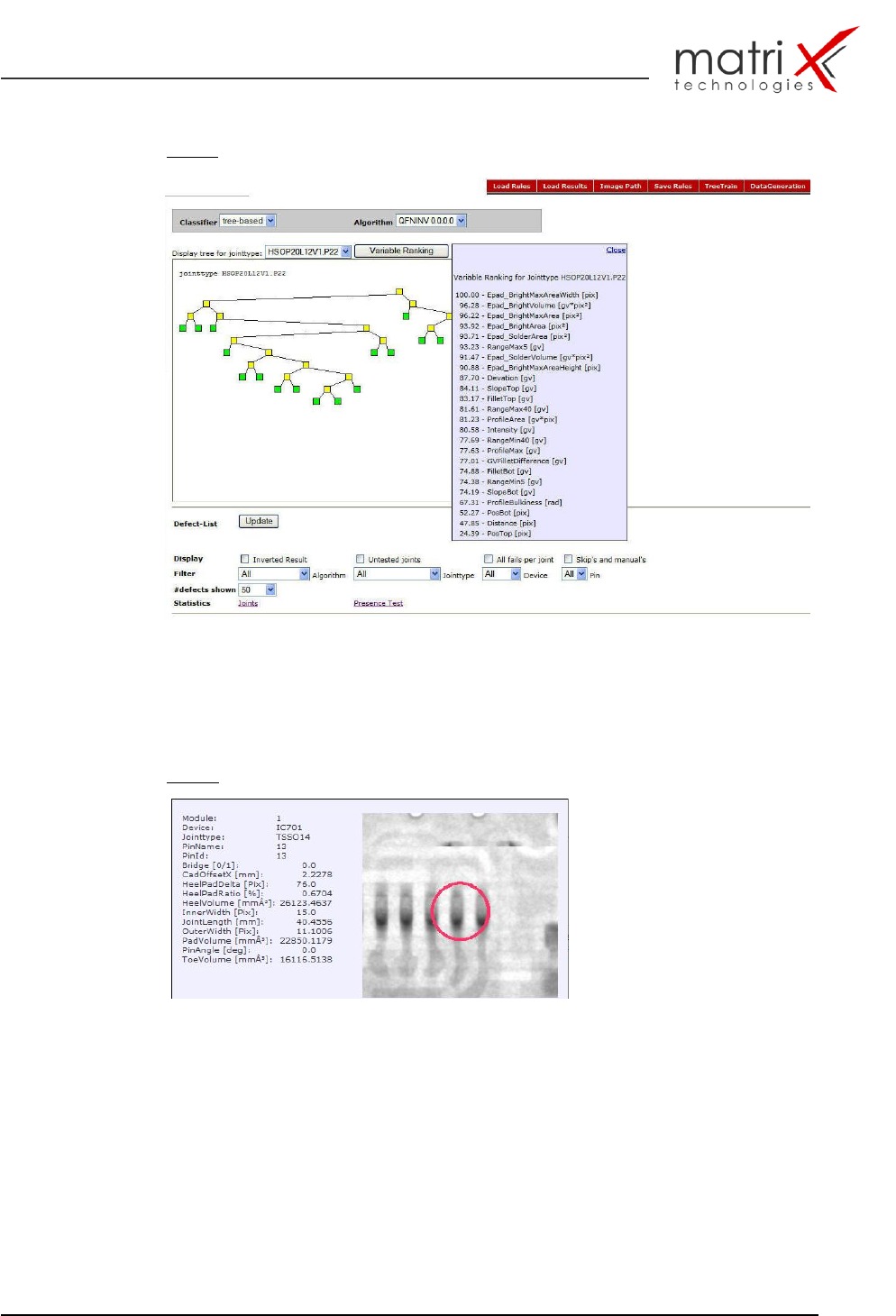

Fig.15c: Tree Classification

Autorules can be generated with the TreeTrain feature of the classifier software.

For those autorules a tree-based presentation per joint type with variable ranking

information is available.

Fig.15d: Defect Tag with integrated image presentation

Statistically evaluated defect tags with integrated image presentation

MX-3600 / CXI3600MX / Specification

confidential 27/39 spec_mx3600_sys_10.11.doc

Fig.15e: Process Stability Presentation

MX-3600 / CXI3600MX / Specification

confidential 28/39 spec_mx3600_sys_10.11.doc

3.5. X-SPC / real Time Process Control Software

MX / real-time SPC functions

 yield/ppm statistic table

Table 7: yield/ppm table

 Yield display

…..based on boards or panels, including reject boards, etc.

Yield is given as a percentage of accepted boards. Optionally can the First

Pass Yield (Yield before Verify) enabled and reviewed.

 ppm display

The ppm figures are calculated based on joints or components, depending

on the type of defect (Pick & Place vs. solder defect, defined within the

custom defect table).

 Per defect (ppm) display

The per defect data could be reviewed graphically or using numbers.

The figures will be given in percent (based on the sum of all defects), or ppm

(using all joints or components as the base)

 Automatic process warnings (based on yield, ppm and defect types)

Various, custom definable alarms can be set. If any of them did exceed the

operator has to quit the alarm, prior to continue with normal operations.

This function includes also: a log function for process warnings

Optional:

 Graphical defect distribution layout

…displays - based on the graphical CAD layout - the defect distribution of all

selected boards from a specific board type. High number of defects means

large distribution markings.

 Top-Ten / Pareto defect statistics

graphical display statistic for defects and part types!
