MX-3600 / CXI3600MX / Specification

confidential 8/39 spec_mx3600_sys_10.11.doc

2. System Specification / Hardware

2.1. MX-3600 / Basic X-RAY System Cabinet

2.1.1. X – Ray System Cabinet / Overview

The lead shielded cabinet includes a safety lock system, which is

independently controlling all possible opening points of the system. An extra

lead shielded X-Ray box in the top part of the cabinet is housing the x-ray tube

assembly with the z-axis motor drive.

On the transportation level (main) part of the cabinet the x-y table is mounted

with adjusted connection areas left and right for the In – and Output conveyor.

The bottom part of the cabinet is equipped with a fully redesigned and new

rear tray assembly in the back and with the detector assembly and the control-

computer setup in the front section.

The external in and out conveyor assemblies are mounted on the left and right

cabinet wall using a small gap-window (3 inch) on both sides for the sample

load and unload procedures.

As the left and right conveyors have more then 800mm length – no extra x-ray

safety shutter-system is required.

The system is upgraded according the EU-2004 X-RAY safety regulations and

is meeting the the current German an EU standards.

The CXI-MX-3600 system meets also the CDRF US-Standard for X-RAY

equipment.

Fig 5: CXI-MX-3600 / new rear tray design

MX-3600 / CXI3600MX / Specification

confidential 9/39 spec_mx3600_sys_10.11.doc

2.1.2. Basic System Features / Specification Items

System Cabinet Conditions:

 MX-3600 System Dimension: w=3.300 x d=1530 mm x h=1.400mm

w=130’’ x d=60’’ x h=55’’

 Ground floor clearance: > 80mm

 Transportation Height SMEMA: 950…1000mm

 Number of feet: 4

 MX-3600 weight: ca. 1.800 kg

 Max. weight/foot-point: < 500kg/point

 Lead shielding thickness: 3-5mm

 Transportation Height SMEMA: 95…100mm

 System Colour white/grey RAL 9002

 Operator & Safety Labelling: English or German

Power, Environment & Interface Conditions:

 Power Connection: 230V(208…240)/25 A (2 phase)

 Max. Power Consumption: 4 kW

 Main Power Switch 1

 External Service Power Point: 4 x 110V

 Air pressure: 6 bar / up to 140l/h max

 Network Connection: 2 internal connection points

(Control PC)

1 external service connection points

 Barcode Connection Point: RS232 Connection point

 SMEMA Interface Standard for In and Out Conveyor

Safety, ESD & Lighting Operations

 Light-Tower 3 lights in 3 colors

Optional: LED Setup Alarm Siren

 Emergency Switches 3 (Input & Output & XRAY control

panel)

 Noise < 68 dB in 1 m distance

 ESD Ground Connection Point: 2 x Front Side

MX-3600 / CXI3600MX / Specification

confidential 10/39 spec_mx3600_sys_10.11.doc

2.2. MX-3600 / X-RAY Imaging Tray

2.2.1. X – RAY Transmission Imaging

The X2 Imaging Tray is based on X-RAY transmission technique therefore

providing a maximum on resolution in conjunction with variable field of view

performance for an optimized application setup.

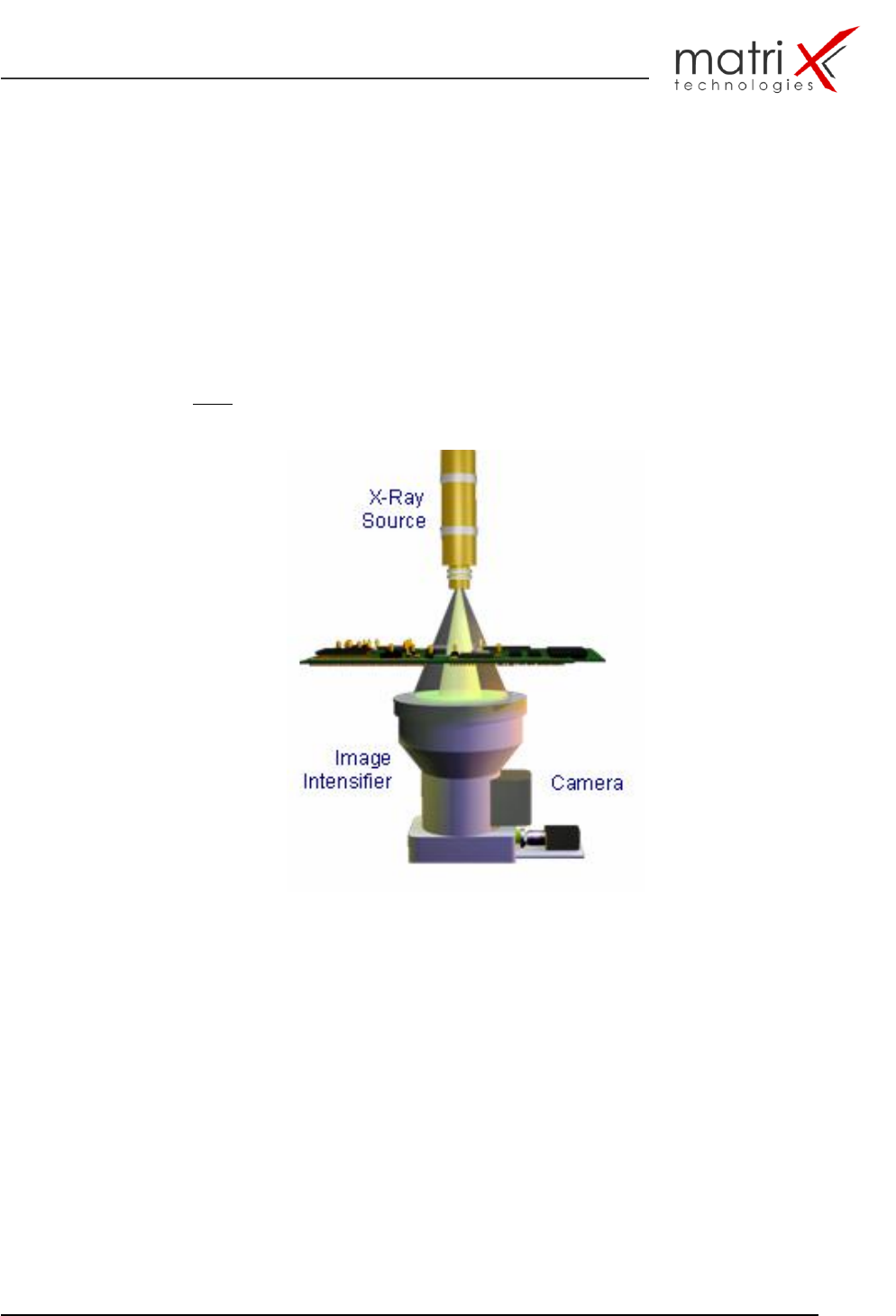

Fig. 6: X-Ray Transmission Technology

2.2.2. X – Ray tube and control system

The MX-3600 X-Ray source is specifically selected for high performance

transmission mode characteristics under high volume production conditions.

Key parameters are in this respect:

 X-Ray Flux and Power

 X-Ray Power Stability

 High Resolution

 Fast Ramp-up

 Max. life time.
