MX-3600 / CXI3600MX / Specification
confidential 18/39 spec_mx3600_sys_10.11.doc
2.3.3. Z - Axis
The z-drive is hosted together with the X-ray tube in the extra shielded x-ray
tube chamber.
The z-axis is exactly vertically configured against the x-y base and equipped
with a programmable servo motor to provide a continuously changeable field
of view.
z-axis directions 0…165mm/6.5’’ drive distance/cont.

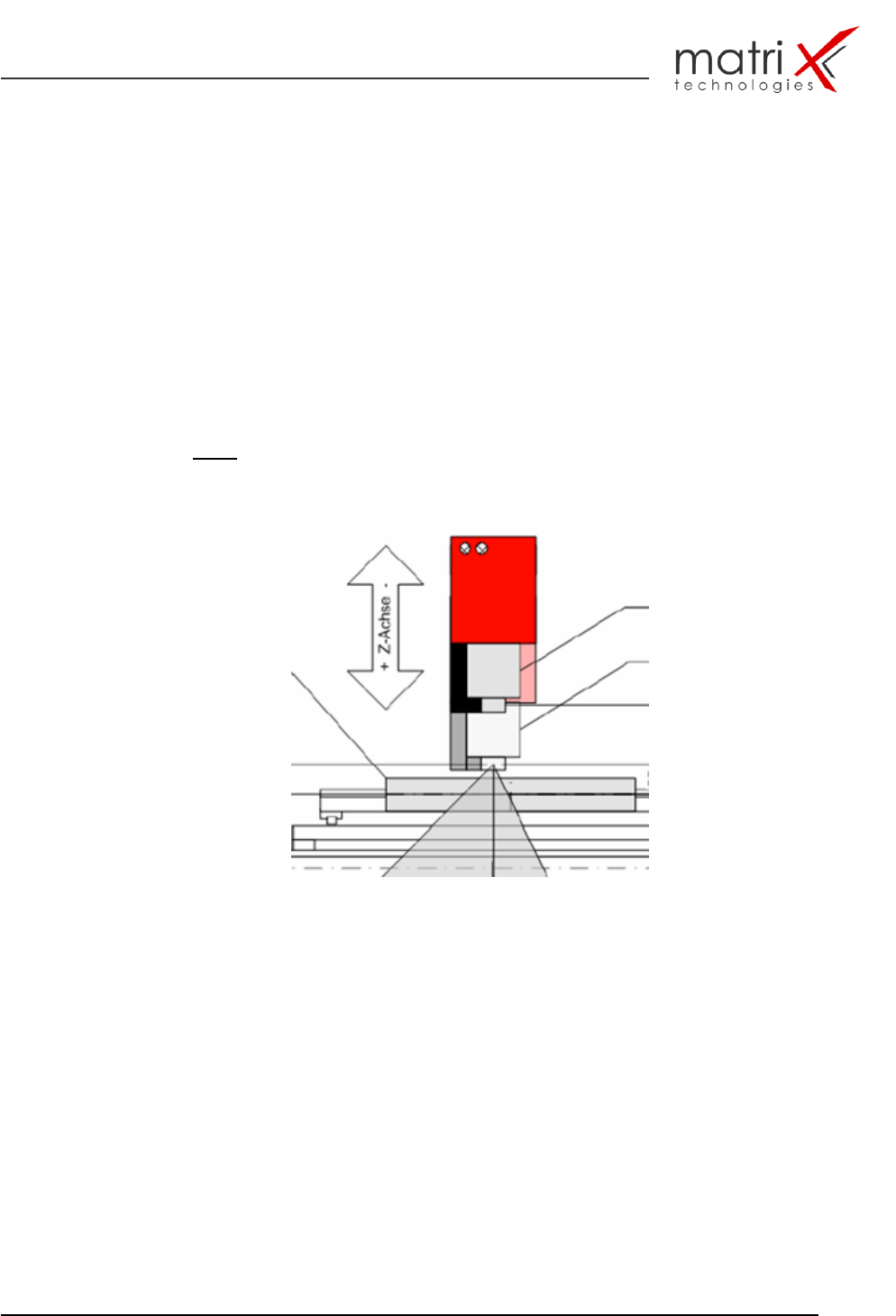

Fig.10: z-axis with x-ray tube motion
MX-3600 / CXI3600MX / Specification
confidential 19/39 spec_mx3600_sys_10.11.doc
2.4. Control Computer System
2.4.1. Control Computer
The VME Computer Unit is fully replaced by a high-speed PC with the
following key parameters:
PC basic configuration:
Processor: ≥ Dual Core High Power Processors
> 3,5 GHz with 2MBL2Cache
Memory: ≥ 4 GByte SDRAM
Hard Drive : > 40 GByte
Optical Drive: DVD ROM / 8x IDE Drive
Framegrabber: High-Speed Framegrabber (12/16Bit)
2.4.2. System-Software
Windows XP Professional License ( or W2003 Server)
Halcon Image Library License (incl. Hardware-Key)
Optional: Data Base Client License (customer specific setup)
2.5. System Interface & Barcode Scanning System
2.5.1. Inspection System Barcode Handling
The Standard Barcode Setup includes:
Conveyor Mounting Kit : top and bottom
Power connection point at input conveyor site
RS-232 Interface connection point at input conveyor site
1D and 2D barcode capability
Optional:
Belt-Conveyor System (600-800mm)
incl. Autowidth-Adjust
2.5.2. SMEMA Interface
SMEMA electrical Interface
SMEMA PCB transportation height
MX-3600 / CXI3600MX / Specification
confidential 20/39 spec_mx3600_sys_10.11.doc
3. System Specification / Software
3.1. MX-3600 - Software Overview
The MX-3600 Software is developed to run under Windows XP platform – the
modular design allows flexible integration of the newest inspection and process
control components.
Table 6: MX-3600 / MIPS Software Modules
MX 3600 Basic Software
Moduls
Functional Tools
MX Control Hardware
MIPS-Inspect Hardware (refer to 24.)
Control PC
* PC with embedded Dual Processor Setup
* High Speed Framegrabbing
* Windows ™ XP Platform
MIPS_Inspect
MIPS_Inspect Software Tools
X-RAY Image Processing
& Inspection
MX Systemsoftware
* MX Sequencer
* X-RAY Task
* Image Acquisition Task
* Motion Task
* I/O Task
* Calib & Diagnostic Task
X-Inspection Engine
* Parameter Tuning Display
* Inspection Performer
* Inspection Report Interface
X-Algorithm Library
* Advanced SMT Solderjoint Algorithm Library
* Advanced Semi-Backend Library
X-Classificator
* Measurement Analyser
* Rule Performer & Classificator
MIPS_Process
X-SPC / Real Time Processing Control
Inspection Data
Processing & Real Time
SPC
* yield display
* ppm display
* apw signal (automatic process warning)
optional:
X-DCS / Data Collection System ( or X-Collect)
