1 1. Program Setup (1) When the [PW] key is pressed with the [SF] and [1] keys being held down, the following window appears on the screen. Fig. 40 (2) When the [1] (Execute Program) key is pressed and the [ENT] key is h…
(b) When “P” is set for “2. MASK CHAR”, the following ap-
plies.
(1) When the first character is identical, it is ignored and
the second and subsequent characters become ef-
fective.
Read Bar Code : P12345
Effective Data : 12345
(2) When the first character is not identical, the first and
subsequent characters become effective.
Read Bar Code : P12345
Effective Data : P12345
(c) EIAJ (3N*) Pattern
(1) When the first string of characters is identical, the first
string (3 characters) is ignored and the fourth and sub-
sequent characters becomes effective.
Read Bar Code : 3N1A12345
Effective Data : A12345
(2) When the first string of characters is not identical, the
first and subsequent characters become effective.
Read Bar Code : XYZA12345
Effective Data : XYZA12345
(d) When one character to be masked is “3”, the first “3N*” of
EIAJ is not processed.
One-character masking is implemented prior to the oth-
ers, do not use “3” as one character to be masked.
(e) In EIAJ, data up to a space or the end becomes effective.
When the number of characters up to a space does not
meet the specified number of effective characters, the
characters up to the space are checked.
When the read data exceeds the specified number of ef-
fective characters, the data up to the specified one is
checked.
(f) When the bar code (normal one) other than EIAJ or AIAG
is handled and “ON” is set for “1. FUNCTION”, the bar code
label starting with “3N*” or the specified character is not
processed as a normal label.
When three labels exist together, the normal labels start-
ing with “P*” or “3N*” are not processed normally. Do not
use such bar code labels.
0211-001 35
AIH01EGP
10. Masking the Component Name (ID) to be Checked
11. Program Setup
(1) When the [PW] key is pressed with the [SF] and [1] keys being held
down, the following window appears on the screen.
Fig. 40
(2) When the [1] (Execute Program) key is pressed and the [ENT] key
is hit, the following window appears on the screen.
Fig. 41
(3) Press the [F5] (Ç) or the [F6] (È) key to select the program to be
loaded. When the [ENT] key is pressed, the following window ap-
pears on the screen.
Fig. 42
(4) The application program starts.
This operation is not required in normal cases.
Perform this operation only when the message “No execution
program selected. Contact your administrator.” is issued at
power supply ([PW] key).
0211-001 36 AIH01EGP
SYSTEM MENU
1.Execute Program
2.Download
3.Upload
4.Set System
5.Test
6.Version
Execute Program
:
A:xxxxxxxx.PD3
:
Waiting
= - --->
11. Program Setup

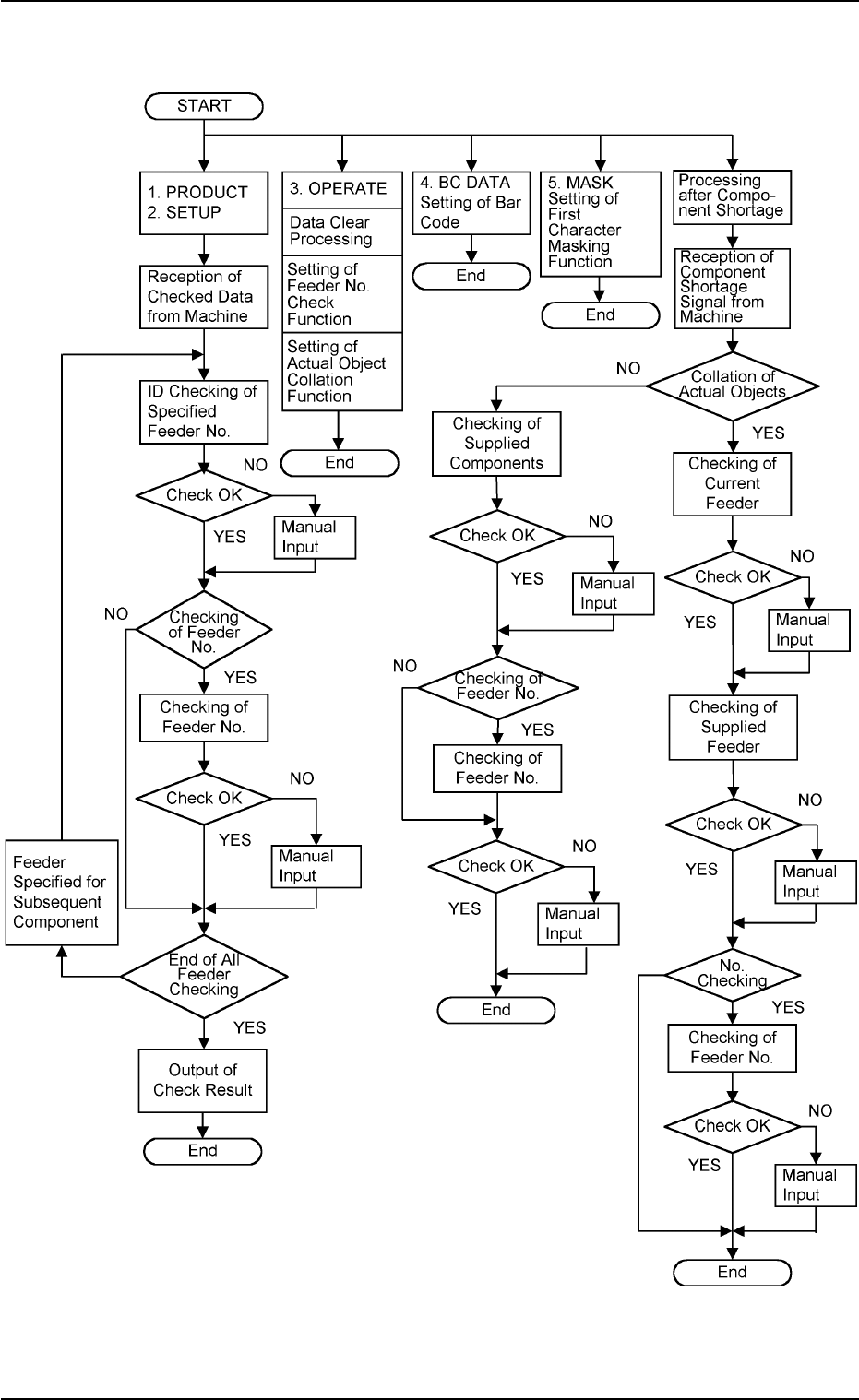

12. Process Flow
Fig. 43
0211-001 37
AIH01EGP
12. Process Flow
