3. Monitor on Machine Side
3.1 “Feeder Checker Set-up” Window
When the [Next] key (*1) is pressed in the “Opn.Mode” tab sheet, the
following sheet appears on the screen.
“Enable” or “Disable” can be selected in the “Feeder Checker Set-up”
group box.
Fig. 1 “Opn. Mode” Tab Sheet
*2 Feeder Checker Set-up
[Enable] Button : Automatic operation cannot be started unless
the feeder check operation is completed.
[Disable] Button : Automatic operation can be started regard-
less of the feeder check function.
*3 Output Data
[Shortage] Button : When a component shortage error is de-
tected, the check data is transmitted to the
bar code reader.
When components for which a component
shortage error cannot be detected are used
and a component missing error is detected
during pick-up sequence, the check data is
transmitted to the bar code reader.
[All Missing] Button : When no component is picked up (all com-
ponents missing), the data check is trans-
mitted to the bar code reader regardless of
whether or not the tape end detection is used.
021 1-001 6
AIH01EGP
*2
*3
*4
*5
*1
*7
*6
3. Monitor on Machine Side
*4 Check Data
[Comp ID] Button : Feeder Checker is checked using the com-
ponent ID data of the placement feeder loca-
tion data.
[Comment] Button : Feeder Checker is checked using the com-
ment data of the placement feeder location
data.
*5 Next Prgm Set-up
Pattern program data scheduled to be used for the next program is
displayed.
When the [Next Prgm Set-up] key (*7) is pressed in the tab sheet
(Fig. 1), the window (Fig. 2) appears on the screen.
*6 Feeder Check Result
The feeder check situation of current pattern program, shortage of
component, next pattern program are displayed.
• “Current Program” “Next Program”
Not Complete : The state in which the feeder check has not com-
pleted.
Complete : The state in which the feeder check has com-
pleted. Automatic operation can be started.
• “Shortage”
OFF : Feeder which needs the feeder check due to the shortage
of component does not exist.
ON : Feeder which needs the feeder check due to the shortage
of component exists.
(a) Parameters can be changed when the machine is in the
“STOP” or the “PAUSE” mode.
(b) The feeder checker set-up function is added to the pass-
word available areas as an item to be set.
(c) When the current program is changed to the next one,
“- - - -” appears in the “Next Program” text box.
(d) When the “Next Prgm Set-up” window is active and the
pattern program data delete command is issued from the
external device, the program names disappear from the
“Next Prgm Set-up” window.
(e) When the pattern program data is set as the current pro-
gram is deleted, “- - - -” appears in the “Current Program”
text box.
021 1-001 7 AIH01EGP
3.1 “Feeder Checker Set-up” Window
3.2 “Next Prgm Set-up” Window
When the [Next Prgm Set-up] button (*7) is pressed in the “Opn.Mode”
tab sheet (Fig. 1), the window (Fig. 2) appears on the screen.
This window makes it possible to set the pattern program data sched-
uled to be used for the next program.
By setting the pattern program data for the next program, the tape feed-
ers for the next program can be checked in advance while the machine
is running according to the current program.

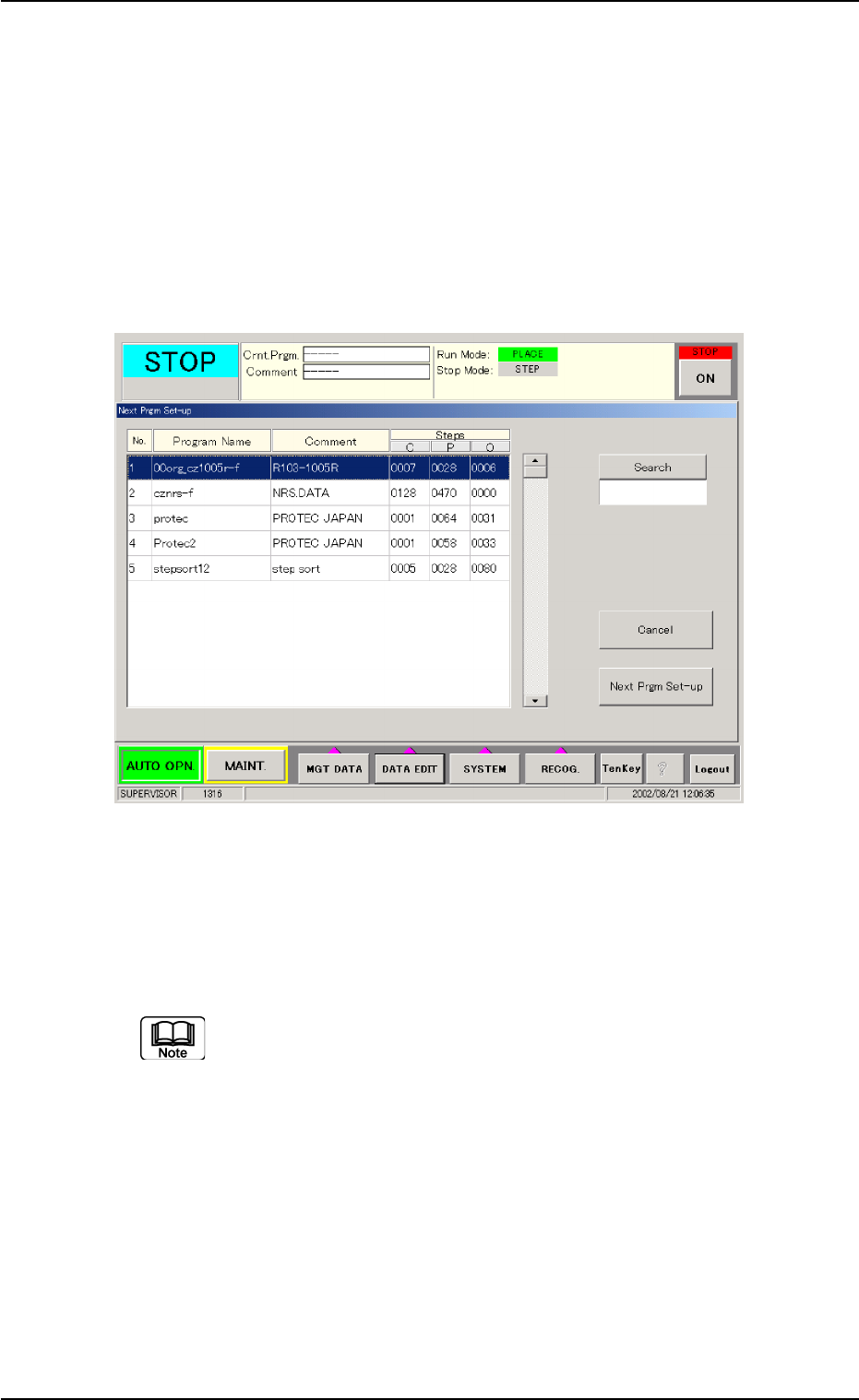

Fig. 2 “Next Prgm Set -up” Window
To select the next program, move the line cursor to the program name
to be set as the next program and press the [Next Prgm Set-up] button.
The selected No. and program are set.
The same program name as the current one can be set as the
next program.
