Scope of Delivery
Installation Manual SIPLACE Traceability 3.1
9
3 Scope of Delivery
The SIPLACE Traceability 3.1 basic software package (item no. 00169576-03) contains the following
components:
SIPLACE Traceability Basic License V3.x (License only) [00169566-01]
SIPLACE Traceability Upgrade License V3.x (License only) [00169567-01]
SIPLACE Traceability Server V3.1 Media Package [00169568-01]:
1 Traceability 3.1 CD
– Installation SIPLACE Trace Service
– Installation SIPLACE Trace Host
– Installation Trace Host option for SIPLACE Explorer
– Activation of traceability data generation at the station
1 Support Media DVD V1.8
Installation of system requirements:
– Java 2 Java Runtime Environment 1.6
– SQL Server 2008 SP1 Express
– Tomcat Web Server 5.5
– Microsoft.NET 3.5 SP1 Framework
– Microsoft Internet Explorer 7.0, 6.0 SP2
– Adobe Acrobat Reader 7.0
– License Manager 2.2
Basic documents:
– Installation Manual (Item No.: 00196589-xx [English])
– Version Description (Item No.: 00196588-xx [English, German])
– User Manual (Item No.: 00196586-xx [German] / 00196587-xx [English])
NOTE:
Please use the document “Navigation Guide for the Installation Procedure of SIPLACE Software
Systems” (Item. No. 00195050-xx) to help you find your way through the documentation.The
Navigation Guide and all the other documents referred to can be found on the Support Media
DVD (Item No. 00383100-xx), supplied with each software product.
Scope of Delivery
Software Requirements
10 Installation Manual SIPLACE Traceability 3.1
3.1 Software Requirements
To run the Traceability 3.1 system the following installations have to be performed:
SIPLACE Pro 8.0, 7.1
Setup Center 3.2, 3.3
SIS 8.0, 7.1
Trace Service 3.1
Trace Host 3.1
Station software:
– 407.05 (SIPLACE 80 F4, F4-6, S20; F5, F5 HM, S23)
– 505.05 SP1 (SIPLACE S25 HM, S27 HM, HS50, HS 50+, HS60, HF, HF3)
– 605.02 (SIPLACE X2, X3, X4; D1, D2, D3, D4)
– 704.01, 703.02 (SIPLACE X2, X3, X4, X4I, SX1, SX2, SX4)
Installation Traceability
Installation
Installation Manual SIPLACE Traceability 3.1
11
4 Installation Traceability
4.1 Installation
You must log in as administrator at the station computer to install the traceability options.

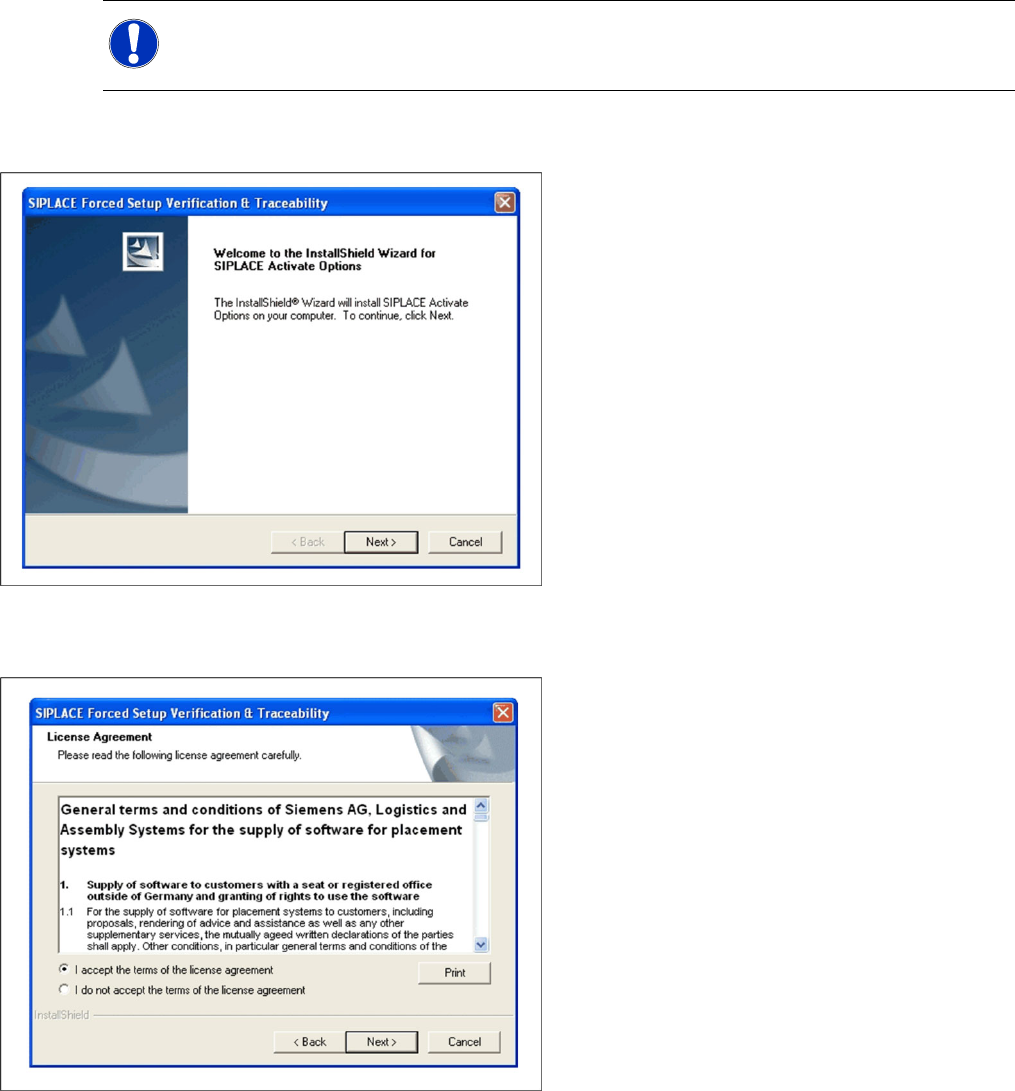

Welcome Dialog
License Dialog
NOTE:
The installation on the station computer (activation of Traceability) is only required on station
SW 40x, 50x and 60x.
X Place the SIPLACE Traceability CD into your
CD-ROM drive. The installation starts
automatically.
X The Start screen appears.
X Read the license agreement. If you agree with
the conditions, click on I accept ..., otherwise
click on I do not accept.... If you select I do not
accept ..., the installation procedure will be
terminated.
X Click on Next to continue the installation
procedure.
