Installation Trace Host and Trace Service Trace Host Upgrade of Trace Host 44 Installation Manual SIPLACE Traceability 3.1 X In step 1 you need to specify the following database access parameters for the Trace data base …
Installation Trace Host and Trace Service
Upgrade of Trace Host Trace Host
Installation Manual SIPLACE Traceability 3.1
43
5.4.4.1 Upgrade Wizard
The Trace database Upgrade Wizard is a tool with which you can upgrade older versions of the Trace
database to the current version of Trace Host.

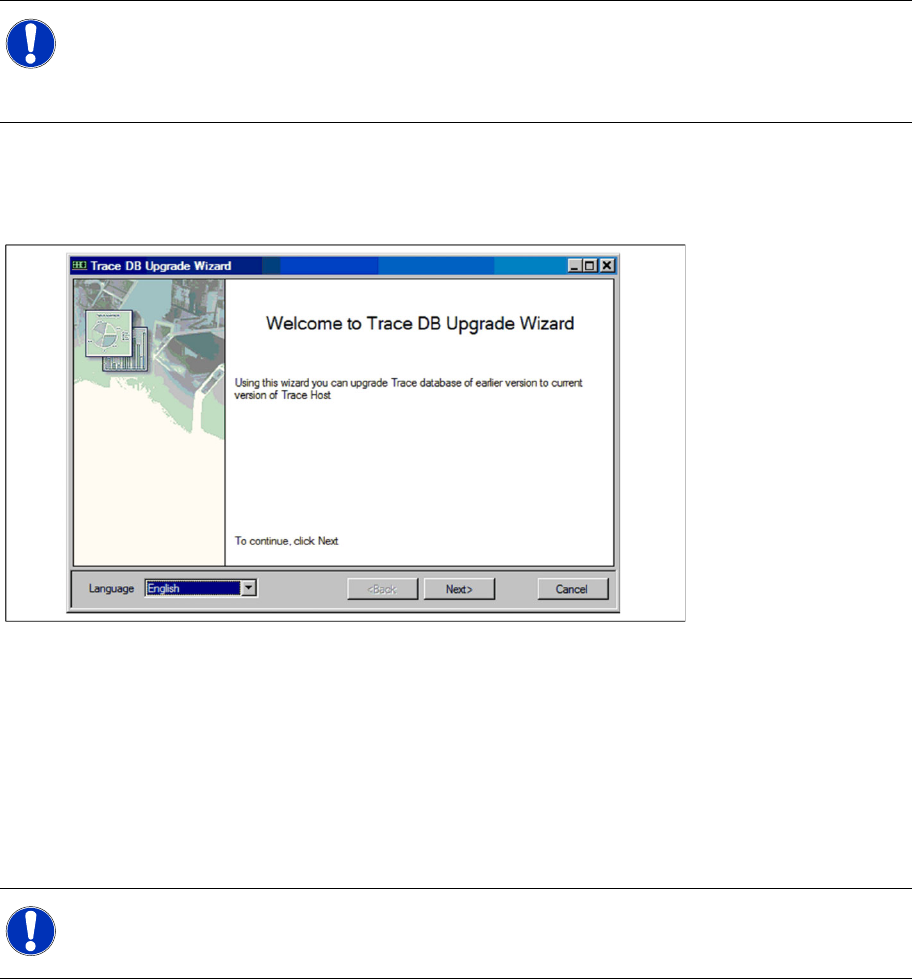

Starting the Upgrade Wizard
X Start the Upgrade Wizard via the Windows menu Programs → SIPLACE Trace Host → Upgrade
Wizard. The dialog will open:
X Language
Set the required language for the further steps in the Upgrade Wizard.
The following options are available:
English
German
The Trace database upgrade consists of a simple four-step procedure.
Step 1 of 4
NOTE:
The following requirements must be met before the Trace databases can be upgraded:
- Trace Host must be active.
- You should already know the database access parameters.
NOTE:
Please note that you must have administrator privileges for the database, in order to perform the
required tests and configuration.
Installation Trace Host and Trace Service
Trace Host Upgrade of Trace Host
44 Installation Manual SIPLACE Traceability 3.1

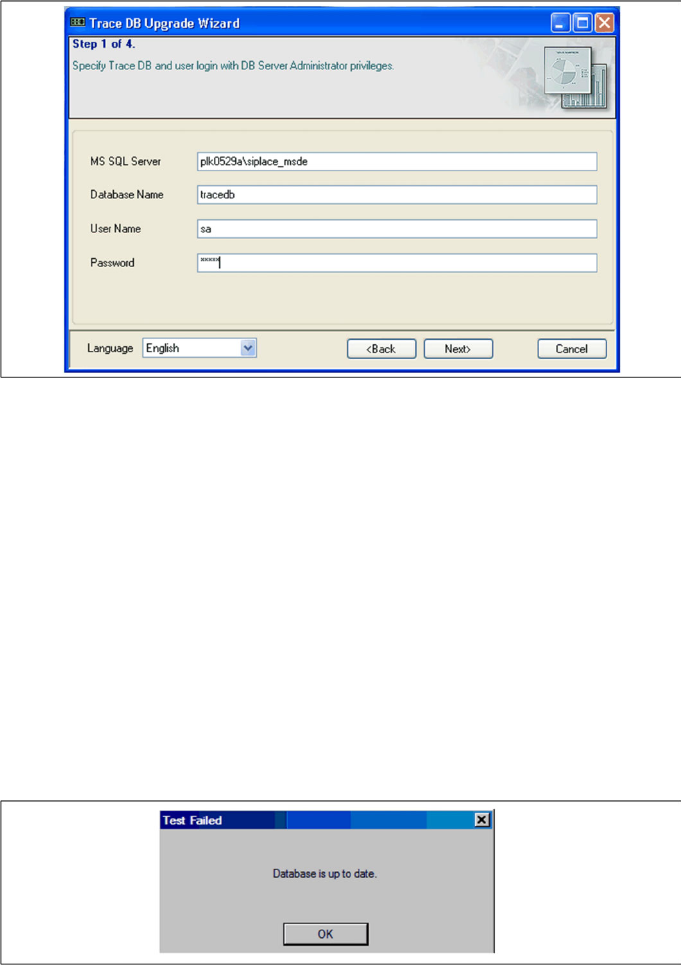

X In step 1 you need to specify the following database access parameters for the Trace database
which is to be upgraded:
MS SQL Server
The computer on which the Trace database is.
Database name
Name of the database to be upgraded.
User name
Your login for the Trace database.
Password
The password for the Trace database. This password is the same as that for the SQL server
database you are referring to here.
X Click on Next If the specified database is already upgraded, you will see a notifications window. Click
on OK to close the Upgrade Wizard.
Step 2 of 4
X Step 2 is skipped.
Installation Trace Host and Trace Service
Upgrade of Trace Host Trace Host
Installation Manual SIPLACE Traceability 3.1
45

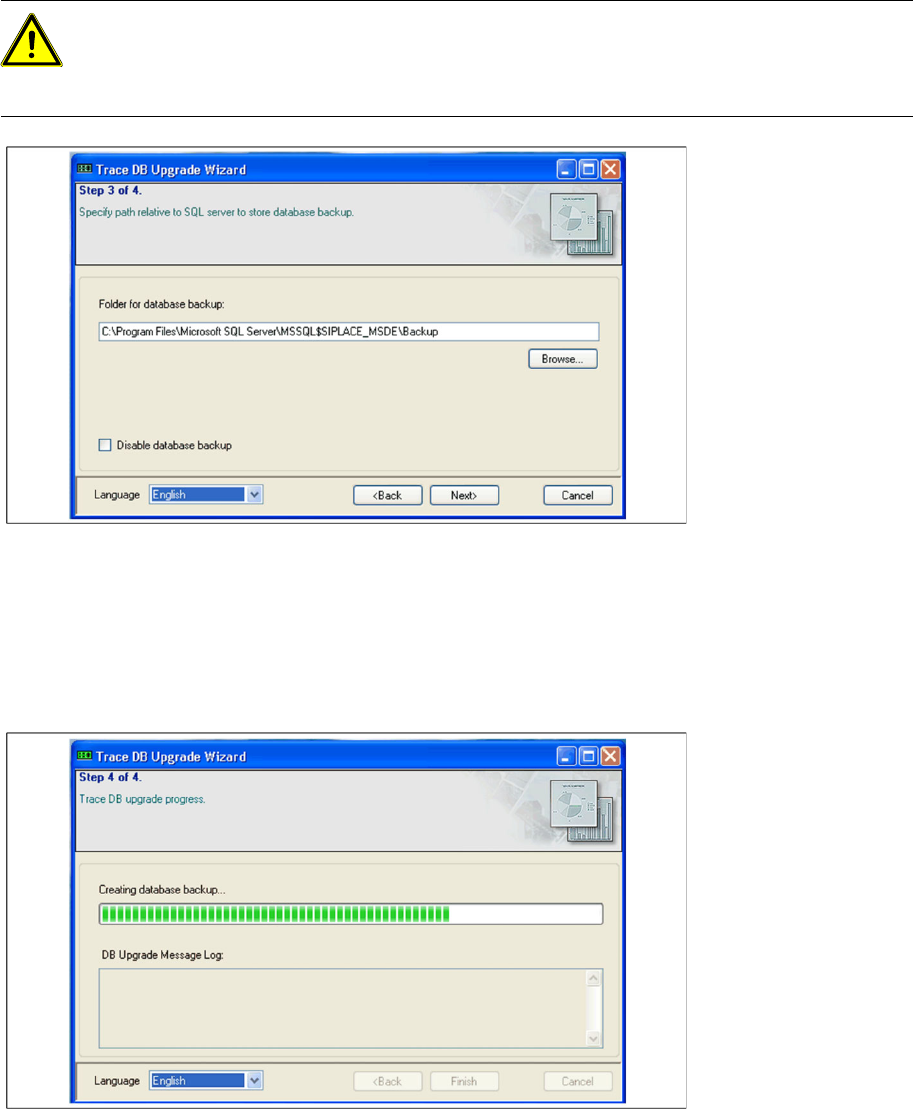

Step 3 of 4
X Specify a relative path name at which the database backups can be stored on the SQL server.Click
on the Browse button and select a database backup folder.
X Disable database backup
Activate this option if no backup of the Trace database is required.
X Click on Next
Step 4 of 4
X The upgrade process will begin. A data backup will be generated if the option "Disable database
backup" was not enabled in Step 3. After you have completed the upgrade process, you will see a
success message in the notifications window under the progress bar. Click on Finish to close the
wizard.
ATTENTION:
Only three user-defined barcode values are possible.
X Changes to the standard setting may lead to incorrect interpretation of old data! If you use the
standard setting, this assignment is already set correctly.
