Installation Trace Host and Trace Service Installation Trace Service Installation Manual SIPLACE Traceability 3.1 29 5.3.1 Inst allation X Place the SIPLACE Traceability CD into the CD-ROM drive of your line computer. Yo…

Installation Trace Host and Trace Service

Trace Service Software Components and Configuration

28 Installation Manual SIPLACE Traceability 3.1

The following window appears:

If at least one prerequisite requires rebooting, the “Reboot now” checkbox will be visible.

X → Select/Deselect the Reboot now checkbox if available.

X → Click the Finish button

The Prerequisite Analyzer closes. If selected, the computer reboots.

5.3 Trace Service

NOTE:

Trace Service requires the SIPLACE Pro XML Adapter in order to load the line configuration

from SIPLACE Pro.

X Make sure that Line Control GUI and the SIPLACE Pro Interface or

SIPLACE Pro Desk and the SIPLACE Pro Interface are already installed.

Installation Trace Host and Trace Service

Installation Trace Service

Installation Manual SIPLACE Traceability 3.1

5.3.1 Installation

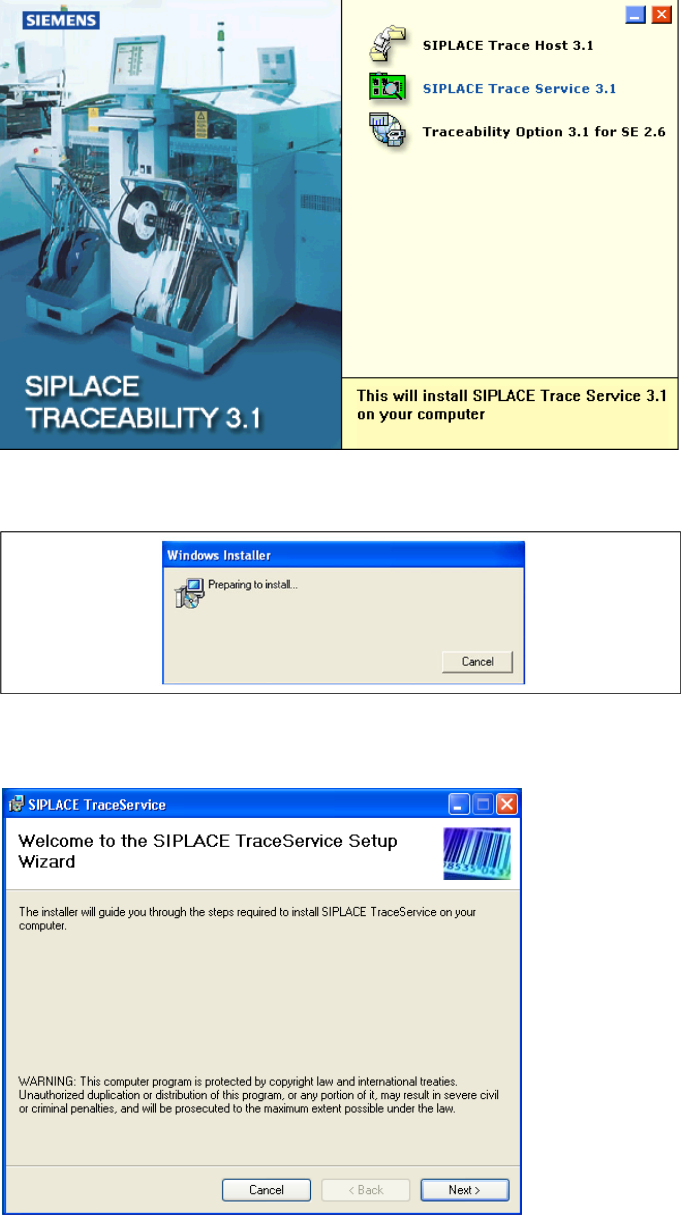

X Place the SIPLACE Traceability CD into the CD-ROM drive of your line computer. You will see the

start screen.

X Select SIPLACE Trace Service 3.1. You will be guided through the Trace Service installation

procedure.

The dialog boxes shown below will be displayed during the installation procedure.

X The Welcome dialog will appear.

X Click on Next to continue the installation procedure.

Installation Trace Host and Trace Service

Trace Service Installation

30 Installation Manual SIPLACE Traceability 3.1

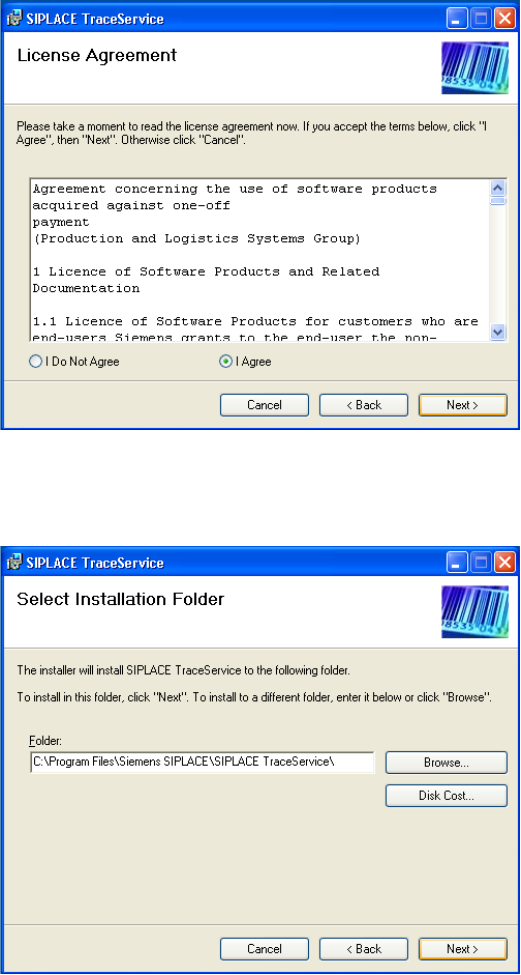

X Read the license agreement. If you agree with the conditions, click on I Agree, otherwise click on I

Do Not Agree. If you select I Do Not Agree, the installation procedure will be terminated.

X Click on Next to continue the installation procedure.

X Now specify the folder in which you wish to install the application. The default folder is

C:\Program

Files\Siemens SIPLACE\Trace Service

. You can alter the default installation folder by using the

Browse… button.
