Installation Trace Host and Trace Service
Trace Service Troubleshooting
32 Installation Manual SIPLACE Traceability 3.1
5.3.2 Troubleshooting
5.3.2.1 Installation of SIPLACE Trace Service fails

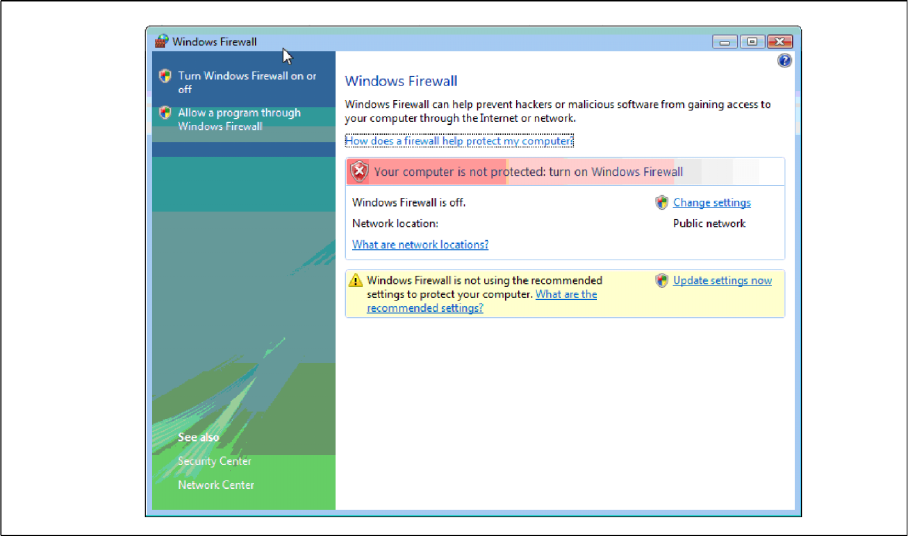

The Problem is located in the Windows Vista Firewall settings. The
TraceService.exe
must be allowed
through the Windows firewall.
You must be logged as Administrator and the firewall must be turned off.
To perform this do the following.
X In Windows start menu click Start > Control Panel > Security Center.
X Choose Windows Firewall and click Allow a program through Windows Firewall.
X In the Windows firewall settings, click Add program.
X Type in the path where the TraceService once will be installed e.g.:
C:\Program Files\Siemens
SIPLACE\SIPLACE TraceService\TraceService.exe
X Browse for TraceService.exe. It may not exist at that time. Create a dummy
TraceService.exe
within the future installation folder.
X Browse for it and press OK.
Installation Trace Host and Trace Service
Installation Trace Host
Installation Manual SIPLACE Traceability 3.1
33
5.4 Trace Host
5.4.1 Installation
X Place the SIPLACE Traceability CD into the CD-ROM drive of your line computer. The start screen
will appear.
X Make sure that the following software components available from the Support Media DVD are
already installed:
(1) Java 2 JRE 1.6
(2) Tomcat 5.5
(3) Microsoft.NET 3.5 SP1 Framework
(4) MSXML Core Services 6.0
Installation Trace Host and Trace Service
Trace Host Installation
34 Installation Manual SIPLACE Traceability 3.1
5.4.1.1 Installation Trace Host 3.1

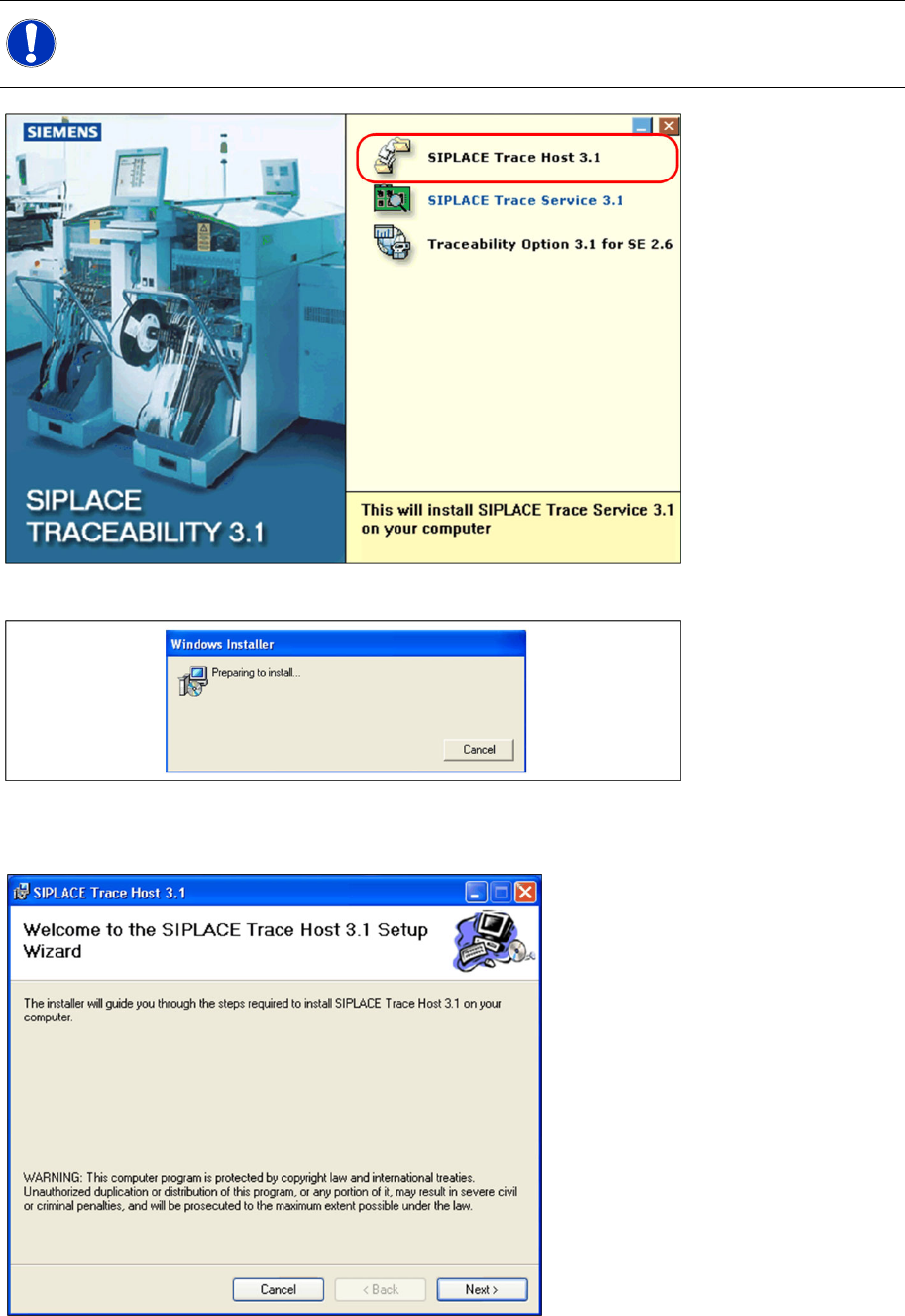

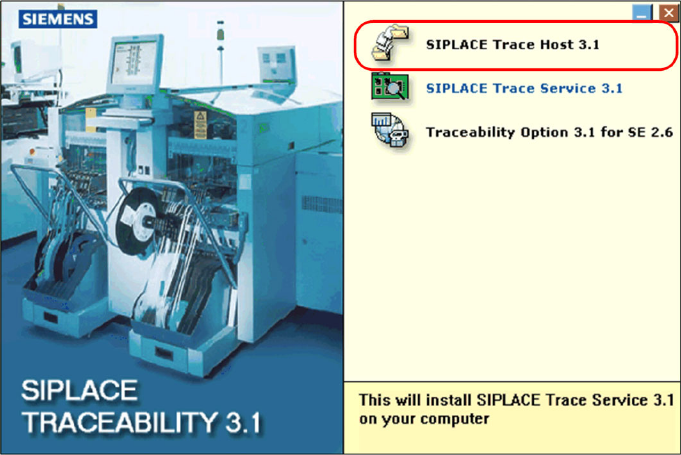

X Select SIPLACE Trace Host 3.1. You will be guided through the Trace Host installation procedure.
The dialog boxes shown below will be displayed during the installation procedure.
X The Welcome dialog will appear.
X Click on Next to continue the installation procedure.
NOTE:
For upgrading an installed Trace Host software please see the section "Upgrade".
