00196589-02 - IM Traceability 3.1_en.pdf - 第27页
Installation Trace Host and Trace Service Software Components and Configuration Support Media DVD Installation Manual SIPLACE Traceability 3.1 27 X After checking this summary click Next to continue. Please wait until th…
Installation Trace Host and Trace Service
Support Media DVD Software Components and Configuration
26 Installation Manual SIPLACE Traceability 3.1
Already installed prerequisite products are unchecked.
X If you activate the checkbox besides “Product”, you may select/deselect all sub items.
X After selecting the products click Next to continue.
The following window appears:
The page shows the scripts that may be executed.
X Select the following scripts:
Disable Windows firewall
Enable advanced file sharing
Enable DCOM Communication
Enable DCOM Error Logging
Set classic Windows login
X After selecting the scripts click Next to continue.

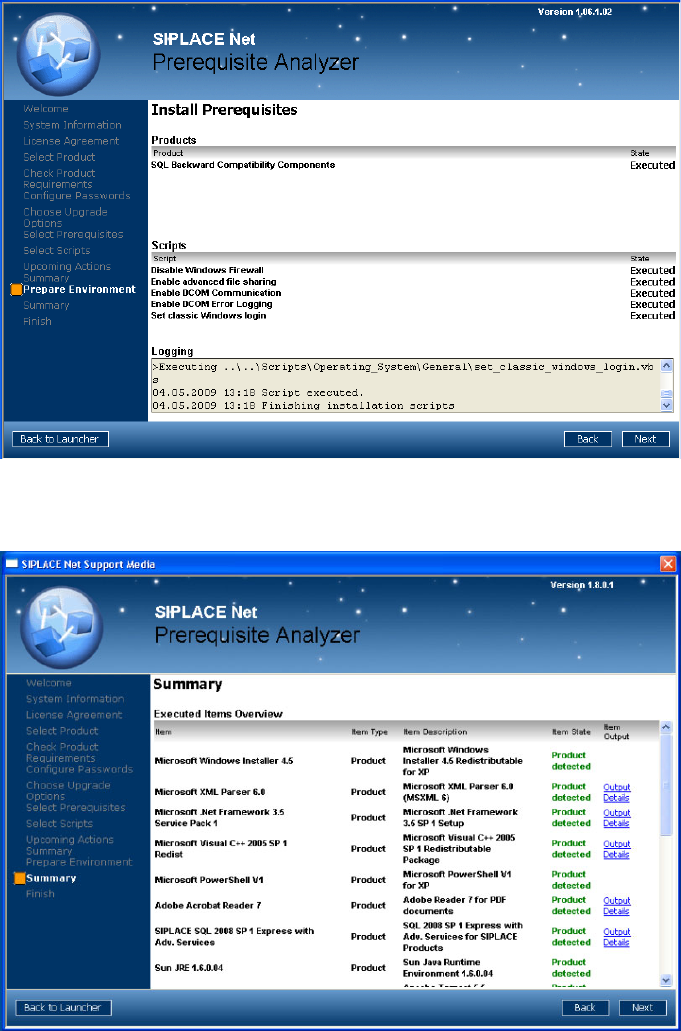

The following window gives you an overview of the upcoming actions:
Installation Trace Host and Trace Service
Software Components and Configuration Support Media DVD
Installation Manual SIPLACE Traceability 3.1
27
X After checking this summary click Next to continue.
Please wait until the selected prerequisites and scripts are installed.
X Click Next to continue.
The following window appears:
X You may investigate the installation script output by clicking Output Details Products do not have
utilizable output.
X Click Next to continue.
Installation Trace Host and Trace Service
Trace Service Software Components and Configuration
28 Installation Manual SIPLACE Traceability 3.1

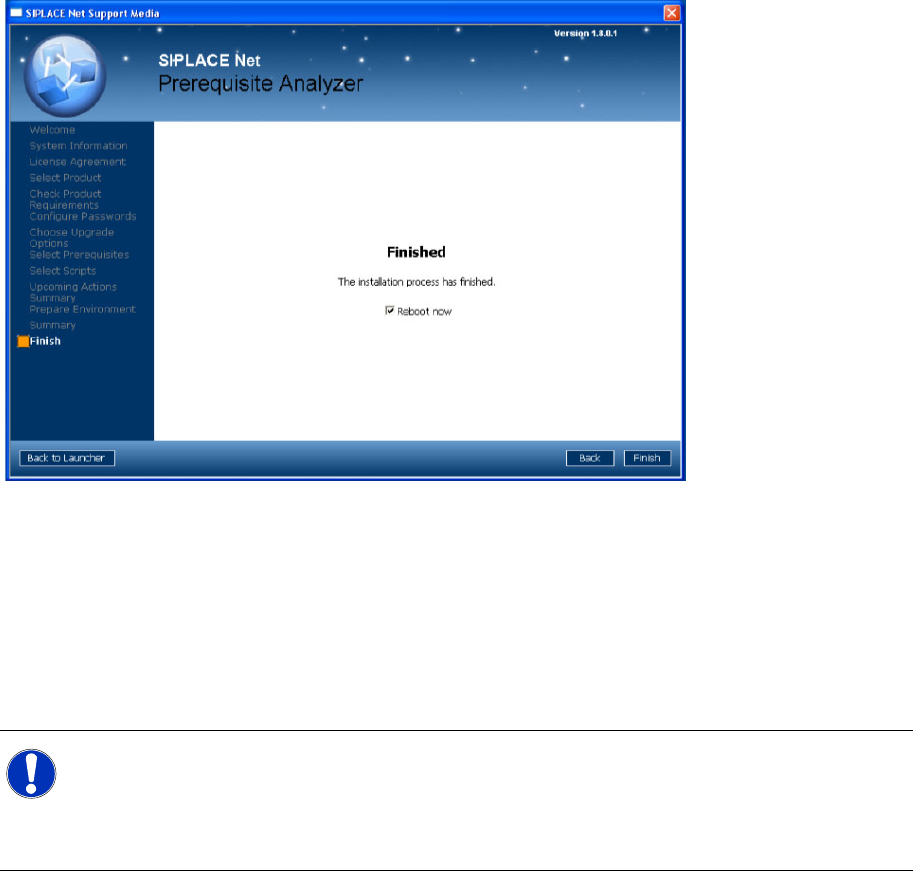

The following window appears:
If at least one prerequisite requires rebooting, the “Reboot now” checkbox will be visible.
X → Select/Deselect the Reboot now checkbox if available.
X → Click the Finish button
The Prerequisite Analyzer closes. If selected, the computer reboots.
5.3 Trace Service
NOTE:
Trace Service requires the SIPLACE Pro XML Adapter in order to load the line configuration
from SIPLACE Pro.
X Make sure that Line Control GUI and the SIPLACE Pro Interface or
SIPLACE Pro Desk and the SIPLACE Pro Interface are already installed.
