5.1.3 System Requirements for Traceability Option in SIPLACE Explorer
The following requirements must be fulfilled for the installation of the traceability option in SIPLACE
Explorer:
Trace Host 3.1 application
SIPLACE Explorer V2.7
For the SIPLACE Explorer system requirements, refer to the "Installation and Configuration Guide"
(Item No.: 00195630-xx).
5.1.4 Software Components and Configuration
5.1.4.1 Software Components
The SIPLACE Traceability installation CD contains the following software components:
SIPLACE Trace Host 3.1
SIPLACE Trace Service 3.1
Traceability Option 3.1 for SE 2.7
The following software components on the Support Media DVD must be installed on your computer
before you can install SIPLACE Trace Host 3.1:
Java 2 JRE 1.6
Microsoft.NET 3.5 SP1 Framework
Apache Tomcat 5.5
You do not need to install Tomcat 5.5 on the same computer as SIPLACE Trace Host.
MS XML Parser Version 6.0
MS XML Parser Version 6.0 is also required for SIPLACE Trace Host Monitor 3.0. Install MS XML
Parser Version 6.0 on the same computer as Tomcat 5.5. You should also install Microsoft.NET 3.5
SP1 Framework on this computer.
Microsoft Internet Explorer 7.0, 6.0 SP2
Microsoft Internet Explorer is needed for displaying SIPLACE Trace Host Monitor and for invoking
Trace Host data from the database. Install Microsoft Internet Explorer on the same computer as
SIPLACE Trace Host.
Adobe Reader 7.0
This component is needed for reading the SIPLACE Trace Host 2.0 documentation.
SIPLACE Explorer 2.7
This options visualizes the traceability data recorded with Trace Host in SIPLACE Explorer 2.6.
Installation Trace Host and Trace Service
System Requirements and Software Components for Traceability Modules Software Components and Configuration
20 Installation Manual SIPLACE Traceability 3.1
5.1.4.2 Configuration
SIPLACE Trace Host can either be installed in SIPLACE LAN or distributed via SIPLACE and client
LANs. The following configuration options exist for SIPLACE Trace Host:
1. SIPLACE Trace Host on one Computer
This option involves installing all SIPLACE Trace Host software components one computer, without
a separate web server. However, the database server can be on a separate computer.
2. SIPLACE Trace Host distributed across several computers:
This option involves installing the SIPLACE Trace Host software components on multiple computers,
according to your system requirements:
Trace Host PC
The following components need to be installed on this computer:
– SIPLACE Trace Host with the components:
Trace Host Server
Trace Host Manager
Trace Host Monitor
– Microsoft.NET 3.5 SP1 Framework
– Microsoft Internet Explorer
Web server for managing Java Servlets
The following components need to be installed on this computer:
– Apache Tomcat 5.5
– Java 2 JRE 1.6
– Microsoft.NET 3.5 SP1 Framework
– MS XML Parser 6.0
Database server:
– Microsoft SQL Server 2005, 2008
– Microsoft SQL 2005, 2008 Express edition (only for testing/training purposes)
NOTE:
For a detailed description of the SQL Server 2008 installation, refer to the SQL Server 2008
Installation Guide (Item No.: 00195487-xx).
Installation Trace Host and Trace Service
Software Components and Configuration Support Media DVD
Installation Manual SIPLACE Traceability 3.1
21
5.2 Support Media DVD
Before you install the SIPLACE Traceability you need to install some software components which are
available on the Support Media DVD.
To start using the SIPLACE Net Support Media, you have to open the main window: The SIPLACE Net
Software Launcher.
X Insert the SIPLACE Net Support Media into your drive.

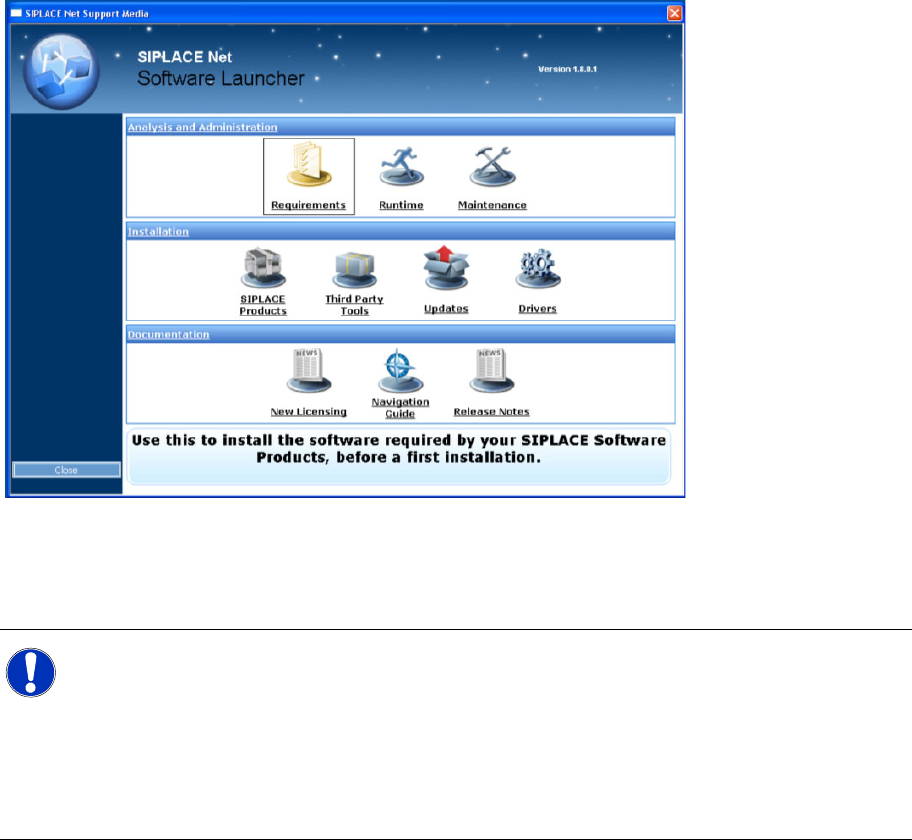

The Software Launcher opens:
The Prerequisite Analyzer
You need to use this tool to prepare your software environment for the usage of SIPLACE Traceability.
This tool is able to install the necessary prerequisites and customize your environment.
X To execute the Prerequisite Analyzer, click on Item Requirements within the Software Launcher
window. After a few seconds the following window appears:
NOTE:
Before you start modifying your system by using the Prerequisite- or Runtime Analyzer you
should ensure that a copy of the content of the operating system CD/DVD is available on the
local hard drive.
If windows components are requested during installation you don’t have to eject the Support
Media which could lead to interruption of the installation process. Instead of replacing the
Support Media you would specify the folder on hard drive as installation source for windows
components.
