00196589-02 - IM Traceability 3.1_en.pdf - 第39页

Installation Trace Host and Trace Service Installation Trace Host Installation Manual SIPLACE Traceability 3.1 39 X Before SIPLACE Explorer Traceability can be inst alled, you must have SIPLACE Trace Host and SIPLACE Exp…

Installation Trace Host and Trace Service

Trace Host Installation

38 Installation Manual SIPLACE Traceability 3.1

The SIPLACE Trace Host Server will be automatically started as a Windows NT service, after successful

installation and after each computer reboot. You will see the icon in your Windows console.

Rightclick with the mouse to open the Trace Host Manager or manually close SIPLACE Trace Host.

See also:

5.4.4 Upgrade of Trace Host [

J

42]

5.4.1.2 Traceability Option - Installation Procedure

X Insert the SIPLACE Traceability CD into your CD-ROM drive. You will see the Start screen:

X Select Traceability Option 3.1 for SE 2.6.

X You will now be guided through the installation procedure for the SIPLACE Explorer Traceability

option.

X Close all other programs and then click on Next to continue.

NOTE:

You need administrator privilege for your operation system in order to perform this installation.

Installation Trace Host and Trace Service

Installation Trace Host

Installation Manual SIPLACE Traceability 3.1

X Before SIPLACE Explorer Traceability can be installed, you must have SIPLACE Trace Host and

SIPLACE Explorer installed on your system. If both of these applications are already installed,

installation of SIPLACE Explorer Traceability will begin automatically. SIPLACE Explorer

Traceability must be installed on the same computer as SIPLACE Explorer, SIPLACE Trace Host

can be installed on a different computer.

X If the SIPLACE Explorer Traceability installation procedure is unable to locate SIPLACE Explorer on

your computer, you will see the following dialog box.

X Specify the SIPLACE Explorer installation folder here. If SIPLACE Explorer has not yet been

installed on your computer, you can click on Cancel to terminate the SIPLACE Explorer Traceability

installation procedure.

X Install SIPLACE Trace Host and SIPLACE Explorer on your computer and then restart the SIPLACE

Traceability installation procedure.

X If SIPLACE Trace Host and SIPLACE Explorer are already installed on your system, the installation

procedure will continue.

X Read the license conditions. Click on I accept ... to accept and on I do not accept ... if you do not

want to accept. If you click on I do not accept ..., the installation procedure will be terminated.

X The following dialog box will be shown:

Installation Trace Host and Trace Service

Trace Host Installation

40 Installation Manual SIPLACE Traceability 3.1

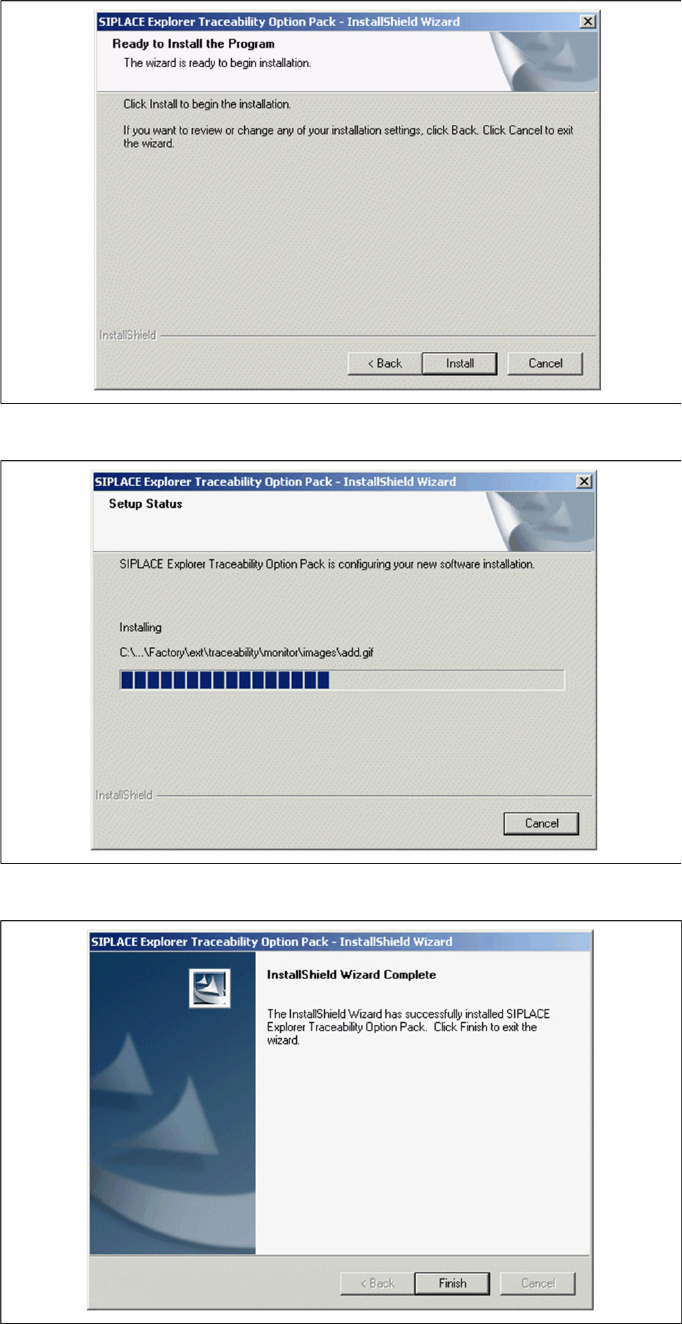

X Click on the Install button to start the actual installation of SIPLACE Explorer Traceability.

X Once the installation procedure has finished, the following dialog box will open:

X Click on Finish. The SIPLACE Explorer Traceability option is now available on the SIPLACE

Explorer factory website.
