- - 5. B ASE COMPONE NTS(5) 5 4 5 5 5 6 5 8 5 9 5 9 5 9 5 9 5 7 5 9 6 2 6 0 6 1 6 7 6 4 6 3 6 6 6 5 6 8 7 1 7 2 6 9 7 0 7 3 1 8 1 7 1 6 7 9 2 3 4 5 8 1 0 1 1 1 3 1 9 2 0 1 2 2 1 2 4 1 4 1 5 2 5 2 2 2 3 2 7 2 6 3 2 2 8 …
- -

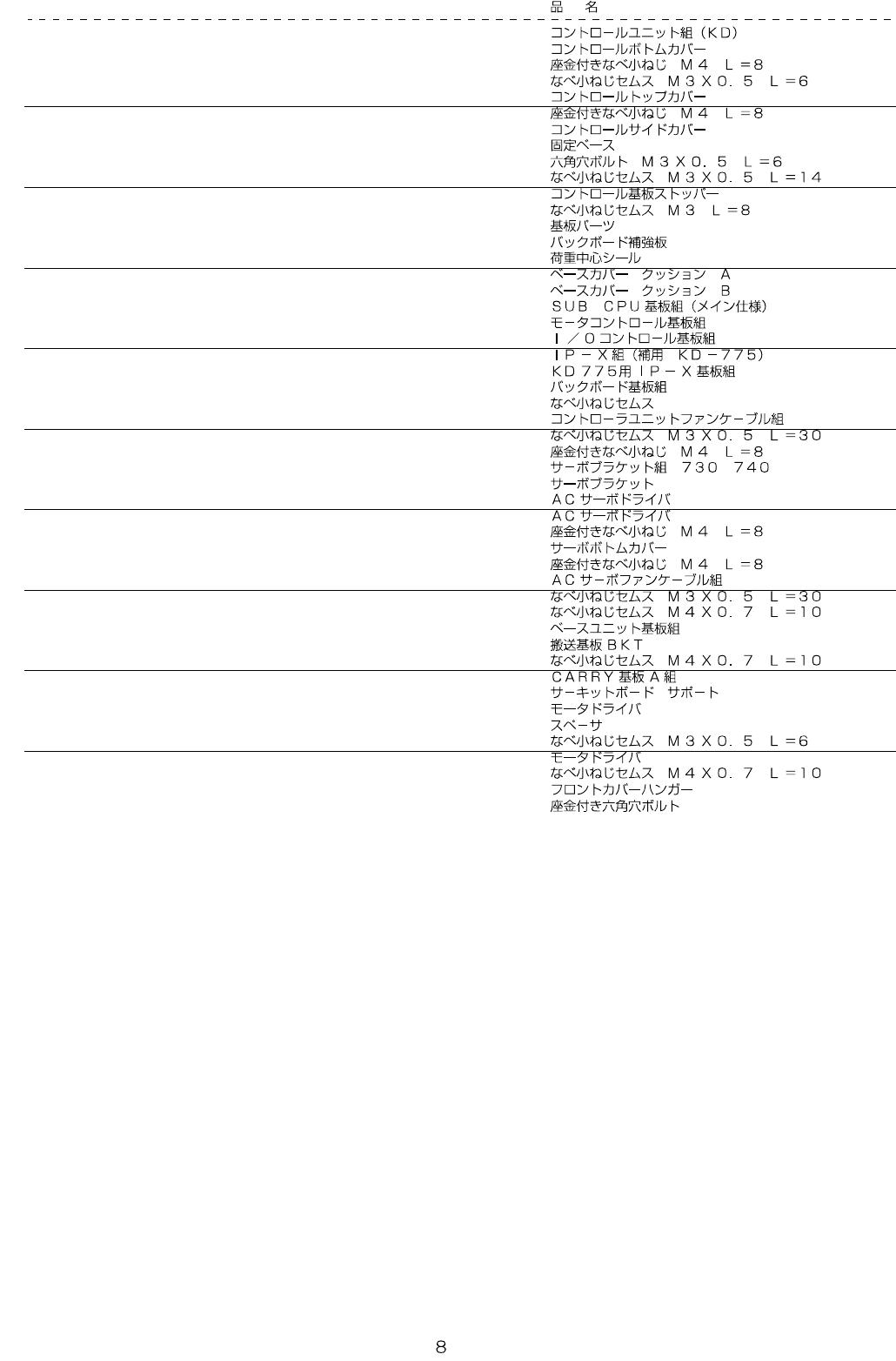

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1115-725-DA0 CONTOROL UNIT ASM. (KD) 1
2 E1115-725-000 CONTOROL BOTTOM COVER (1)
3 SL-4040891-SC SCREW M4 L=8 (4)
4 SL-4030691-SC SCREW M3X6 (3)
5 E1117-725-000 CONTOROL TOP COVER (1)
6 SL-4040891-SC SCREW M4 L=8 (4)
7 E1116-725-000 CONTOROL SIDE COVER (1)
8 HX-0029400-00 FIXED BASE (2)
9 SM-6030602-TN HEX SCREW M3 X 6 (2)
10 SL-4031481-SC SCREW M3 X 14 (12)
11 E1119-725-000 CONTOROL PWB STOPPER (1)
12 SL-4030891-SC SCREW M3X8 (2)
13 HX-0002600-0A BASE PARTS (20)
14 E1118-725-000 BACK BOARD REINFORCING PLATE (2)
15 168-70206 GRAVITY SEAL 2
16 E1017-715-000 BASE COVER CUSHION A 2
17 E1018-715-000 BASE COVER CUSHION B 2
18 E8601-721-0A0 SUB CPU ASM. 1
19 E8602-802-0A0 MOTOR CONTROL PCB ASM. 1
20 E8604-721-0A0 I/O CONTROL PWB ASM. 1
21 400-17469 IP-X ASM (RECOMMEND KD-775) 1
22 400-17390 IP-X ASM FOR KD-775 1
23 E8620-725-0A0 BACK BOARD PWB ASM. 1
24 SL-4860891-SC SCREW M2.6X8 12
25 E9210-725-0A0 CONTROLLER UNIT FAN CABLE ASM. 1
26 SL-4033091-SC SCREW M3 L=30 8
27 SL-4040891-SC SCREW M4 L=8 2
28 E1615-721-0A0 SERVO BRACKET ASM. 730 740 1
29 E1615-721-000 SERVO BRACKET (1)
30 KM-0000001-10 AC SERVO DRIVER (2)
31 KM-0000000-90 AC SERVO DRIVER (2)
32 SL-4040891-SC SCREW M4 L=8 (16)
33 E1616-721-000 SERVO BOTTOM COVER (1)
34 SL-4040891-SC SCREW M4 L=8 (4)
35 E9248-725-0A0 AC SERVO FAN CABLE ASM. (1)
36 SL-4033091-SC SCREW M3 L=30 (4)
37 SL-4041091-SC SCREW M4 L=10 4
38 E8616-721-0A0 BASE UNIT PWD ASM. 1
39 E1015-802-000 CONVEYOR PCB BKT 1
40 SL-4041091-SC SCREW M4 L=10 5
41 E8617-802-AA0 CARRY PWB A ASM. 1
42 HX-0011500-0A PCB SUPPORT 8
43 HM-0009500-10 MOTOR DRIVER 1
44 HX-0005600-0B SPACER 4
45 SL-4030691-SC SCREW M3X6 4
46 HM-0013200-00 MOTOR DRIVER 2
47 SL-4041091-SC SCREW M4 L=10 4
48 E1013-715-000 FRONT COVER HANGER 4
49 SL-6061292-TN SCREW 8
- -

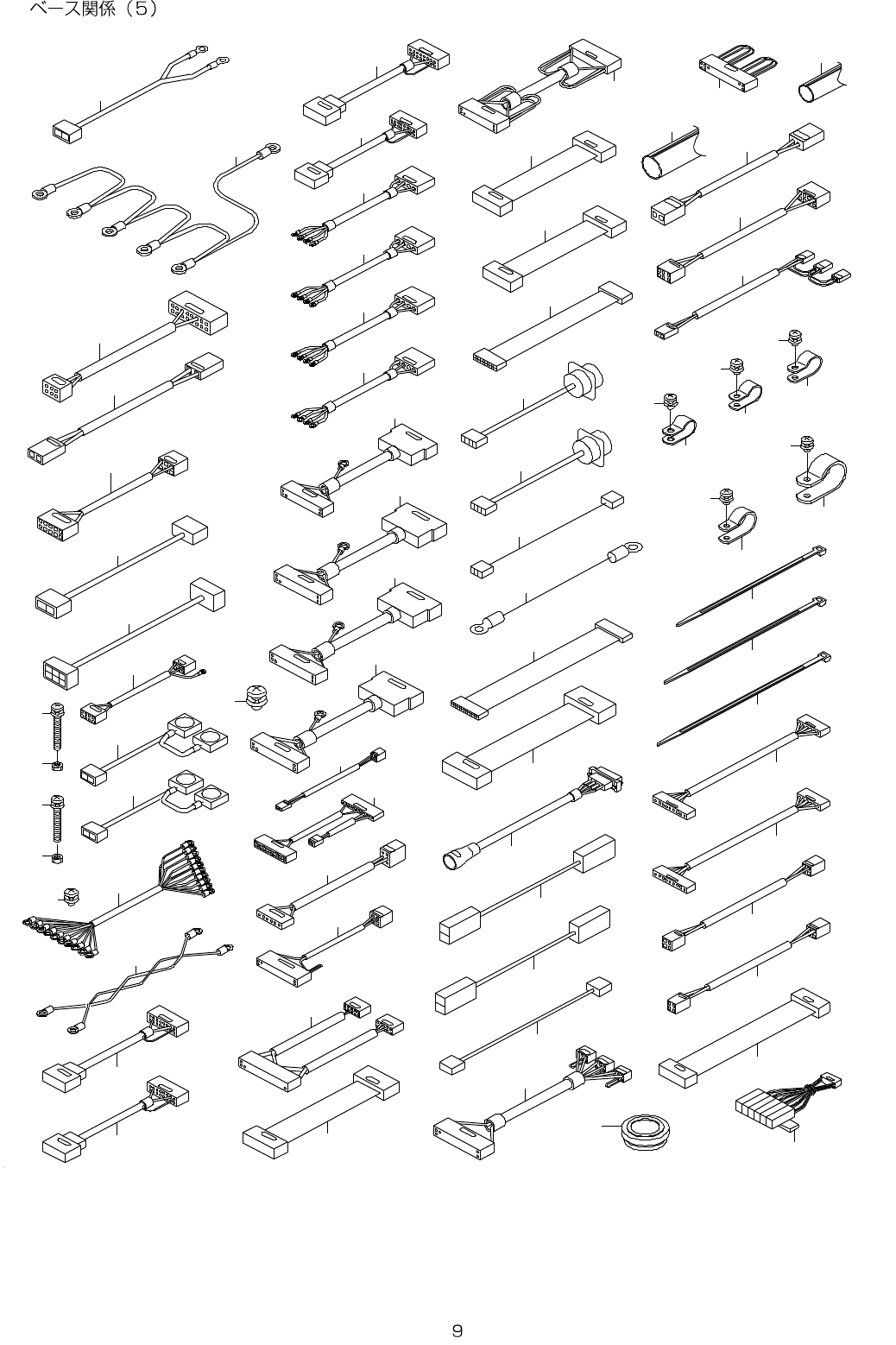

5. BASE COMPONENTS(5)
5 4
5 5
5 6
5 8
5 9
5 9
5 9
5 9
5 7
5 9
6 2
6 0
6 1
6 7
6 4
6 3
6 6
6 5
6 8
7 1
7 2
6 9
7 0
7 3
1 8
1 7
1
6
7
9
2
3
4
5
8
1 0
1 1
1 3
1 9
2 0
1 2
2 1
2 4
1 4
1 5
2 5
2 2
2 3
2 7
2 6
3 2
2 8
2 9
3 0
3 1
4 0
3 9
3 8
4 1
3 5
3 6
3 7
3 4
4 3
4 2
4 4
4 5
4 6
4 7
4 8
4 9
5 0
5 1
5 3
5 2
3 3
1 6
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9201-721-0A0 AC SERVO X POWER CABLE ASM. 1
2 E9202-802-0A0 AC SERVO X POWER CABLE ASM. 1
3 E9203-802-0A0 SERVO ON CABLE ASM. 1
4 E9204-802-0A0 CONVEYOR CABLE ASM. 100V 1
5 E9206-802-0A0 BASE UNIT POWER CABLE ASM. 1
6 E9207-725-0A0 VI MONITOR POWER CABLE 1 ASM. 1
7 E9208-725-0A0 OPERA. PANEL POWER CABLE ASM. 1
8 E9209-802-0A0 PANEL CONT. CABLE ASM. 1
9 E9211-725-0A0 BASE R FAN CABLE ASM. 1
10 E9212-725-0A0 BASE L FAN CABLE ASM. 1
11 E9213-802-0A0 CONTROL UNIT POWER CABLE ASM. 1
12 SL-4040891-SC SCREW M4 L=8 10
13 E9224-802-0A0 AC SERVO Y POWER CABLE ASM. 1
14 E9270-802-0A0 X ENCODER CABLE ASM. 1
15 E9271-802-0A0 Y ENCODER CABLE ASM. 1
16 E9272-802-0A0 Z ENCODER CABLE ASM. 1
17 E9273-802-0A0 ENCODER CABLE ASM. 1
18 E9280-802-0A0 X SERVO POWER CABLE ASM. 1
19 E9281-802-0A0 Y SERVO POWER CABLE ASM. 1
20 E9282-802-0A0 Z SERVO POWER CABLE ASM. 1
21 E9283-802-0A0 SERVO POWER CABLE ASM. 1
22 E9251-802-0A0 X CONTROL CABLE ASM. 1
23 E9252-802-0A0 Y CONTROL CABLE ASM. 1
24 E9253-802-0A0 Z CONTROL CABLE ASM. 1
25 E9254-802-0A0 CONTROL CABLE ASM. 1
26 SL-4051091-SC SCREW M5X0.8 L=10 1
27 E9240-802-0A0 SELECT DRIVER POWER CABLE ASM. 1
28 E9255-802-0A0 SELECT CONTROL CABLE ASM. 1
29 E9288-802-0A0 SELECT MOTOR CABLE ASM. 1
30 E9335-802-0A0 SELECT CABLE 1 ASM. 1
31 E9258-802-0A0 XY SENSOR RELAY CABLE ASM. 1
32 E9259-802-0A0 SAFETY CABLE ASM. 1
33 E9260-802-0A0 SERIAL PARALLEL CABLE 1 ASM. 1
34 E9261-802-0A0 SERIAL PARALLEL CABLE 2 ASM. 1
35 E9263-802-0A0 SERIAL PARALLEL CABLE 4 ASM. 1
36 E9264-725-0A0 SERIAL PARALLEL CABLE 5 ASM. 1
37 E9265-802-0A0 SMEMA CABLE "R" ASM. 1
38 E9266-725-0A0 SMEMA CABLE L ASM. 1
39 E9286-725-0A0 ARCNET I/F CABLE ASM. 1
40 E9290-721-0A0 5-24 GND SHORT CIRCUIT CABLE ASM 1
41 E9436-725-0A0 PRINTER RELAY CABLE 2 ASM. 1
42 E9451-802-0A0 OCC LIGHT RELAY CABLE ASM. 1
43 E9452-802-0A0 OCC RELAY CABLE ASM. 1
44 E9246-725-0A0 BASE R FAN RELAY CABLE ASM. 1
45 E9247-725-0A0 BASE FAN RELAY CABLE ASM. 1
46 E9588-725-0A0 POWER ON LIGHT CABLE ASM. 1
47 E9632-715-G00 ZIPPER TUBE 0.3
48 E9632-715-F00 ZIPPER TUBE (GPJ-50) 0.3
49 E9333-802-0A0 TEMP. RELAY CABLE 1 ASM. 1
50 E9228-802-0A0 HEAD AC CABLE ASM. 1
51 E9230-802-0A0 HEAD DC CABLE ASM. 1
52 E9235-802-0A0 TEMP. CONT. RELAY CABLE ASM. 1
53 E9299-802-0A0 CN106 CABLE ASM. 1
54 HX-0015000-0D CABLE CLIP 4
55 HX-0015000-0E CORD PRESSER 3-POLE (220/240V) 1
56 HX-0015000-0F CABLE CLIP 8
57 HX-0015000-0H CABLE CLIP 2
58 HX-0015000-0K CABLE CLIP 4
59 SL-4040891-SC SCREW M4 L=8 19
60 EA-9500B01-00 CABLE BAND 55
61 EA-9500B02-00 CABLE BAND 150 2
62 HX-0006500-0A CABLE CLIP 4
63 E9463-802-0A0 CONVEYOR PULSE CABLE ASM. 1
64 E9464-802-0A0 PULSE CABLE ASM. 1
65 E9242-802-0A0 DRIVER POWER CABLE ASM. 1
66 E9243-802-0A0 DRIVER POWER CABLE ASM. 1
67 E9550-802-0A0 CONVEYOR S.V RELAY CABLE ASM. 1
68 E9549-802-0A0 CONVEYOR S.V ASM. 1
69 SL-4043591-SC SCREW 8
70 NM-6040001-SC NUT M4 8
71 SL-4043591-SC SCREW 8
72 NM-6040001-SC NUT M4 8
73 HX-0022100-00 BUSH 1
