- - 6. C O VER COMPONENTS(1) 2 2 9 7 5 1 4 9 8 1 0 1 3 4 6 1 6 1 5 1 7 2 3 1 8 3 9 1 2 2 5 2 1 1 9 1 9 1 7 2 4 2 0 2 6 2 7 2 8 2 8 2 2 2 2 3 0 2 9 3 1 3 2 3 9 3 3 3 3 3 4 3 5 3 3 7 3 8 6 1 1 3 8 4 2 4 2 4 0 4 3 4 3 1 7…
- -

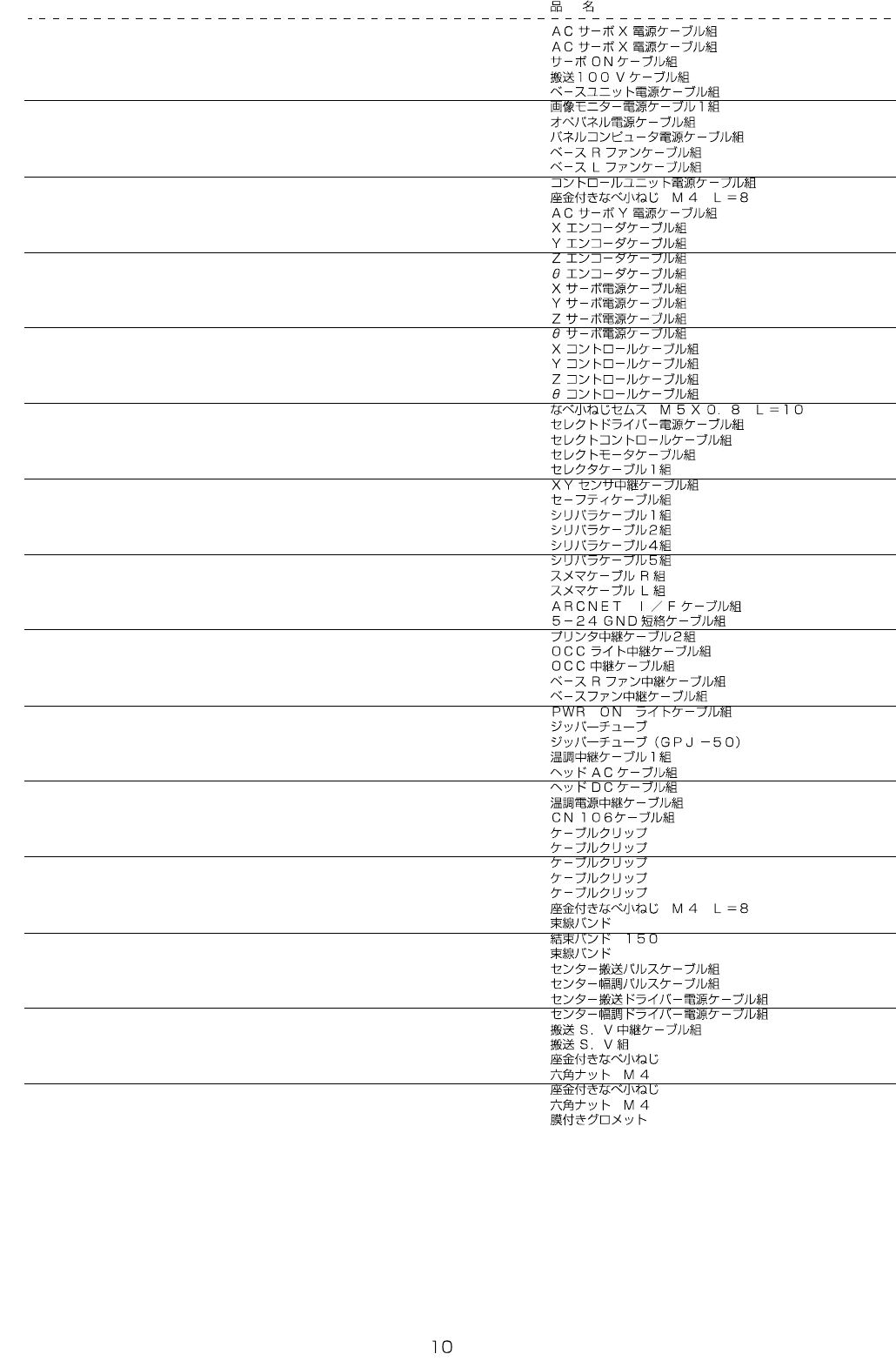

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9201-721-0A0 AC SERVO X POWER CABLE ASM. 1
2 E9202-802-0A0 AC SERVO X POWER CABLE ASM. 1
3 E9203-802-0A0 SERVO ON CABLE ASM. 1
4 E9204-802-0A0 CONVEYOR CABLE ASM. 100V 1
5 E9206-802-0A0 BASE UNIT POWER CABLE ASM. 1
6 E9207-725-0A0 VI MONITOR POWER CABLE 1 ASM. 1
7 E9208-725-0A0 OPERA. PANEL POWER CABLE ASM. 1
8 E9209-802-0A0 PANEL CONT. CABLE ASM. 1
9 E9211-725-0A0 BASE R FAN CABLE ASM. 1
10 E9212-725-0A0 BASE L FAN CABLE ASM. 1
11 E9213-802-0A0 CONTROL UNIT POWER CABLE ASM. 1
12 SL-4040891-SC SCREW M4 L=8 10
13 E9224-802-0A0 AC SERVO Y POWER CABLE ASM. 1
14 E9270-802-0A0 X ENCODER CABLE ASM. 1
15 E9271-802-0A0 Y ENCODER CABLE ASM. 1
16 E9272-802-0A0 Z ENCODER CABLE ASM. 1
17 E9273-802-0A0 ENCODER CABLE ASM. 1
18 E9280-802-0A0 X SERVO POWER CABLE ASM. 1
19 E9281-802-0A0 Y SERVO POWER CABLE ASM. 1
20 E9282-802-0A0 Z SERVO POWER CABLE ASM. 1
21 E9283-802-0A0 SERVO POWER CABLE ASM. 1
22 E9251-802-0A0 X CONTROL CABLE ASM. 1
23 E9252-802-0A0 Y CONTROL CABLE ASM. 1
24 E9253-802-0A0 Z CONTROL CABLE ASM. 1
25 E9254-802-0A0 CONTROL CABLE ASM. 1
26 SL-4051091-SC SCREW M5X0.8 L=10 1
27 E9240-802-0A0 SELECT DRIVER POWER CABLE ASM. 1
28 E9255-802-0A0 SELECT CONTROL CABLE ASM. 1
29 E9288-802-0A0 SELECT MOTOR CABLE ASM. 1
30 E9335-802-0A0 SELECT CABLE 1 ASM. 1
31 E9258-802-0A0 XY SENSOR RELAY CABLE ASM. 1
32 E9259-802-0A0 SAFETY CABLE ASM. 1
33 E9260-802-0A0 SERIAL PARALLEL CABLE 1 ASM. 1
34 E9261-802-0A0 SERIAL PARALLEL CABLE 2 ASM. 1
35 E9263-802-0A0 SERIAL PARALLEL CABLE 4 ASM. 1
36 E9264-725-0A0 SERIAL PARALLEL CABLE 5 ASM. 1
37 E9265-802-0A0 SMEMA CABLE "R" ASM. 1
38 E9266-725-0A0 SMEMA CABLE L ASM. 1
39 E9286-725-0A0 ARCNET I/F CABLE ASM. 1
40 E9290-721-0A0 5-24 GND SHORT CIRCUIT CABLE ASM 1
41 E9436-725-0A0 PRINTER RELAY CABLE 2 ASM. 1
42 E9451-802-0A0 OCC LIGHT RELAY CABLE ASM. 1
43 E9452-802-0A0 OCC RELAY CABLE ASM. 1
44 E9246-725-0A0 BASE R FAN RELAY CABLE ASM. 1
45 E9247-725-0A0 BASE FAN RELAY CABLE ASM. 1
46 E9588-725-0A0 POWER ON LIGHT CABLE ASM. 1
47 E9632-715-G00 ZIPPER TUBE 0.3
48 E9632-715-F00 ZIPPER TUBE (GPJ-50) 0.3
49 E9333-802-0A0 TEMP. RELAY CABLE 1 ASM. 1
50 E9228-802-0A0 HEAD AC CABLE ASM. 1
51 E9230-802-0A0 HEAD DC CABLE ASM. 1
52 E9235-802-0A0 TEMP. CONT. RELAY CABLE ASM. 1
53 E9299-802-0A0 CN106 CABLE ASM. 1
54 HX-0015000-0D CABLE CLIP 4
55 HX-0015000-0E CORD PRESSER 3-POLE (220/240V) 1
56 HX-0015000-0F CABLE CLIP 8
57 HX-0015000-0H CABLE CLIP 2
58 HX-0015000-0K CABLE CLIP 4
59 SL-4040891-SC SCREW M4 L=8 19
60 EA-9500B01-00 CABLE BAND 55
61 EA-9500B02-00 CABLE BAND 150 2
62 HX-0006500-0A CABLE CLIP 4
63 E9463-802-0A0 CONVEYOR PULSE CABLE ASM. 1
64 E9464-802-0A0 PULSE CABLE ASM. 1
65 E9242-802-0A0 DRIVER POWER CABLE ASM. 1
66 E9243-802-0A0 DRIVER POWER CABLE ASM. 1
67 E9550-802-0A0 CONVEYOR S.V RELAY CABLE ASM. 1
68 E9549-802-0A0 CONVEYOR S.V ASM. 1
69 SL-4043591-SC SCREW 8
70 NM-6040001-SC NUT M4 8
71 SL-4043591-SC SCREW 8
72 NM-6040001-SC NUT M4 8
73 HX-0022100-00 BUSH 1
- -

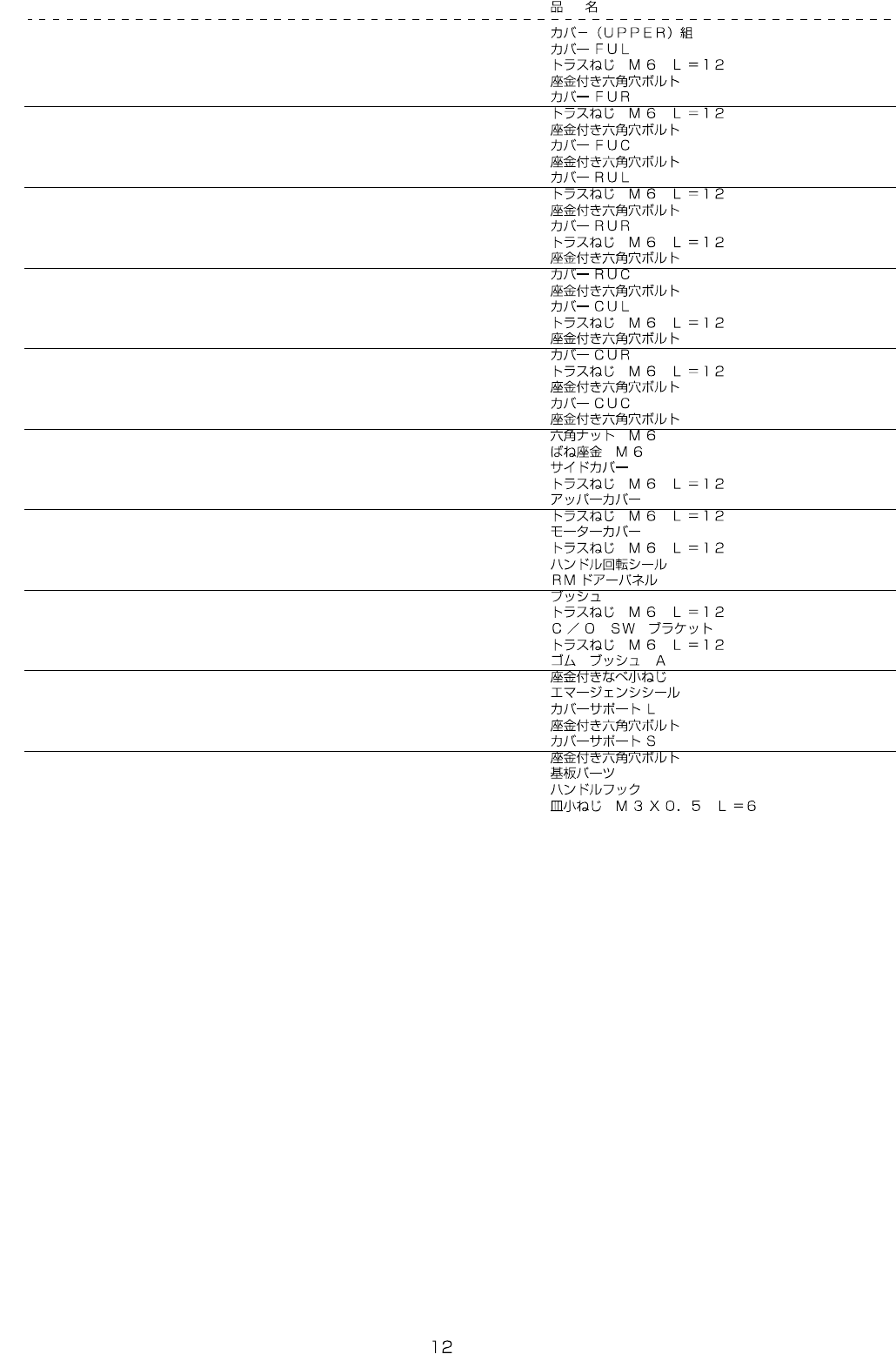

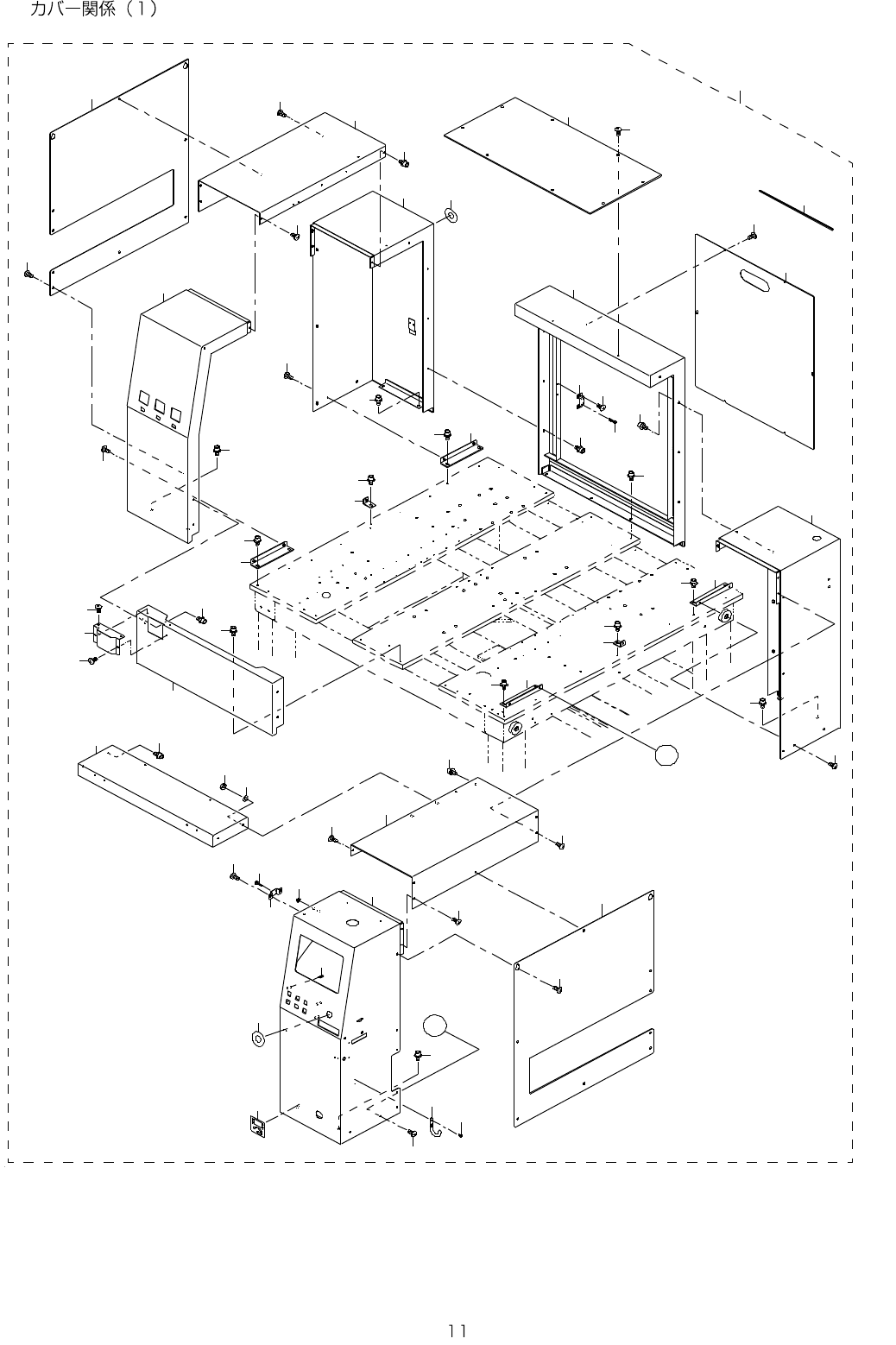

6. COVER COMPONENTS(1)
