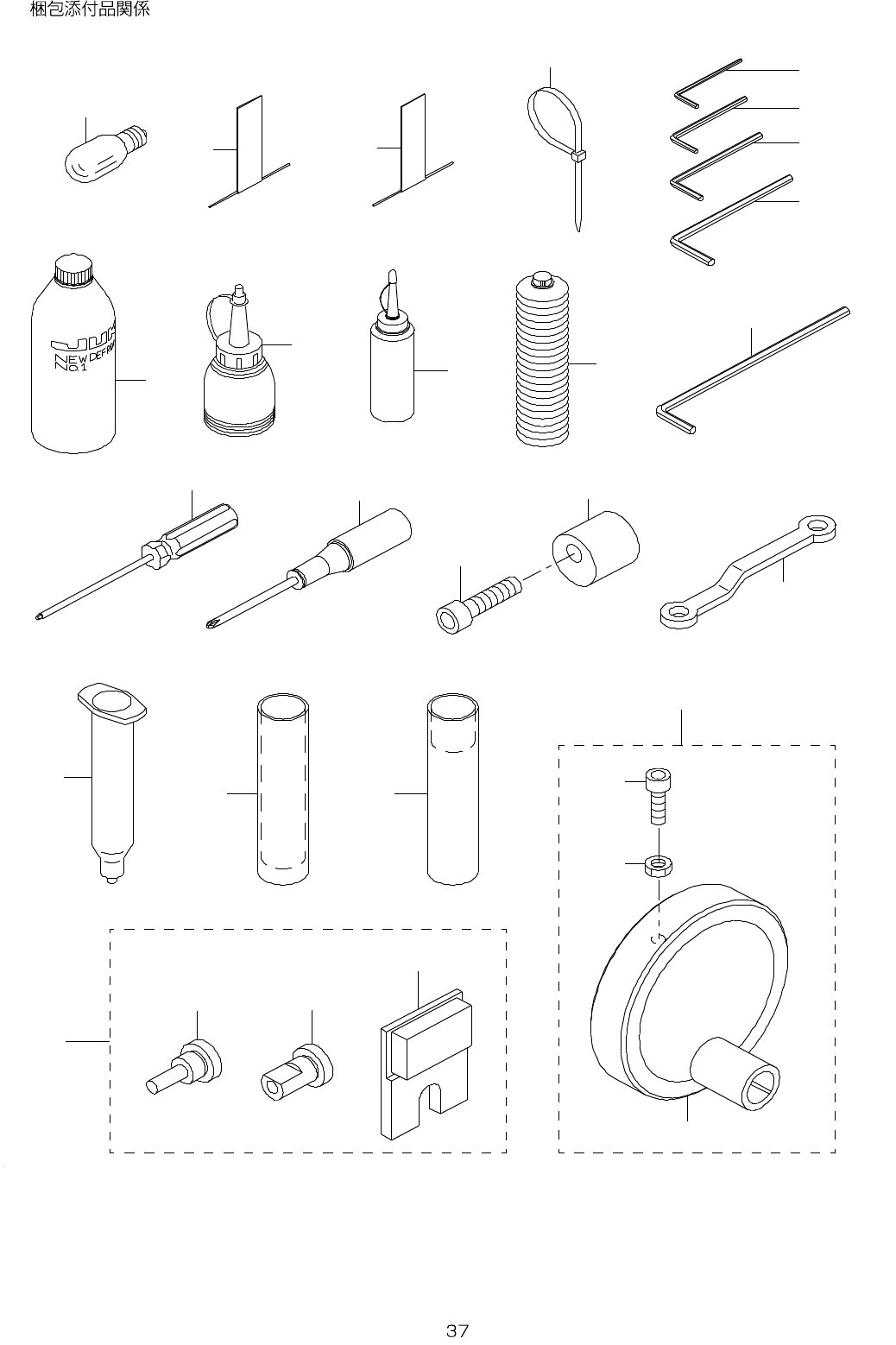

22. ACCESSORIES PART COMPONENTS
8
6
7
9
1 0
1 1
1 2
1 3
1 4
1 5
5
3
2
1 8
1
1 6
1 7
4
2 1
2 2
2 3
1 9
2 4 2 5
2 7 2 8
2 9
2 0
2 6
- -

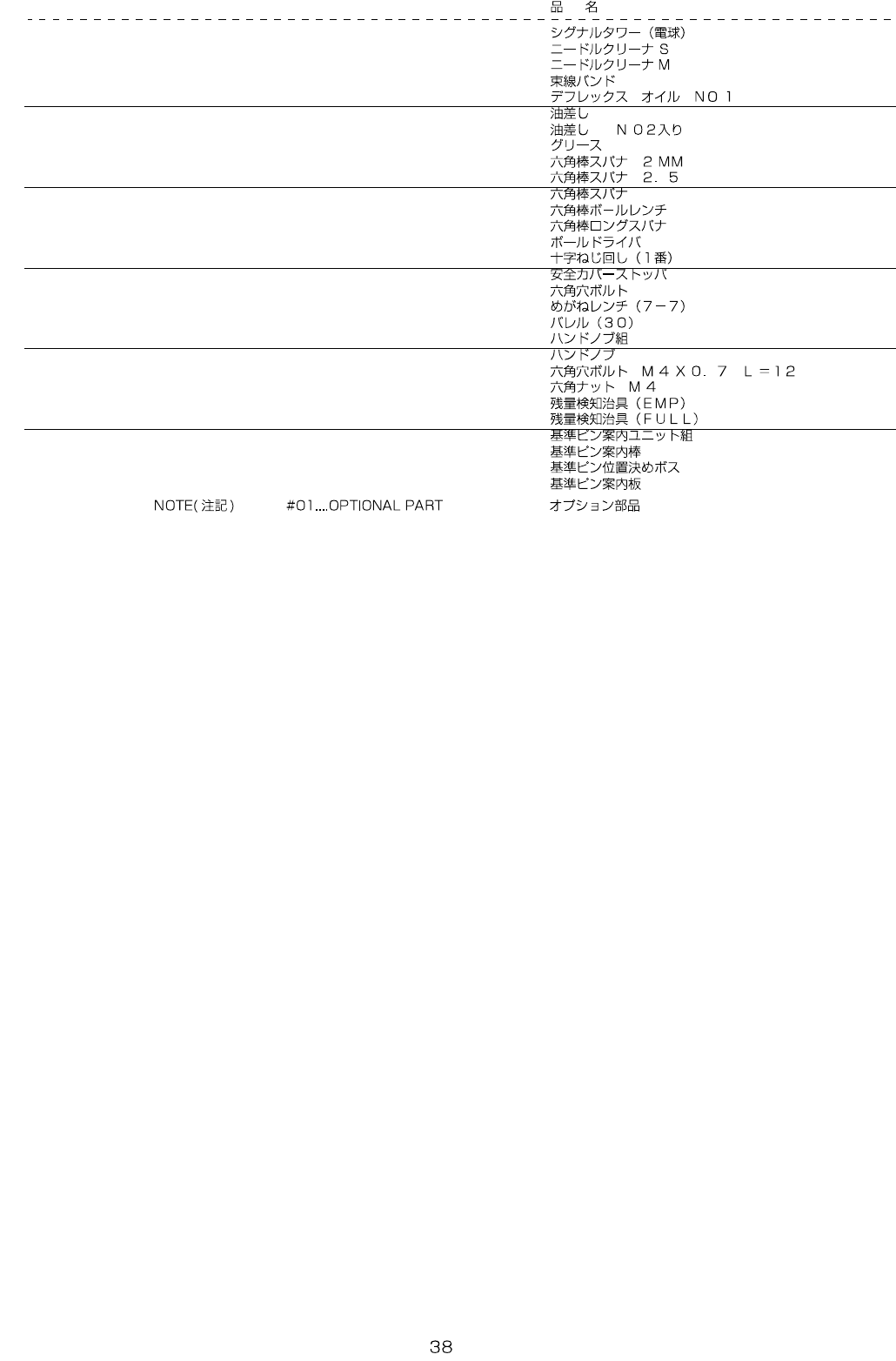

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9690-715-000 LAMP 1
2 E3431-802-000 NEEDLE CLEANER S 5
3 E3432-802-000 NEEDLE CLEANER M 5
4 HX-0006500-0C CABLE BAND 3
5 MDF-RX1001L0 DEFRIX OIL NO.1 800CC 1
6 J1067-000-000 OILER 1
7 B9121-220-0A0 OILER (CONTAINING NO.2 OIL) 1
8 MGR-EAS400G0 GREASE 1
9 J1066-000-00B HEXAGONAL WRENCH KEY (2MM) 1
10 J1066-000-00C HEXAGONAL WRENCH KEY 2.5 1
11 J1066-000-00D HEXAGONAL WRENCH KEY 1
12 J1066-000-00E HEXAGONAL BOWL WRENCH 1
13 J1066-000-A0G HEXAGONAL LONG SPANNER 1
14 J1080-000-000 BOLL SCREWDRIVER 1
15 MAI-17002000 RECESSED HEAD DRIVER (NO.1) 1
16 E1348-700-000 SAFETY COVER STOPPER 2
17 SM-6052002-TN BOLT 2
18 119-68005 RING SPANNER 7X7 1
19 E6113-715-000 BARREL (30) 2
20 E2272-802-0A0 HAND KNOB ASM. 1
21 E2272-802-000 HAND KNOB (1)
22 SM-6041202-TN SCREW M4X0.7 L=12 (1)
23 NM-6040003-SC NUT M4 (1)
24 E2508-802-000 REMAINING AMOUNT DETECTION JIG 1
25 E2509-802-000 REMAINING AMOUNT DETECTION JIG 1
26
#01
E3912-802-0A0 PIVOT PIN GUIDE UNIT ASM. 1
27 E3912-802-000 PIVOT PIN GUIDE ROD (1)
28 E3913-802-000 PIVOT PIN POSITIONING BOSS (1)
29 E3914-802-000 PIVOT PIN GUIDE PLATE (1)
- -

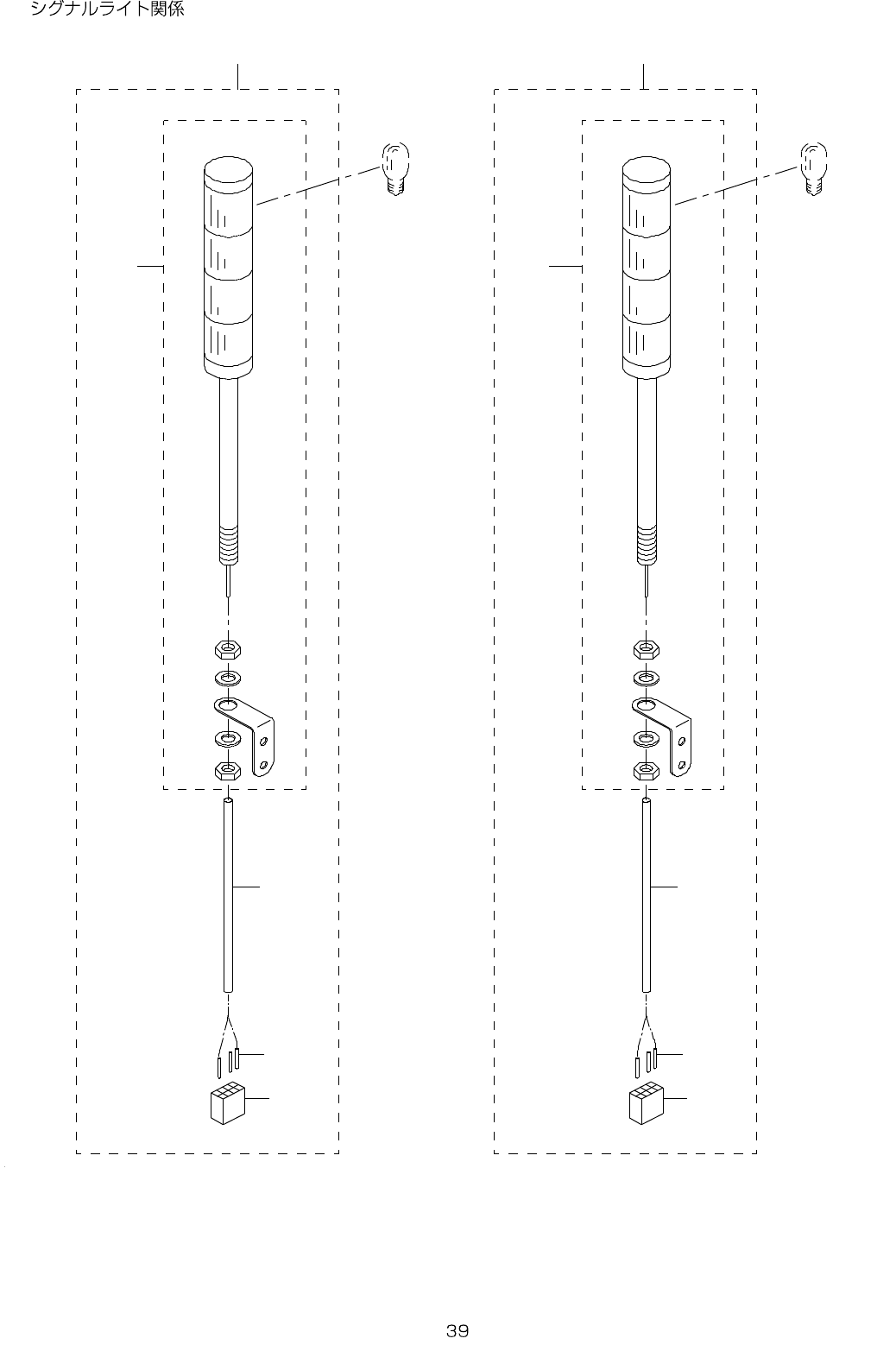

23. SIGNAL LIGHT COMPONENTS
9
6
8
7
1 0
4
1
3
2
5
