KD-775-Rev04PDF.pdf - 第65页
- - REF.NO NOT E P A RT NO D E S C R I P T I O N Q ty 1 E2229 - 8 02 -0 A0 W IDE A DJUSTING PU LLEY A SM. 2 2 E2229 - 8 02 -0 00 W IDE AD JUSTING PULLEY ( 1) 3 E2245 - 8 02 -0 00 C R I N G ( 2) 4 SM-8 040 502-TP S CREW…
- -
34. IN/OUT JOINT COMPONENTS
5 4
5 4
1 5
5 3
3 8
3 9
9
1 0
2
3
4
7
9
1 1
8
2
7
4
3
2 0
1
1
9
1 9
8
1 2
6
1 3
1 5
1 6
1 8
2 1
1 7
1 8
1 4
1 6
3 7
2 2
8
7 3
7 4
7 5
6 4
7 1
6 6
6 7
6 5
5
5 5
5 7
6 0
5 9
7 2
6 8
7 0
7 2
7 1
6 9
5
6 1
6 2
6 1
6 2
5 6
6 3
6 3
5 5
5 8
6 4
2 6
2 7
3 1
2 8
2 9
3 0
2 5
3 5
3 4
3 3
3 6
3 2
2 4
2 3
4 5
4 4
4 6
4 7
4 8
5 0
5 1
4 9
4 1
4 3
4 2
5 2
4 0
- -

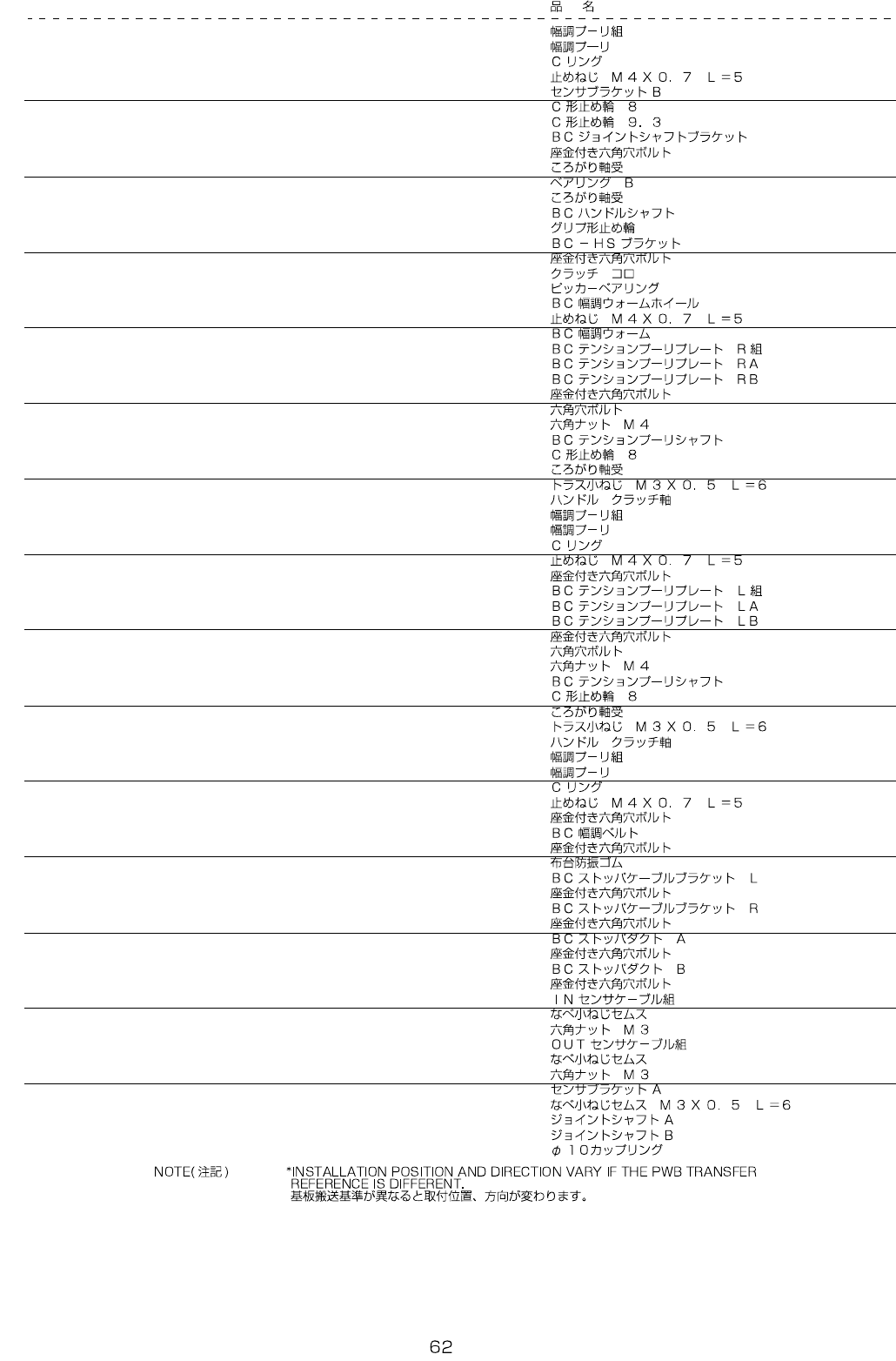

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2229-802-0A0 WIDE ADJUSTING PULLEY ASM. 2
2 E2229-802-000 WIDE ADJUSTING PULLEY (1)
3 E2245-802-000 C RING (2)
4 SM-8040502-TP SCREW M4X0.7 L=5 2
5 E2023-721-000 SENSOR BRACKET B 2
6 RC-0740811-KP C-RING 1
7 RC-0100001-KP SNAP RING M10 2
8 E2261-802-000 BC JOINT SHAFT BRACKET 3
9 SL-6061292-TN SCREW 6
10 SB-1100005-00 BEARING 1
11 E2277-802-000 BEARING B 1
12 SB-1080011-00 ROLLING SHAFT HOLDER 1
13 E2262-802-000-A BC HANDLE SHAFT 1
14 RC-0600006-KP GRIP TYPE SNAP RING 1
15 E2263-802-000 BC-HS BRACKET 2
16 SL-6061292-TN SCREW 4
17 B3410-180-000 CLUTCH ROLLER 2
18 SB-1060003-00 BEARING 2
19 E2264-802-000 BC WIDE ADJUSTING WORM WHEEL 1
20 SM-8040502-TP SCREW M4X0.7 L=5 2
21 E2265-802-000 BC WIDE ADJUSTING WORM 1
22 E2802-802-0A0 BC TENSION PULLEY PLATE R ASM. 1
23 E2802-802-000 BC TENSION PULLEY PLATE RA (1)
24 E2803-802-000 BC TENSION PULLEY PLATE RB (1)
25 SL-6041092-TN SCREW (2)
26 E2246-802-000 SCREW (1)
27 NM-6040001-SC NUT M4 (1)
28 E2270-802-000 BC TENSION PULLEY SHAFT (1)
29 RC-0740811-KP C-RING (1)
30 SB-1080011-00 ROLLING SHAFT HOLDER (1)
31 SM-0030601-SC SCREW M3X0.5 L=6 (3)
32 137-55814 CLUTCH SHAFT (1)
33 E2229-802-0A0 WIDE ADJUSTING PULLEY ASM. (1)
34 E2229-802-000 WIDE ADJUSTING PULLEY (1)
35 E2245-802-000 C RING (2)
36 SM-8040502-TP SCREW M4X0.7 L=5 (1)
37 SL-6041092-TN SCREW 3
38 E2800-802-0A0 BC TENSION PULLEY PLATE L ASM. 1
39 E2800-802-000 BC TENSION PULLEY PLATE LA (1)
40 E2801-802-000 BC TENSION PULLEY PLATE LB (1)
41 SL-6041092-TN SCREW (2)
42 E2246-802-000 SCREW (1)
43 NM-6040001-SC NUT M4 (1)
44 E2270-802-000 BC TENSION PULLEY SHAFT (1)
45 RC-0740811-KP C-RING (1)
46 SB-1080011-00 ROLLING SHAFT HOLDER (1)
47 SM-0030601-SC SCREW M3X0.5 L=6 (3)
48 137-55814 CLUTCH SHAFT (1)
49 E2229-802-0A0 WIDE ADJUSTING PULLEY ASM. (1)
50 E2229-802-000 WIDE ADJUSTING PULLEY (1)
51 E2245-802-000 C RING (2)
52 SM-8040502-TP SCREW M4X0.7 L=5 (1)
53 SL-6041092-TN SCREW 3
54 E2256-802-000 BC WIDE ADJUSTING BELT 2
55 SL-6031092-TN SCREW 4
56 115-03505 RUBBER CUSHION 4
57 E2238-802-000 BC STOPPER CABLE BRACKET L 1
58 SL-6040892-TN BOLT 2
59 E2242-802-000 BC STOPPER CABLE BRACKET R 1
60 SL-6040892-TN BOLT 2
61 E2275-802-000 BC STOPPER DUCT A 2
62 SL-6040892-TN BOLT 8
63 E2276-802-000 BC STOPPER DUCT B 2
64 SL-6040892-TN BOLT 8
65 E9501-802-0A0 IN SENSOR CABLE ASM. 1
66 SL-4031091-SC SCREW M3 X 10 1
67 NM-6030003-SC NUT M3 1
68 E9502-802-0A0 OUT SENSOR CABLE ASM. 1
69 SL-4031091-SC SCREW M3 X 10 1
70 NM-6030003-SC NUT M3 1
71 E2022-721-000 SENSOR BRACKET A 2
72 SL-4030691-SC SCREW M3X6 4
73 E2278-802-000 JOINT SHAFT A 1
74 E2279-802-000 JOINT SHAFT B 1
75 E2255-802-000 COUPLING 1
- -

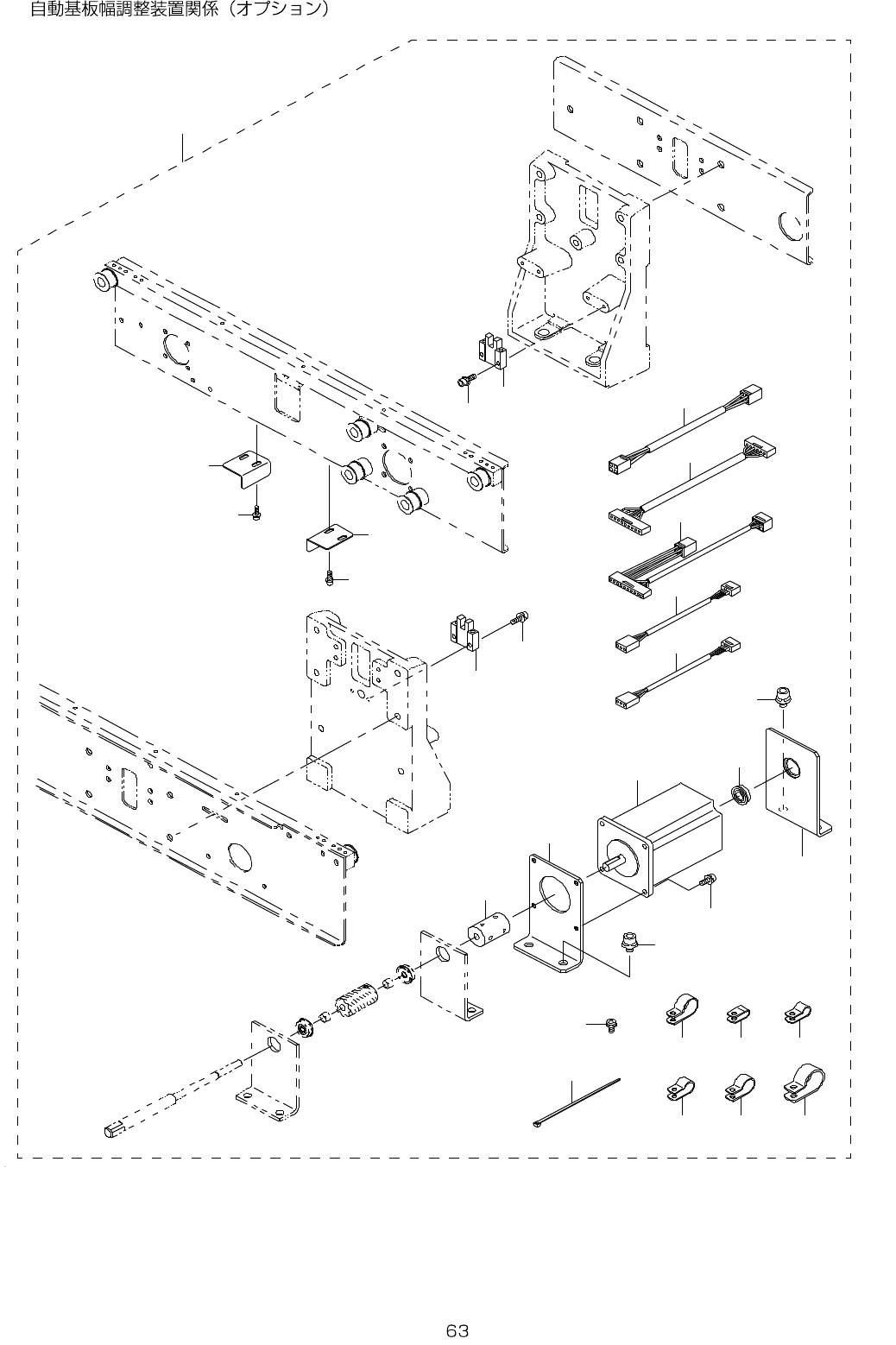

35. AUTOMATIC PWB WIDTH ADJUST UNIT COMPONENTS (OPTION)
1 0
8
9
1 1
5
3
6
7
2
1 2
1 3
2 0
1 9
1 9
2 0
4
1
2 2
2 6
2 52 42 3
2 82 7
1 4
1 5
1 6
1 8
1 7
2 1
