- - 28. C E NT E R TABLE UNIT OUT L INE C OMPON E NT S 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 2 1 5 1 6
- -

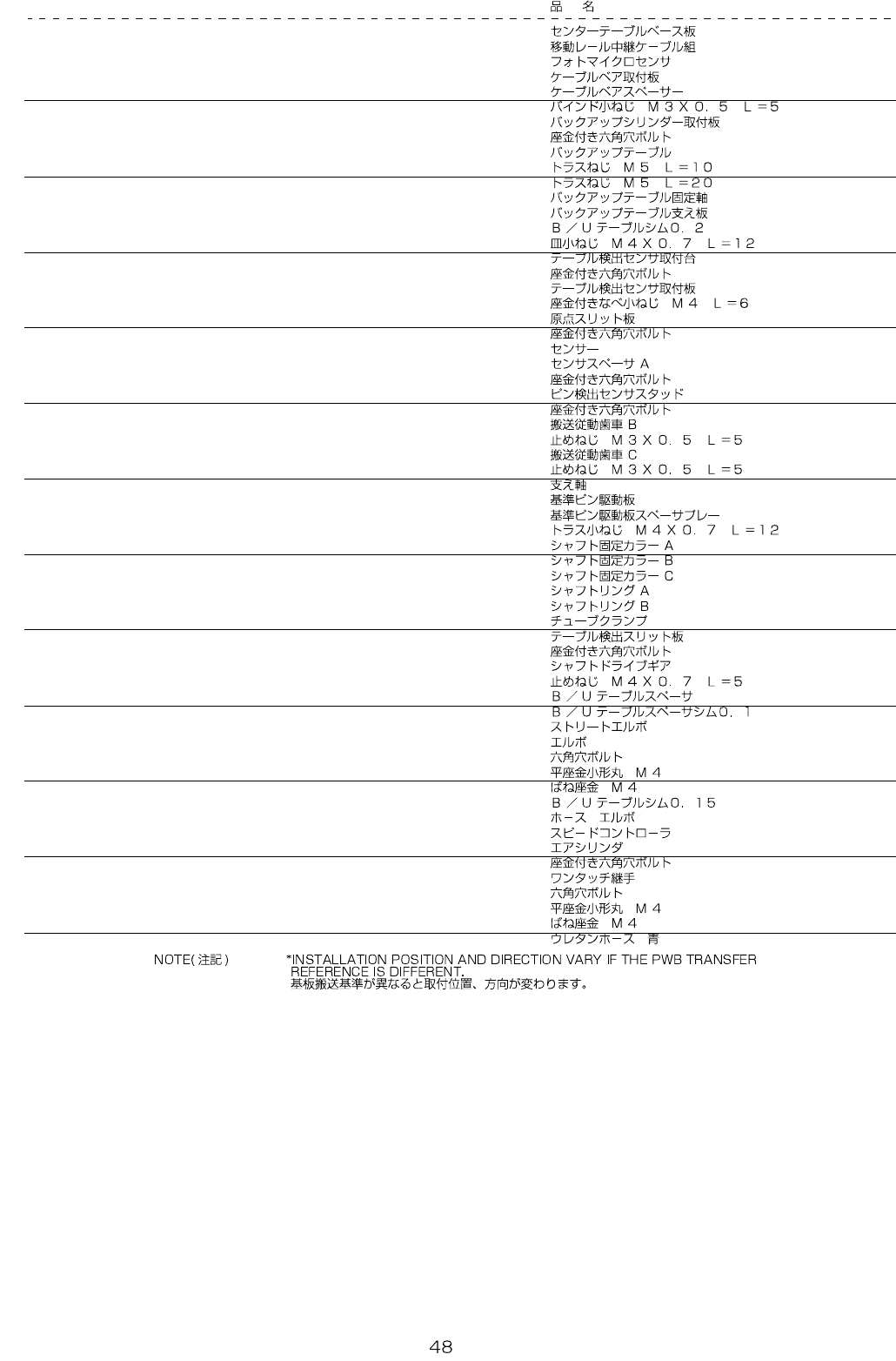

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2095-802-000 CENTER TABLE BASE PLATE 1
2 E9472-802-0A0 REMOVING RAIL RELAY CABLE ASM. 1
3 HD-0003500-00 MICRO SENSOR 1
4 E1020-802-000 CABLE BEAR FITTING PLATE 1
5 E1022-802-000 CABLE BEAR SPACER 1
6 SM-5030501-SC SCREW M3 L=5 4
7 E2097-802-000 BACKUP CYLINDER FITTING PLATE 2
8 SL-6052092-TN SCREW 6
9 E2098-802-000 BACKUP TABLE 1
10 SM-0051001-SC SCREW 4
11 SM-0052001-SC TRUSS SCREW 4
12 E2123-802-000 BACKUP TABLE FIXING SHAFT 2
13 E2124-802-000 BACKUP TABLE SUPPORT PLATE 2
14 E2045-802-000 B/U TABLE SHIM 0.2 2
15 SM-1041201-SC SCREW M4 L=12 10
16 E2102-802-000 SENSOR FITTING BASE 1
17 SL-6051492-TN BOLT 2
18 E2103-802-000 SENSOR FITTING PALTE 2
19 SL-4040691-SC SCREW M4 L=6 4
20 E2104-802-000 ZERO SLIT PLATE 1
21 SL-6030692-TN BOLT 2
22 HD-0006700-00 SENSOR 2
23 E2105-802-000 SENSOR SPACER A 2
24 SL-6031092-TN SCREW 4
25 E2063-802-000 PIN DETECTOR SENSOR STUD 2
26 SL-6033092-TN SCREW 2
27 E2107-802-000 CONVEYOR VERTICAL GEAR B 1
28 SM-8030502-TP SCREW M3 L=5 2
29 E2108-802-000 CONVEYOR VERTICAL GEAR C 1
30 SM-8030502-TP SCREW M3 L=5 2
31 E2109-802-000 SUPPORT SHAFT 1
32 E2110-802-000 PIVOT PIN DRIVING PLATE 1
33 E2122-802-000 DRIVING PLATE SPACER PLATE 3
34 SM-0041201-SA SCREW M4X0.7 L=12 3
35 E2112-802-000 SHAFT FIXING COLLAR A 4
36 E2113-802-000 SHAFT FIXING COLLAR B 8
37 E2114-802-000 SHAFT FIXING COLLAR C 2
38 E2115-802-000 SHAFT RING A 5
39 E2116-802-000 SHAFT RING B 1
40 E2117-802-000 TUBE CLAMP 2
41 E2118-802-000 TABLE DETECTOR SLIT PLATE 1
42 SL-6030692-TN BOLT 2
43 E3007-802-000 SHAFT DRIVE GEAR 2
44 SM-8040502-TP SCREW M4X0.7 L=5 2
45 E2042-802-000 B/U TABLE SPACER 3
46 E2043-802-000 B/U TABLE SPACER SHIM 0.1 2
47 PJ-3040400-05 STREET ELBOW 2
48 PJ-3040400-01 ELBOW 2
49 SM-6043002-TN SCREW 1
50 WP-0430800-SC WASHER M4 1
51 WS-0410002-KN SPRING WASHER 1
52 E2044-802-000 B/U TABLE SHIM 0.15 6
53 PJ-0460525-03 HOSE ELBOW 6
54 PC-0105080-00 SPEED CONTROLLER 2
55 PA-1604004-00 AIR CYLINDER 2
56 SL-6052592-TN BOLT 4
57 PJ-3080400-02 QUICK COUPLING 2
58 SM-6043002-TN SCREW 1
59 WP-0430800-SC WASHER M4 1
60 WS-0410002-KN SPRING WASHER 1
61 BT-0400251-EA TUBE HOSE, BLUE 16
- -

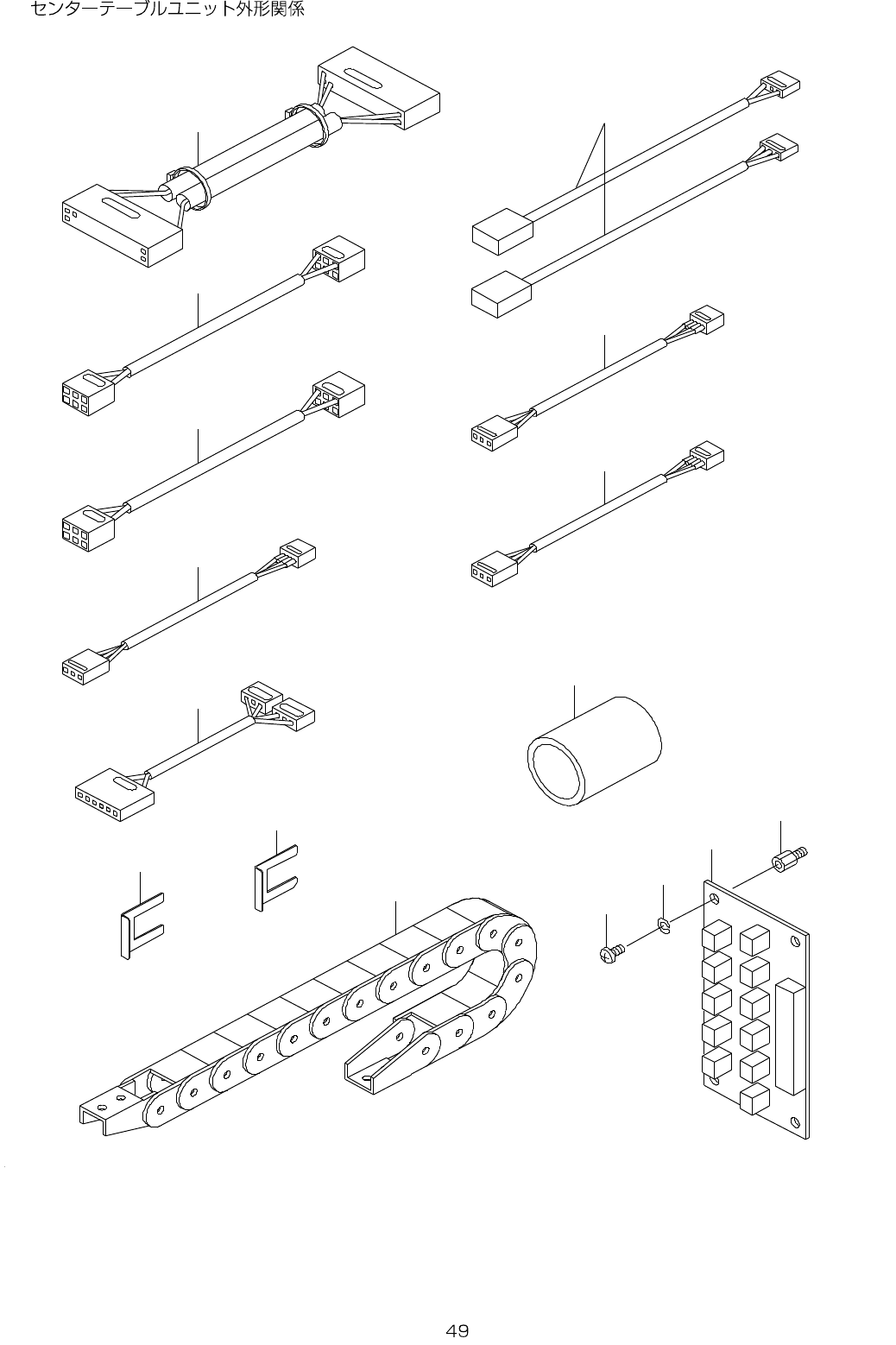

28. CENTER TABLE UNIT OUTLINE COMPONENTS
3
4
5
6
7
8
9
1 0
1 1
1 2
1 3
1 4
1
2
1 5
1 6
- -

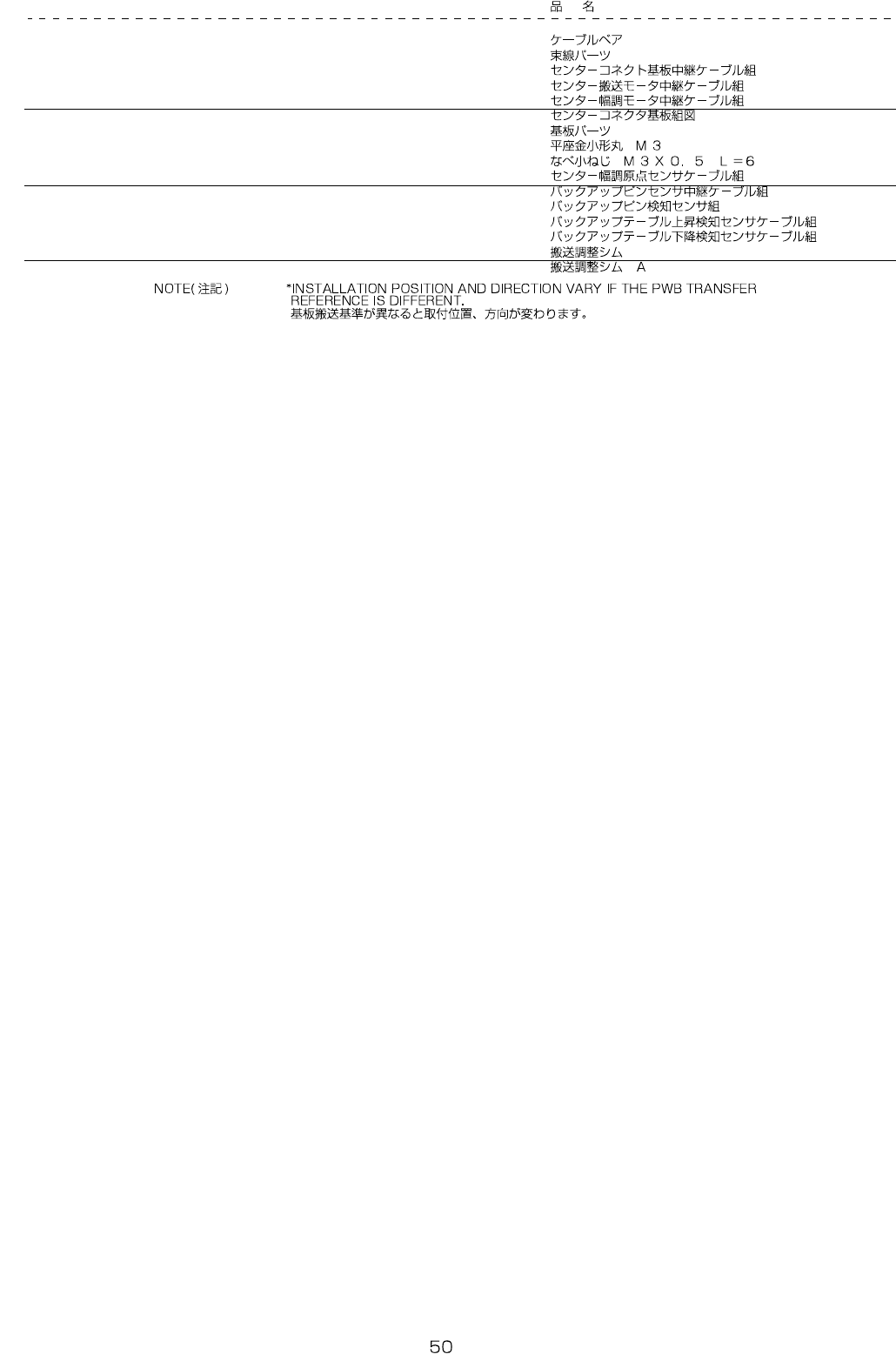

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2145-802-000 CABLE BEAR 1
2 HX-0036400-0B CORD PART 0.7
3 E9461-802-0A0 RELAY CABLE ASM. 1
4 E9459-802-0A0 MOTOR REALY CABLE ASM. 1
5 E9460-802-0A0 MOTOR RELAY CABLE ASM. 1
6 E8603-802-0A0 CENTER CONNECTOR BOARD ASM. 1
7 HX-0035400-0C BASE PARTS 4
8 WP-0320500-SC WASHER M3 4
9 SL-4030691-SC SCREW M3X6 4
10 E9476-802-0A0 ZERO SENSOR CABLE ASM. 1
11 E9477-802-0A0 SENSOR RELAY CABLE ASM. 1
12 E9475-802-0A0 DETECTING SENSOR ASM. 1
13 E9469-802-0A0 ASCENT DETECTING SENSOR ASM. 1
14 E9470-802-0A0 DESCENT DETECTING SENSOR ASM. 1
15 E2176-802-000 CONVEYOR REGULATION SHIM 6
16 E2194-802-000 CONVEYOR REGULATION SHIM A 6
