- - 26. C E NT E R TABLE COMPO N ENT(3) 3 5 1 0 6 6 2 6 9 6 2 8 2 7 1 3 1 6 1 6 1 5 1 6 1 5 1 6 1 8 1 9 1 9 4 6 2 1 2 1 2 2 2 3 2 4 2 4 2 5 1 2 1 1 2 6 3 1 3 1 3 2 2 9 2 9 2 6 2 8 2 7 2 5 3 2 3 3 3 3 3 4 3 6 3 5 3 8 3 …
- -

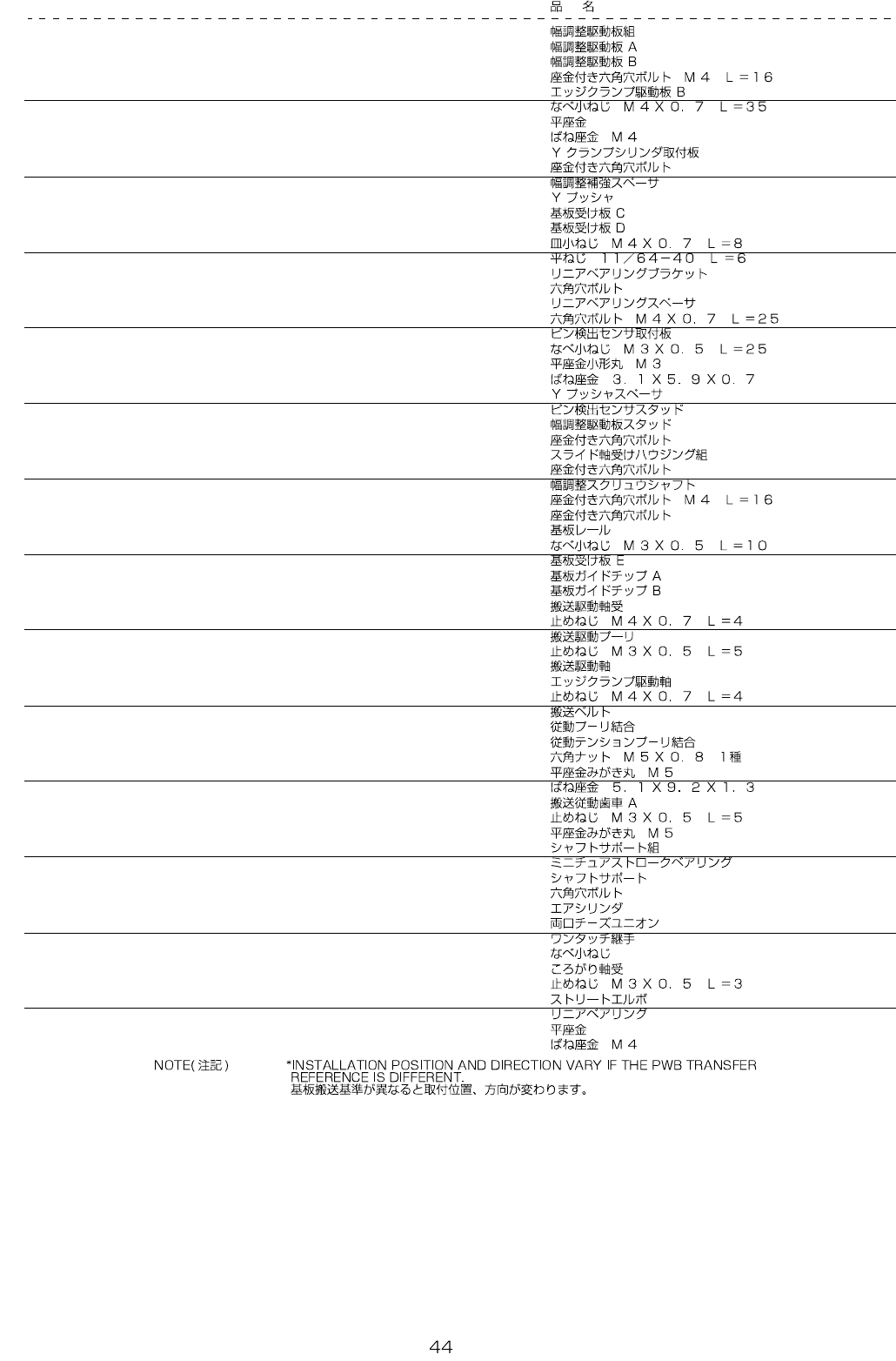

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2051-802-0A0 DRIVING PLATE ASM. 1
2 E2051-802-000 WIDE ADJUSTING DRIVING PLATE A (1)
3 E2052-802-000 WIDE ADJUSTING DRIVING PLATE B (1)
4 SL-6041692-TN SCREW (2)
5 E2053-802-000 EDGE CLAMP DRIVING PLATE B (1)
6 SM-4043501-SE SCREW M4 L=35 (2)
7 WP-0482016-SZ WASHER (2)
8 WS-0410002-KN SPRING WASHER (2)
9 E2054-802-000 Y CLAMP CYLINDER FITTING PLATE (1)
10 SL-6053592-TN BOLT (4)
11 E2055-802-000 WIDE ADJUSTING SPLICING SPACER (2)
12 E2056-802-000 Y PUSHER (7)
13 E2057-802-000 BOARD HOLDING PLATE C (4)
14 E2058-802-000 BOARD HOLDING PLATE D (4)
15 SM-1040801-SC SCREW M4X0.7 L=8 (28)
16 SS-6110610-TP SCREW 11/64-40 L=6 (4)
17 E2059-802-000 LINEAR BEARING BRACKET (1)
18 SM-6031602-TN SCREW M3 L=16 (2)
19 E2060-802-000 LINEAR BEARING SPACER (1)
20 SM-6042502-TN SCREW M4X0.7 L=25 (4)
21 E2061-802-000 SENSOR FITTING PLATE (2)
22 SM-4032501-SN SCREW M3X0.5 L=25 (4)
23 WP-0320500-SC WASHER M3 (4)
24 WS-0310002-KN SPRING WASHER M3 (4)
25 E2062-802-000 Y PUSHER SPACER (4)
26 E2063-802-000 PIN DETECTOR SENSOR STUD (4)
27 E2064-802-000 DRIVING PLATE STUD (2)
28 SL-6052092-TN SCREW (4)
29 E2065-802-0A0 HOUSING ASM. (1)
30 SL-6041292-TN SCREW (4)
31 E2071-802-000 WIDE ADJUSTING SCREW SHAFT (2)
32 SL-6041692-TN SCREW (4)
33 SL-6051692-TN BOLT (2)
34 E2009-802-000 BOARD RAIL (2)
35 SM-4031001-SN SCREW (10)
36 E2020-802-000 BOARD HOLDING PLATE E (2)
37 E2021-802-000 BOARD GUIDE TIP A (1)
38 E2022-802-000 BOARD GUIDE TIP B (1)
39 E2024-802-000 CONVEYOR DRIVING SHAFT HOLDER (1)
40 SM-8040402-TP SCREW M4X0.7 L=4 (1)
41 E2025-802-000 CONVEYOR DRIVING PULLEY (1)
42 SM-8030502-TP SCREW M3 L=5 (2)
43 E2026-802-000 CONVEYOR DRIVING SHAFT (1)
44 E2027-802-000 EDGE CLAMP DRIVING SHAFT (2)
45 SM-8040402-TP SCREW M4X0.7 L=4 (2)
46 E2034-802-000 CONVEYOR BELT (1)
47 E2035-802-0A0 VERTICAL PULLEY COMPL. (2)
48 E2037-802-0A0 VERTICAL TENSION PULLEY COMPL. (1)
49 NM-6050001-SC NUT M5 (1)
50 WP-0531001-SC WASHER (1)
51 WS-0510002-KN SPRING WASHER (1)
52 E2038-802-000 CONVEYOR VERTICAL GEAR A (1)
53 SM-8030502-TP SCREW M3 L=5 (2)
54 WP-0531001-SC WASHER (2)
55 E4105-729-0A0 SHAFT SUPPORT B ASM. (2)
56 E2111-721-000 BEARING (1)
57 E4105-729-000-A SHAFT SUPPORT (1)
58 SM-6051002-TN BOLT (4)
59 PA-0600505-A0 AIR CYLINDER (7)
60 PJ-3050405-02 T-UNION (7)
61 PJ-3080400-02 QUICK COUPLING (1)
62 SM-4043001-SC SCREW (1)
63 SB-1050007-00 BEARING (2)
64 SM-8030302-TP SCREW M3X0.5 L=3 (2)
65 PJ-3040400-05 STREET ELBOW (4)
66 SB-7100001-00 BEARING (1)
67 WP-0482016-SZ WASHER (1)
68 WS-0410002-KN SPRING WASHER (1)
- -

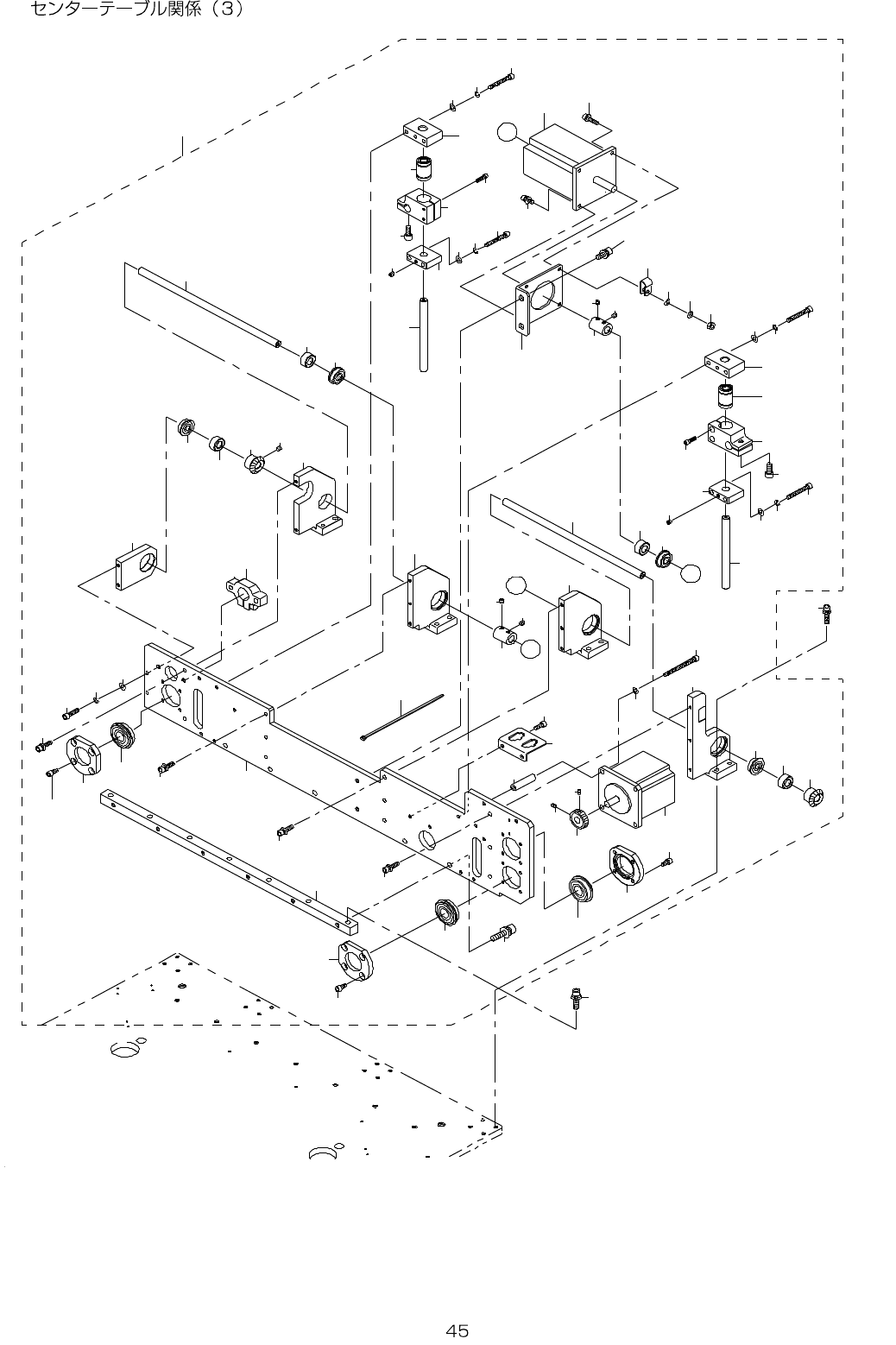

26. CENTER TABLE COMPONENT(3)
3
5
1 0
6
6
2
6
9
6
2 8
2 7
1 3
1 6
1 6
1 5
1 6
1 5
1 6
1 8
1 9
1 9
4 6
2 1
2 1
2 2
2 3
2 4
2 4
2 5
1 2
1 1
2 6
3 1
3 1
3 2
2 9
2 9
2 6
2 8
2 7
2 5
3 2
3 3
3 3
3 4
3 6
3 5
3 8
3 8
3 9
3 9
5 0
4 0
4 3
4 3
4 4
4 5
4 7
4 8
4 9
4 3
4 9
A
4 9
4 3
4 9
B
B
3 8
5 0
5 0
5 1
3 0
5 1
3 7
3 7
5 7
1
2 0
1 7
A
3 9
5 6
4
4
3 4
8
7
3 0
7
8
1 4
5 2
5 3
4 1
4 2
5 5
5 4
- -

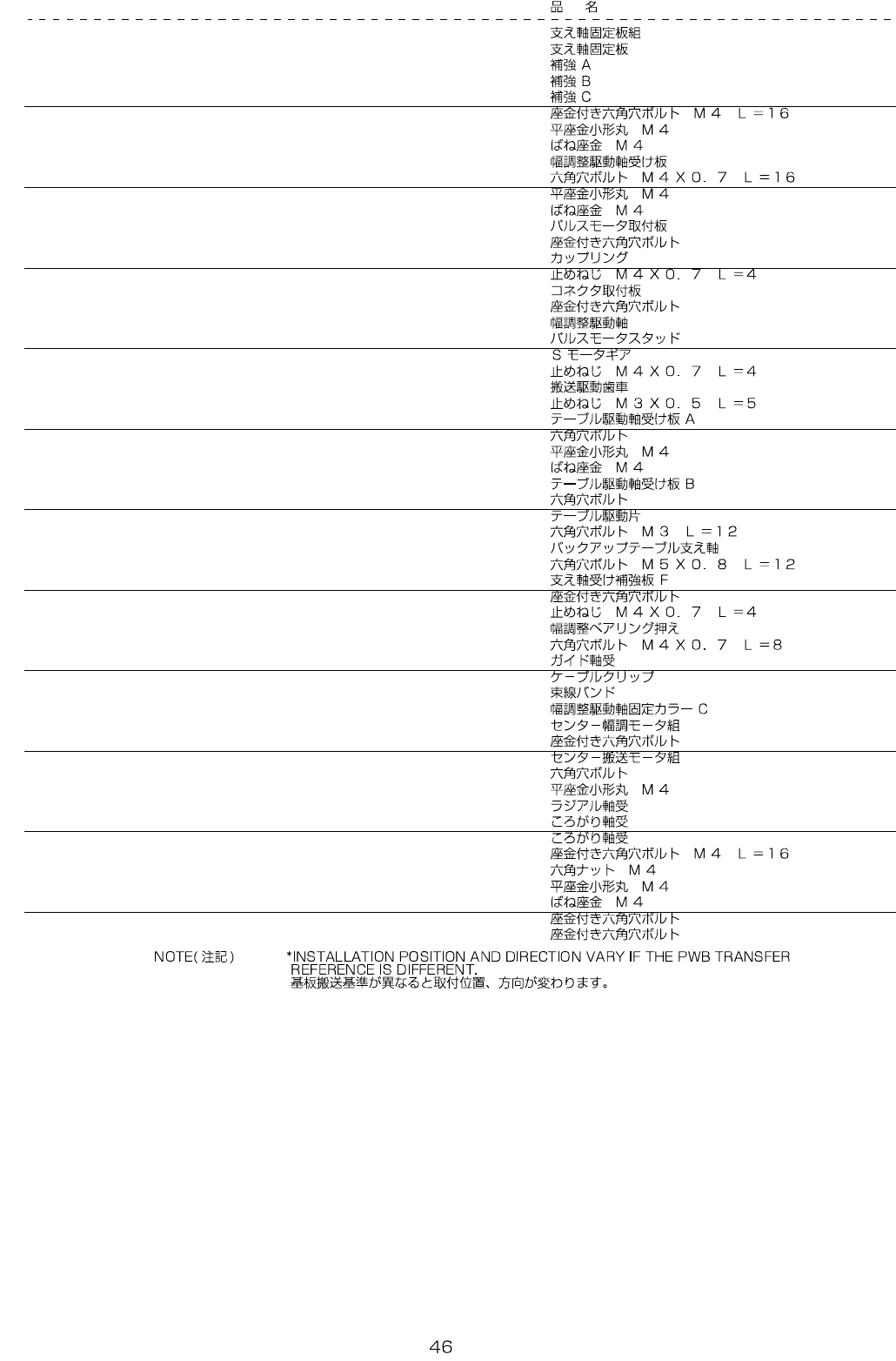

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2081-802-0A0 FIXING PLATE ASM. 1
2 E2081-802-000 SUPPORT SHAFT FIXING PLATE (1)
3 E2082-802-000 SPLICING PLATE A (1)
4 E2083-802-000 SPLICING PLATE B (2)
5 E2084-802-000 SPLICING PLATE C (1)
6 SL-6041692-TN SCREW (11)
7 WP-0430800-SC WASHER M4 (4)
8 WS-0410002-KN SPRING WASHER (4)
9 E2086-802-000 DRIVING SHAFT HOLDING PLATE (1)
10 SM-6041602-TN SCREW M4 X 16 (2)
11 WP-0430800-SC WASHER M4 (2)
12 WS-0410002-KN SPRING WASHER (2)
13 E2087-802-000 PULSE MOTOR FITTING PLATE (1)
14 SL-6051092-TN BOLT (2)
15 E2088-802-000 COUPLING (2)
16 SM-8040402-TP SCREW M4X0.7 L=4 (8)
17 E2089-802-000 CONNECTOR FITTING PLATE (1)
18 SL-6041092-TN SCREW (2)
19 E2090-802-000 WIDE ADJUSTING DRIVING SHAFT (2)
20 E2091-802-000 PULSE MOTOR STUD (3)
21 E3034-802-000 S MOTOR GEAR (2)
22 SM-8040402-TP SCREW M4X0.7 L=4 (1)
23 E2092-802-000 CONVEYOR DRIVING GEAR (1)
24 SM-8030502-TP SCREW M3 L=5 (2)
25 E2014-802-000 HOLDING PLATE A (2)
26 SM-6043002-TN SCREW (4)
27 WP-0430800-SC WASHER M4 (4)
28 WS-0410002-KN SPRING WASHER (4)
29 E2015-802-000 HOLDING PLATE B (2)
30 SM-6043002-TN SCREW (4)
31 E2016-802-000 TABLE DRIVING PEACE (2)
32 SM-6031202-TN B0LT (4)
33 E2017-802-000 BACKUP TABLE SUPPORT SHAFT (2)
34 SM-6051202-TN SCREW M5X0.8 L=12 (2)
35 E2008-802-000 SPLICING PLATE F (1)
36 SL-6052092-TN SCREW (6)
37 SM-8040402-TP SCREW M4X0.7 L=4 (2)
38 E2023-802-000 WIDE ADJUSTING BEARING SUPPORT (3)
39 SM-6040802-TN SCREW (12)
40 E2039-802-000 GUIDE SHAFT HOLDER (1)
41 HX-0015000-0B CABLE CLIP (1)
42 EA-9500B01-00 CABLE BAND (1)
43 E2093-802-000 FIXING COLLAR C (4)
44 E9467-802-0A0 WIDE ADJUSTING MOTOR ASM. (1)
45 SL-6041092-TN SCREW (3)
46 E9466-802-0A0 CENTER CONVEYOR MOTOR ASM. (1)
47 SM-6044552-TP BOLT M4X45 (3)
48 WP-0430800-SC WASHER M4 (3)
49 SB-1080005-00 RADIAL BEARING (4)
50 SB-1120007-00 BEARING (3)
51 SB-7080001-00 BEARING (2)
52 SL-6041692-TN SCREW (1)
53 NM-6040001-SC NUT M4 (1)
54 WP-0430800-SC WASHER M4 (1)
55 WS-0410002-KN SPRING WASHER (1)
56 SL-6052092-TN SCREW 7
57 SL-6042092-TN SCREW M4 L=20 16
