- - REF.NO N O TE P ART NO D E S C R I P T I O N Q ty 1 E2501-802 -0 0 0 HEAD T O P PLATE 1 2 EA-9002B11-0 0 B U SH ING L 1.7 3 SL-604089 2 -T N BO L T 6 4 PJ-3 0 50 8 0 0- 0 3 T-J OI N T D =8 2 5 PJ-3 0 50 6 0 0- 0 4 …
- -

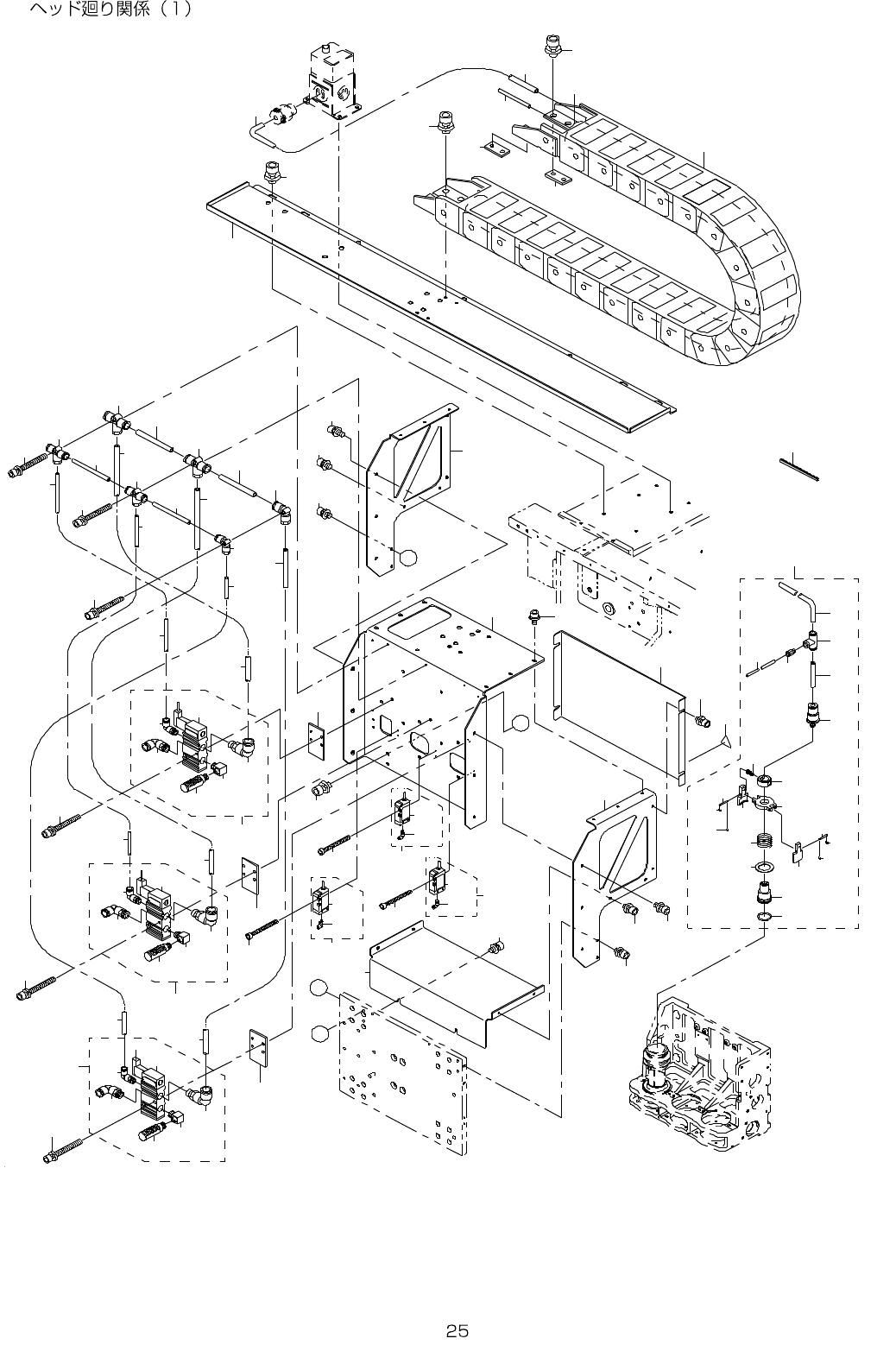

14. HEAD RELATED COMPONENTS(1)
4 4
4 5
4 3
4 6
3 5
3 6
3 7
3 8
4 0
4 1
3 9
4 2
4 7
5 3
5 2
5 4
A
5 7
5 3
5 8
B
6 1
6 4
6 4
6 2
6 3
5 6
6 6
6 7
6 8
6 9
7 2
7 0
7 1
7 1
7 0
7 2
7 2
7 2
7 3
7 4
7 5
7 6
7 7
7 8
8 0
7 9
7 9
5 1
5 5
5 1
6 0
6 3
5 9
6 5
3 3
2
3 4
2 5
4 8
88
1 0
9
8
8
1 1
2 6
1
1 9
1 2
1 4
1 5
1 3
1 6
1 6
5
4
4
5
6
7
8
8
8
8
8
9
9
9
9
9
1 0
1 8
1 0
8
2 5
9
9
2 8
3 2
3 0
3 1
2 9
3 2
2 0
2 2
2 3
2 1
2 4
2 4
2 5
4 9
4 9
5 0
A
B
2 7
3
1 7
- -

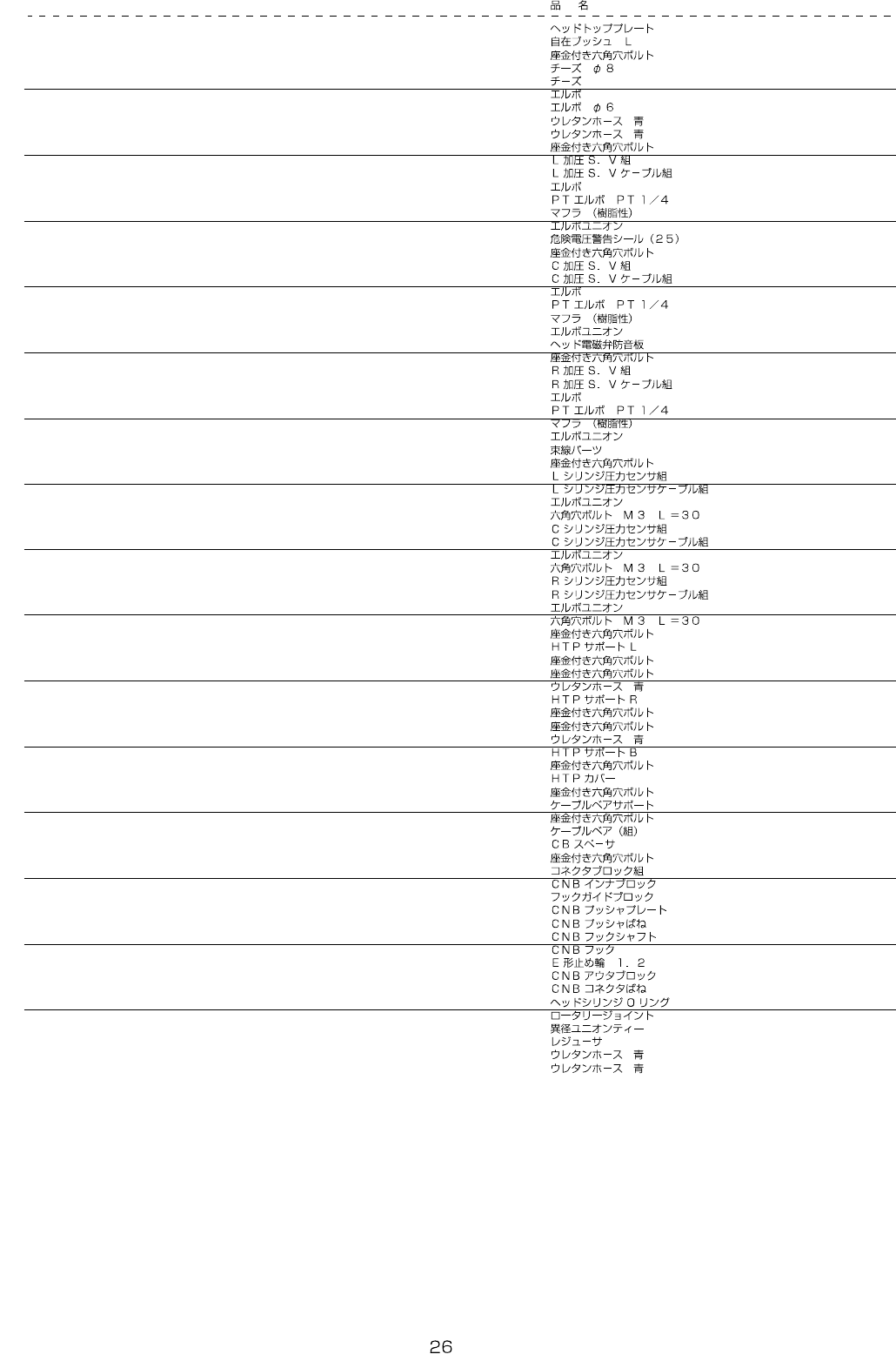

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2501-802-000 HEAD TOP PLATE 1
2 EA-9002B11-00 BUSHING L 1.7
3 SL-6040892-TN BOLT 6
4 PJ-3050800-03 T-JOINT D=8 2
5 PJ-3050600-04 TEE UNION 2
6 PJ-3040800-02 ELBOW UNION 1
7 PJ-3040600-02 ELBOW CIRCLE 6 1
8 BT-0800501-EA TUBE HOSE, BLUE 0.51
9 BT-0600400-EC TUBE HOSE, BLUE 0.52
10 SL-6043592-TN SCREW 3
11 E9312-802-0B0 L PRESSURE S.V ASM. 1
12 E9312-802-0A0 L PRESSURE S.V CABLE ASM. (1)
13 PJ-3040605-01 ELBOW (1)
14 PJ-0425200-03 PT ELBOW PT1/4 (1)
15 PX-0552010-00 MUFFLER (PLASTIC) (1)
16 PJ-3040852-01 ELBOW UNION 8XPT1/4 (2)
17 CM-3001000-03 VOLTAGE WARNING LABEL(25) 1
18 SL-6043592-TN SCREW 2
19 E9315-802-0B0 C PRESSURE S.V ASM. 1
20 E9315-802-0A0 C PRESSURE S.V CABLE ASM. (1)
21 PJ-3040605-01 ELBOW (1)
22 PJ-0425200-03 PT ELBOW PT1/4 (1)
23 PX-0552010-00 MUFFLER (PLASTIC) (1)
24 PJ-3040852-01 ELBOW UNION 8XPT1/4 (2)
25 E2507-802-000 HEAD ELECTROMAGNETIC VALVE 3
26 SL-6043592-TN SCREW 2
27 E9318-802-0B0 R PRESSURE S.V ASM. 1
28 E9318-802-0A0 R PRESUURE S.V CABLE ASM. (1)
29 PJ-3040605-01 ELBOW (1)
30 PJ-0425200-03 PT ELBOW PT1/4 (1)
31 PX-0552010-00 MUFFLER (PLASTIC) (1)
32 PJ-3040852-01 ELBOW UNION 8XPT1/4 (2)
33 HX-0036400-0D TUBE 1.5
34 SL-6043592-TN SCREW 2
35 E9314-802-0B0 PRESSURE SENSOR ASM. 1
36 E9314-802-0A0 PRESSURE SENSOR CABLE ASM. (1)
37 PJ-3040405-04 ELBOW UNION (1)
38 SM-6033002-TN SCREW M3 L=30 2
39 E9317-802-0B0 PRESSURE SENSOR ASM. 1
40 E9317-802-0A0 PRESSURE SENSOR CABLE ASM. (1)
41 PJ-3040405-04 ELBOW UNION (1)
42 SM-6033002-TN SCREW M3 L=30 2
43 E9320-802-0B0 PRESSURE SENSOR ASM. 1
44 E9320-802-0A0 PRESSURE SENSOR CABLE ASM. (1)
45 PJ-3040405-04 ELBOW UNION (1)
46 SM-6033002-TN SCREW M3 L=30 2
47 SL-6051092-TN BOLT 4
48 E2502-802-000 HTP SUPPORT L 1
49 SL-6040892-TN BOLT 5
50 SL-6041092-TN SCREW 1
51 BT-0800501-EA TUBE HOSE, BLUE 1.5
52 E2503-802-000 HTP SUPPORT R 1
53 SL-6040892-TN BOLT 5
54 SL-6041092-TN SCREW 1
55 BT-0600400-EC TUBE HOSE, BLUE 3.5
56 E2504-802-000 HTP SUPPORT B 1
57 SL-6040892-TN BOLT 6
58 E2505-802-000 HTP COVER 1
59 SL-6040892-TN BOLT 4
60 E2506-802-000 CABLE BEARER SUPPORT 1
61 SL-6061292-TN SCREW 4
62 E2330-725-000 CABLE BEARER ASM. 1
63 E2332-715-000 CB SPACER BEARER 2
64 SL-6061292-TN SCREW 8
65 E3044-802-0A0 CONNECTOR BLOCK ASM. 3
66 E3044-802-000 CNB INNER BLOCK (1)
67 E3038-802-000 HOOK GUIDE BLOCK (1)
68 E3045-802-000 CNB PUSHER PLATE (1)
69 E3039-802-000 CNB PUSHER SPRING (1)
70 E3040-802-000 CNB HOOK SHAFT (2)
71 E3041-802-000 CNB HOOK (2)
72 RE-0120000-K0 E-RING (4)
73 E3042-802-000 CNB OUTER BLOCK (1)
74 E3043-802-000 CNB CONNECTOR SPRING (2)
75 E3053-802-000 HEAD SYRINGE O RING (1)
76 PJ-2100082-00 ROTARY JOINT (1)
77 PJ-3050800-01 PIPE TEE (1)
78 PJ-3010400-01 REDUCER (1)
79 BT-0800501-EA TUBE HOSE, BLUE (0.4)
80 BT-0400251-EA TUBE HOSE, BLUE (0.1)
- -

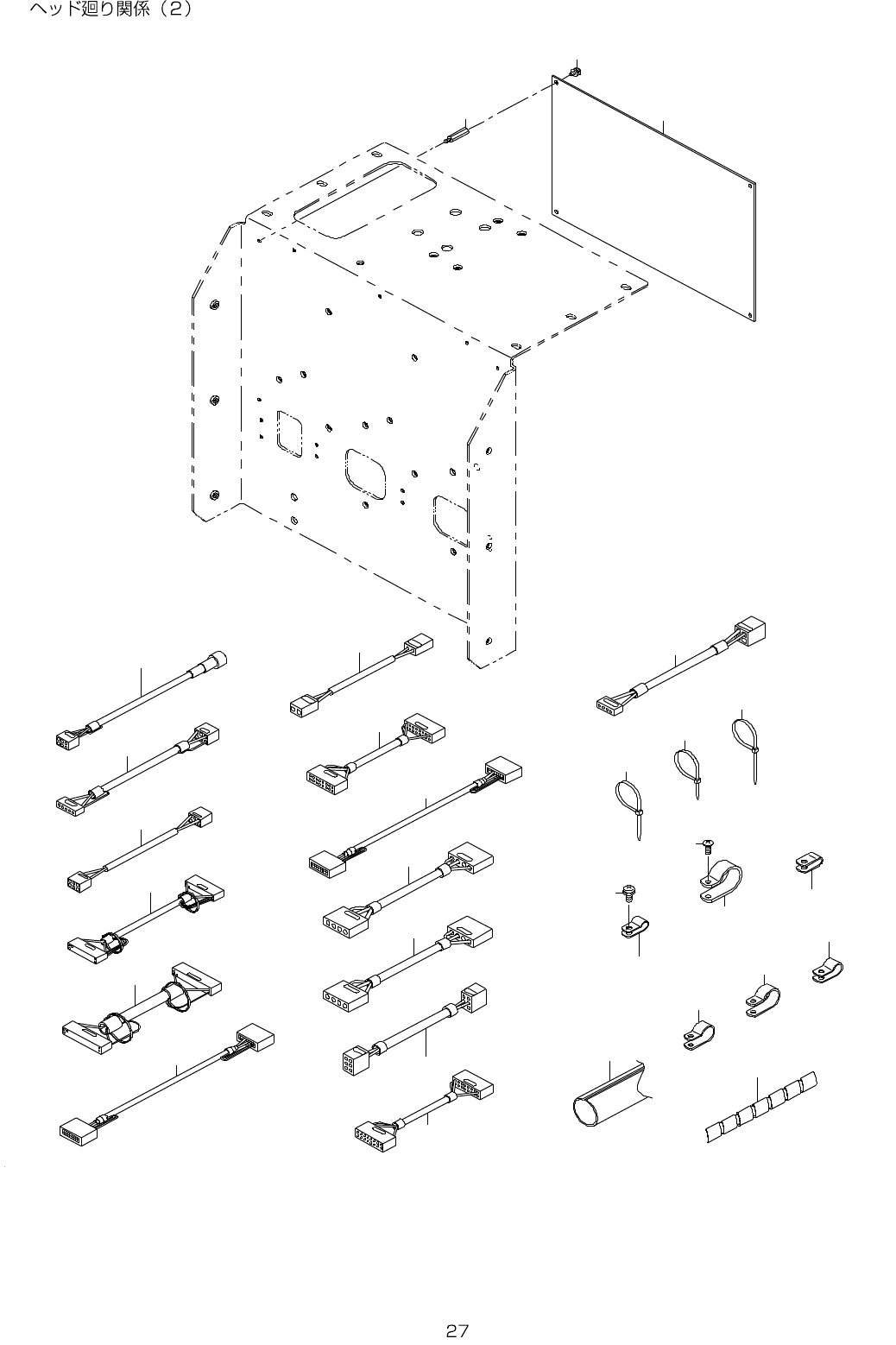

15. HEAD RELATED COMPONENTS(2)
1
2
3
4
5
6
7
8
9
1 0
1 1
1 2
1 3
1 4
1 7
1 5
1 6
2 0
1 9
1 8
2 2
2 4
2 5
2 6
2 7
2 8
2 1
2 3
2 9
3 0
