KD-775-Rev04PDF.pdf - 第66页
- - 35. A UTO MATI C PWB WIDTH ADJUS T UNIT COMP ONE NTS (O P TION) 1 0 8 9 1 1 5 3 6 7 2 1 2 1 3 2 0 1 9 1 9 2 0 4 1 2 2 2 6 2 5 2 4 2 3 2 8 2 7 1 4 1 5 1 6 1 8 1 7 2 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2229-802-0A0 WIDE ADJUSTING PULLEY ASM. 2
2 E2229-802-000 WIDE ADJUSTING PULLEY (1)
3 E2245-802-000 C RING (2)
4 SM-8040502-TP SCREW M4X0.7 L=5 2
5 E2023-721-000 SENSOR BRACKET B 2
6 RC-0740811-KP C-RING 1
7 RC-0100001-KP SNAP RING M10 2
8 E2261-802-000 BC JOINT SHAFT BRACKET 3
9 SL-6061292-TN SCREW 6
10 SB-1100005-00 BEARING 1
11 E2277-802-000 BEARING B 1
12 SB-1080011-00 ROLLING SHAFT HOLDER 1
13 E2262-802-000-A BC HANDLE SHAFT 1
14 RC-0600006-KP GRIP TYPE SNAP RING 1
15 E2263-802-000 BC-HS BRACKET 2
16 SL-6061292-TN SCREW 4
17 B3410-180-000 CLUTCH ROLLER 2
18 SB-1060003-00 BEARING 2
19 E2264-802-000 BC WIDE ADJUSTING WORM WHEEL 1
20 SM-8040502-TP SCREW M4X0.7 L=5 2
21 E2265-802-000 BC WIDE ADJUSTING WORM 1
22 E2802-802-0A0 BC TENSION PULLEY PLATE R ASM. 1
23 E2802-802-000 BC TENSION PULLEY PLATE RA (1)
24 E2803-802-000 BC TENSION PULLEY PLATE RB (1)
25 SL-6041092-TN SCREW (2)
26 E2246-802-000 SCREW (1)
27 NM-6040001-SC NUT M4 (1)
28 E2270-802-000 BC TENSION PULLEY SHAFT (1)
29 RC-0740811-KP C-RING (1)
30 SB-1080011-00 ROLLING SHAFT HOLDER (1)
31 SM-0030601-SC SCREW M3X0.5 L=6 (3)
32 137-55814 CLUTCH SHAFT (1)
33 E2229-802-0A0 WIDE ADJUSTING PULLEY ASM. (1)
34 E2229-802-000 WIDE ADJUSTING PULLEY (1)
35 E2245-802-000 C RING (2)
36 SM-8040502-TP SCREW M4X0.7 L=5 (1)
37 SL-6041092-TN SCREW 3
38 E2800-802-0A0 BC TENSION PULLEY PLATE L ASM. 1
39 E2800-802-000 BC TENSION PULLEY PLATE LA (1)
40 E2801-802-000 BC TENSION PULLEY PLATE LB (1)
41 SL-6041092-TN SCREW (2)
42 E2246-802-000 SCREW (1)
43 NM-6040001-SC NUT M4 (1)
44 E2270-802-000 BC TENSION PULLEY SHAFT (1)
45 RC-0740811-KP C-RING (1)
46 SB-1080011-00 ROLLING SHAFT HOLDER (1)
47 SM-0030601-SC SCREW M3X0.5 L=6 (3)
48 137-55814 CLUTCH SHAFT (1)
49 E2229-802-0A0 WIDE ADJUSTING PULLEY ASM. (1)
50 E2229-802-000 WIDE ADJUSTING PULLEY (1)
51 E2245-802-000 C RING (2)
52 SM-8040502-TP SCREW M4X0.7 L=5 (1)
53 SL-6041092-TN SCREW 3
54 E2256-802-000 BC WIDE ADJUSTING BELT 2
55 SL-6031092-TN SCREW 4
56 115-03505 RUBBER CUSHION 4
57 E2238-802-000 BC STOPPER CABLE BRACKET L 1
58 SL-6040892-TN BOLT 2
59 E2242-802-000 BC STOPPER CABLE BRACKET R 1
60 SL-6040892-TN BOLT 2
61 E2275-802-000 BC STOPPER DUCT A 2
62 SL-6040892-TN BOLT 8
63 E2276-802-000 BC STOPPER DUCT B 2
64 SL-6040892-TN BOLT 8
65 E9501-802-0A0 IN SENSOR CABLE ASM. 1
66 SL-4031091-SC SCREW M3 X 10 1
67 NM-6030003-SC NUT M3 1
68 E9502-802-0A0 OUT SENSOR CABLE ASM. 1
69 SL-4031091-SC SCREW M3 X 10 1
70 NM-6030003-SC NUT M3 1
71 E2022-721-000 SENSOR BRACKET A 2
72 SL-4030691-SC SCREW M3X6 4
73 E2278-802-000 JOINT SHAFT A 1
74 E2279-802-000 JOINT SHAFT B 1
75 E2255-802-000 COUPLING 1
- -
35. AUTOMATIC PWB WIDTH ADJUST UNIT COMPONENTS (OPTION)
1 0
8
9
1 1
5
3
6
7
2
1 2
1 3
2 0
1 9
1 9
2 0
4
1
2 2
2 6
2 52 42 3
2 82 7
1 4
1 5
1 6
1 8
1 7
2 1
- -

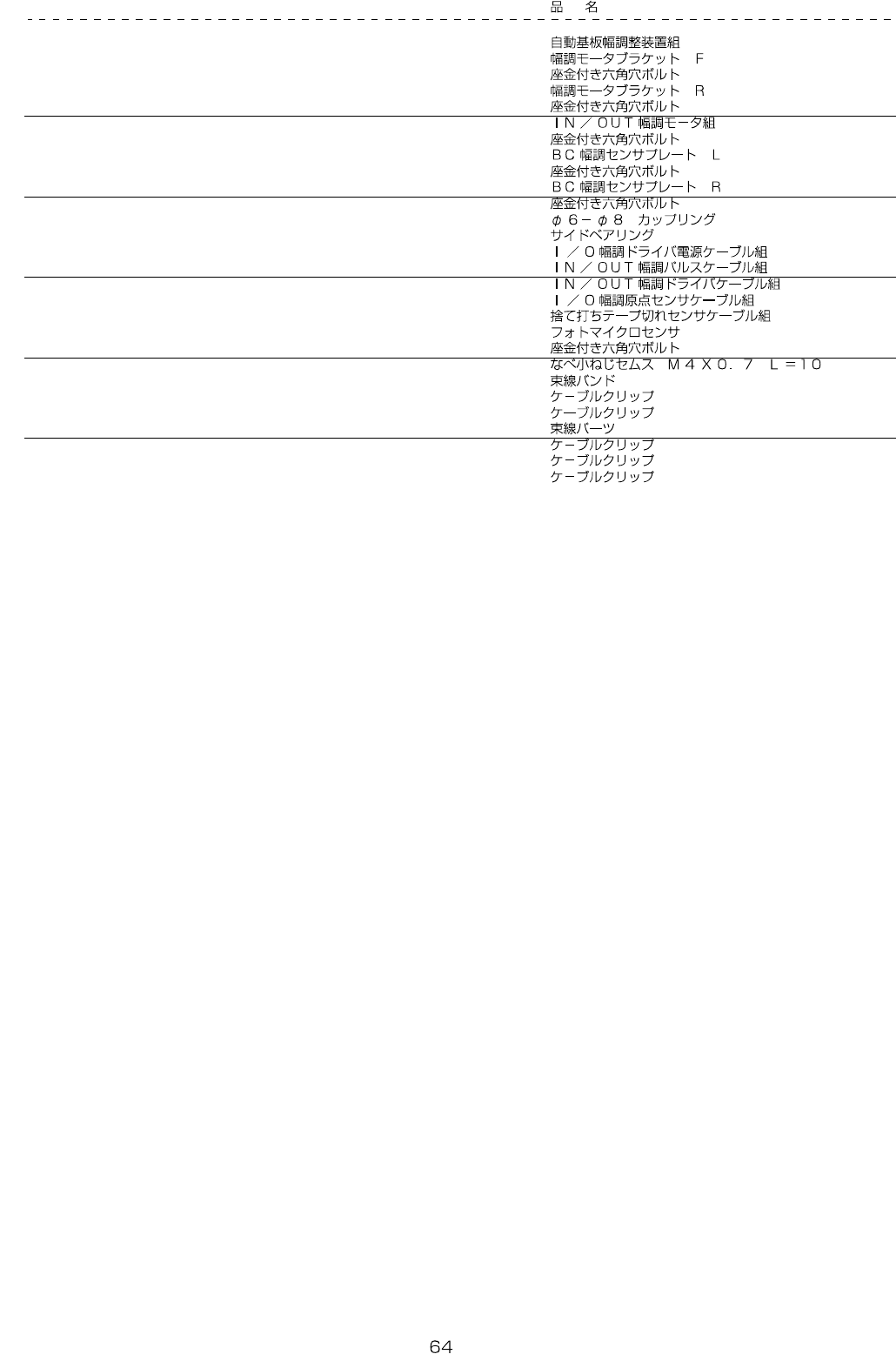

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2249-802-0A0 WIDE ADJUSTING DEVICE ASM. 1
2 E2249-802-000 WIDE ADJUSTING MOTOR BRACKET F (1)
3 SL-6061092-TN SCREW (2)
4 E2250-802-000 WIDE ADJUSTING MOTOR BRACKET R (1)
5 SL-6061092-TN SCREW (2)
6 E9553-802-0A0 WIDE ADJUSTING MOTOR ASM. (1)
7 SL-6041092-TN SCREW (4)
8 E2251-802-000 BC SENSOR PLATE L (1)
9 SL-6031092-TN SCREW (2)
10 E2252-802-000 BC SENSOR PLATE R (1)
11 SL-6031092-TN SCREW (2)
12 E2253-802-000 COUPLING (1)
13 SB-1080002-00 SIDE BEARING (1)
14 E9244-802-0A0 IN/OUT DRIVER POWER CABLE ASM. (1)
15 E9551-802-0A0 IN/OUT PULSE CABLE ASM. (1)
16 E9552-802-0A0 IN/OUT DRIVER CABLE ASM. (1)
17 E9554-802-0A0 ORIGIN SENSOR CABLE ASM. (1)
18 E9560-802-0A0 TAPE BREAK SENSOR CABLE ASM. (1)
19 HD-0003500-00 MICRO SENSOR (2)
20 SL-6041292-TN SCREW (4)
21 SL-4041091-SC SCREW M4 L=10 (6)
22 EA-9500B01-00 CABLE BAND (5)
23 HX-0015000-0H CABLE CLIP (1)
24 HX-0015000-0A CABLE CLAMP (2)
25 HX-0015000-0C CABLE CLIP (1)
26 HX-0015000-0D CABLE CLIP (2)
27 HX-0015000-0F CABLE CLIP (1)
28 HX-0015000-0K CABLE CLIP (1)
