- - 20. B AD M ARK READE R CO MPO N E TS 1 5 6 3 4 2 REF.NO NOT E PART NO D E S C R I P T I O N Qty 1 E9574-725-0A0 BAD M ARK SENSOR CABL E ASM. 1 2 SL-4030581-SC CO MBI N AT IO N SCREW M3 X 5 2 3 E3821-802-000 BM SENS…
- -

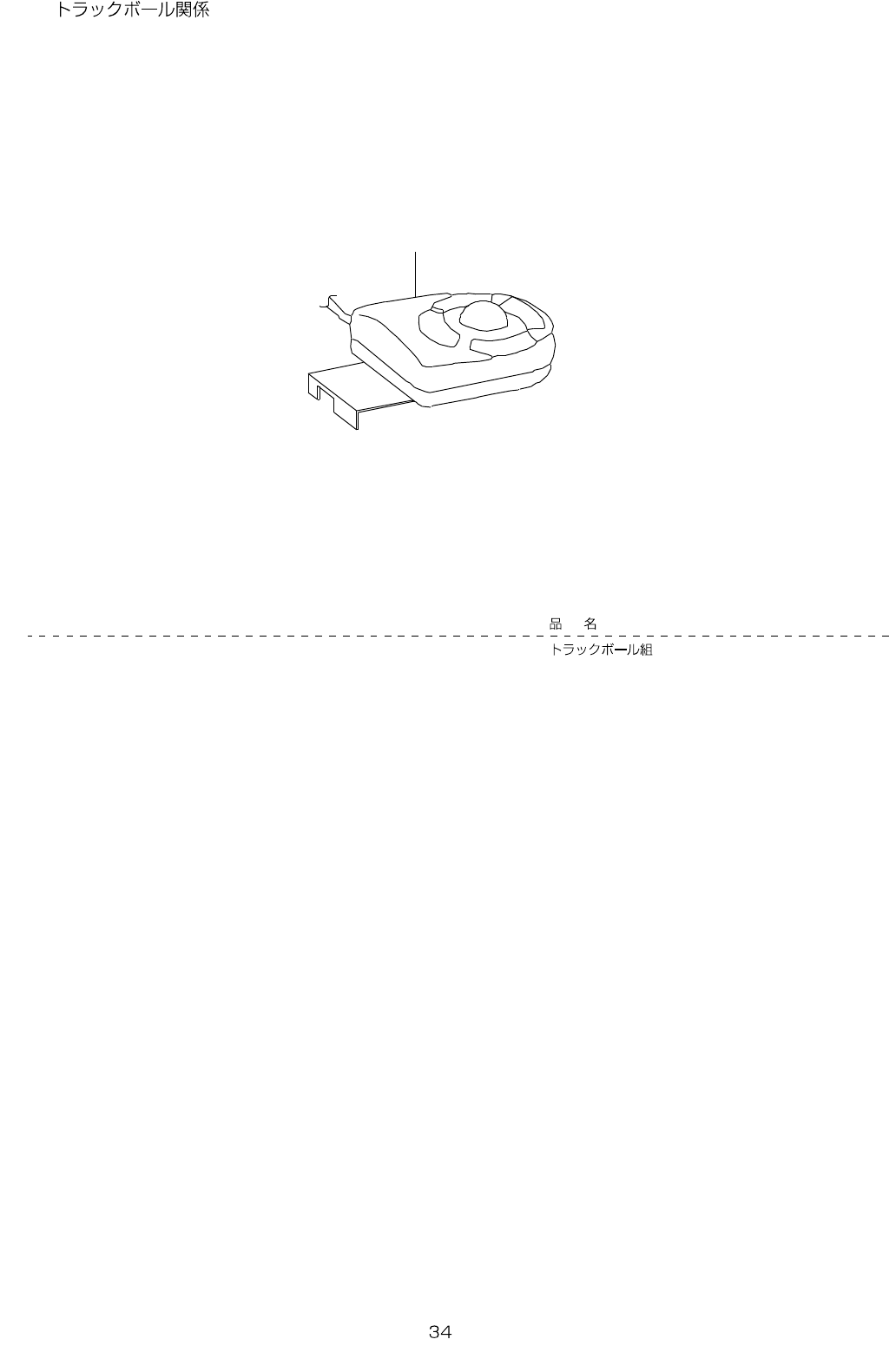

19. TRACK BALL COMPONENTS
1
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9701-725-0A0 TRACK BALL ASM. 1
- -
20. BAD MARK READER COMPONETS
1
5
6
3
4
2
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E9574-725-0A0 BAD MARK SENSOR CABLE ASM. 1
2 SL-4030581-SC COMBINATION SCREW M3 X 5 2
3 E3821-802-000 BM SENSOR BRACKET 1
4 SL-6030692-TN BOLT 2
5 HD-0013100-10 SENSOR 1
6 E9625-715-000 LENS ATTACHMENT 1
- -
21. BACKUP PIN COMPONENTS
2
3
4
1
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2120-802-0A0 BACKUP PIN ASM. 16
2 E2120-802-000 BACKUP PIN (1)
3 E2121-802-000 BACKUP PIN BASE (1)
4 NM-6040001-SC NUT M4 (1)
