- - 30. I N B U F FER COMPONE N TS(1) 3 0 3 1 2 2 9 3 1 2 6 2 3 2 5 2 8 1 9 2 1 2 0 1 4 3 2 7 1 2 1 1 1 0 1 1 9 1 8 1 7 1 2 6 1 6 1 3 1 5 5 2 2 2 7 4 1 0 9 8 3 7 4 2 0 2 1 2 2 1 9 2 3 8 2 7 2 6 2 5 2 4 2 8 3 1 3 0 2 9 …
- -

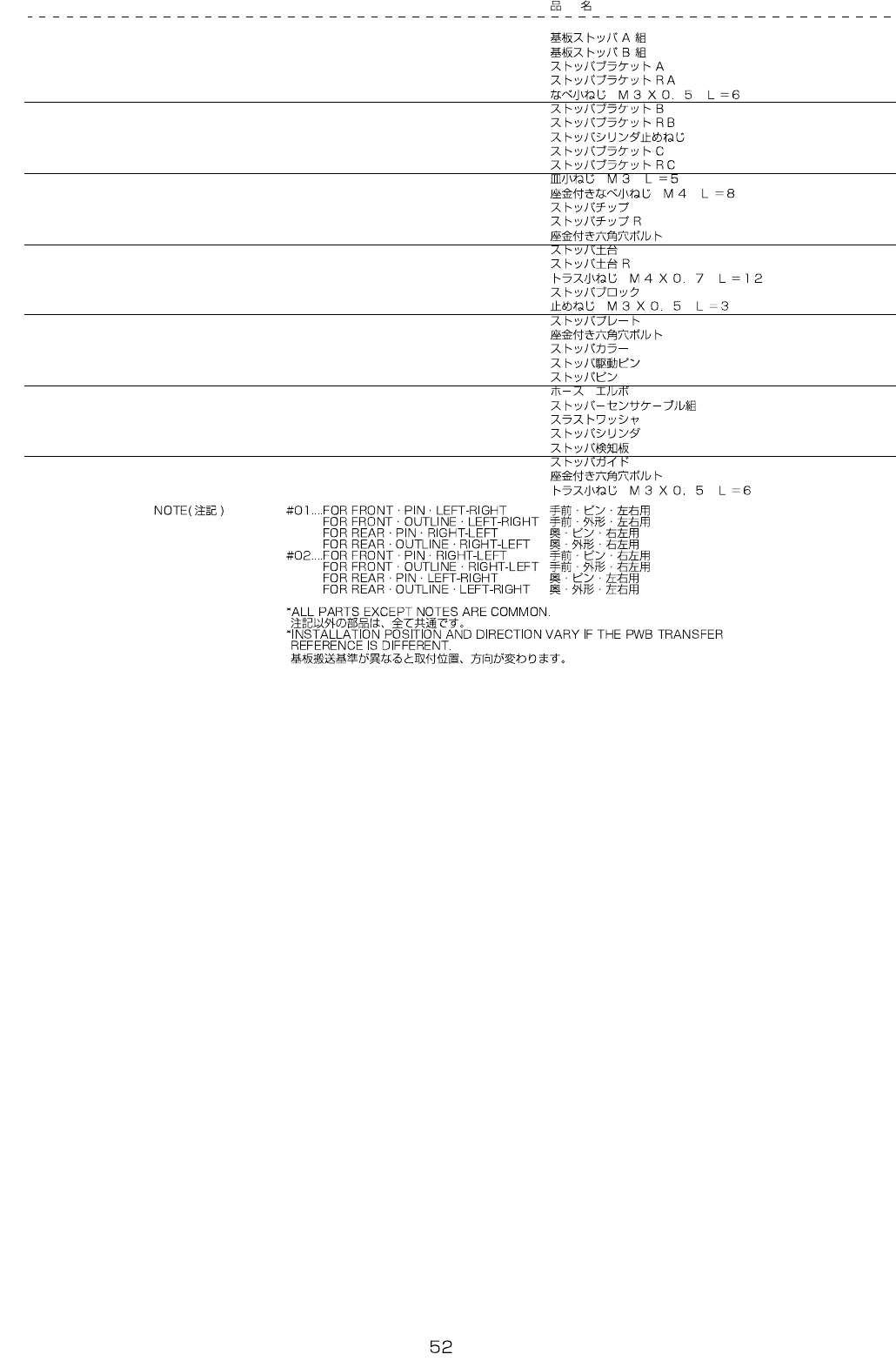

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E2130-802-0A0 BOARD STOPPER A ASM. 1
2
#02
E2150-802-0A0 BOARD STOPPER B ASM. 1
3
#01
E2131-802-000 STOPPER BRACKET A (1)
4
#02
E2151-802-000 STOPPER BRACKET RA (1)
5 SM-4030601-SN SCREW M3 X 6 (2)
6
#01
E2132-802-000 STOPPER BRACKET B (1)
7
#02
E2152-802-000 STOPPER BRACKET RB (1)
8 E2142-802-000 STOPPER CYLINDER SCREW (2)
9
#01
E2133-802-000 STOPPER BRACKET C (1)
10
#02
E2153-802-000 STOPPER BRACKET RC (1)
11 SM-1030501-SC SCREW M3 L=5 (2)
12 SL-4040881-SC SCREW M4 L=8 (1)
13
#01
E2134-802-000 STOPPER TIP (1)
14 #02 E2154-802-000 STOPPER TIP R (1)
15 SL-6030692-TN BOLT (1)
16
#01
E2135-802-000 STOPPER BASIS (1)
17 #02 E2155-802-000 STOPPER BASIS R (1)
18 SM-0041201-SA SCREW M4X0.7 L=12 (2)
19 E2136-802-000 STOPPER BLOCK (1)
20 SM-8030302-TP SCREW M3X0.5 L=3 (1)
21 E2137-802-000 STOPPER PLATE (1)
22 SL-6041292-TN SCREW (2)
23 E2138-802-000 STOPPER COLLAR (1)
24 E2140-802-000 STOPPER DRIVING PIN (1)
25 E2141-802-000 STOPPER PIN (1)
26 PJ-0460525-03 HOSE ELBOW (2)
27 E9473-802-0A0 STOPPER SENSOR CABLE ASM. (1)
28 E2173-715-000 THRUST WASHER (2)
29 E2159-802-000 STOPPER CYLINDER (1)
30 E2156-802-000 STOPPER DETECTING PLATE (1)
31 E2157-802-000 STOPPER GUIDE (1)
32 SL-6030592-TN SCREW M3 L=5 (2)
33 SM-0030601-SC SCREW M3X0.5 L=6 (2)
- -

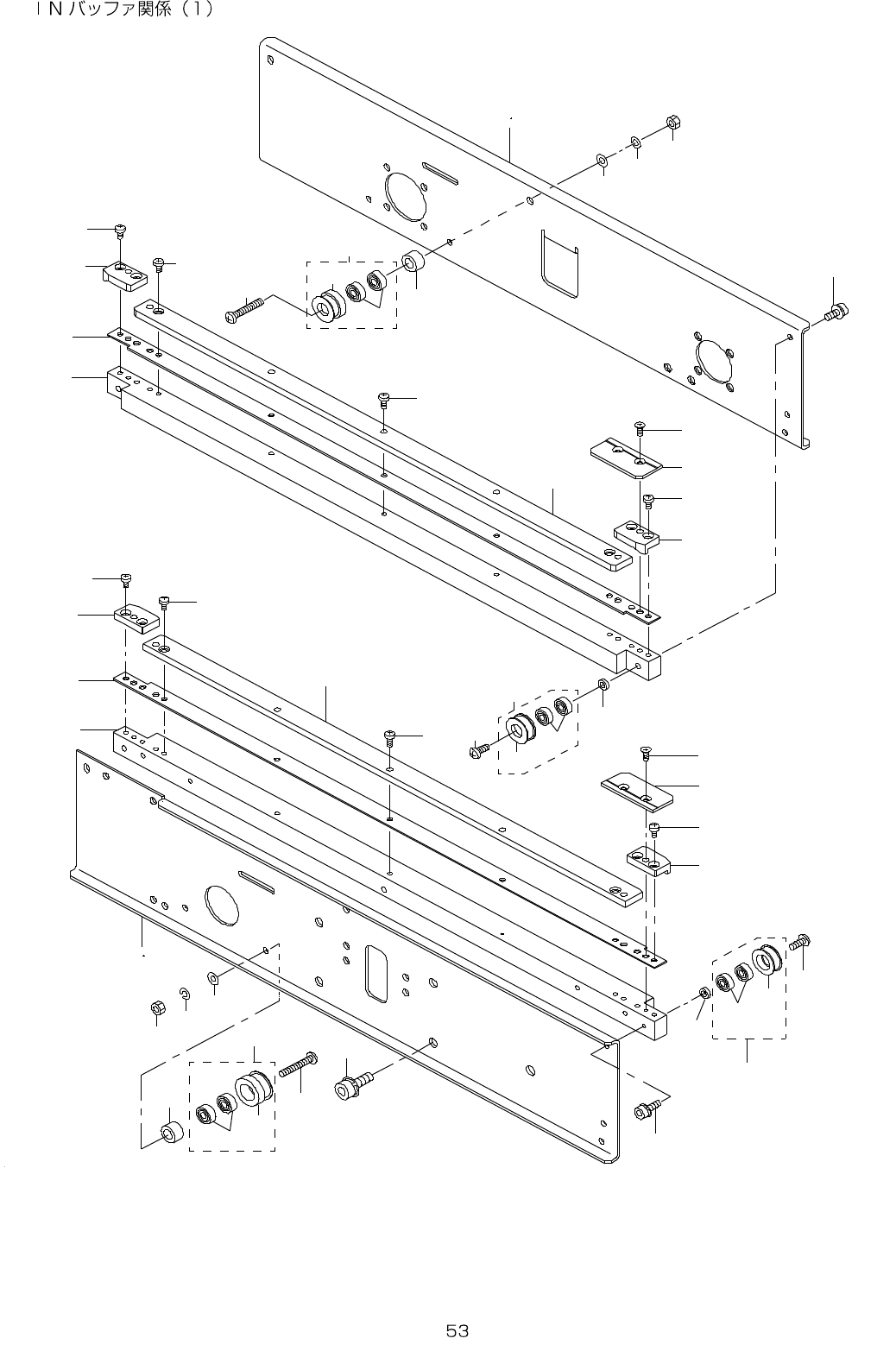

30. IN BUFFER COMPONENTS(1)
3 0
3
1 2
2 9
3 1
2 6
2 3
2 5
2 8
1 9
2 1
2 0
1 4 3 2
7
1 2
1 1
1 0
1 1
9
1 8
1 7
1 2
6
1 6
1 3
1 5
5
2 2
2 7
4
1 0
9
8
3
7
4
2 0
2 1
2 2
1 9
2 3
8
2 7
2 6
2 5
2 4
2 8
3 1
3 0
2 9
1 8
1 7
2 4
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E2239-802-000-A BC-F RAIL PLATE R 1
2
#02
E2210-802-000-A BC-F RAIL PLATE L 1
3 E2200-802-000 BC RAIL A 2
4 SL-6040892-TN BOLT 6
5 SM-4030601-SC SCREW M3 X 6 2
6 SL-6061292-TN SCREW 4
7 E2202-802-000 BC RAIL SPACER 2
8 E2203-802-000 BC-PWB GUIDE 2
9 SM-4031001-SC SCREW M3X0.5 L=10 6
10 SM-4030601-SC SCREW M3 X 6 4
11 E2205-802-000 BC-PWB GUIDE B IN 2
12 E2204-802-000 BC-PWB GUIDE A IN 2
13 SM-4030601-SC SCREW M3 X 6 2
14
#02
E2211-802-000-A BC-R RAIL PLATE L 1
15 SM-4030601-SC SCREW M3 X 6 2
16 SM-4030601-SC SCREW M3 X 6 2
17 E2208-802-000 BC UPPER PLATE 2
18 SM-1031201-SC SCREW M3X0.5 L=12 4
19 E2111-715-0A0 CONVEYOR PULLEY ASM. 4
20 E2111-715-000 CONVEYOR PULLEY (1)
21 SB-1040001-00 BEARING (1)
22 E3122-750-000 BU SPACER F 4
23 SM-4041001-SC SCREW M4X0.7 L=10 4
24 E2089-721-0A0 CONVEYOR PULLEY B ASM. 6
25 E2089-721-000 CONVEYOR PULLEY B ASM. (1)
26 SB-1040001-00 BEARING (2)
27 E2209-802-000 BC CONVEYOR PULLEY COLLAR B 6
28 SM-4042501-SC SCREW M4X0.7 L=25 6
29 WS-0410002-KN SPRING WASHER 6
30 WP-0430801-SC WASHER 4.3X9X0.8 6
31 NM-6040001-SC NUT M4 6
32
#01
E2240-802-000-A BC-R RAIL PLATE R 1
