- - REF.NO N O TE PART NO D E S C R I P T I O N Qty 1 E1312-802 -0 A0 CO VER (BOTTOM) ASM. 1 2 E1313-802 -0 00 C OVER SBL (1) 3 SM -00 6 12 0 1-SC SCREW (6) 4 E1314-802 -0 00 C OVER SBR (1) 5 SM -00 6 12 0 1-SC SCREW (…
- -

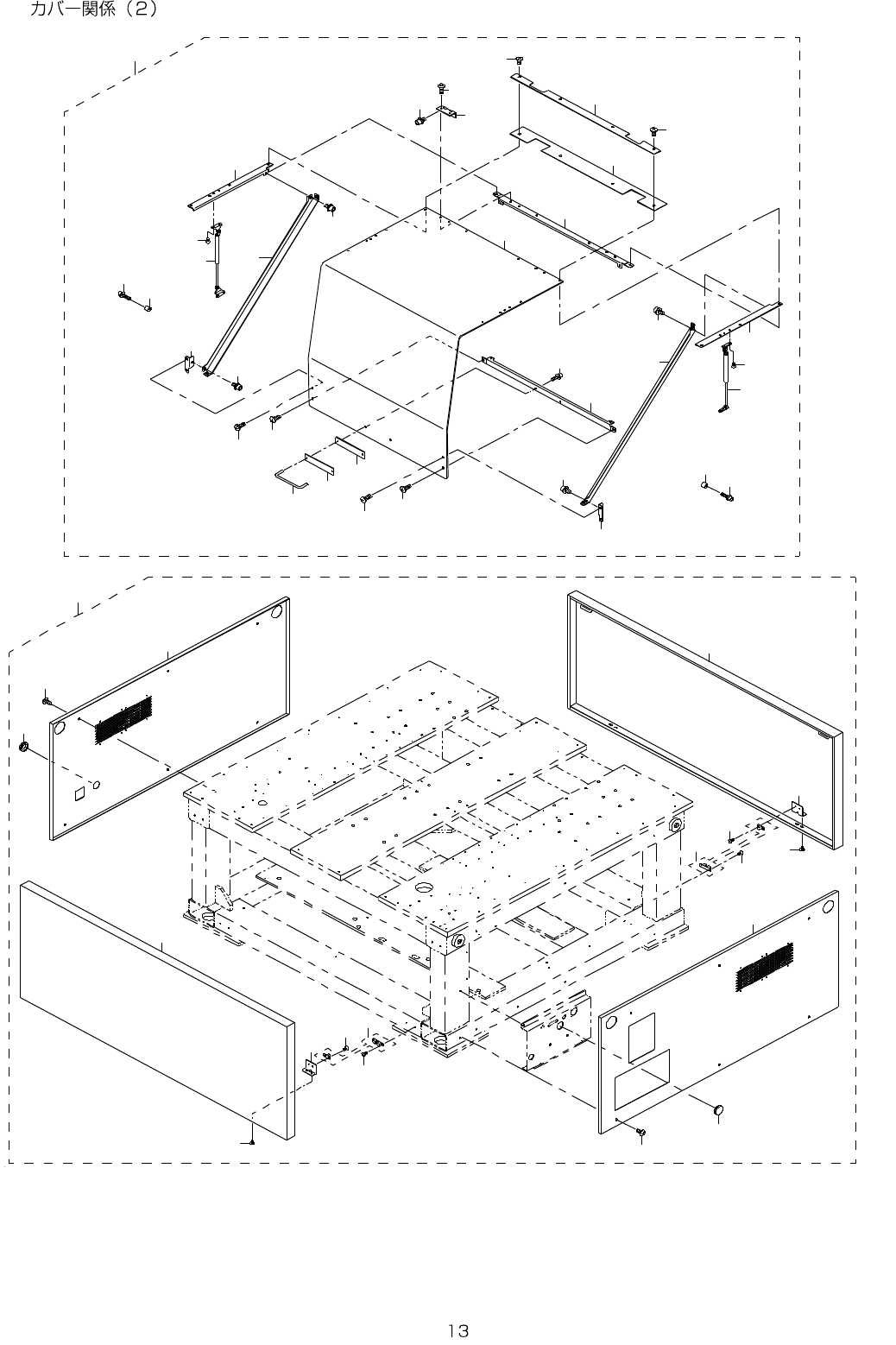

7. COVER COMPONENTS(2)
3
5
2
4
6
7
8
9
1 0
1 0
1 0
7
8
1 0
9
6
1 3
1 7
1 5
1 8
1 9
1 8
1 9
2 3
2 0
2 2
2 5
3 0
2 9
2 8
3 1
3 2
3 5
3 6
3 7
3 6
3 7
3 3
3 3
2 1
2 7
2 7
1 2
1
1 1
1 1
2 4
2 6
4 0
4 0
3 8
3 9
3 5
3 4
1 4
1 6
- -

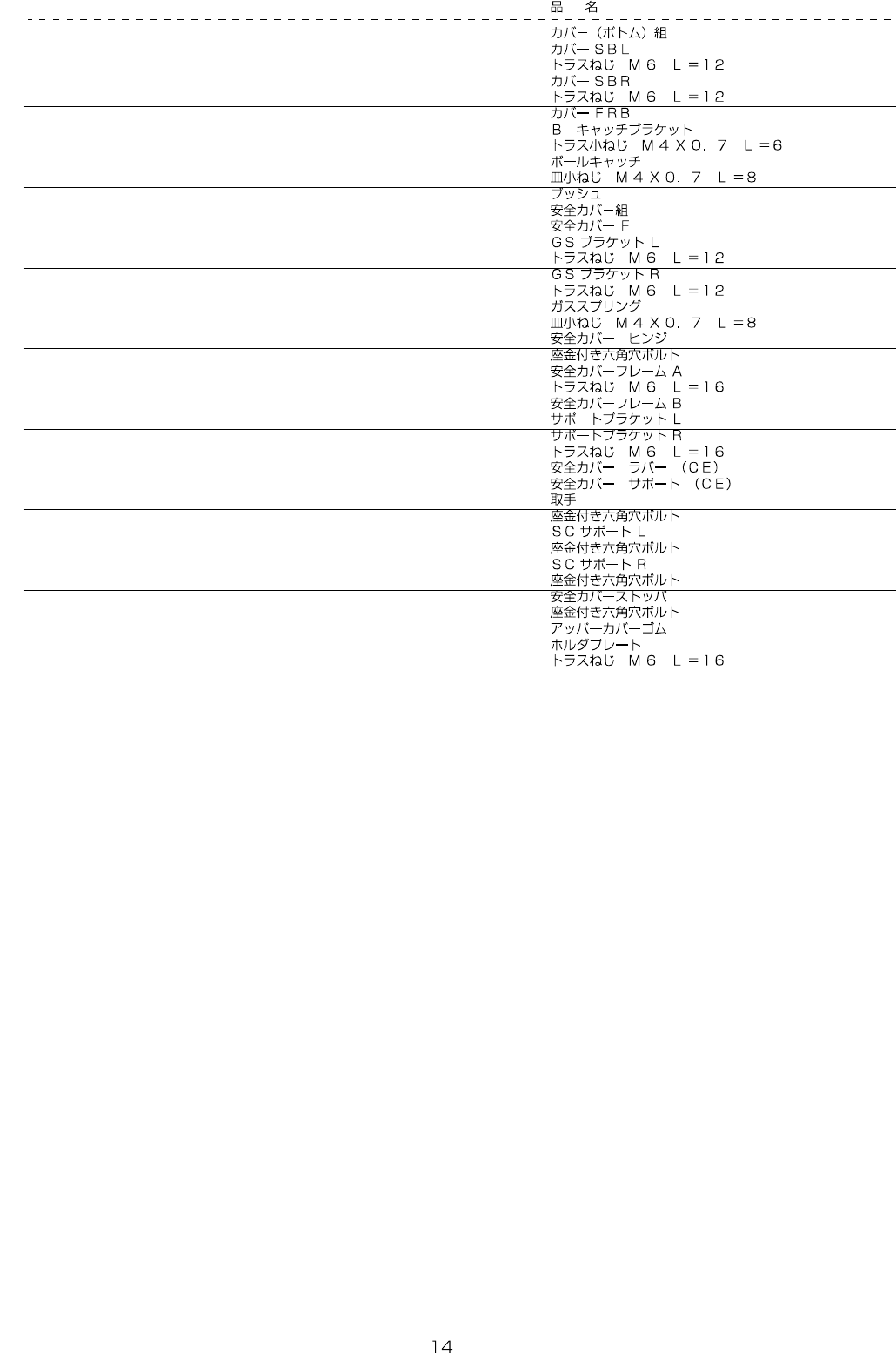

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1312-802-0A0 COVER (BOTTOM) ASM. 1
2 E1313-802-000 COVER SBL (1)
3 SM-0061201-SC SCREW (6)
4 E1314-802-000 COVER SBR (1)
5 SM-0061201-SC SCREW (6)
6 E1312-802-000 COVER FRB (2)
7 E1332-715-000 B CATCH BRACKET (4)
8 SM-0040601-SC SCREW M4X0.7 L=6 (8)
9 E1378-700-000 BALL CATCH (4)
10 SM-1040801-SC SCREW M4X0.7 L=8 (16)
11 HX-0022100-0E BUSH (2)
12 E1317-802-0A0 SAFETY COVER ASM. 1
13 E1317-802-000-A SAFETY COVER F (1)
14 E1320-802-000-A GS BRACKET L (1)
15 SM-0061201-SC SCREW (3)
16 E1321-802-000-A GS BRACKET R (1)
17 SM-0061201-SC SCREW (3)
18 E5154-715-000 GS SPRING (2)
19 SM-1040801-SC SCREW M4X0.7 L=8 (8)
20 E1318-715-000 SAFTY COVER HINGE (2)
21 SL-6061292-TN SCREW (4)
22 E1318-802-000 SAFETY COVER FRAME A (1)
23 SM-0061601-SC SCREW (8)
24 E1319-802-000 SAFETY COVER FRAME B (1)
25 E1324-802-000 SUPPORT BRACKET L (1)
26 E1325-802-000 SUPPORT BRACKET R (1)
27 SM-0061601-SC SCREW (2)
28 E1195-721-000 SAFETY COVER RUBBER(CE) (1)
29 E1196-721-000 SAFETY COVER SUPPORT(CE) (1)
30 E1527-755-000 KNOB (1)
31 SL-6051642-TN BOLT (2)
32 E1322-802-000 SC SUPPORT L (1)
33 SL-6061292-TN SCREW (4)
34 E1323-802-000 SC SUPPORT R (1)
35 SL-6061292-TN SCREW (4)
36 E1348-700-000 SAFETY COVER STOPPER (4)
37 SL-6052592-TN SCREW (4)
38 E1332-802-000 UPPER COVER RUBBER (1)
39 E1333-802-000 HOLDER PLATE (1)
40 SM-0061601-SC SCREW (2)
- -

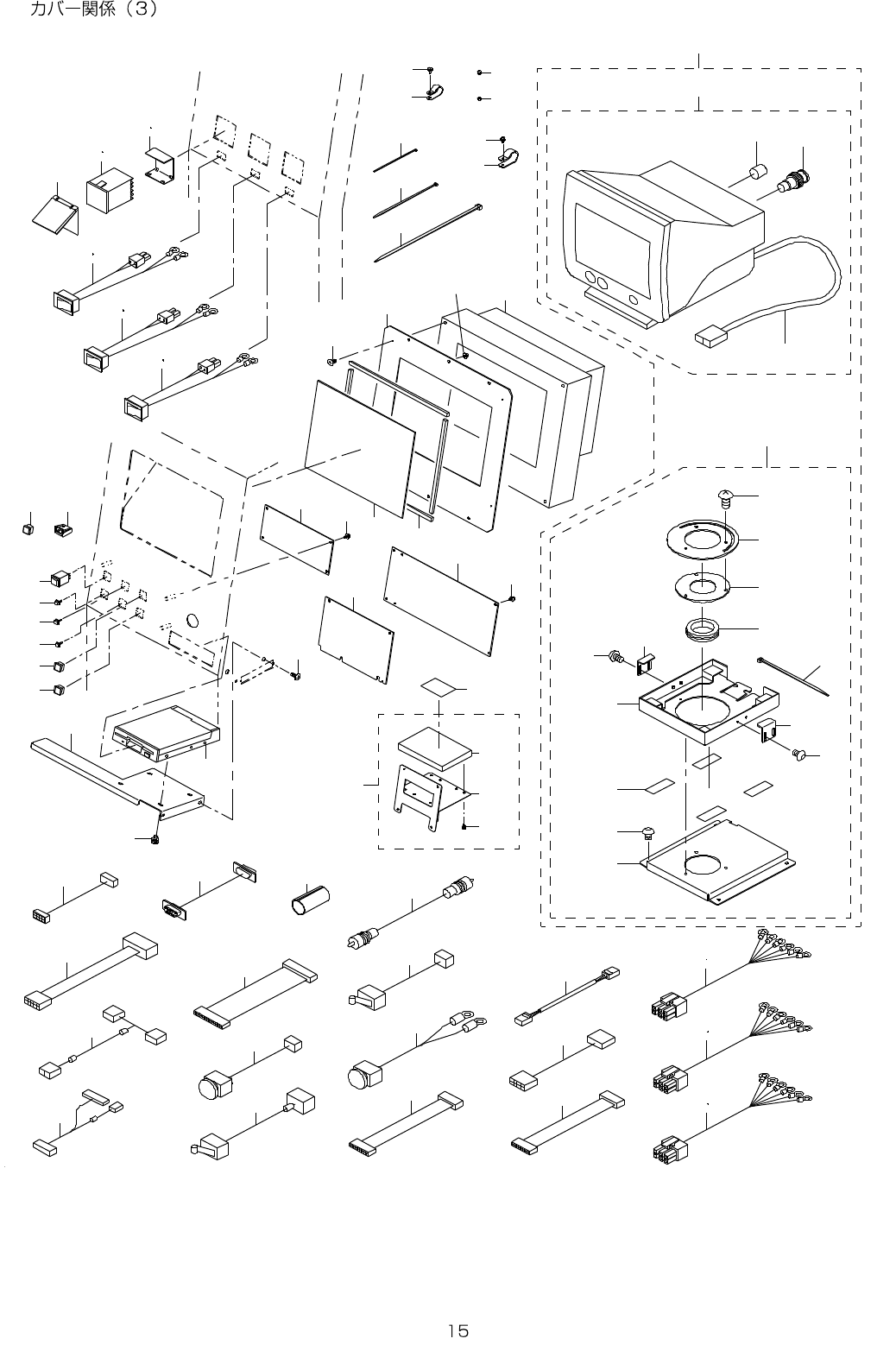

8. COVER COMPONENTS(3)
6 1
1 0
1 1
2 9
2 7
3 9
2 4
2 6
2 2
1 6
1 5
3 7
3 5
3 4
3 3
2 1
1 2
3 8
4 0
4 3
2 3
2 5
5 1 8 1
4 9 7 9
5 0 8 0
5 4 8 4
5 2 8 2
5 3 8 3
1 3
3 0
3 2
3 1
3 6
4
5
2
3
6
1
7
9
8
2 8
4 5
4 4
4 6 8 5
4 7 7 8
4 8
5 5
5 6
5 7
5 7
5 8
5 9
6 0
4 2
4 1
1 4
1 8
2 0
1 9
7 7
7 0
7 3
7 1
6 9
7 1
7 3
7 3
6 8
7 2
6 5
6 4
7 5
7 4
7 6
1 7
6 7
6 6
6 3
6 2
