- - 38. B L ANK RU N U NIT COMPONEN TS 3 6 2 3 4 7 8 5 9 6 1 0 1 1 1 2 1 2 1 2 1 4 1 5 2 8 1 6 3 2 3 3 3 3 3 3 3 4 3 5 2 8 3 0 1 5 1 9 3 1 1 8 1 7 2 9 2 0 1 3 2 1 2 5 2 6 2 7 2 4 2 3 2 2 3 7 2 9 4 0 3 9 3 8 1 REF.NO NO…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#02
E3915-802-0B0 X PUSHER FL ASM 1
2
#03
E3916-802-0B0 X PUSHER FR ASM 1
3
#02
E3915-802-0A0 X PUSHER MACHANISM FL ASM (1)
4 #03 E3916-802-0A0 X PUSHER MACHANISM FR ASM (1)
5
#02
E3906-802-000 X PUSHER L FITTING PLATE (1)
6
#03
E3911-802-000 X PUSHER R FITTING PLATE (1)
7 E2180-802-000 PUSHER FL (1)
8 E2188-802-000 PUSHER FR (1)
9 E2184-802-000 PUSHER TIP (1)
10 SL-6030592-TN SCREW M3 L=5 (1)
11 E2172-715-000 PUSHER SHAFT (1)
12 E2173-715-000 THRUST WASHER (1)
13 SM-6041802-TN SCREW M4X0.7 L=18 (1)
14 WS-0410002-KN SPRING WASHER (1)
15 WP-0430801-SC WASHER 4.3X9X0.8 (1)
16 E2177-715-000 CYLINDER ARM X (1)
17 E4843-760-000 CYLINDER PIN (1)
18 RE-0250000-K0 E-RING 2.5 (2)
19 E2179-802-000 AIR CYLINDER (1)
20 WP-0350516-SD WASHER 3.5X6X0.5 (1)
21 SM-8040302-TP SETSCREW (1)
22 CM-3004004-01 LABEL (1)
23 PC-0105070-00 SPEED CONTROLLER (1)
24 E9520-802-0A0 OFF SENSOR CABLE 2 ASM. (1)
25 PX-5000500-A0 BRACKET (1)
26 EA-9500B01-00 CABLE BAND (2)
27
#01
E2292-802-000 RAIL NUT 2
28
#01
E3909-802-000 X PUSHER PIPE BRACKET 1
29
#01
HX-0030700-0A TUBE 0.6
30
#01
HX-0015000-0F CABLE CLIP 4
31 #01 BT-0400251-EA TUBE HOSE, BLUE 1.5
32
#01
SL-6041492-TN SCREW 2
33
#01
SL-6040892-TN BOLT 2
34
#01
SL-6040892-TN BOLT 4
35
#01
WP-0450826-SC WASHER 4.5X10X0.8 2
36
#04
E2181-802-000 PUSHER CYLINDER BRACKET FL 1
37
#05
E2189-802-000 PUSHER CYLINDER BRACKET FR 1
38
#06
E2169-721-000 HOLD PLATE 1
39
#06
SL-6041092-TN SCREW 2
40 #04 E2191-802-000 PUSHER BRACKET RL 1
41
#05
E2195-802-000 PUSHER BRACKET RR 1
42
#06
SM-1030601-SC SCREW M3 L=6 6
43
#06
E2192-802-000 PUSHER BLOCK R 1
44
#06
E2196-802-000 SCREW 2
45
#06
WS-0410002-KN SPRING WASHER 2
46
#06
WP-0430801-SC WASHER 4.3X9X0.8 2
47
#06
E2193-802-000 PUSHER CABLE BRACKET R 1
48
#06
SL-6030592-TN SCREW M3 L=5 2
49 #06 E2171-802-000 REAR GUIDE BLOCK 2
50
#06
SL-6052042-TN SCREW 2
51
#06
SL-6052542-TN SCREW 2
52
#06
E2172-802-000 REAR GUIDE 2
53
#06
SM-8040502-TP SCREW M4X0.7 L=5 4
54
#06
E2177-802-000 REAR BASE PLATE 1
55
#06
SL-6051092-TN BOLT 4
56
#06
E2197-802-000 PUSHER DUCT RA 1
57
#06
SM-0030601-SC SCREW M3X0.5 L=6 3
58 #06 E2198-802-000 PUSHER DUCT RB 1
59
#06
SL-6030892-TN SCREW 4
60 #06 BT-0400251-EA TUBE HOSE, BLUE 5
61
#06
HX-0036400-0E PARTS 0.5
62
#06
EA-9500B01-00 CABLE BAND 18
- -
38. BLANK RUN UNIT COMPONENTS
3 6
2
3
4
7
8
5
9
6
1 0
1 1
1 2
1 2
1 2
1 4
1 5
2 8
1 6
3 2
3 3
3 3
3 3
3 4
3 5
2 8
3 0
1 5
1 9
3 1
1 8
1 7
2 9
2 0
1 3
2 1
2 5
2 6
2 7
2 4
2 3
2 2
3 7
2 9
4 0
3 9
3 8
1
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3920-802-0A0-A BLANK RUN UNIT ASM. 1
2 400-11079 FLANGE SHAFT COMPL. (1)
3 E3924-802-000 PULLEY SHAFT (1)
4 E3925-802-000 TAPE ROLL SHAFT KNOB (1)
5 E3926-802-0A0 TAPE ROLL SHAFT COMPL. (1)
6 E3928-802-000 ROLL SHAFT (1)
7 E3930-802-0A0 ROLL CLUTCH SHAFT COMPL. (1)
8 E3932-802-0A0 FLANGE B COMPL. (1)
9 E3932-802-000 FLANGE B (1)
10 E3935-802-000 CYLINDER KNUCKLE (1)
11 E3936-802-000 ROLL DRIVING LEVER (1)
12 E3937-802-000 TAPE PRESSER SPRING (3)
13 E3938-802-000 DETECTOR SWITICH FITTING PLATE (1)
14 E3939-802-000 BLANK RUN TAPE (1)
15 E3940-802-000 SCREW (2)
16 WZ-1450302-KP WASHER (3)
17 E3942-802-000 SPACER (8)
18 E3943-802-000 CYLINDER STUD (2)
19 WP-0430800-SC WASHER M4 (1)
20 PA-1503013-A0 AIR CYLINDER (1)
21 E9557-802-0A0 FULL DETECTOR SWITICH (1)
22 E3944-802-0A0 TAPE BREAK SENSOR (1)
23 E3944-802-000 SENSOR FIXED BLOCK (1)
24 E9560-802-0A0 SENSOR CABLE ASM. (1)
25 SL-4020591-SC SCREW M2X5 (1)
26 SL-4021291-SC SCREW M2 X 12 (1)
27 SL-4021091-SC SCREW M2 L=10 (1)
28 SM-1030501-SC SCREW M3 L=5 (6)
29 PC-0105080-00 SPEED CONTROLLER (2)
30 NM-6050001-SC NUT M5 (2)
31 SM-6050652-TP HEXAGON SOCKET HEAD SCREW M5X6 (2)
32 SL-4030481-SF SCREW (2)
33 SM-0030601-SC SCREW M3X0.5 L=6 (3)
34 SM-0031201-SC SCREW M3 L=12 (2)
35 SM-4020801-SN SCREW M2 X 8 (2)
36 E3921-802-000-A FITTING BASE PLATE (1)
37 400-69935 ROLL COLLAR (1)
38 SM-6053002-TN SCREW M5X0.8 L=30 (1)
39 SB-1050003-00 BALL BEARING (4)
40 WP-0531001-SC WASHER (2)
- -

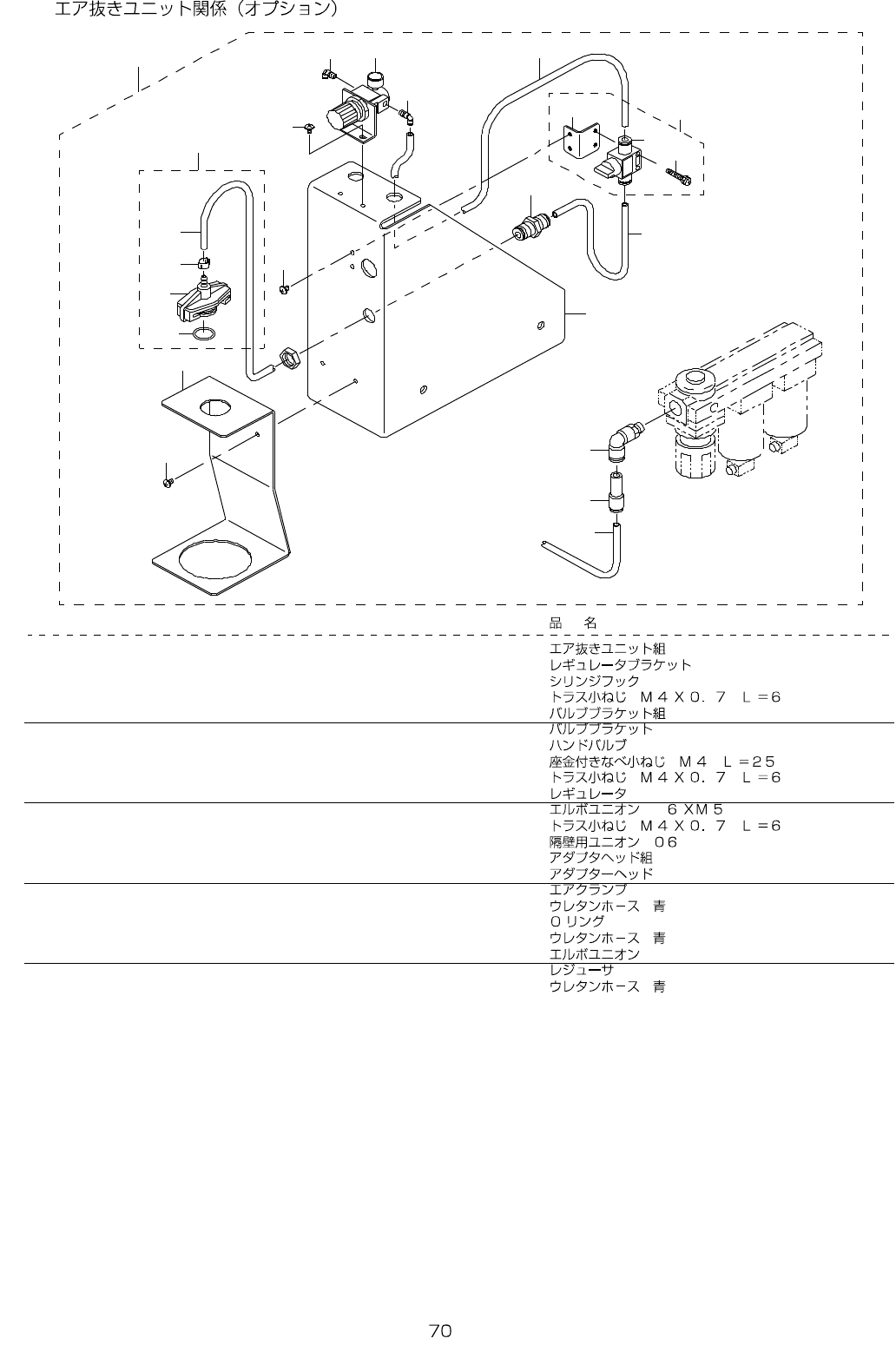

39. AIR BLOW UNIT COMPONENTS (OPTION)
2
4
6
9
8
7
5
1 0
1 1
1 1
1 2
1 3
1 6
1 5
2 0
2 1
2 2
1 9
3
1 9
1 7
1 4
1 8
1
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E4001-802-0A0 AIR BLOW UNIT ASM. 1
2 E4001-802-000 REGULATER BRACKET (1)
3 E4002-802-000 SYRINGE HOOK (1)
4 SM-0040601-SC SCREW M4X0.7 L=6 (2)
5 E4005-802-0A0 VALVE BRACKET ASM. (1)
6 E4005-802-000 VALVE BRACKET (1)
7 PV-0100060-00 HAND VALVE (1)
8 SL-4042591-SC SCREW M4 L=25 (2)
9 SM-0040601-SC SCREW M4X0.7 L=6 (2)
10 PF-0205010-B0 REGUIATER (1)
11 PJ-3040605-02 ELBOW UNION 6XM5 (2)
12 SM-0040601-SC SCREW M4X0.7 L=6 (2)
13 PJ-2300061-00 UNION 06 (1)
14 E4003-802-0A0 ADAPTER HEAD ASM. (1)
15 E4003-802-000 ADAPTER HEAD (1)
16 E4004-802-000 AIR CLAMP (1)
17 BT-0600400-EC TUBE HOSE, BLUE (0.35)
18 RO-1582401-00 O-RING (1)
19 BT-0600400-EC TUBE HOSE, BLUE (0.4)
20 PJ-3041053-01 ELBOW UNION (1)
21 PJ-3010600-04 REDUCER (1)
22 BT-0600400-EC TUBE HOSE, BLUE (2.5)
