MAIN UNIT
1. BASE COMPONENTS(1)
5 6
5 7
1
2 7
2 8
3 0
3 1
3 2
3 2
3 9
3 3
3 4
3 4
3 6
3 7
3 7
3 8
3 9
3 3
4 0
4 3
4 2
4 1
4 4
4 5
4 6
4 7
4 8
4 8
4 9
4 9
5 0
2 9
5 1
5 1
5 2
5 2
5 2
5 2
5 3
3 5
2 6
6 9
6 8
5 0
6
2
7
3
4
8
1 1
1 2
1 5
1 4
1 3
1 6
1 7
2 1
2 0
2 5
2 3
2 2
2 4
5
9
A
1 0
A
1 9
1 8
1 9
1 8
5 5
6 6
6 6
6 0
6 1
6 2
6 3
6 4
6 5
5 8 5 9
5 4
6 7
- -

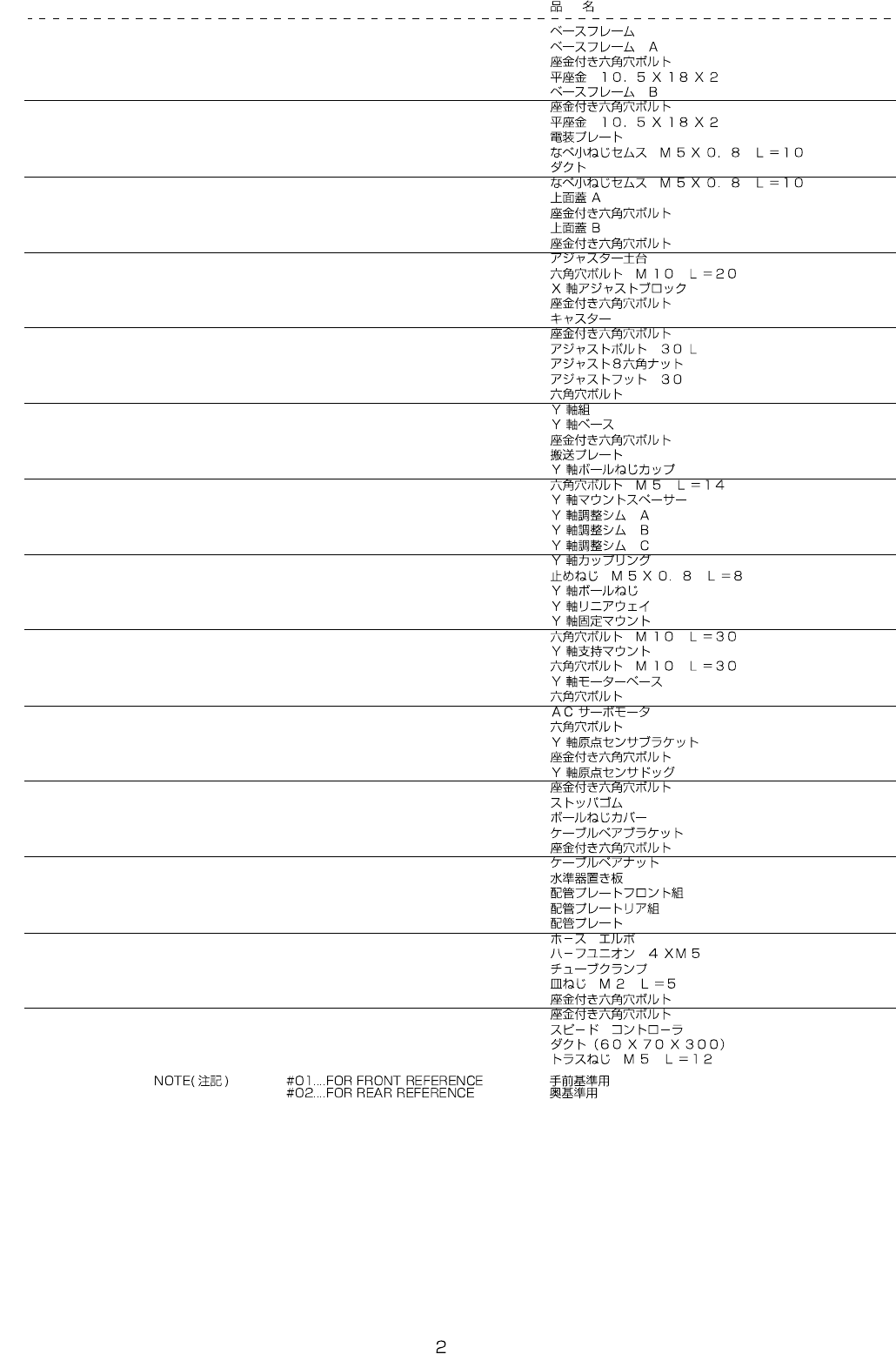

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E1001-802-000-A BASE FRAME 1
2 E1002-802-000 BASE FRAME A 1
3 SL-6103042-TN BOLT 6
4 WP-1052000-SC WASHER 10.5X18X2 6
5 E1003-802-000 BASE FRAME B 1
6 SL-6103042-TN BOLT 6
7 WP-1052000-SC WASHER 10.5X18X2 6
8 E1008-802-000 ELECTRIC APPARATUS PLATE 1
9 SL-4051091-SC SCREW M5X0.8 L=10 6
10 E1009-802-000 DUCT 1
11 SL-4051091-SC SCREW M5X0.8 L=10 6
12 E1010-802-000 UPPER COVER A 1
13 SL-6051092-TN BOLT 10
14 E1011-802-000 UPPER COVER B 1
15 SL-6051092-TN BOLT 10
16 E1012-802-000 ADJUSTER FOUNDAION 4
17 SM-6102002-TN SCREW M10 L=20 16
18 E1013-802-000 X-AXIS ADJUSTER BLOCK 2
19 SL-6062092-TN SCREW M6 L=20 6
20 E1006-700-000 CASTER 4
21 SL-6082092-TN BOLT 16
22 E1002-725-000 ADJUSTER BOLT 30 4
23 E1018-802-000 ADJUSTER NUT 4
24 E1034-721-000 ADJUSTER FOOT 30 4
25 SM-6061202-TN BOLT 12
26 E2301-802-0A0 Y-AXIS ASM. 1
27 E2301-802-000 Y-AXIS BASE (1)
28 SL-6103042-TN BOLT (8)
29 E2302-802-000-A CONVEYOR PLATE (1)
30 E2303-802-000-A Y-AXIS BOLL THREAD CUP (1)
31 SM-6051402-TN HEXAGONAL-HOLE BOLT M5 L=14 (4)
32 E2304-802-000 Y-AXIS MOUNT SPACER (2)
33 E2305-802-000 Y-AXIS REGULATION SHIM A (4)
34 E2306-802-000 Y-AXIS REGULATION SHIM B (2)
35 E2307-802-000 Y-AXIS REGULATION SHIM C (1)
36 E2308-802-000 Y-AXIS CUOPLING (1)
37 SM-8050812-TP SCREW M5X8 (4)
38 E2309-802-000 Y-AXIS BOLL THREAD (1)
39 E2310-802-000 Y-AXIS LINEAR WAY (2)
40 E2311-802-000 Y-AXIS FIXED MOUNT (1)
41 SM-6103002-TN SCREW M10 L=30 (2)
42 E2312-802-000 Y-AXIS MOUNT (1)
43 SM-6103002-TN SCREW M10 L=30 (2)
44 E2313-802-000 Y-AXIS MOTOR BASE (1)
45 SM-6085502-TN SCREW BOLT (2)
46 KM-0000001-20 AC SERVO MOTOR (1)
47 SM-6051602-TN BOLT (4)
48 E2314-802-000 Y-AXIS ORIGIN SENSOR BRACKET (2)
49 SL-6051042-TN SCREW (4)
50 E2315-802-000 Y-AXIS ORIGIN SENSOR DOG (2)
51 SL-6040842-TN SCREW M4 L=8 (4)
52 E2316-802-000 STOPPER RUBBER (4)
53 E1027-802-000 BOLLTHREAD COVER (1)
54 E1021-802-000 CABLE BEAR BRACKET 1
55 SL-6061692-TN BOLT 2
56 E1023-802-000 CABLE BEAR NUT 1
57 E1029-802-000 LEVEL VIAL SET PLATE 1
58
#01
400-29925 PIPE PLATE F ASM. 1
59
#02
400-29971 PIPE PLATE R ASM. 1
60 400-29924 PIPE PLATE (1)
61 PJ-0460525-03 HOSE ELBOW (8)
62 PJ-3010405-02 HALF UNION 4XM5 (8)
63 E2117-802-000 TUBE CLAMP (1)
64 SM-1020501-SC SCREW (2)
65 SL-6051692-TN BOLT 2
66 SL-6061692-TN BOLT 4
67 PC-0124010-00 SPEED CONTROLLER 1
68 E9760-729-000 DUCT (60X70X300) 1
69 SM-0051201-SC SCREW 2
