- - 29. B O ARD ST O PPER COMPO N ENTS 3 4 5 6 7 8 9 1 0 1 1 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 2 9 2 8 2 6 2 7 1 2 1 2 3 1 3 3 3 2 3 0
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2145-802-000 CABLE BEAR 1
2 HX-0036400-0B CORD PART 0.7
3 E9461-802-0A0 RELAY CABLE ASM. 1
4 E9459-802-0A0 MOTOR REALY CABLE ASM. 1
5 E9460-802-0A0 MOTOR RELAY CABLE ASM. 1
6 E8603-802-0A0 CENTER CONNECTOR BOARD ASM. 1
7 HX-0035400-0C BASE PARTS 4
8 WP-0320500-SC WASHER M3 4
9 SL-4030691-SC SCREW M3X6 4
10 E9476-802-0A0 ZERO SENSOR CABLE ASM. 1
11 E9477-802-0A0 SENSOR RELAY CABLE ASM. 1
12 E9475-802-0A0 DETECTING SENSOR ASM. 1
13 E9469-802-0A0 ASCENT DETECTING SENSOR ASM. 1
14 E9470-802-0A0 DESCENT DETECTING SENSOR ASM. 1
15 E2176-802-000 CONVEYOR REGULATION SHIM 6
16 E2194-802-000 CONVEYOR REGULATION SHIM A 6
- -

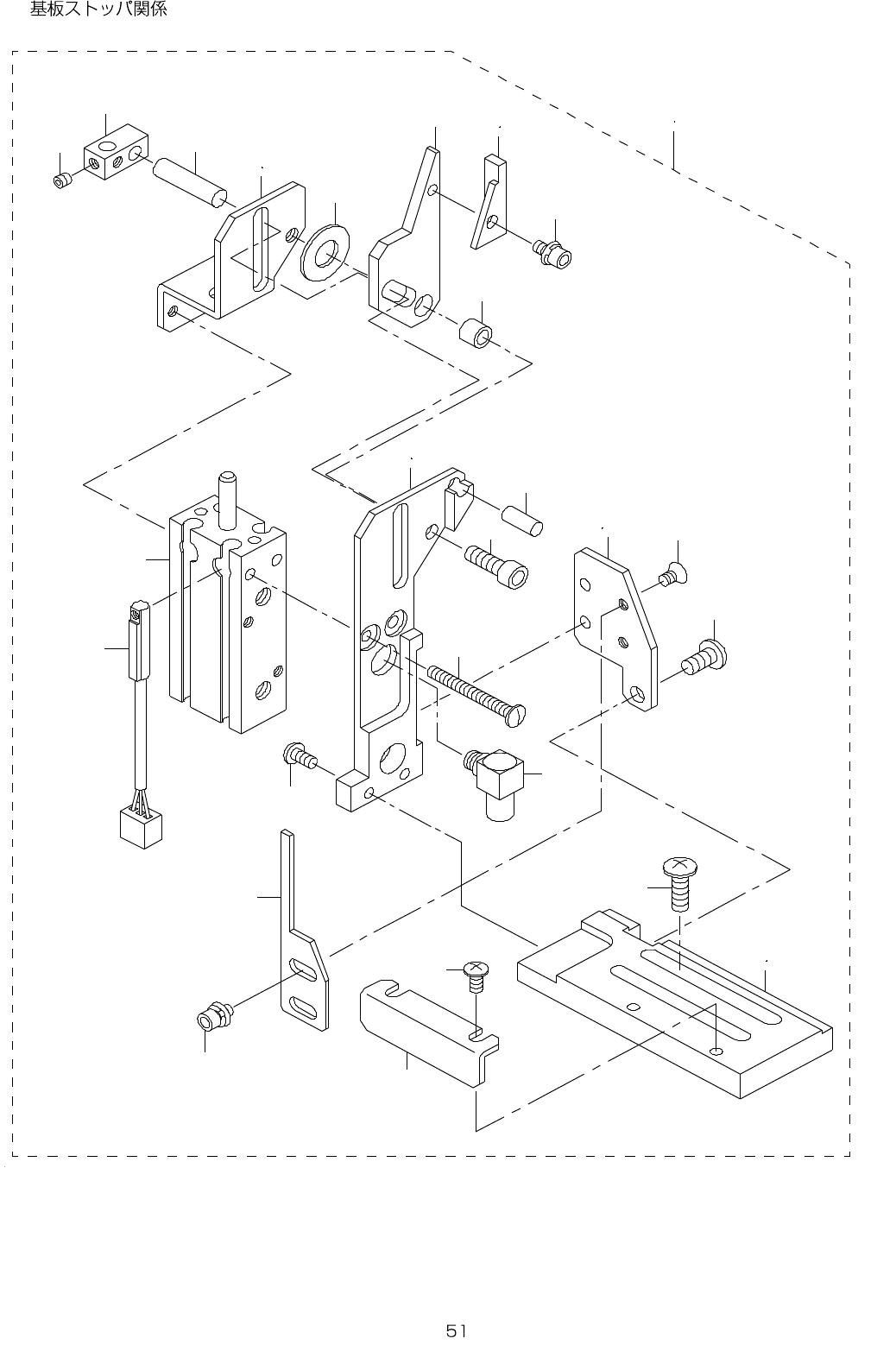

29. BOARD STOPPER COMPONENTS
3 4
5
6 7
8
9 1 0
1 1
1 3 1 4
1 5
1 6 1 7
1 8
1 9
2 0
2 1
2 2
2 3
2 4
2 5
2 9
2 8
2 6
2 7
1 2
1 2
3 1
3 3
3 2
3 0
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E2130-802-0A0 BOARD STOPPER A ASM. 1
2
#02
E2150-802-0A0 BOARD STOPPER B ASM. 1
3
#01
E2131-802-000 STOPPER BRACKET A (1)
4
#02
E2151-802-000 STOPPER BRACKET RA (1)
5 SM-4030601-SN SCREW M3 X 6 (2)
6
#01
E2132-802-000 STOPPER BRACKET B (1)
7
#02
E2152-802-000 STOPPER BRACKET RB (1)
8 E2142-802-000 STOPPER CYLINDER SCREW (2)
9
#01
E2133-802-000 STOPPER BRACKET C (1)
10
#02
E2153-802-000 STOPPER BRACKET RC (1)
11 SM-1030501-SC SCREW M3 L=5 (2)
12 SL-4040881-SC SCREW M4 L=8 (1)
13
#01
E2134-802-000 STOPPER TIP (1)
14 #02 E2154-802-000 STOPPER TIP R (1)
15 SL-6030692-TN BOLT (1)
16
#01
E2135-802-000 STOPPER BASIS (1)
17 #02 E2155-802-000 STOPPER BASIS R (1)
18 SM-0041201-SA SCREW M4X0.7 L=12 (2)
19 E2136-802-000 STOPPER BLOCK (1)
20 SM-8030302-TP SCREW M3X0.5 L=3 (1)
21 E2137-802-000 STOPPER PLATE (1)
22 SL-6041292-TN SCREW (2)
23 E2138-802-000 STOPPER COLLAR (1)
24 E2140-802-000 STOPPER DRIVING PIN (1)
25 E2141-802-000 STOPPER PIN (1)
26 PJ-0460525-03 HOSE ELBOW (2)
27 E9473-802-0A0 STOPPER SENSOR CABLE ASM. (1)
28 E2173-715-000 THRUST WASHER (2)
29 E2159-802-000 STOPPER CYLINDER (1)
30 E2156-802-000 STOPPER DETECTING PLATE (1)
31 E2157-802-000 STOPPER GUIDE (1)
32 SL-6030592-TN SCREW M3 L=5 (2)
33 SM-0030601-SC SCREW M3X0.5 L=6 (2)
