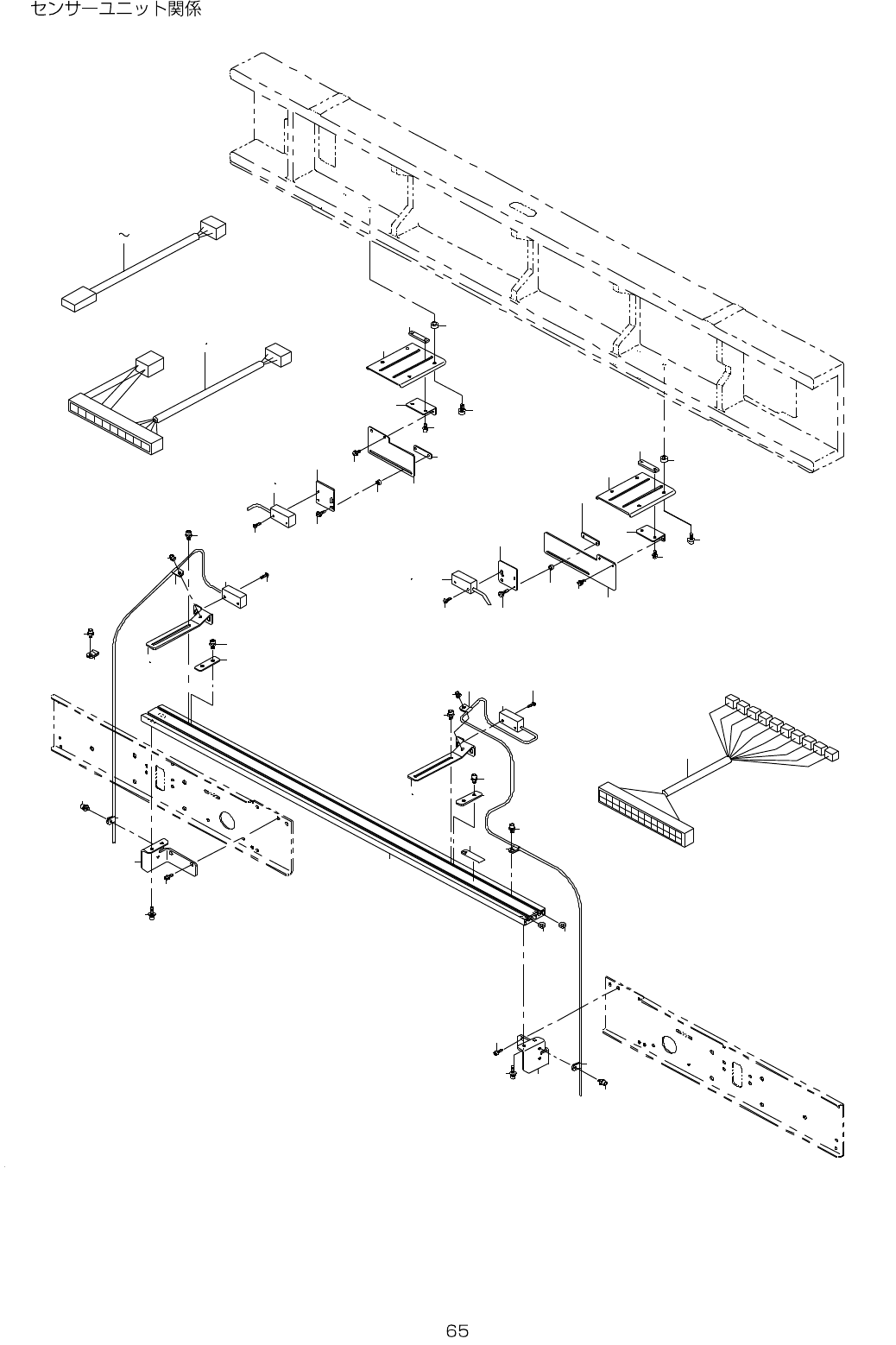

36. SENSOR UNIT COMPONENTS
2 6
2 5
2 4
8
2 8
2 5
2 8
2 7
2 2
3 2
2 3
3 1
8
2 1
8
2 9 3 0
3 2
2 1
3 1
3 4
8
3 3
4 4
3 5 4 3
4 5 4 6
2 6
2 7
2 4
6 6
1
2
3
7
1 9 2 0
9
1 0
7
1 3
1 3
1 4
1 7
1 6
1 6
1 4
1 7
1 8
4 5
4 5
1 5
1 2
1 1
1 5
1 5
1 1
1 1
1 5
1 5
1 1
1 1
1 5
1 8
1 8
1 1
1 8
- -

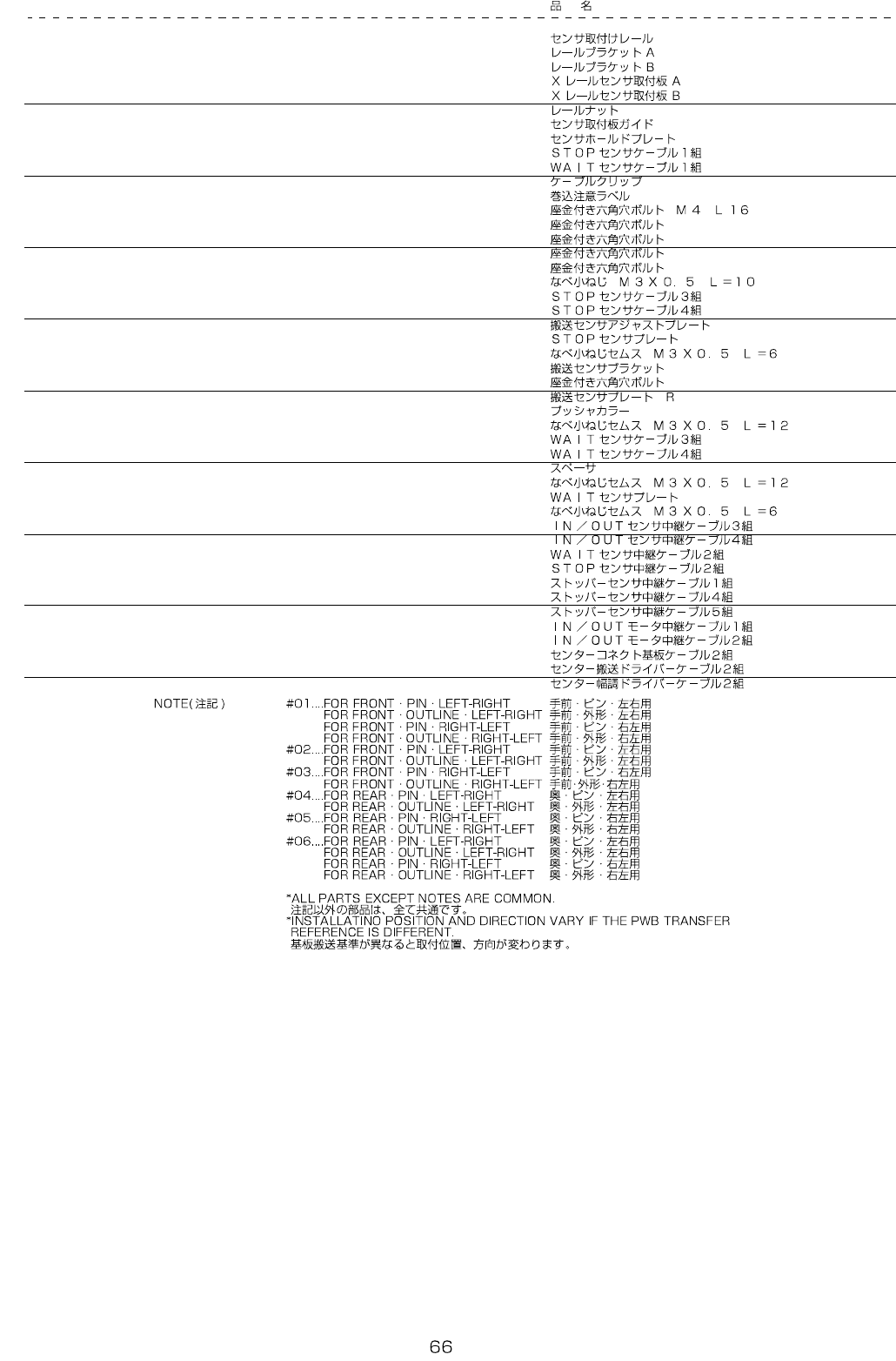

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1
#01
E2288-802-000 SENSOR FITTING RAIL 1
2
#01
E2289-802-000 RAIL BRACKET A 1
3
#01
E2290-802-000 RAIL BRACKET B 1
4 #02 E2291-802-000 X RAIL SENSOR FITTING PLATE A 2
5
#03
E2293-802-000 X RAIL SENSOR FITTING PLATE B 2
6
#01
E2292-802-000 RAIL NUT 13
7
#01
E2294-802-000 SENSOR FITTING PLATE GUIDE 2
8 E2166-802-000 SENSOR HOLD PLATE 4
9
#01
E9543-802-0A0 STOP SENSOR CABLE 1 ASM. 1
10
#01
E9539-802-0A0 WAIT SENSOR CABLE 1 ASM. 1
11
#01
HX-0015000-00 CLIP 5
12
#01
CM-3004004-01 LABEL 1
13 #01 SL-6041692-TN SCREW 4
14
#01
SL-6041092-TN SCREW 4
15
#01
SL-6040892-TN BOLT 5
16
#01
SL-6031092-TN SCREW 4
17
#01
SL-6041092-TN SCREW 4
18 SM-4031001-SC SCREW M3X0.5 L=10 8
19
#04
E9545-802-0A0 STOP SENSOR CABLE 3 ASM. 1
20
#05
E9546-802-0A0 STOP SENSOR CABLE 4 ASM. 1
21
#06
E2175-802-000 CONVEYOR SENSOR ADJUST PLATE 2
22 #06 E2164-802-000 STOP SENSOR PLATE 1
23
#06
SL-4030691-SC SCREW M3X6 2
24
#06
E2165-802-000 CONVEYOR SENSOR BRACKET 2
25
#06
SL-6030892-TN SCREW 4
26
#06
E2173-802-000 CONVEYOR SENSOR PLATE R 2
27
#06
E2063-721-000 PUSHER COLLAR 8
28
#06
SL-4031291-SC SCREW M3X12 8
29
#06
E9541-802-0A0 WAIT SENSOR CABLE 3 ASM. 1
30
#05
E9542-802-0A0 WAIT SENSOR CABLE 4 ASM. 1
31 #06 G5840-830-000 SPACER 4
32
#06
SL-4031291-SC SCREW M3X12 4
33
#06
E2169-802-000 WAIT SENSOR PLATE 1
34
#06
SL-4030691-SC SCREW M3X6 2
35
#06
E9505-802-0A0 SENSOR RELAY CABLE 3 ASM. 1
36
#06
E9506-802-0A0 SENSOR RELAY CABLE 4 ASM. 1
37
#06
E9508-802-0A0 WAIT SENSOR RELAY CABLE 2 ASM. 1
38
#06
E9512-802-0A0 STOP SENSOR RELAY CABLE 2 ASM. 1
39
#06
E9533-802-0A0 SENSOR RELAY CABLE 1 ASM. 1
40 #06 E9536-802-0A0 SENSOR RELAY CABLE 4 ASM. 1
41
#06
E9537-802-0A0 SENSOR RELAY CABLE 5 ASM. 1
42
#06
E9515-802-0A0 MOTOR RELAY CABLE 1 ASM. 1
43
#06
E9516-802-0A0 MOTOR RELAY CABLE 2 ASM. 1
44
#06
E9458-802-0A0 CONNECTOR BOARD CABLE 2 ASM. 1
45
#06
E9455-802-0A0 CONVEYOR DRIVER CABLE 2 ASM. 1
46
#06
E9456-802-0A0 DRIVER CABLE 2 ASM. 1
- -
