- - 27. C E NT E R TABLE COMPO N ENT(4) 2 0 2 1 2 7 2 8 2 8 2 9 3 0 3 0 3 5 3 5 3 6 3 6 3 6 3 6 3 7 3 7 3 8 3 8 4 0 3 6 4 0 4 0 4 0 4 0 4 8 4 8 4 7 5 0 4 9 4 7 5 4 5 5 5 6 5 6 5 8 6 0 5 9 6 1 2 3 6 5 1 3 8 3 8 6 1 5 7 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2081-802-0A0 FIXING PLATE ASM. 1
2 E2081-802-000 SUPPORT SHAFT FIXING PLATE (1)
3 E2082-802-000 SPLICING PLATE A (1)
4 E2083-802-000 SPLICING PLATE B (2)
5 E2084-802-000 SPLICING PLATE C (1)
6 SL-6041692-TN SCREW (11)
7 WP-0430800-SC WASHER M4 (4)
8 WS-0410002-KN SPRING WASHER (4)
9 E2086-802-000 DRIVING SHAFT HOLDING PLATE (1)
10 SM-6041602-TN SCREW M4 X 16 (2)
11 WP-0430800-SC WASHER M4 (2)
12 WS-0410002-KN SPRING WASHER (2)
13 E2087-802-000 PULSE MOTOR FITTING PLATE (1)
14 SL-6051092-TN BOLT (2)
15 E2088-802-000 COUPLING (2)
16 SM-8040402-TP SCREW M4X0.7 L=4 (8)
17 E2089-802-000 CONNECTOR FITTING PLATE (1)
18 SL-6041092-TN SCREW (2)
19 E2090-802-000 WIDE ADJUSTING DRIVING SHAFT (2)
20 E2091-802-000 PULSE MOTOR STUD (3)
21 E3034-802-000 S MOTOR GEAR (2)
22 SM-8040402-TP SCREW M4X0.7 L=4 (1)
23 E2092-802-000 CONVEYOR DRIVING GEAR (1)
24 SM-8030502-TP SCREW M3 L=5 (2)
25 E2014-802-000 HOLDING PLATE A (2)
26 SM-6043002-TN SCREW (4)
27 WP-0430800-SC WASHER M4 (4)
28 WS-0410002-KN SPRING WASHER (4)
29 E2015-802-000 HOLDING PLATE B (2)
30 SM-6043002-TN SCREW (4)
31 E2016-802-000 TABLE DRIVING PEACE (2)
32 SM-6031202-TN B0LT (4)
33 E2017-802-000 BACKUP TABLE SUPPORT SHAFT (2)
34 SM-6051202-TN SCREW M5X0.8 L=12 (2)
35 E2008-802-000 SPLICING PLATE F (1)
36 SL-6052092-TN SCREW (6)
37 SM-8040402-TP SCREW M4X0.7 L=4 (2)
38 E2023-802-000 WIDE ADJUSTING BEARING SUPPORT (3)
39 SM-6040802-TN SCREW (12)
40 E2039-802-000 GUIDE SHAFT HOLDER (1)
41 HX-0015000-0B CABLE CLIP (1)
42 EA-9500B01-00 CABLE BAND (1)
43 E2093-802-000 FIXING COLLAR C (4)
44 E9467-802-0A0 WIDE ADJUSTING MOTOR ASM. (1)
45 SL-6041092-TN SCREW (3)
46 E9466-802-0A0 CENTER CONVEYOR MOTOR ASM. (1)
47 SM-6044552-TP BOLT M4X45 (3)
48 WP-0430800-SC WASHER M4 (3)
49 SB-1080005-00 RADIAL BEARING (4)
50 SB-1120007-00 BEARING (3)
51 SB-7080001-00 BEARING (2)
52 SL-6041692-TN SCREW (1)
53 NM-6040001-SC NUT M4 (1)
54 WP-0430800-SC WASHER M4 (1)
55 WS-0410002-KN SPRING WASHER (1)
56 SL-6052092-TN SCREW 7
57 SL-6042092-TN SCREW M4 L=20 16
- -

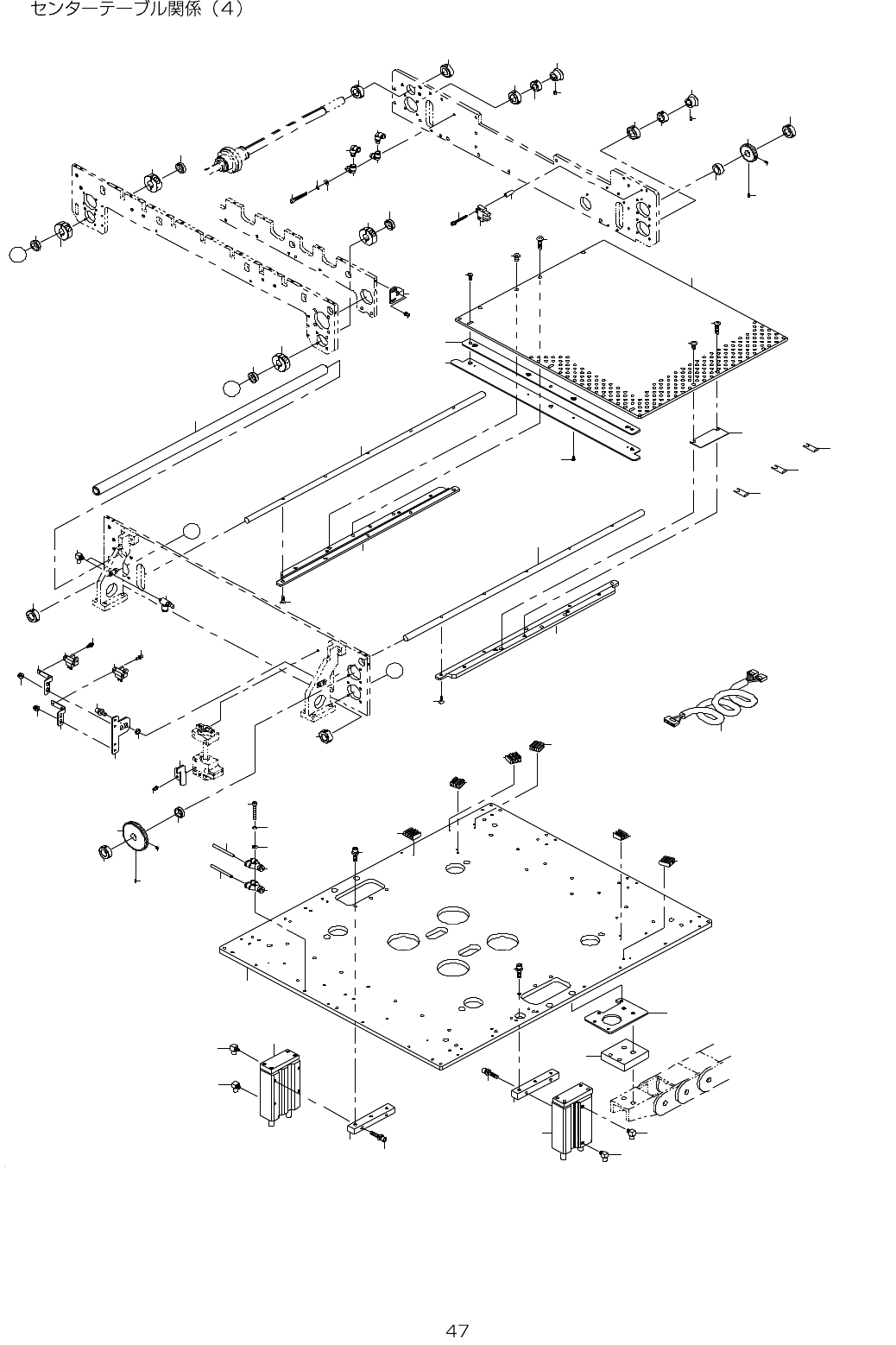

27. CENTER TABLE COMPONENT(4)
2 0
2 1
2 7
2 8
2 8
2 9
3 0
3 0
3 5
3 5
3 6
3 6
3 6
3 6
3 7
3 7
3 8
3 8
4 0
3 6
4 0
4 0
4 0
4 0
4 8
4 8
4 7
5 0
4 9
4 7
5 4
5 5
5 6
5 6
5 8
6 0
5 9
6 1
2
3 6
5 1
3 8
3 8
6 1
5 7
5 7
4 0
3 6
A
B
3 5
3 8
3 5B
A
3 9
3 6
4
5 3
5 5
5
5 3
5 3
5 3
5 3
1
7
8
9
1 1
1 0
1 0
1 1
1 3
1 2
1 3
1 2
1 5
1 7
1 6
1 8
1 8
1 9
1 9
2 2
2 2
3
2 3
2 4
2 4
2 5
2 6
3 1
3 2
3 4
3 3
4 1
4 2
4 3
4 4
4 3
4 4
7
8
1 5
4 5
4 6
5 2
1 4
6
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E2095-802-000 CENTER TABLE BASE PLATE 1
2 E9472-802-0A0 REMOVING RAIL RELAY CABLE ASM. 1
3 HD-0003500-00 MICRO SENSOR 1
4 E1020-802-000 CABLE BEAR FITTING PLATE 1
5 E1022-802-000 CABLE BEAR SPACER 1
6 SM-5030501-SC SCREW M3 L=5 4
7 E2097-802-000 BACKUP CYLINDER FITTING PLATE 2
8 SL-6052092-TN SCREW 6
9 E2098-802-000 BACKUP TABLE 1
10 SM-0051001-SC SCREW 4
11 SM-0052001-SC TRUSS SCREW 4
12 E2123-802-000 BACKUP TABLE FIXING SHAFT 2
13 E2124-802-000 BACKUP TABLE SUPPORT PLATE 2
14 E2045-802-000 B/U TABLE SHIM 0.2 2
15 SM-1041201-SC SCREW M4 L=12 10
16 E2102-802-000 SENSOR FITTING BASE 1
17 SL-6051492-TN BOLT 2
18 E2103-802-000 SENSOR FITTING PALTE 2
19 SL-4040691-SC SCREW M4 L=6 4
20 E2104-802-000 ZERO SLIT PLATE 1
21 SL-6030692-TN BOLT 2
22 HD-0006700-00 SENSOR 2
23 E2105-802-000 SENSOR SPACER A 2
24 SL-6031092-TN SCREW 4
25 E2063-802-000 PIN DETECTOR SENSOR STUD 2
26 SL-6033092-TN SCREW 2
27 E2107-802-000 CONVEYOR VERTICAL GEAR B 1
28 SM-8030502-TP SCREW M3 L=5 2
29 E2108-802-000 CONVEYOR VERTICAL GEAR C 1
30 SM-8030502-TP SCREW M3 L=5 2
31 E2109-802-000 SUPPORT SHAFT 1
32 E2110-802-000 PIVOT PIN DRIVING PLATE 1
33 E2122-802-000 DRIVING PLATE SPACER PLATE 3
34 SM-0041201-SA SCREW M4X0.7 L=12 3
35 E2112-802-000 SHAFT FIXING COLLAR A 4
36 E2113-802-000 SHAFT FIXING COLLAR B 8
37 E2114-802-000 SHAFT FIXING COLLAR C 2
38 E2115-802-000 SHAFT RING A 5
39 E2116-802-000 SHAFT RING B 1
40 E2117-802-000 TUBE CLAMP 2
41 E2118-802-000 TABLE DETECTOR SLIT PLATE 1
42 SL-6030692-TN BOLT 2
43 E3007-802-000 SHAFT DRIVE GEAR 2
44 SM-8040502-TP SCREW M4X0.7 L=5 2
45 E2042-802-000 B/U TABLE SPACER 3
46 E2043-802-000 B/U TABLE SPACER SHIM 0.1 2
47 PJ-3040400-05 STREET ELBOW 2
48 PJ-3040400-01 ELBOW 2
49 SM-6043002-TN SCREW 1
50 WP-0430800-SC WASHER M4 1
51 WS-0410002-KN SPRING WASHER 1
52 E2044-802-000 B/U TABLE SHIM 0.15 6
53 PJ-0460525-03 HOSE ELBOW 6
54 PC-0105080-00 SPEED CONTROLLER 2
55 PA-1604004-00 AIR CYLINDER 2
56 SL-6052592-TN BOLT 4
57 PJ-3080400-02 QUICK COUPLING 2
58 SM-6043002-TN SCREW 1
59 WP-0430800-SC WASHER M4 1
60 WS-0410002-KN SPRING WASHER 1
61 BT-0400251-EA TUBE HOSE, BLUE 16
