- - 12. H E AD COMPONENTS(1) 2 7 8 9 1 0 1 1 1 2 1 3 1 5 1 4 1 6 1 6 1 7 1 9 2 0 2 1 2 3 2 2 2 1 2 3 2 2 2 5 2 6 2 8 2 7 2 4 1 8 3 0 3 1 3 2 3 2 2 9 3 3 3 4 3 5 3 8 3 9 4 0 4 1 4 4 2 4 3 4 2 4 5 4 6 4 8 4 9 5 0 3 7 3 6…
- -

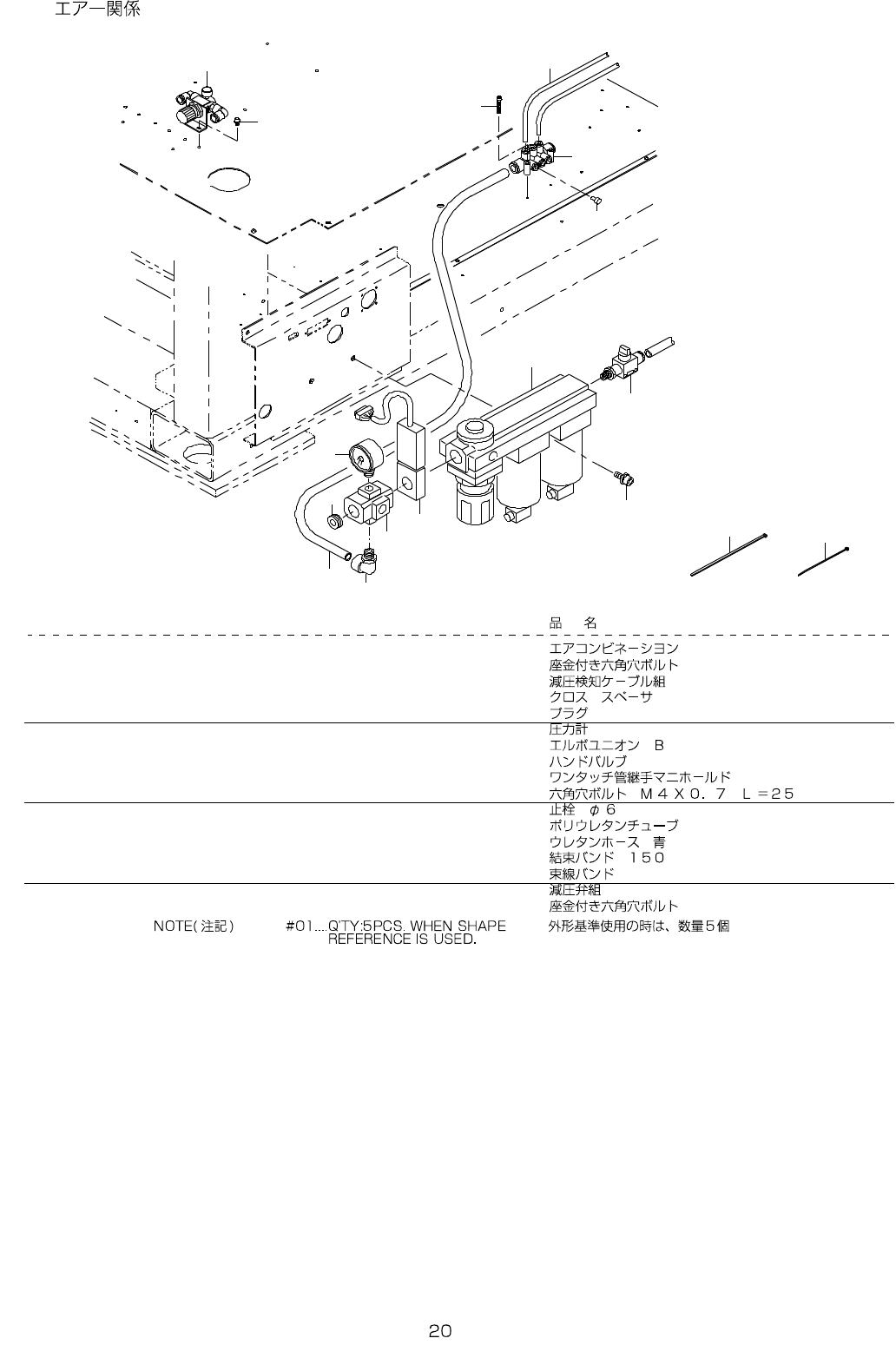

11. AIR COMPONENTS
8
6
7
1 2
3
4
5
9
1 3
1 6
1 1
1
1 4
1 5
1 0
2
1 7
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 PF-0552120-A0 AIR COMBINATION 1
2 SL-6082092-TN BOLT 2
3 E9403-721-0A0 PRESSURE SENSOR CABLE ASM. 1
4 PF-9040020-00 CROSS SPACER 1
5 PJ-0253000-01 PLUG 1
6 PF-0652050-00 PRESSURE GAUGE 1
7 PJ-3041052-01 ELBOW UNION B 1
8 PV-0152060-00 HAND VALVE 1
9 PJ-3091000-01 MANIFOLD 1
10 SM-6042502-TN SCREW M4X0.7 L=25 2
11 E2619-760-000 CAP 2
12 BT-1000651-EB POLYURETHANE TUBE 1
13 BT-0600400-EC TUBE HOSE, BLUE 33
14 EA-9500B02-00 CABLE BAND 150 80
15 EA-9500B01-00 CABLE BAND 15
16
#01
E2199-802-0A0 REDUCING VALVE ASM. 3
17 SL-6040892-TN BOLT 6
- -
12. HEAD COMPONENTS(1)
2
7
8
9
1 0
1 1
1 2
1 3
1 5
1 4
1 6
1 6
1 7
1 9
2 0
2 1
2 3
2 2
2 1
2 3
2 2
2 5
2 6
2 8
2 7
2 4
1 8
3 0
3 1
3 2
3 2
2 9
3 3
3 4
3 5
3 8
3 9
4 0
4 1
4 4
2
4 3
4 2
4 5
4 6
4 8
4 9
5 0
3 7
3 6
5 5
2 0
3 7
3 6
3 4
3 5
2
5
5
3
4
7
6
6
8
1 0
1 3
1 2
1 1
1 0
9
2 4
9
A
A
1 1
1 6
1 6
4 7
3 9
4 1
4 2
4 0
3 9
4 0
1 5
1 4
1 5
1 4
5 1
5 2
5 4
5 3
1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 E3001-802-0A0 HEAD ASM. 1
2 E3002-802-000 DRIVE SHAFT 3
3 E3003-802-000 DRIVE GEAR 3
4 SM-8050402-TP SCREW 6
5 400-32370 DS BUSH B 2
6 112-72408 THRUST COLLAR 2
7 E3005-802-000 THRUST BEARING 2
8 E3006-802-000 THRUST BEARING 2
9 CS-1000811-SP THRUST COLLAR 8
10 SS-8110422-TP SCREW 11/64-40 L=4 16
11 RC-0100001-KP SNAP RING M10 3
12 E3067-802-000 SHAFT DRIVE GEAR N 2
13 SM-8050402-TP SCREW 4
14 E3008-802-000 Z DRIVE CAM 3
15 SM-8050402-TP SCREW 6
16 SB-1100013-00 BEARING 4
17 E3009-802-000 CAM RINK SHAFT 1
18 E3010-802-0A0 Z CAM RINK ASM. 3
19 E3010-802-000 Z CAM RINK (1)
20 E3051-802-000 MINIATURE CAM FOLLOW (2)
21 NM-6040001-SC NUT M4 (2)
22 WS-0410002-KN SPRING WASHER (2)
23 WP-0430801-SC WASHER 4.3X9X0.8 (2)
24 400-32370 DS BUSH B (2)
25 E3055-802-000 CAM FOLLOW (1)
26 NM-6050001-SC NUT M5 (1)
27 WS-0510002-KN SPRING WASHER (1)
28 WP-0531001-SC WASHER (1)
29 E3012-802-0A0 SP BRACKET ASM. (1)
30 E3012-802-000 SP BRACKET (1)
31 E3013-802-000 SELECT PIN (1)
32 RE-0400000-K0 E-RING 4 (2)
33 SL-6030692-TN BOLT (2)
34 GPK-18022000 MICRO SWITCH COLLAR (2)
35 SM-6030602-TN HEX SCREW M3 X 6 (2)
36 WS-0310002-KN SPRING WASHER M3 (2)
37 WP-0320501-SC WASHER M3 (2)
38 SM-8030402-TP SCREW M3X0.5 L=4 2
39 E3014-802-000 SELECT CAM 3
40 SM-8050402-TP SCREW 6
41 E3015-802-0A0 SELECT DOG ASM. 2
42 E2211-524-000 SCREW 4
43 E3017-802-000 SELECT GEAR 1
44 SM-8050402-TP SCREW 1
45 262-26506 SPRING HOOK 6
46 NS-6110310-SN NUT 11/64-40 6
47 WS-0410002-KN SPRING WASHER 6
48 WP-0430800-SC WASHER M4 6
49 E3011-802-000 Z DRIVE SPRING 6
50 SB-1400001-00 BEARING 3
51 E3054-802-000 HEAD REAR COVER 1
52 SL-6030892-TN SCREW 4
53 E3052-802-000 GEAR COVER 1
54 SL-6030892-TN SCREW 4
55 E3001-802-000 HEAD BODY 1
