Schematics
www.ti.com
132
SLAU358Q–September 2011–Revised October 2019
Submit Documentation Feedback
Copyright © 2011–2019, Texas Instruments Incorporated
Schematics
Table 5-1. Gang Splitter Bill of Materials (BOM)
Item Name Drawing and Part Number Quantity Description
1 BLANK PC BOARD MSP-GANG-SP rev-2 1 Blank PC Board
THROUGH HOLE COMPONENTS
1 Connector SBH11-PBPC-D07-ST-BK 1 14-pins Header Connector (Sullins)
2 Connector SBH11-PBPC-D07-ST-BK 1 14-pins Header Connector (Sullins)
3 Connector SBH11-PBPC-D07-ST-BK 1 14-pins Header Connector (Sullins)
4 Connector SBH11-PBPC-D07-ST-BK 1 14-pins Header Connector (Sullins)
5 Connector SBH11-PBPC-D07-ST-BK 1 14-pins Header Connector (Sullins)
6 Connector SBH11-PBPC-D07-ST-BK 1 14-pins Header Connector (Sullins)
7 Connector SBH11-PBPC-D07-ST-BK 1 14-pins Header Connector (Sullins)
8 Connector SBH11-PBPC-D07-ST-BK 1 14-pins Header Connector (Sullins)
J9 Connector TX24-100R-LT-H1E 1
100p-Receptacle Right Angle Connector (JAE
Electronics)
J10 Connector do not populate 2-pins terminal block
Bumpers SJ61A6 3 Bumpon, cylindrical 0.312 x 0.215, black
Figure 5-6. BSL Connection Schematic
Detailed description of the BSL connection can be found in MSP430 Programming With the Bootloader
(BSL) (SLAU319). It is important to note that the MSP-GANG Programmer's Fast-BSL has much higher
communication speed than standard BSL, 200 kbps compared to 9.6 kbps. Consequently, ensure that the
hardware does not have additional delay on the BSL RX and TX lines beyond 0.5 µs (a clock pulse
duration of 2 µs must be transmitted by the BSL RX and TX lines without degradation). Any additional
filters or suppressors on the BSL RX and TX lines can degrade communication.
www.ti.com
Schematics
133
SLAU358Q–September 2011–Revised October 2019
Submit Documentation Feedback
Copyright © 2011–2019, Texas Instruments Incorporated
Schematics

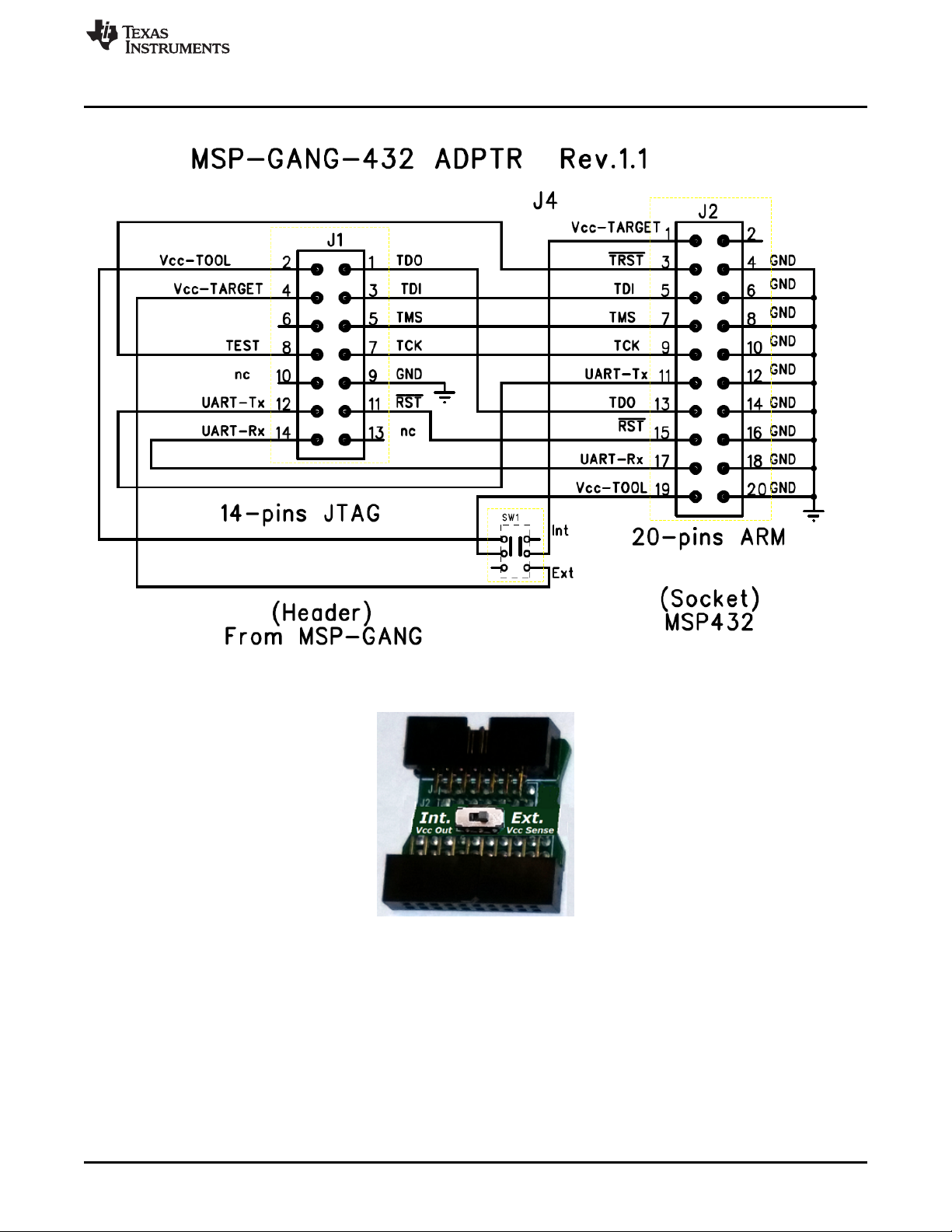

Figure 5-7. Schematic of MSP-GANG 14-20 Adapter
NOTE: Adapter should be plugged in on the 14-pin JTAG cable. The 20-pin end is connected to the MSP432
JTAG connector on the target board.
Figure 5-8. Top View of MSP-GANG 14-20 Adapter (Order Separately From TI)
