5 TECHNICAL REFERENCE

5.3 TEST PROCEDURES

24 STANDALONE MANUAL HIGH FLOW VACUUM (TQ) 12/2020

NOTE

If the indicator comes on momentarily and switches off, the sensor is not remaining in the

vane when the table is at home. The sensor may be loose and need adjustment.

5 TECHNICAL REFERENCE

5.4 REPLACEMENT PROCEDURES

STANDALONE MANUAL HIGH FLOW VACUUM (TQ) 12/2020 25

5.4 REPLACEMENT PROCEDURES

WARNING

BOARD CLAMPS. EXTREME CARE MUST BE EXERCISED WHEN WORKING IN

THE TOOLING AREA OF THE MACHINE TO AVOID INJURY. THE FOILS ON THE

FRONT AND REAR BOARD CLAMPS ARE VERY SHARP.

MANDATORY

TOXIC SUBSTANCES MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.

MANDATORY

TOXIC SUBSTANCES MAY BE PRESENT. EYE PROTECTION MUST BE WORN.

5 TECHNICAL REFERENCE

5.4 REPLACEMENT PROCEDURES

26 STANDALONE MANUAL HIGH FLOW VACUUM (TQ) 12/2020

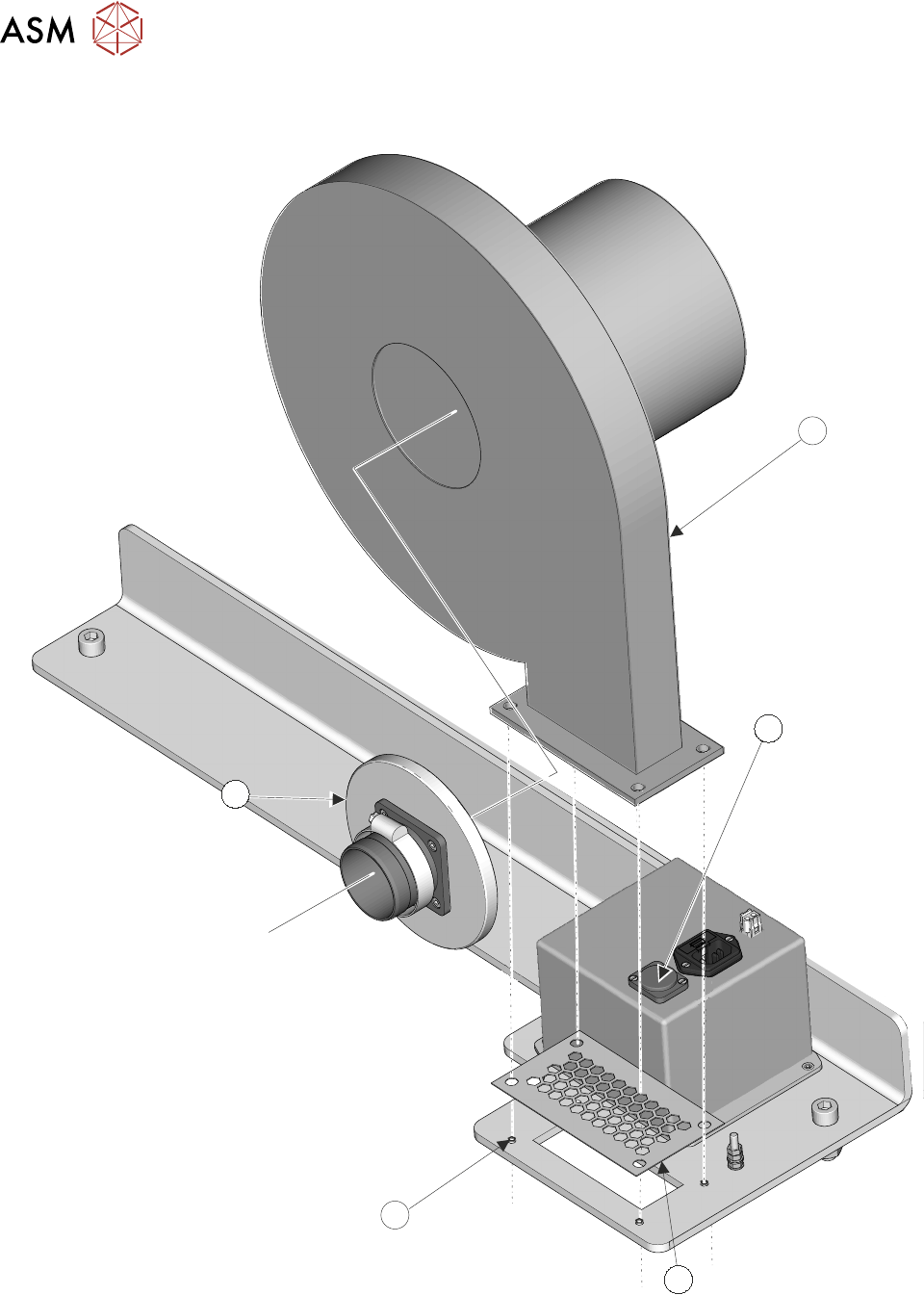

5.4.1 Pump

1. Turn the mains isolator switch to OFF and lockout the switch.

2. Gain access to the assembly by removing the lower rear panel.

3. Unplug the mains cable from the socket (2) on the control enclosure.

4. Using an 10mm spanner remove the four M6 nuts (4) from the studs.
