2 Product Description
2.4 Contents of Delivery
2
4
3
1
1 Applicator
2 Screws (part of the pad)
3 Blow tube (as ordered)
4 Pad (as ordered)
5 Documentation

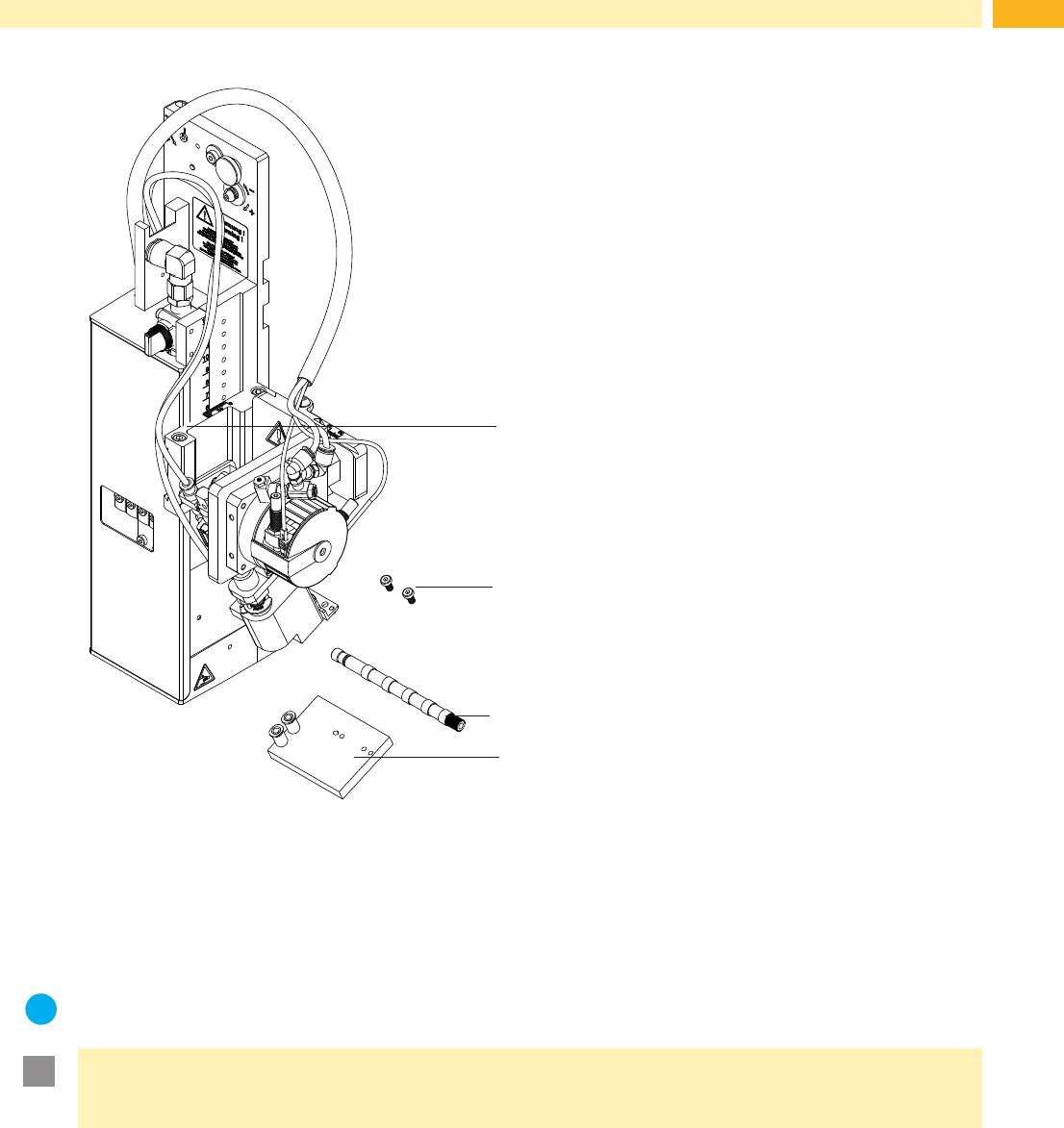

Fig. 5 Contents of delivery
i
Note!
Please keep the original packaging in case the applicator needs to be returned.
!
Attention!
The device and printing materials will be damaged by moisture and wetness.
Only set up the label printer with applicator in dry locations protected from moisture and splashes.
10 10
3 Operation
y
x
z
3.1 Standard Operation
Check all external connections.
Load the material. Ensure that the locking system is closed "Operator's Manual" of the printer.
Open the shutoff valve.
!
Attention!
Ensure that the pad is not covered by a label when switching on the printer-applicator system, or the
vacuum sensor may be calibrated incorrectly.
Switch on the printer.
i
Note!
In case the pad is outside the starting position at the moment of switching on the air pressure the procedure
will be interrupted and an error message will be displayed.
By pushing the pause button on the printer the error is acknowledged and the pad will move back to its
starting position.
The Applicator is ready for work.
Press the feed key of the printer.
A synchronization feed is initiated and the processed labels need to be removed manually. After a few seconds
the printer carries out a short backfeed to position the front edge of the next label at the start of the printing line.
i
Note!
This synchronizing also has to be carried out when the print job has been interrupted with the cancel key.
Synchronizing is not necessary when the print head was not lifted between print jobs. This also applies if
the printer was powered off between print jobs.
Start a print job.
Start the labelling process via PLC interface.
Error messages that occur during the labelling process are shown in the display of the printer 4 Error Messages.
3.2 Cleaning
!
Attention!
Never use solvent and abrasive.
1
Clean the outside surfaces with multi purpose cleaner.
Remove dust particles and leftover label pieces with a soft
brush and/or vacuum cleaner.
The slide foil (1) requires regular cleaning as the most dirt
is deposited here.

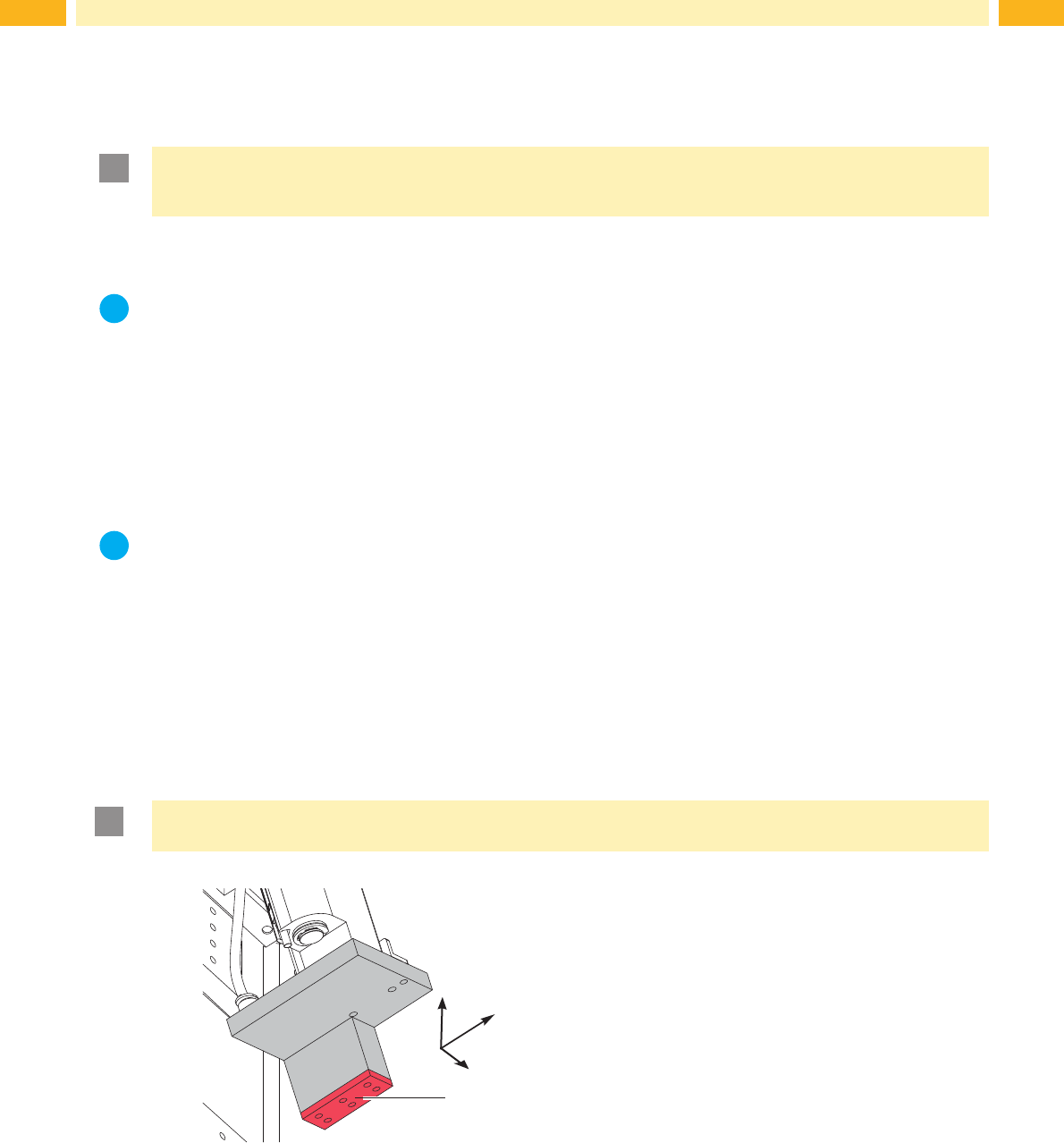

Fig. 6 Cleaning pad with slide foil
11
1
1
2
2
6
7
3
4
5
3 Operation
Fig. 7 Mounting applicator to printer
!
Attention!
Initiation,adjustmentsandchangingofpartsistobeperformedbyqualiedservicepersonalonly.
Initiation/Service Manual Applicators
!
Attention!
Disconnect the printer from the power supply before mounting the applicator!
Ensure that the printer is positioned stably and securely.
Connect the compressed air only after mounting the applicator to the printer!
To clean the applicator and printer it is sometimes necessary to turn away or even dismount the applicator from the
printer.
Take care not to adjust the setting screws, throttle valves or other alignment elements. This will enable use of the
applicator directly after cleaning.
Pivot away/dismount the applicator
1. To turn away the applicator loosen thumbscrew (5) and swing the applicator aside.
2. Disconnect SUB-D 15 male connector (6) from the female connector (7) of the printer.
3. Loosen screw (4) and slide the locking plate (3) off.
4. Lift the applicator off the hinges.
Mount the applicator
1. Mount the applicator to the printer via the female hinges (1) to the printer via the male hinges (2).
2. Connect SUB-D 15 male connector (6) to the female connector (7) of the printer.
3. To secure the applicator from slipping out of hinges loosen screw (4) and move the locking plate (3) under the
hinges and tighten screw (4).
4. Swing the applicator to the printer and tighten the thumbscrew (5).
