10 Spare Parts
10.1 Retainer Assembly
Fig. 29 Retainer Assembly - Spare Part
No. Part-No. Description PU Serial No.
from to
1 5902489.001 Screw DIN7984-M4x8 10
2 5964129.001 Cover 1
3 5964367.001 Knurled Screw 1
4 5965963.001 Set Screw 1
5 5904544.001 Spring 10
6 5902241.001 Screw DIN7984-M4x10 10
7 5964036.001 Base Plate 1
8 5966530.001 Eccentric 1
9 5966529.001 Hinges 1
No. Part-No. Description PU Serial No.
from to
10 5964090.001 Bar 1
11 5903525.001 E-Ring DIN6799-4 10
12 5964429.001 Plate 1
13 5902021.001 Screw DIN7991-M3x6 10
14 5970013.001
AdapterProle 1
15 5902167.001 Screw DIN912 M5x50 10
16 5964331.001 Crossbeam 1
17 5964328.001 Clamping Element 1
18 5964062.001 Binder 1
34 34
23: * Option
10 Spare Parts
10.2 Pneumatics Retainer Assembly
Fig. 30 Pneumatics Retainer Assembly - Spare Part
No. Part-No. Description PU Serial No.
from to
1 5902489.001 Screw DIN7984-M4x8 10
19 5905285.001 Push-in L-Connector 1
20 5902863.001 Screw DIN7984 M4x25 10
21 5905284.001 Block Valve 1
22 5906656.001 Push-in/threaded Fitting 1
23 5966414.001 Pressure Reduce Valve 1
24 5966460.001 Tube 2m
25 5966465.001 Tube 2m
26 5966466.001 Tube 2m
27 5966464.001 Tube 2m
28 5966463.001 Tube 2m
29 5905972.001 Push-in Y-Fitting 1
No. Part-No. Description PU Serial No.
from to
30 5906852.001 Valve Block 1
31 5906021.001 Valve 1
32 5906022.001 Valve 1
33 5902863.001 Screw DIN7984 M4x25 10
34 5905317.001 Push-in L-Connector 1
35 5906844.001 Vacuum Generator 1
36 5905257.001 Silencer 1
37 5905338.001 Push-in T-Connector 1
38 5905283.001 Push-in/threaded Fitting 1
39.1 5964277.001 Blow Tube 2" 1
39.2 5964095.001 Blow Tube 4" 1
Cable
Tube
35
10 Spare Parts
10.3 Electronics Retainer Assembly

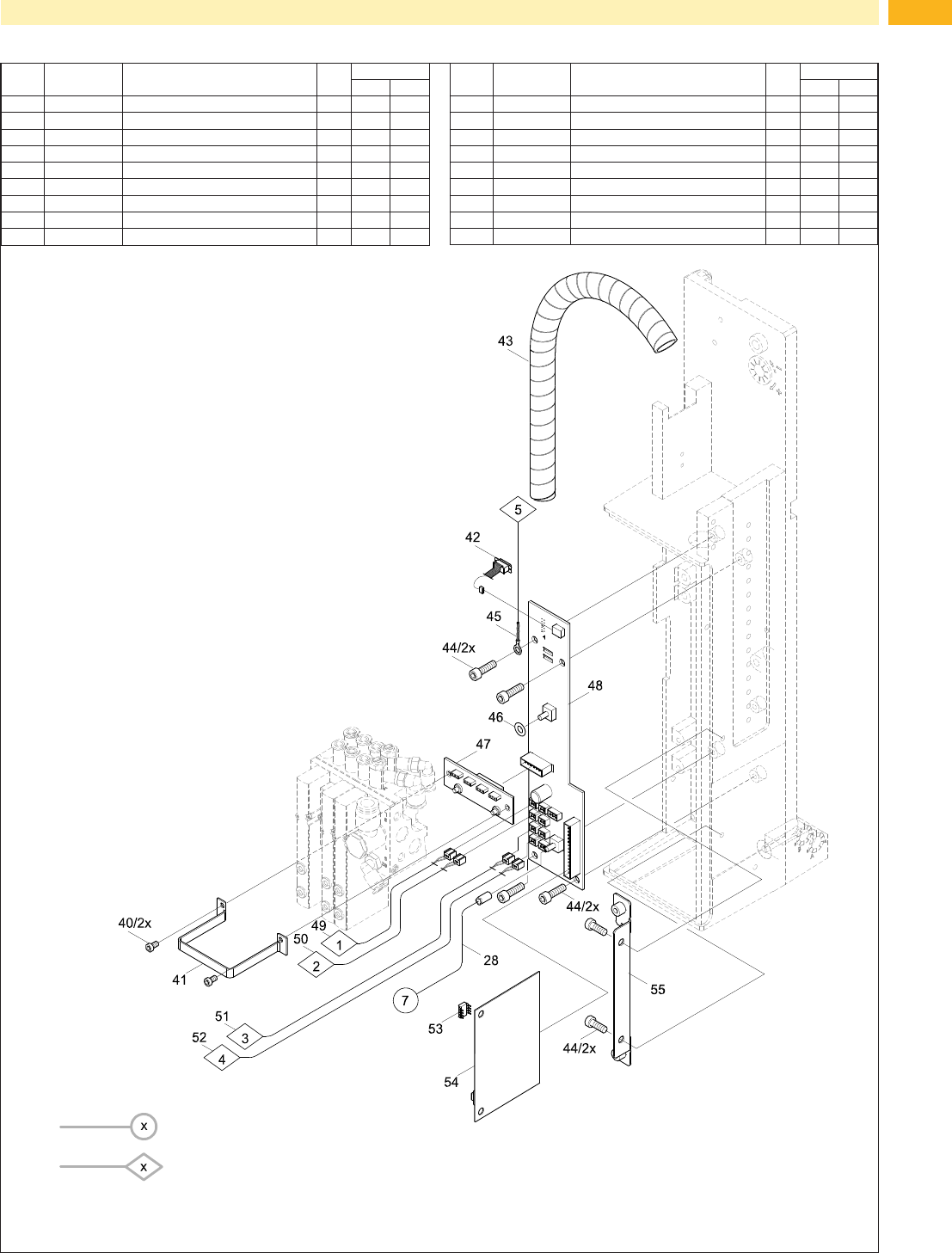

Fig. 31 Electronics Retainer Assembly - Spare Part
Cable
Tube
No. Part-No. Description PU Serial No.
from to
28 5966463.001 Tube 2m
40 5902144.001 Screw DIN7984-M3x5 10
41 5964045.001 Bracket 1
42 5955586.001 Cable 1
43 5966584.001 Spiral Tube 1
44 5902571.001 Screw DIN7984-M4x6 10
45 5964590.001 Cable 1
46 5906943.001 Sealing Ring 1
47 5955585.001 PCB Valve Block 1
No. Part-No. Description PU Serial No.
from to
48.1 5955579.001 Applicator Interfaces 1 6123
48.2 5971416.001 Applicator Interfaces 1 6124
49 5966556.001 Sensor 1
50 5966557.001 Sensor 1
51 5966559.001 Sensor 1
52 5966558.001 Sensor 1
53 5966570.001 Sensor 1
54 5955575.001 Applicator Control 1
55 5966417.001 Retainer 1
