10 Spare Parts
10.5 Pad Assembly

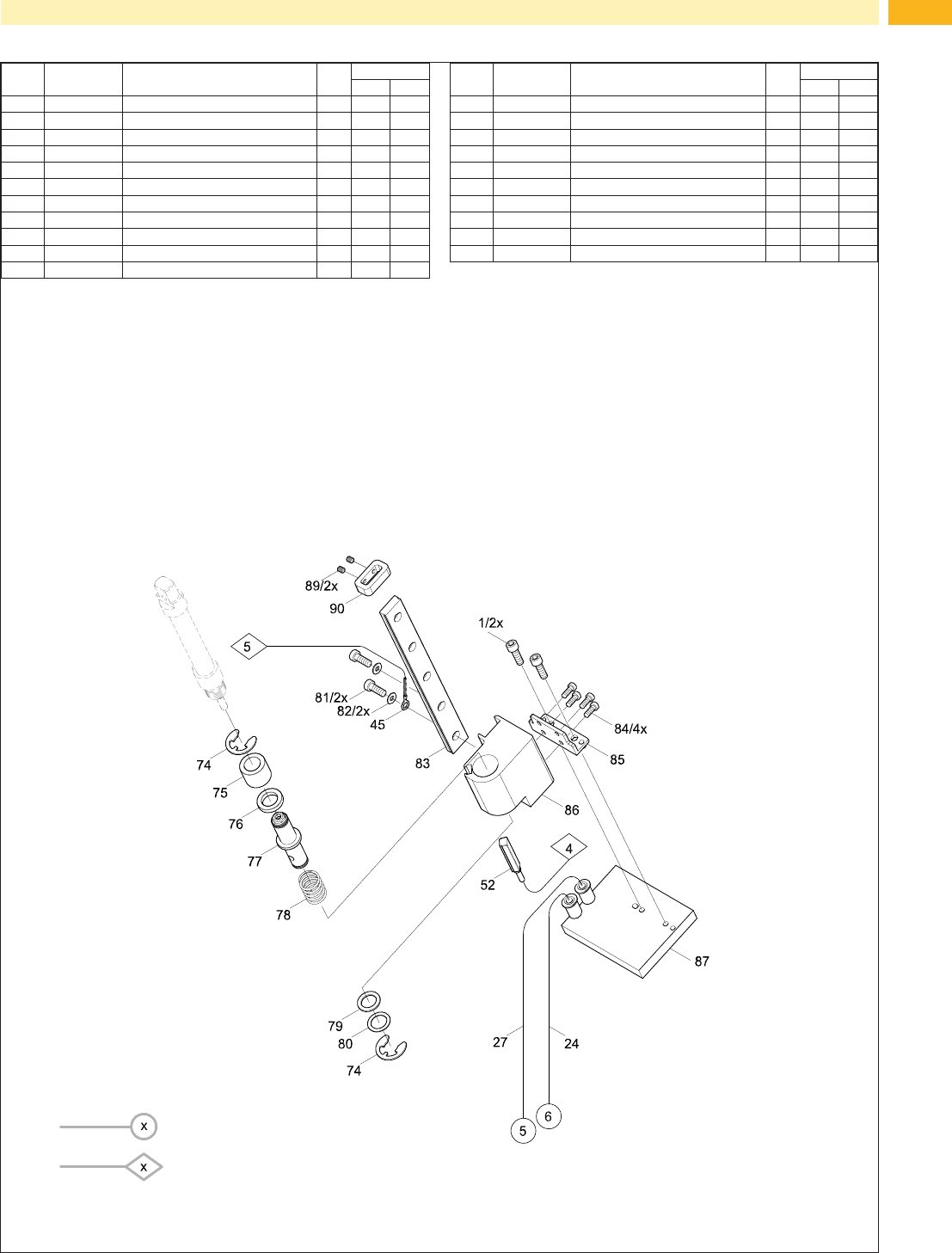

Fig. 33 Pad Assembly - Spare Part
No. Part-No. Description PU Serial No.
from to
1 5902489.001 Screw DIN7984-M4x8 10
24 5966460.001 Tube 2m
27 5966464.001 Tube 2m
45 5964590.001 Cable 1
52 5966558.001 Sensor 1
74 5903510.001 E-Ring DIN6799-9 10
75 5941808.001 Bushing 1
76 5905602.001 Ring Magnet 1
77 5949191.001 Adapter Bolt 1
78 5905096.001 Spring 5
79 5521158.001 Washer 1
No. Part-No. Description PU Serial No.
from to
80 5521157.001 Washer 1
81 5902010.001 Screw DIN912-M3x10 10
82 5903004.001 Washer DIN125-A3.2 10
83 5970123.001 Guide Rail L=230 1
84 5902838.001 Screw DIN7984-M3x6 10
85 5964456.001 Adapter 1
86 5966534.001 Pad Retainer 1
87 Pad (customized)
89 5904528.001 Set Screw DIN913-M3x4 10
90 5966918.001 Stopper 1
Cable
Tube
38 38
11 Drawings
11.1 Block Diagram Type 3214
48
Applicator Interfaces
49
Sensor Start Position Cylinder Z
CON 2
CON 1
CON 21
CON 22
CON 3
CON 11
CON 12
47
Electronic
Valve Block
CON 1
CON 2
CON 3
CON 4
CON 5
54
Applicator Control
CON 1
31
Magnetic Valves
Cylinder Z
52
Sensor End Position
Cylinder R
51
Sensor Start Position
Cylinder R
42
SUB-D 9
Interface To Printer
31
Magnetic Valves
Cylinder R
31
Magnetic Valves
Blow Ai
32
Magnetic Valves
Support Air/Vacuum
50
Sensor End Position Cylinder Z

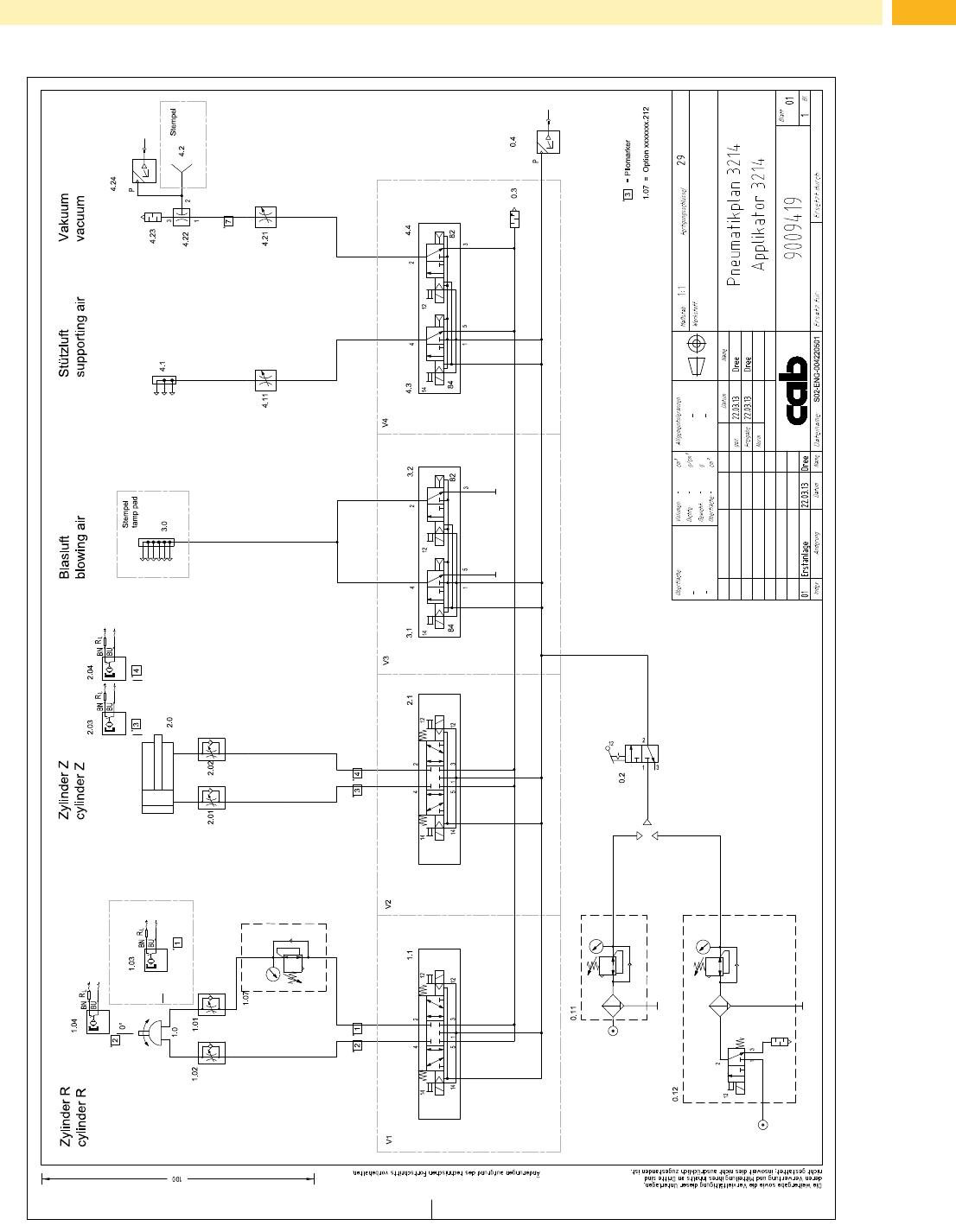

Fig. 34 Block diagram 3214
53
EEPROM
