2 Operating Safety SIPLACE Multi-Docking-St ation 2.3 ESD guidelines Operating Manual 14 2.3 ESD guidelines Please observe the informatio n on the ESD directives as indicated in the operating manual of the placement sy…
13
SIPLACE Multi-Docking-Station 2 Operating Safety
Operating Manual 2.2 Warning Signal and Warning and Danger Labels
2.2 Warning Signal and Warning and Danger Labels
2.2.1 Cleaning the Warning Labels
WARNING
Do not use harsh detergents or solvents for cleaning the warning labels.
Be sure to replace any warning labels that are missing, damaged, or no longer readable.
Pay attention to the correct location of the warning labels.
2.2.2 Warning and Danger Labels
2.2.2.1 Warning Label W 206
Part No.: 03009345-01
Label locations: On the SIPLACE Multi-Docking Station
- Covers for the power supply
Num
ber per machine: 4
Class: WARNING

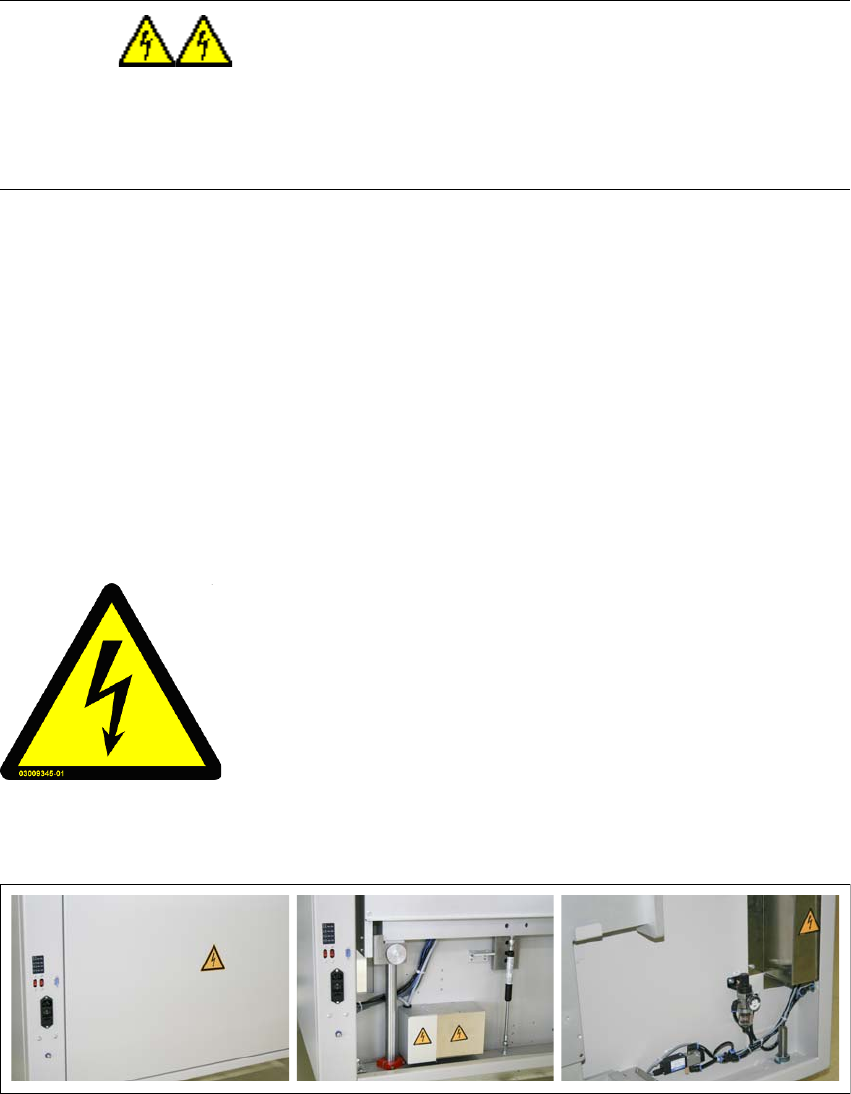

Fig. 2 - 1 Warning label W206, part no. 03009345-01
Fig. 2 - 2 Warning label W206, part no. 03009345-0
1 - label locations
Dangerous voltage!
Parts labelled with this sticker are live even when the main switch
is switched off.
Disconnect the machine from the supply system before
commencing any service work!
NAFTA Region: Risk Of Electric Shock Or Burn.
2 Operating Safety SIPLACE Multi-Docking-Station
2.3 ESD guidelines Operating Manual
14
2.3 ESD guidelines
Please observe the information on the ESD directives as indicated in the operating manual of the
placement system.
15
SIPLACE Multi-Docking-Station 3 Product Description
Operating Manual 3.1 Functional Description
3 Product Description
Part No. 00176145-01 SIPLACE Multi-Docking Station
3.1 Functional Description
General
The SIPLACE Multi-Docking Station is an
additional component to the pre-setup station. It is the
link between the pre-setup station and the component cart of the SIPLACE X and SX series. The
docking station allows the external setup of component carts with feeder modules, function tests
and setup checks for the sizes COT 30, 40 and 60.

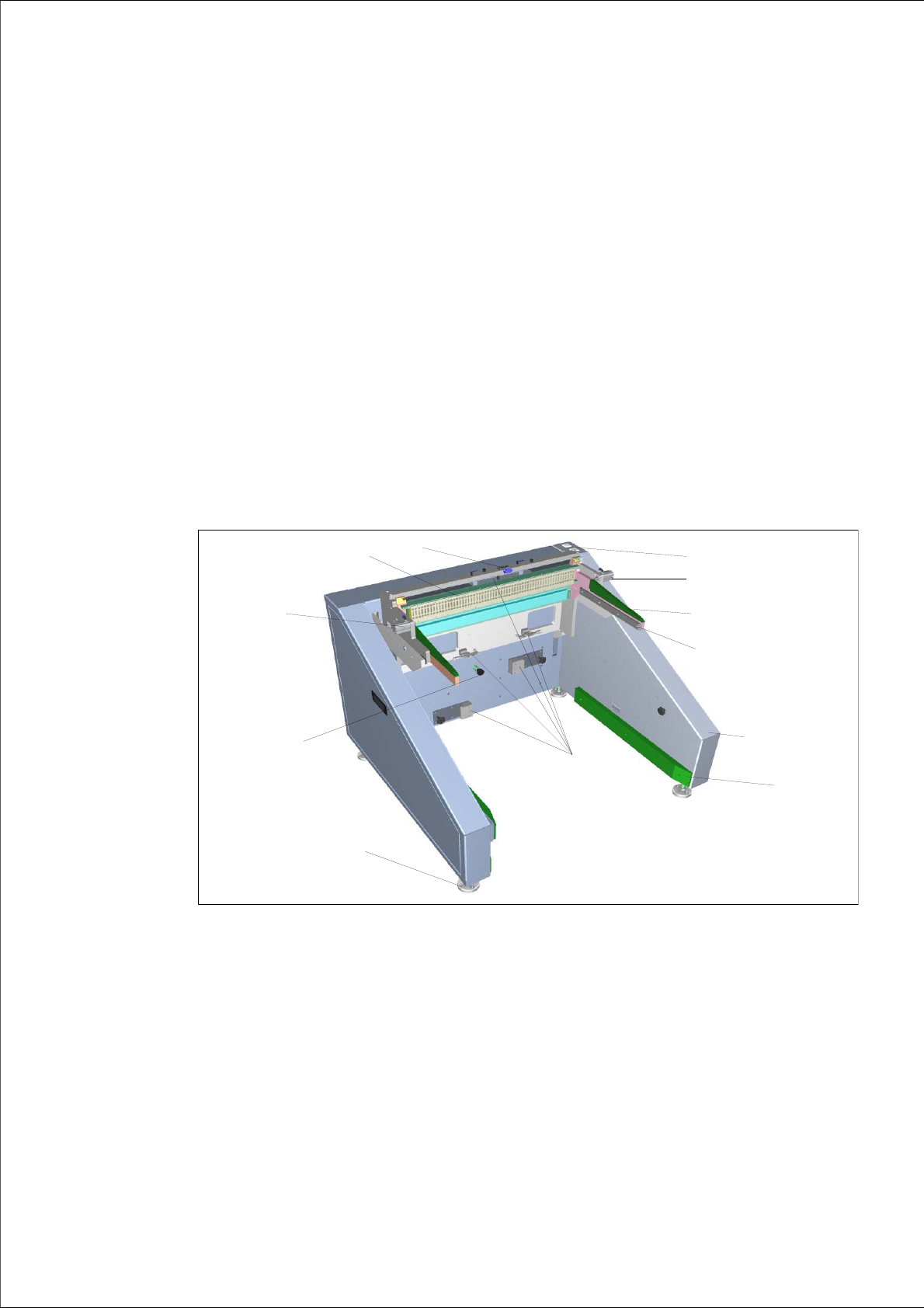

Fig. 3 - 1 SIPLACE Multi-Docking Station
(1) SIPLACE Multi-Docking Station (6) Control buttons
(2) Component cart docking device (7) EDIF (power and data interface)
(3) Skid strips for guiding and docking the
compon
ent table
(8) Adjustable feet for height adjustment and
fastening to the ground
(4) Pneumatic cylinder for locking the
compon
ent cart
(9) Detent pin for transport height adjustment
(5) Sensor for component cart detection (10)Support for adapter COT 30 / 40.
1
5
3
2
4
7
8
6
3
4
9
10
