4.3.2 Undocking the SIPLACE SX Component Cart from the Multi-Docking Station
WARNING
Do not reach between the areas between the component cart and the SIPLACE Multi-Docking
Station during docking.
– Undocking the component cart requires that the feed be locked.
Make sure that the green feeder lock
ing button is lit.
– Push the white component cart release button. The component c
art will be released.
– Pull the component cart from the re
ar out of the docking station.
4.4 Conversion to COT 30 or COT 40
DANGER
Prior to converting the SIPLACE Multi-Docking Station, be sure to switch it o
ff at the main power
switch and disconnect the power cord from the power supply.
4 Operation SIPLACE Multi-Docking-Station
4.4 Conversion to COT 30 or COT 40 Operating Manual
28
4.4.1 Standard COT 60

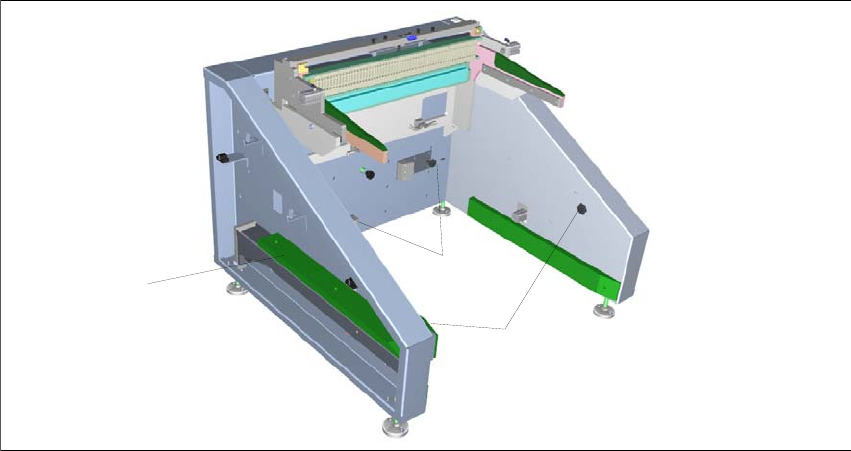

Fig. 4 - 6 SIPLACE Multi-Docking Station – COT 60
(1) Guide strip used for options COT 30 and COT 40.
(2) Star knob screws for securing the angle brackets
to the sides on the options COT 30 and
COT 40.
(3) Star knob screws for securing the guide strip and
the angle bracket on the guide strip.
1
2
3
29
SIPLACE Multi-Docking-Station 4 Operation
Operating Manual 4.4 Conversion to COT 30 or COT 40
4.4.2 Adapter COT 30 – Option

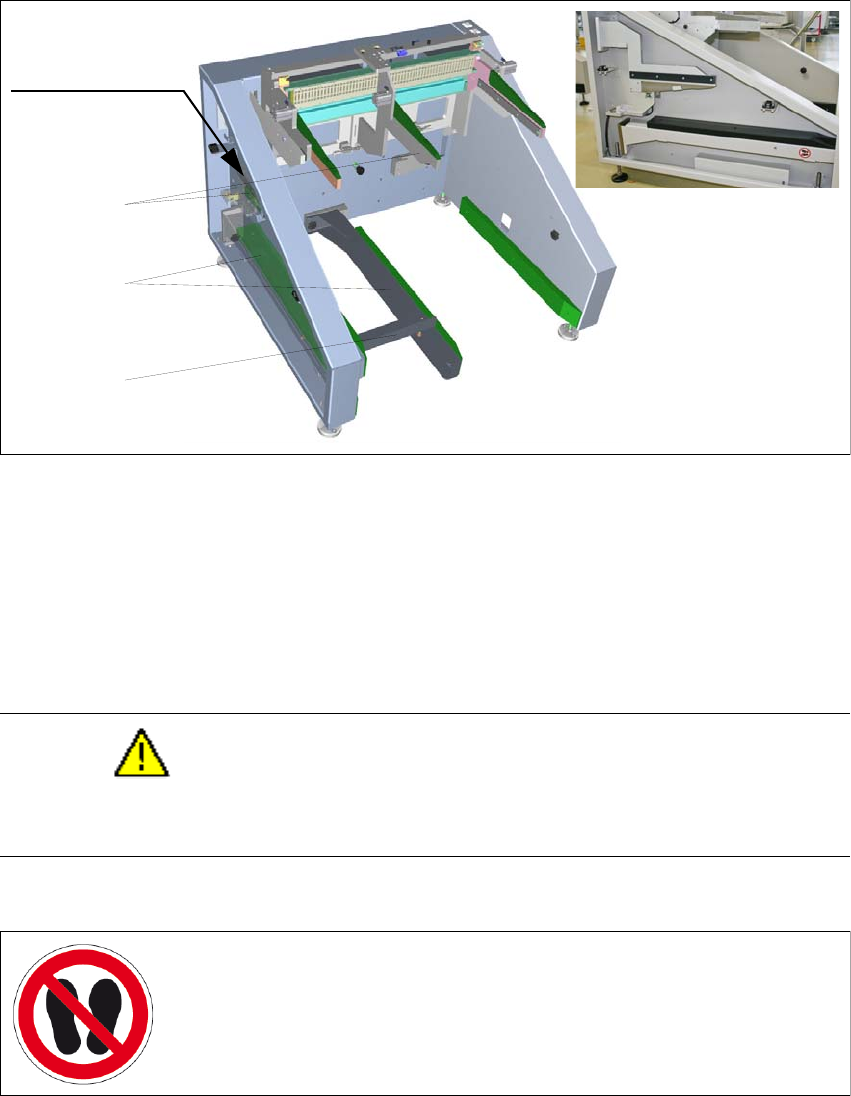

Fig. 4 - 7 SIPLACE Multi-Docking Station – COT 30
(1) Guide strip
(2) Angle bracket COT 30
(3) Skid strip COT 30
The items (2) and (3) are included in the mounting accessories with part number 00176146-01.
CAUTION
Do not stand on the guide strip or apply loads from
above or below. This will damage the guide
strip and its retainer.
1
3
2
Storage space for
the COT 30
accessories.
Keep off
Label locations: On the SIPLACE Multi-Docking Station
- Guide strip, on top and bottom sides.
Number per machine: 2
