4.1.1.5 Step 4 - Set Up Production Line Schedule
The SIPLACE Explorer Calendar allows you to specify a production line schedule: 4
– Define a weekly shift schedule,
– Plan engineering and scheduled downtime for machines in the line and
– Apply the schedule to a time interval.
4

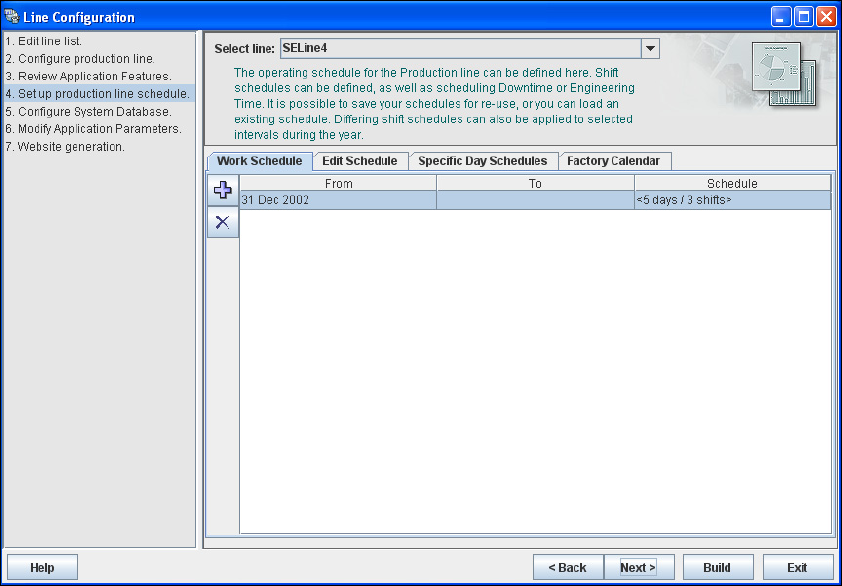

Fig. 4 - 10 Step 4: set up production line schedule
When the schedule for the production line as been defined, click on Next to continue with the
next step.
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2020 EN 4.1 Standard Monitoring Application (SMA)
49
4.1.1.6 Step 5 - Configure System Database
Now you can configure the SIPLACE Explorer system database settings:
– MS SQL Server instance:port number
You can add the port number to the SQL Server instance, separated by a colon, for
example: PLK0495A\SIPLACE_2005EXPR:12345.
– Database name
– User Name
–Password
If you have imported a production line from the OIS the SIPLACE Explorer database settings
are automatically adopted.
NOTE
Click on the Browse for SQL instances icon. All SQL server instances available will be
shown in the Select SQL Server instance dialog box.
If the Select SQL Server instance dialog box shows no entries, you need to specify the SQL
server instance manually in the MS SQL Server field. You can add the port number to the
SQL Server instance, separated by a colon, for example:
PLK0495A\SIPLACE_2005EXPR:12345. 4
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.1 Standard Monitoring Application (SMA) Edition 11/2020 EN
50
4
Fig. 4 - 11 Step 5: configure system database
After entering the database access parameters, we strongly recommend that you check the
connection to the database. Click Test to check whether the connection to the database can
be established.
If the connection does not function properly, you will see the following information box:
4
Fig. 4 - 12 DB error
Click on the Setup DB Connection button to start the DB Connection Wizard setup
sequence and configure the SIPLACE Explorer system database. Follow the instructions at
“Database Connection Wizard” on page 80.
