4 Configuration Installation and Configuration Guide SIPLACE Exp lorer 4.2 Configuring the Factory Configuration Utility Edition 11/202 0 EN 64 NOTE We recommend activating this DB compression step, when the user has res…
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2020 EN 4.2 Configuring the Factory Configuration Utility
63
Confirm your entries with OK. The DB backup location dialog box will open
4

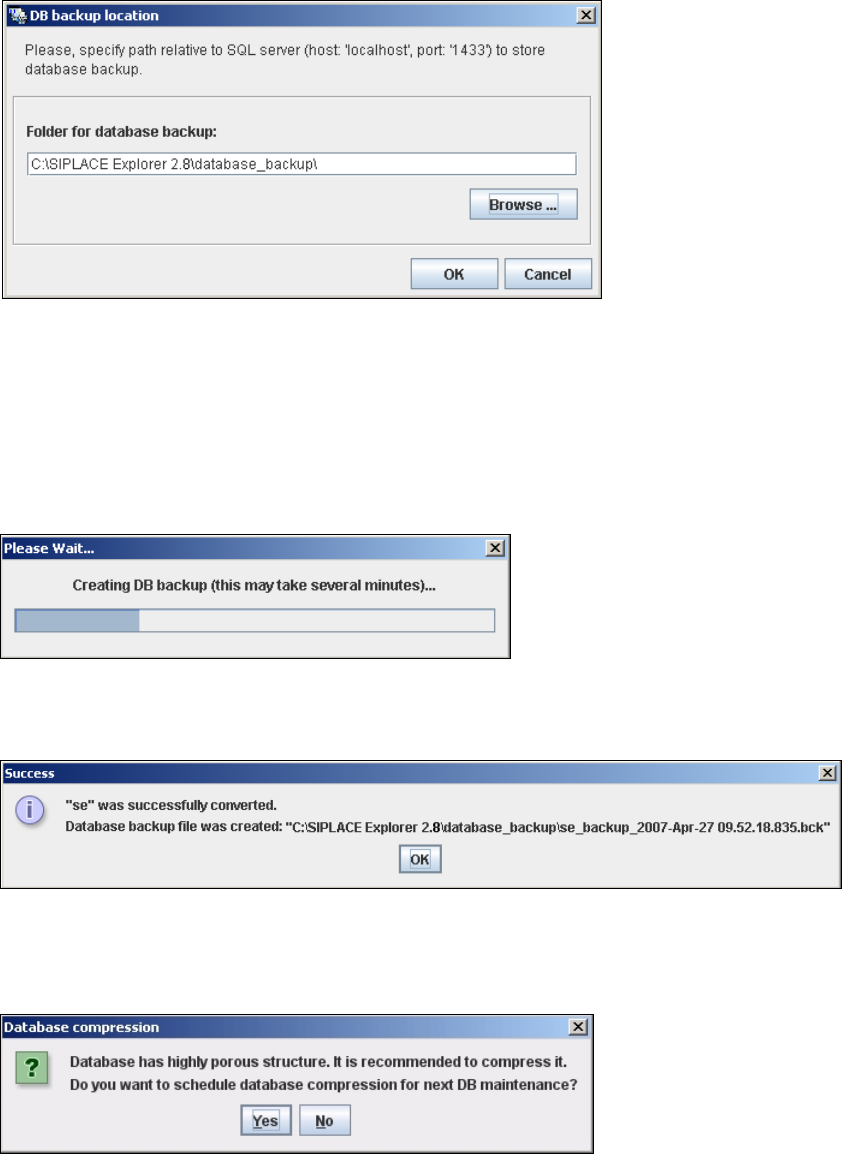

Fig. 4 - 31 DB backup location
Before performing the conversion, the system creates a backup file of the database. Specify
the folder for this file in the Folder for database backup field. Click on the Browse ...
button to select an existing folder.
Confirm your choice with OK. The database will be converted. This may take up to one
hour. The conversion time depends on the size of the database.
4
Fig. 4 - 32 DB backup
After successful conversion of the database, the following information window will open:
4
Fig. 4 - 33 Success
Dependent of the database size, you can compress the database, the following information
window will open:
4
Fig. 4 - 34 Database compression
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.2 Configuring the Factory Configuration Utility Edition 11/2020 EN
64
NOTE
We recommend activating this DB compression step, when the user has restored the
SIPLACE Explorer factory database or has moved the raw database files to another disk or
to another computer.
With the DB compression it is possible to avoid extended access times of the websites. 4
Click Yes, to compress the database at next DB maintenance.
Click OK. The Factory Configuration Utility dialog box will open.
4.2.2 Configuring Production Lines
The SIPLACE Explorer Factory Configuration Utility can be used to add production lines to an ex-
isting list of lines to be monitored. This is performed by calling up the relevant production line data
from the SIPLACE Explorer host. A list of the lines already configured in SIPLACE Explorer will
be provided via the connection to the SIPLACE Explorer host. 4
If you have already configured a production line with the Line Configuration and generated a web-
site, the configured production line will automatically be added to the Factory Configuration Utility
and to the factory website. 4
NOTE
We do not recommend that you change the production line data in SIPLACE Explorer Factory
Configuration Utility. If you do so, you must also adjust/synchronize this data in the SIPLACE
Explorer host. 4
After editing the data in the Factory Configuration Utility, save the modified data in the factory da-
tabase in which all Factory Configuration Utility data are stored. During data backup, data is sent
between the SIPLACE Explorer line host and the factory host. To be more exact, the sequence of
transfer is from the SIPLACE Explorer factory host to the line host and from the SIPLACE Explorer
line host to the SIPLACE Explorer factory host. 4
Transfer of data from SIPLACE Explorer factory host to SIPLACE Explorer line host: 4
– Factory Calendar
– Factory database settings
– Central user management, with e-mail accounts
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2020 EN 4.2 Configuring the Factory Configuration Utility
65
Transfer of data from SIPLACE Explorer line host to SIPLACE Explorer factory host: 4
– Line names
–Line URLs
4.2.2.1 How to Configure Production Lines and Their Properties
Select the Production Lines tab.
4

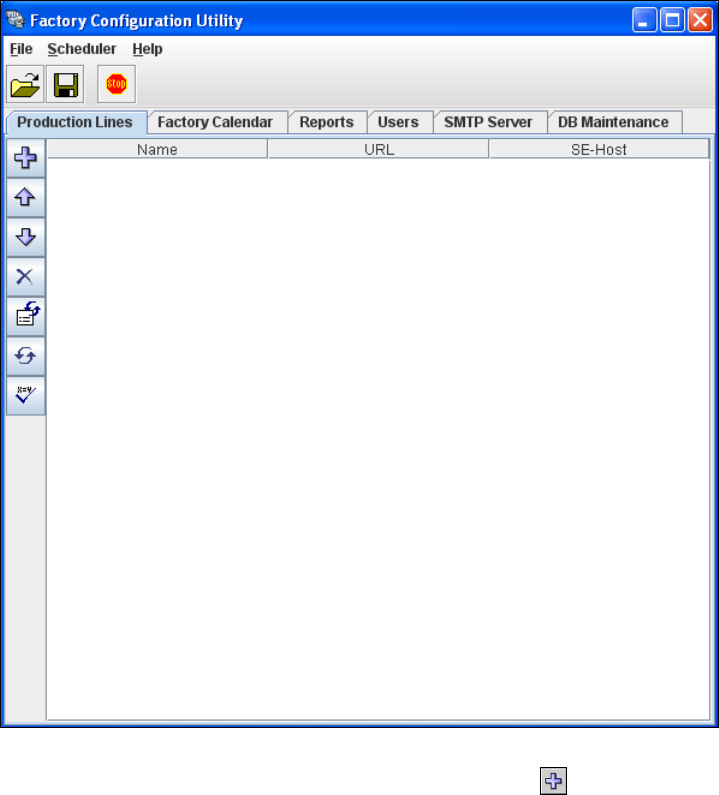

Fig. 4 - 35 Factory Configuration Utility - production lines
Now add the production lines by clicking on the Add Line icon.
The Add Production Lines dialog box will open: 4
