4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.2 Configuring the Factory Configuration Utility Edition 11/2020 EN
76
4
Fig. 4 - 47 DB administrator login
Enter the access data here and confirm your entries with OK.
The input fields in the DB Maintenance dialog box will be enabled. The following details can
be defined:
– The file and path for the archived data
– A schedule specifying the intervals and times when data is to be removed from the line
system database and stored in the archive.
– When to execute the maintenance schedule.
– The archiving schedule defined here will be stored in the database and can be called up
when required.
4
Fig. 4 - 48 DB maintenance
In the DB Backup Schedule panel click on the Edit button.
The DB Administrator Login dialog box will open.
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2020 EN 4.2 Configuring the Factory Configuration Utility
77
4

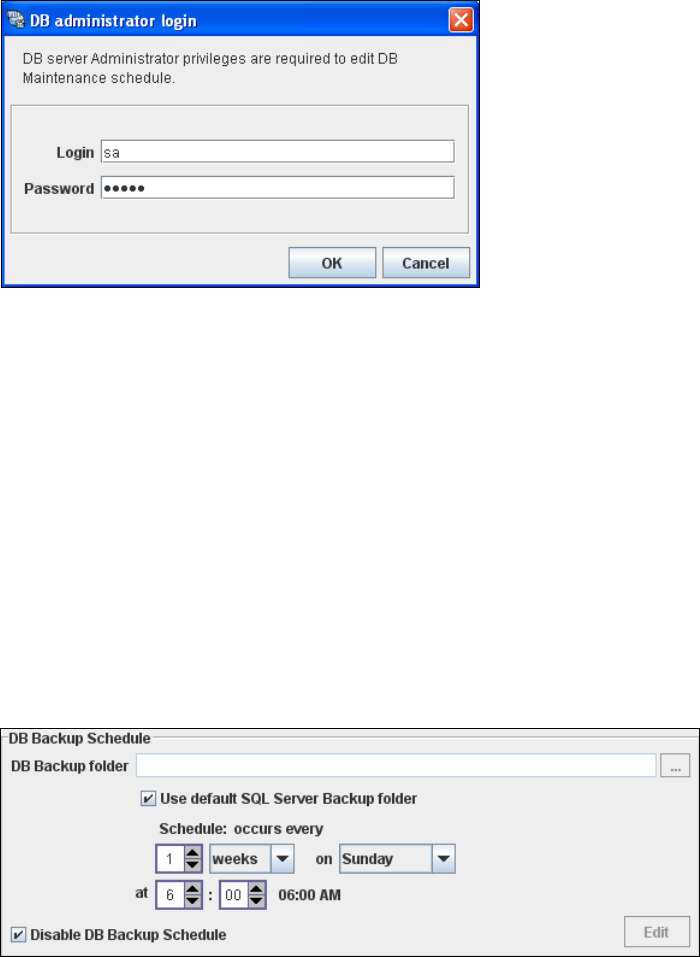

Fig. 4 - 49 DB administrator login
Enter the access data here and confirm your entries with OK.
The input fields in the DB Maintenance dialog box will be enabled. The following details can
be defined:
– The file and path for the saved data
– A schedule specifying the intervals and times when data is to be removed from the line
system database and stored in the archive.
– When to execute the backup schedule.
– The backup schedule defined here will be stored in the database and can be called up when
required.
– Database compression with the next database maintenance.
4
Fig. 4 - 50 DB backup
Check your entries and confirm with OK.
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.2 Configuring the Factory Configuration Utility Edition 11/2020 EN
78
4.2.8 How to Generate a Factory Website
NOTE
To generate a factory website, you require web server manager privileges (Tomcat website
generator) and the corresponding password. 4
Select the function Generate Web Site ... from the File menu.
4
Fig. 4 - 51 Factory Configuration Utility - generate website
Specify the access data for the Tomcat website generator. If you entered admin and an empty
password during Tomcat configuration, this data will be automatically used as a default login.
If this is not the case, use the data you specified during Tomcat configuration.
Please specify the following information:
– URL site
This URL contains a port number, which applies to the web server (Tomcat) e.g. "8080". If
you change the port number here, you will also need to update the port number of the web
server see “Port Configuration after Changing Tomcat Port Number” on page 37.
– Refresh rate
For capacity purposes, we recommend a refresh rate of at least one minute (60000 ms).
– Factory website language
Check your entries and confirm with OK.
Dependent of the database size, you can compress the database. The Compress System
Database dialog box will open.
