Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2020 EN 4.3 Database Settings
81
Setup and configuration of the system database consists of a simple three-step procedure.
Click on Next to continue.
4

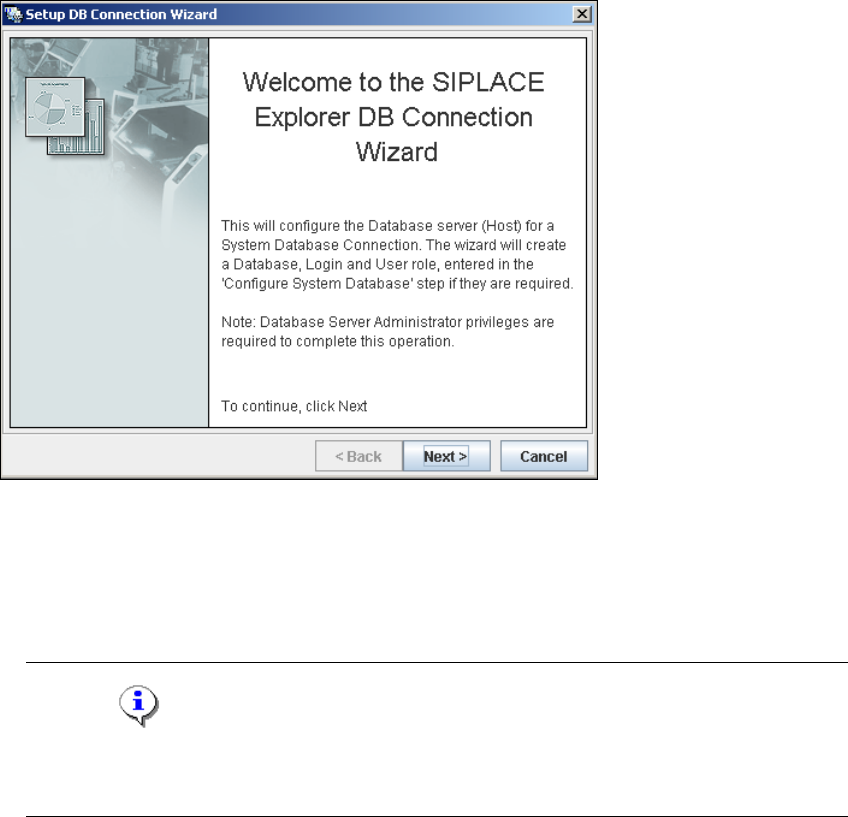

Fig. 4 - 54 Welcome screen - database connection wizard
– Step 1- Connection to Database
At Step 1 you will need to specify your login and password to access the Microsoft SQL
Server. Click on Next to continue.
NOTE
Please note that users must have DB administrator privileges to perform the necessary tests
and configuration. 4
4 Configuration Installation and Configuration Guide SIPLACE Explorer
4.3 Database Settings Edition 11/2020 EN
82
4

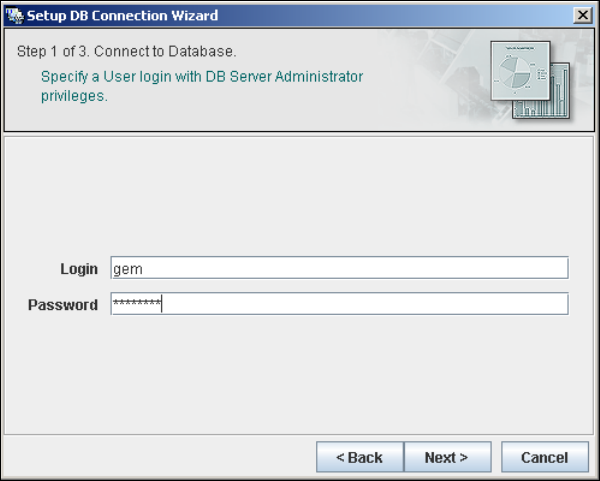

Fig. 4 - 55 Step 1- database connection wizard
At this point, the wizard will connect to the Microsoft SQL Server and run tests to identify
whether the specified database, login and user roles exist. You will see a list of changes
that the wizard will undertake, in order to perform setup and configure the system
database. 4
Installation and Configuration Guide SIPLACE Explorer 4 Configuration
Edition 11/2020 EN 4.3 Database Settings
83
– Step 2 - Perform Configuration Test
At Step 2 you can change your settings. This is also where you define the name of the SE
system database for the line and where you specify the user (and corresponding password)
who is to have access to this database.
4

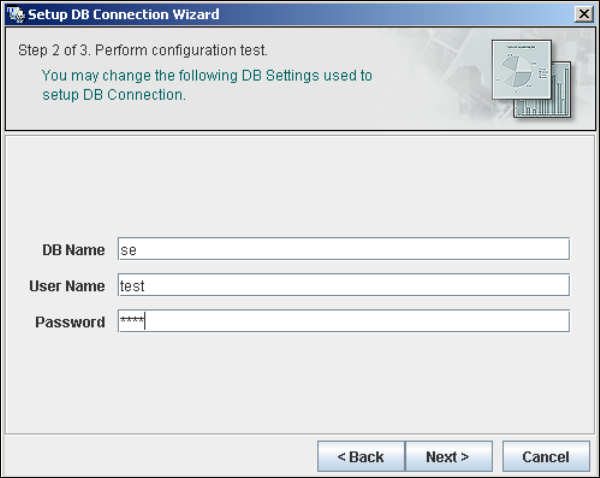

Fig. 4 - 56 Step 2- database connection wizard
Once you have made and checked all entries, click on Next to continue.
