Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
24
2.4 Preparatory work
: Switch the placement machine off at the main switch.
: Isolate the placement machine from the power supply.
2
This is absolutely essential in order to prevent the risk of electric shock. 2
2
2
: Detach the connectors from the new inrush current limiter.
2
2
: Remove the cover from the power supply (between locations 3 and 4).
2
2
2
2
2
2
Detach
connectors
Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
25
: Loosen the screw at the bottom right of the power supply.
2
2
: Pull out the power supply.
2
Loosen screw
Service Manual: Replacing the inrush current limiter, SIPLACE X-series
10/2006 Edition
26
2.5 Replacing the inrush current limiter

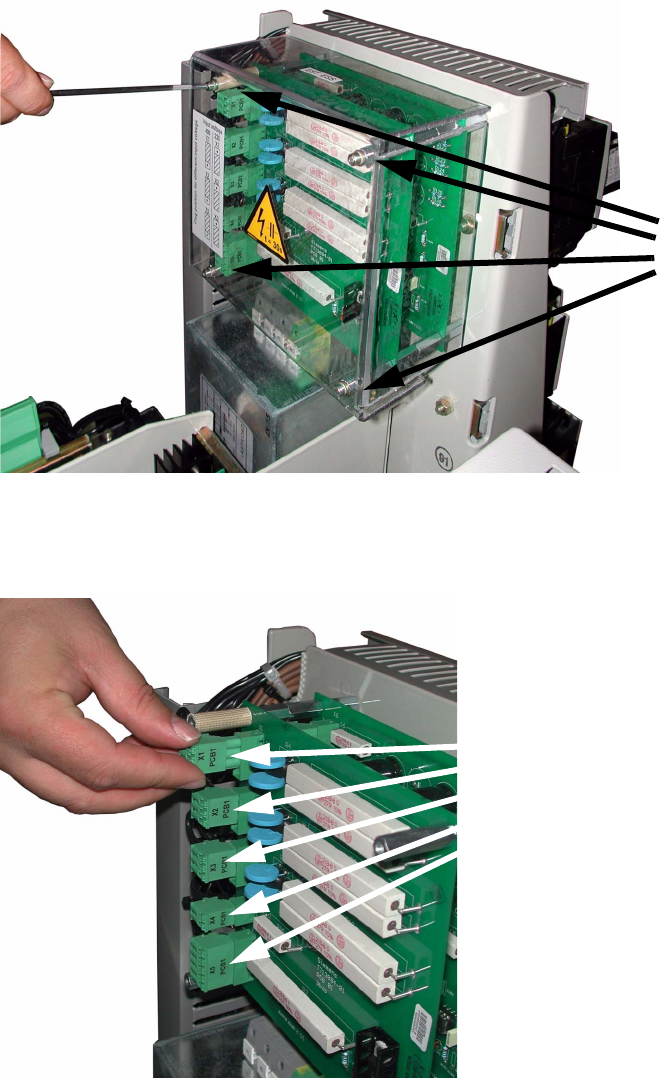

: Loosen the four screws on the Plexiglas cover of the inrush current limiter and remove the
cover.
2
2
: Detach the 5 connectors from the inrush current limiter.
2
4 screws
5 connectors
